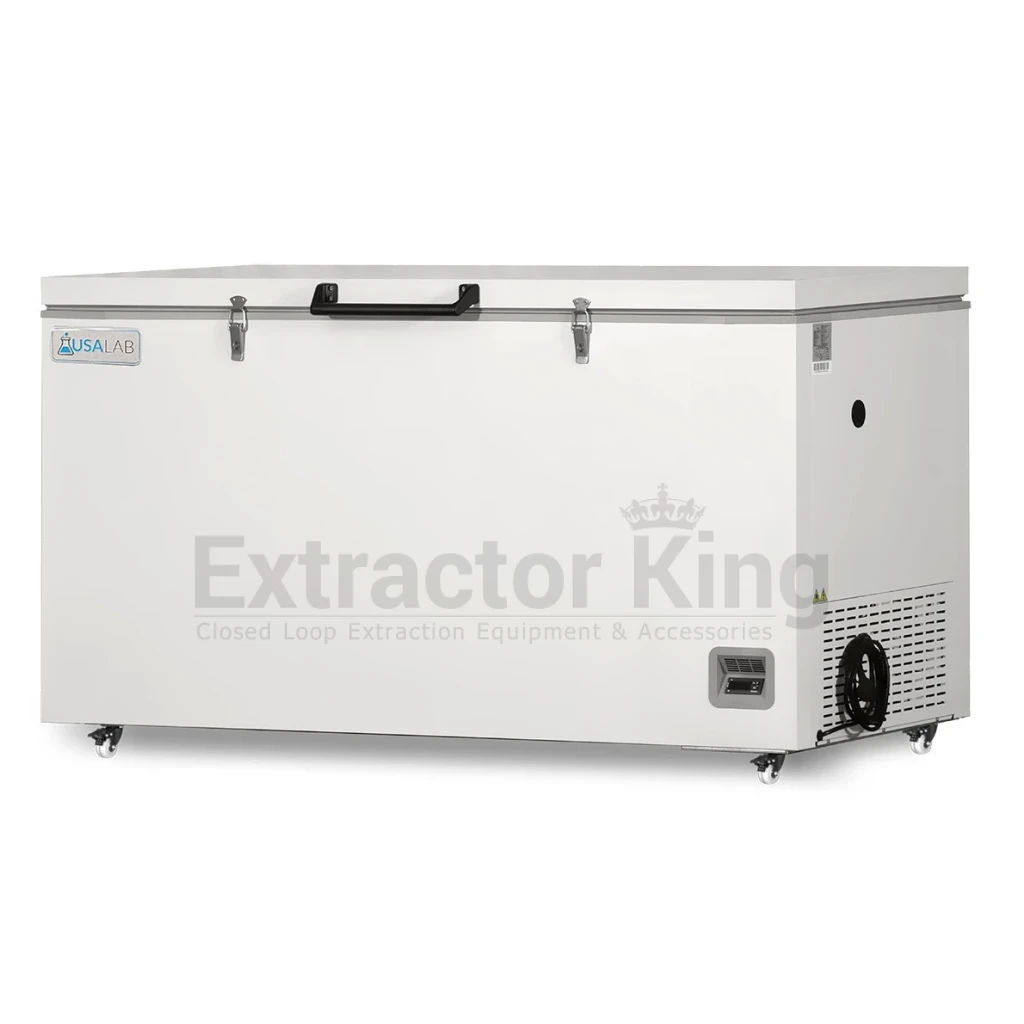

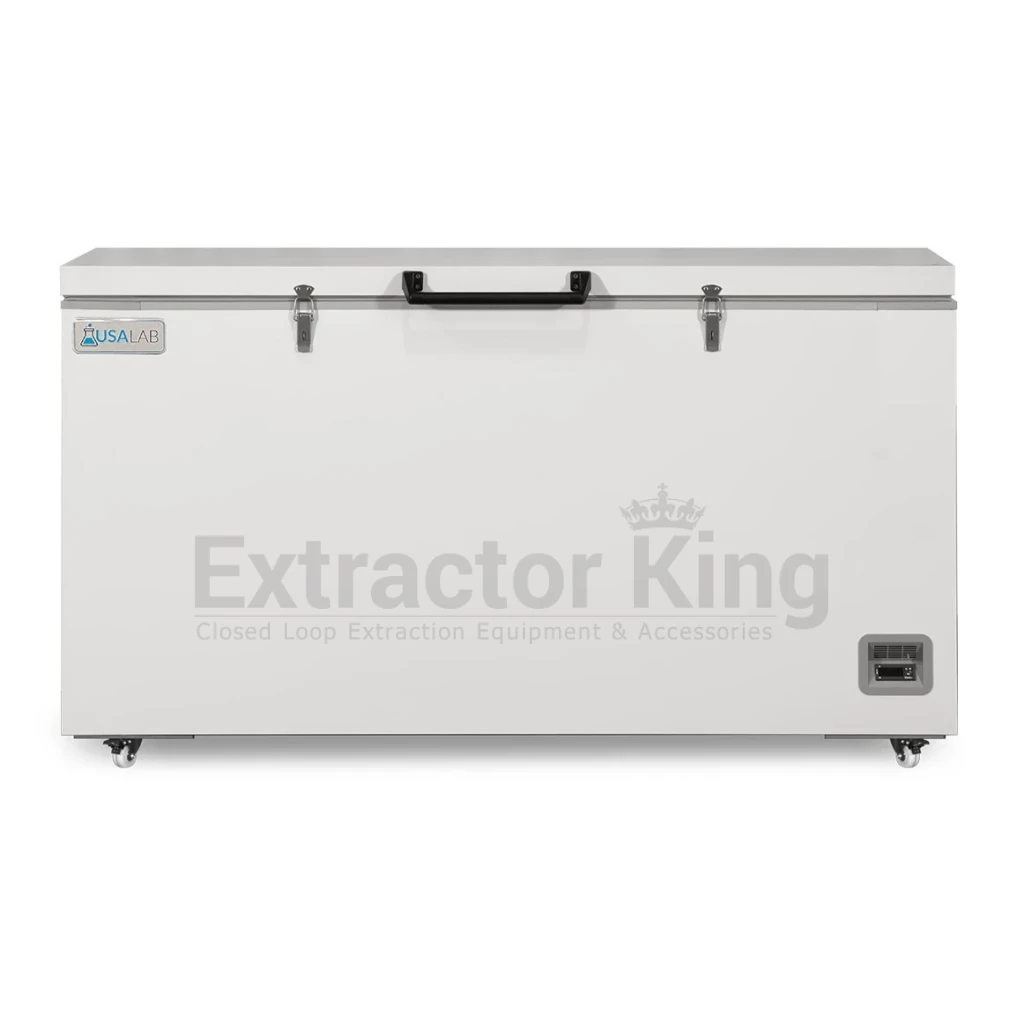

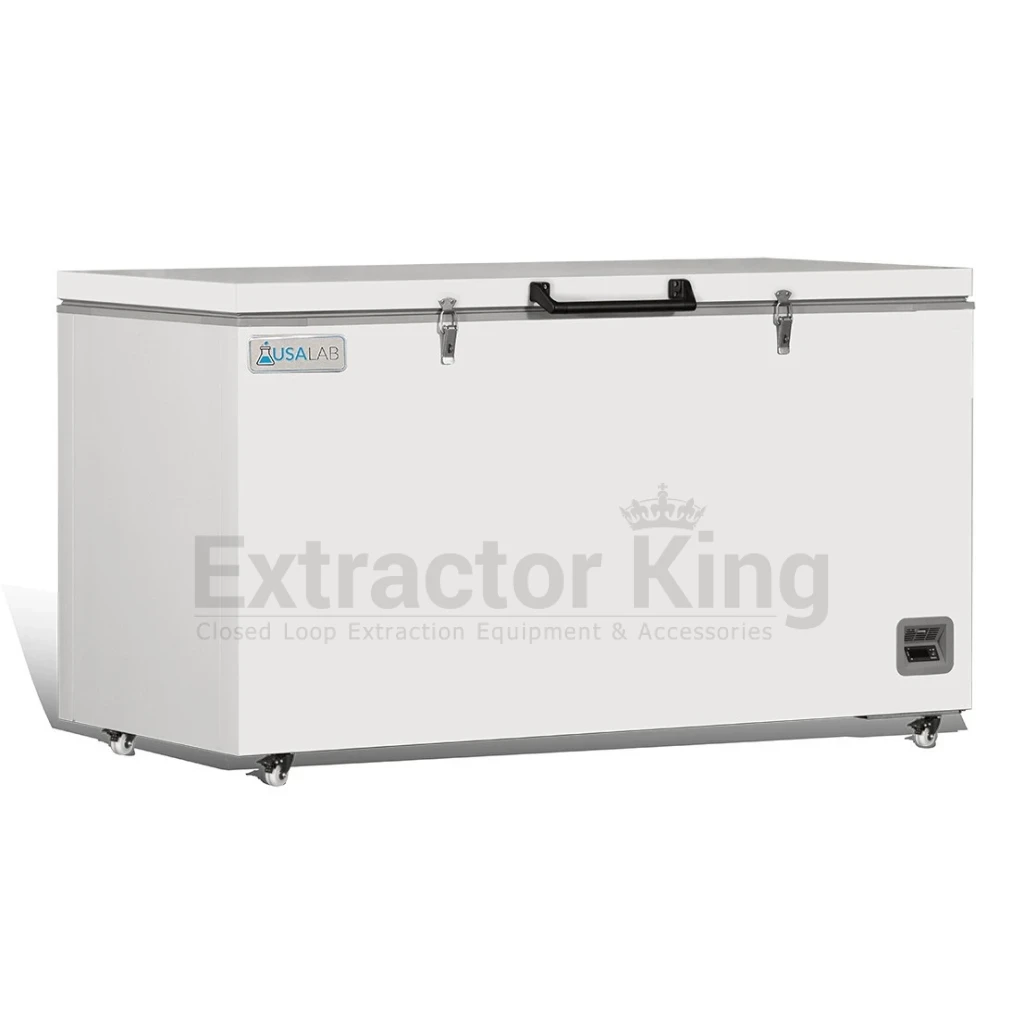

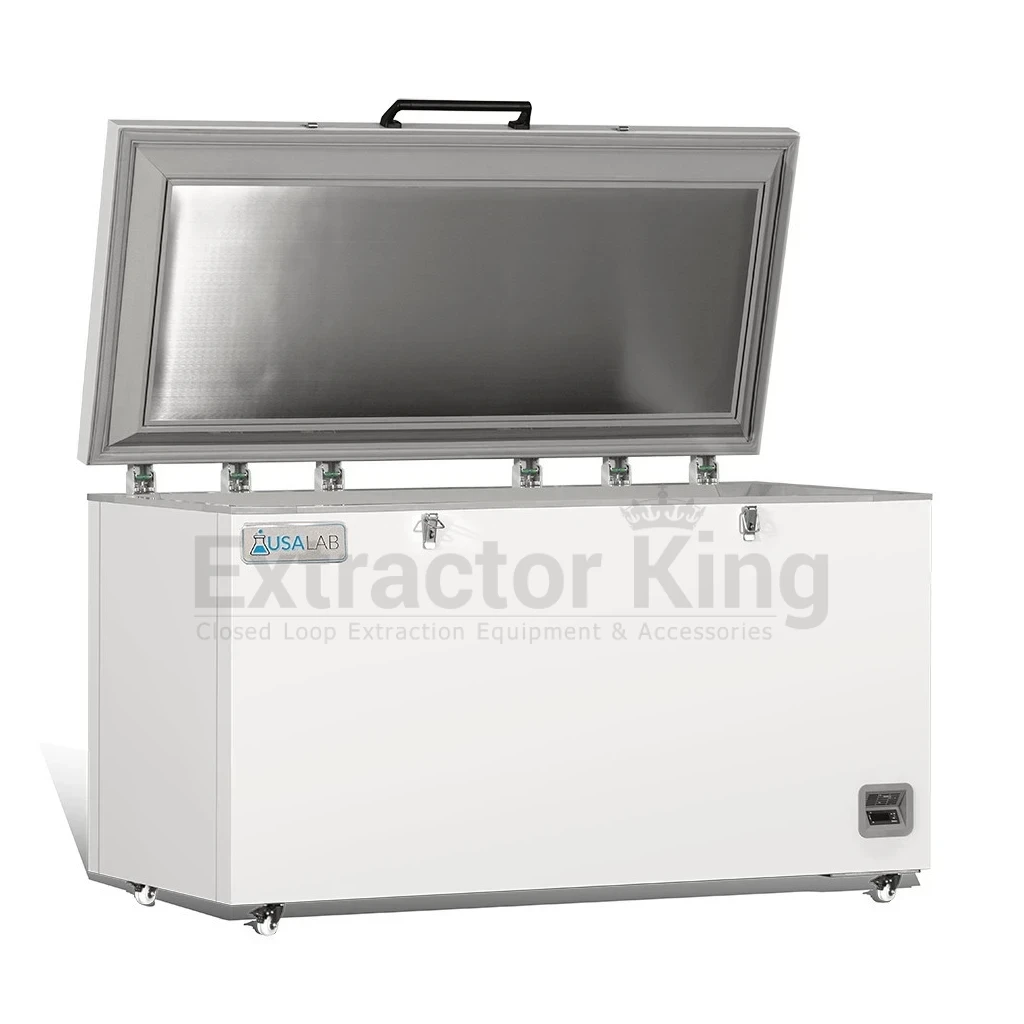

USA Lab EcoChill 17.12 Cu Ft -40°C Chest Freezer - Digital Display
Reference: ECF-17.12-40-E
Manufacturer: USA Lab
EcoChill Series Digital Display 17.12 cu ft Chest Freezer | USA Lab Introducing our EcoChill Series Digital Display Chest Freezer — a reliable, budget-friendly solution for food service, clinical, and laboratory storage. With a working range of −20°C to…
In stock
Payment Providers
More info
EcoChill Series Digital Display 17.12 cu ft Chest Freezer | USA Lab
Introducing our EcoChill Series Digital Display Chest Freezer — a reliable, budget-friendly solution for food service, clinical, and laboratory storage. With a working range of −20°C to −40°C, EcoChill preserves temperature-sensitive items with stable, uniform performance.
Energy-efficient R290 refrigeration, PURF insulation, and direct-cooling architecture reduce power use without sacrificing pull-down speed. A microprocessor controller with a clear digital display makes setpoint changes and monitoring simple and precise.
Freight delivery required; inspect on arrival and note any damage with the carrier.
Cold chain products are non-returnable once shipped.

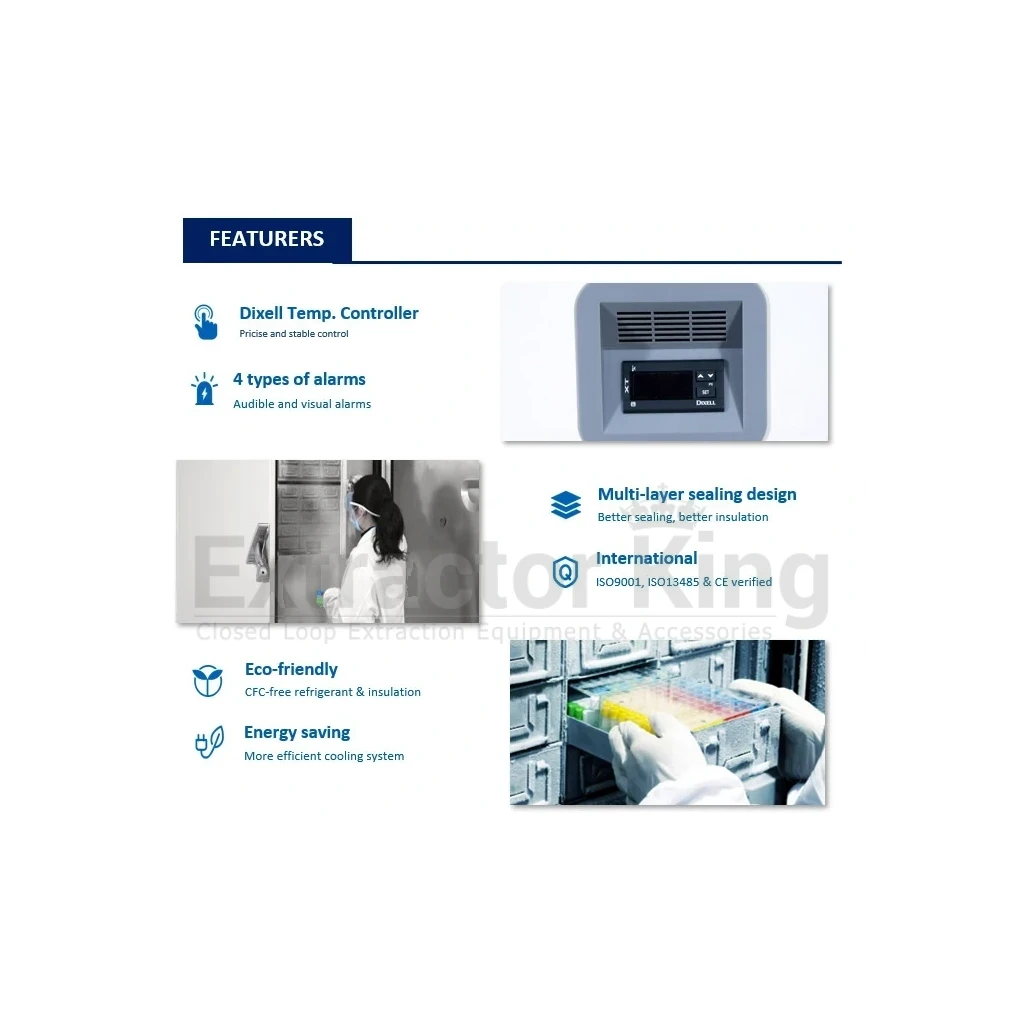

Why this EcoChill Series?
- Cold you can count on — −20°C to −40°C range for food service, clinics, and labs.
- Simple, accurate control — microprocessor controller with bright digital display.
- Efficient by design — direct cooling with R290 and PURF insulation.

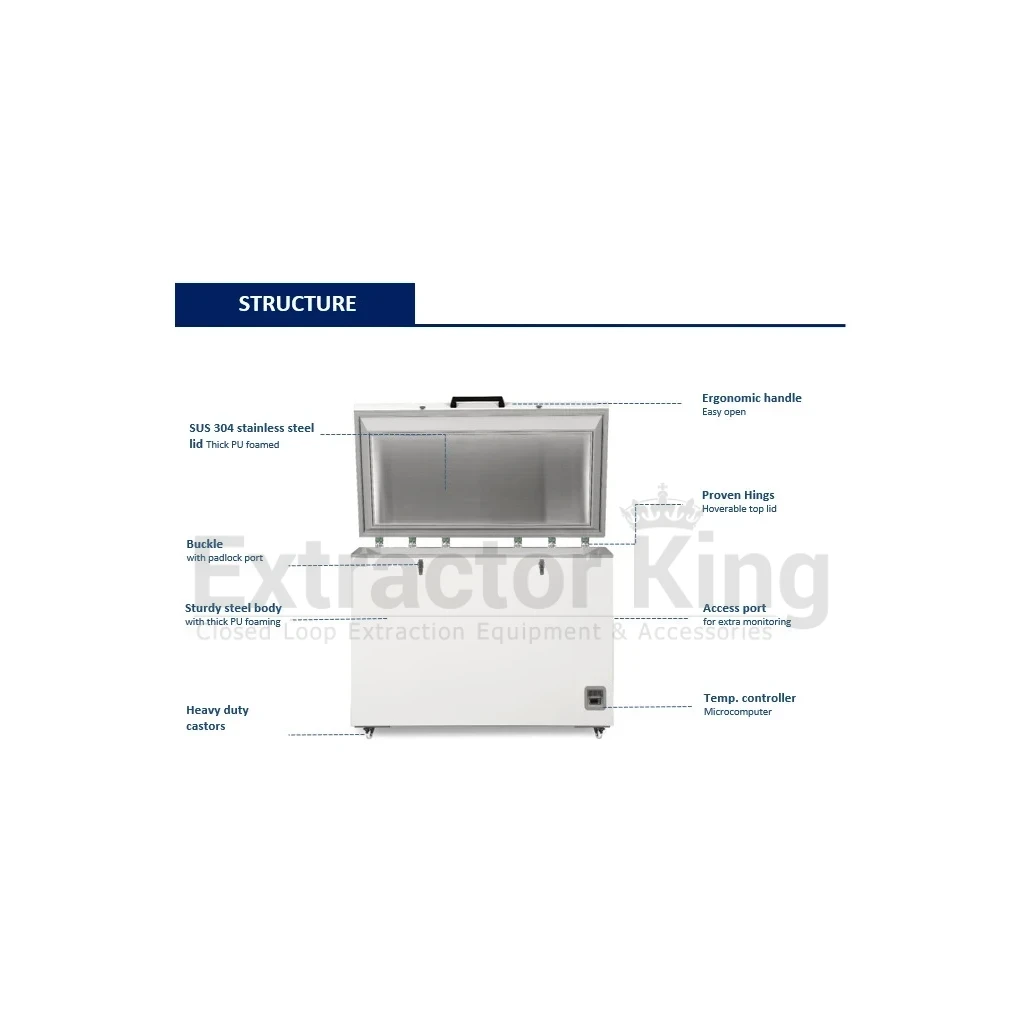

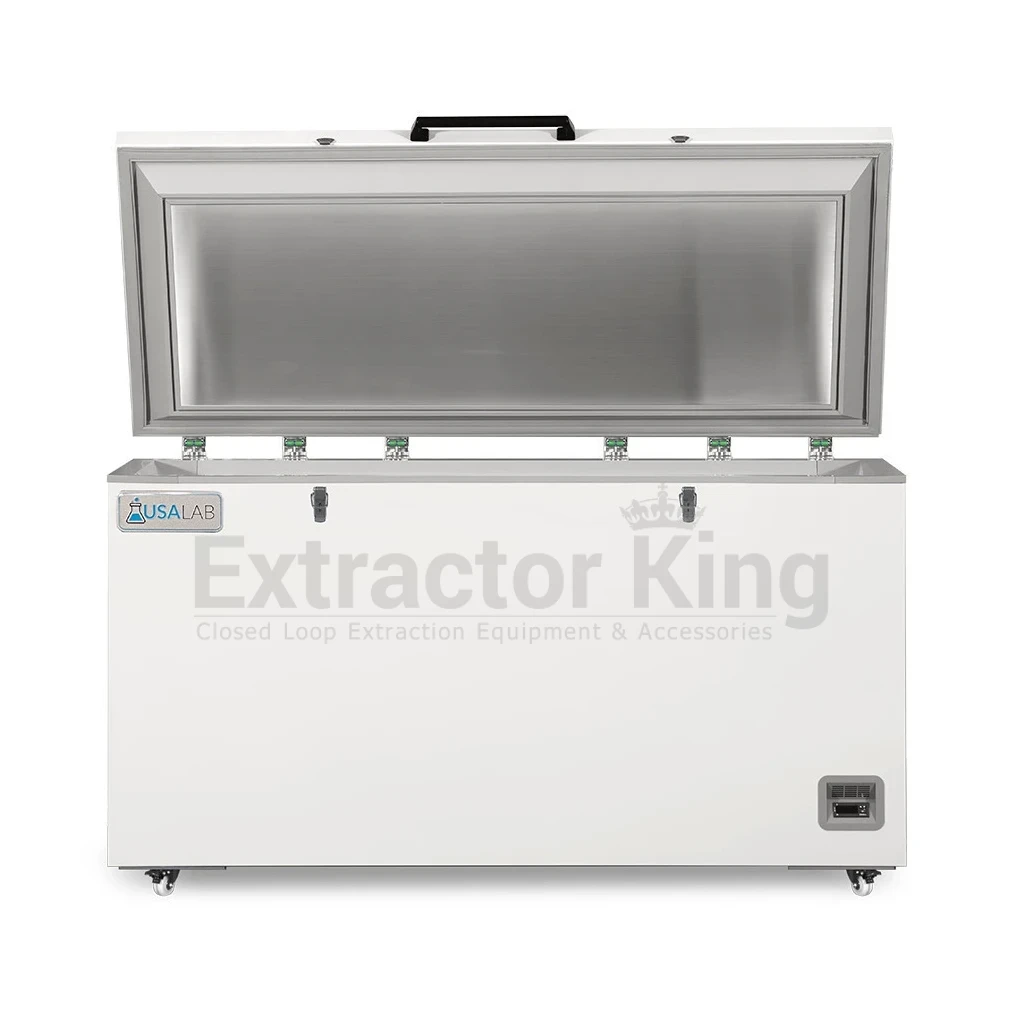

- Durable construction — stainless interior, spray-coated steel exterior.
- Move & install easily — integrated castors, compact footprint, quiet 55 dB.
Technical Specifications
| Model | EcoChill Chest Freezer — ECF-17.12-40-E |
|---|---|
| Cooling Method | Direct Cooling |
| Defrost | Manual |
| Refrigerant Type | R290 |
| Power Consumption | 3.45 kWh / 24 h |
| Noise | 55 dB |
| Ambient Temperature | 10℃ ~ 32℃ |
| Temperature Range | −20℃ ~ −40℃ |
| Compressor Brand / Qty | CUBIGEL / 1 |

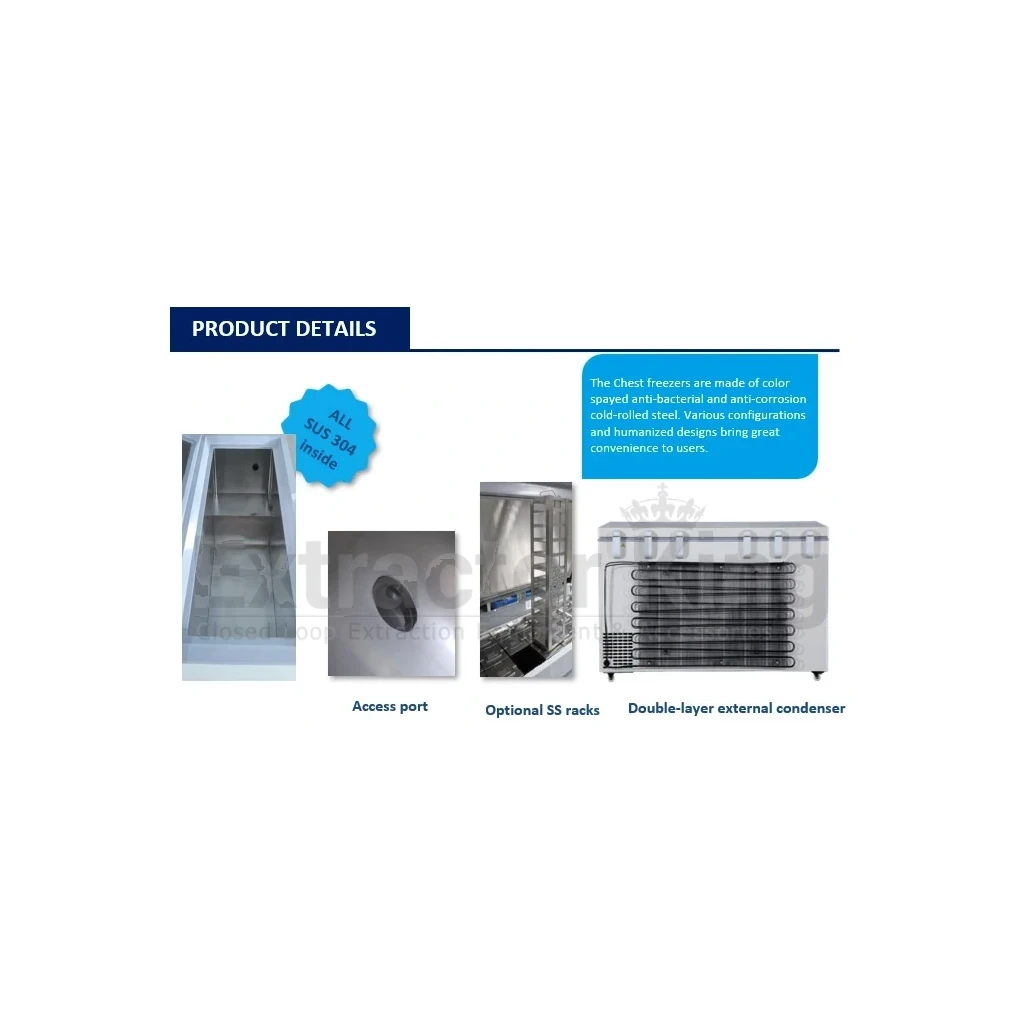

| Condenser | Wire tube |
| Sensor | NTC |
| Temperature Controller | Microprocessor |
| Display | Digital display |
| Voltage / Frequency | 110/120 V 60 Hz |
| Power | 295 W |
| Current | 2.45 A |
| Inside Material | Stainless steel |
| Outside Material | Spray-coated steel |
| Insulation | PURF |
| Capacity (L / cu.ft) | 485 L / 17.12 cu ft |
| Net / Gross Weight | 124 / 138 kg (≈ 290 / 340 lb) |
| Exterior Size (W×D×H) (mm) | 1667 × 863 × 949 |
| Exterior Size (W×D×H) (in) | 67" × 33" × 38" |
| Interior Size (W×D×H) (mm) | 1455 × 525 × 665 |
| Interior Size (W×D×H) (in) | 57.2" × 20.7" × 26.5" |
| Package Size (W×D×H) (mm) | 1775 × 900 × 1050 |
| Package Size (W×D×H) (in) | 69.5" × 35.5" × 42" |
| CBM | 1.66 |
| 20GP / 40GP / 40HQ | 12 / 26 / 26 |
| Test Hole QTY / Diameter | 1 / 25 mm |
| USB Port | N/A |
| Remote Alarm Port | N/A |
| Alarms | High/Low Temp (Y), Power Failure (Y), Sensor Error (Y), Temp Controller Failure (Y), Low Battery (/), Filter Check (/), Condenser Clean (/), High Ambient Temp (/), Door Ajar (/) |
| Power Failure Backup (Alarm) | 12 h |
| Castor | Y |
| Accessories | Chart Recorder (Optional), Data Logger (Optional), CO₂ Backup (Optional), LN₂ Backup (Optional), Gloves (Optional) |
FAQ
What temperature range does EcoChill support?EcoChill operates between −20°C and −40°C, ideal for food, clinical, and general lab use.
Yes. R290 refrigerant, PURF insulation, and a direct-cooling system help keep consumption low (≈3.45 kWh/24h).
A microprocessor controller with a bright digital display provides precise setpoint control and monitoring.
Optional chart recorder, data logger, and CO₂/LN₂ backup systems are available for extended protection.
All items are carefully packaged to ensure safe delivery. In the rare event that your item arrives damaged, please notify us within 3 days of receipt. We will promptly provide a replacement or issue a refund.
Please note that any damage occurring after delivery is not covered under warranty. We appreciate your understanding and your trust in our products.
Specifications
| Power | 110V/120V 60Hz |
| Noise | 50 dba |
| Temp Range | -20℃～-40℃ |
| Capacity(L/cu.ft) | 485/17.12 |
| Weight | 290 lbs |
| Internal Dimensions (WxDxH) | 57.2" x 20.7" x 26.5" |
| External Dimensions (WxDxH) | 67" x 33" x 38" |
| Certification | CE |
| Warranty Term | 1 Year |
