50LB Closed Loop Extractor w/Dewaxing Columns Passive-Active
Reference: CLE-50LB-DWX-PA
Manufacturer: Extractor King

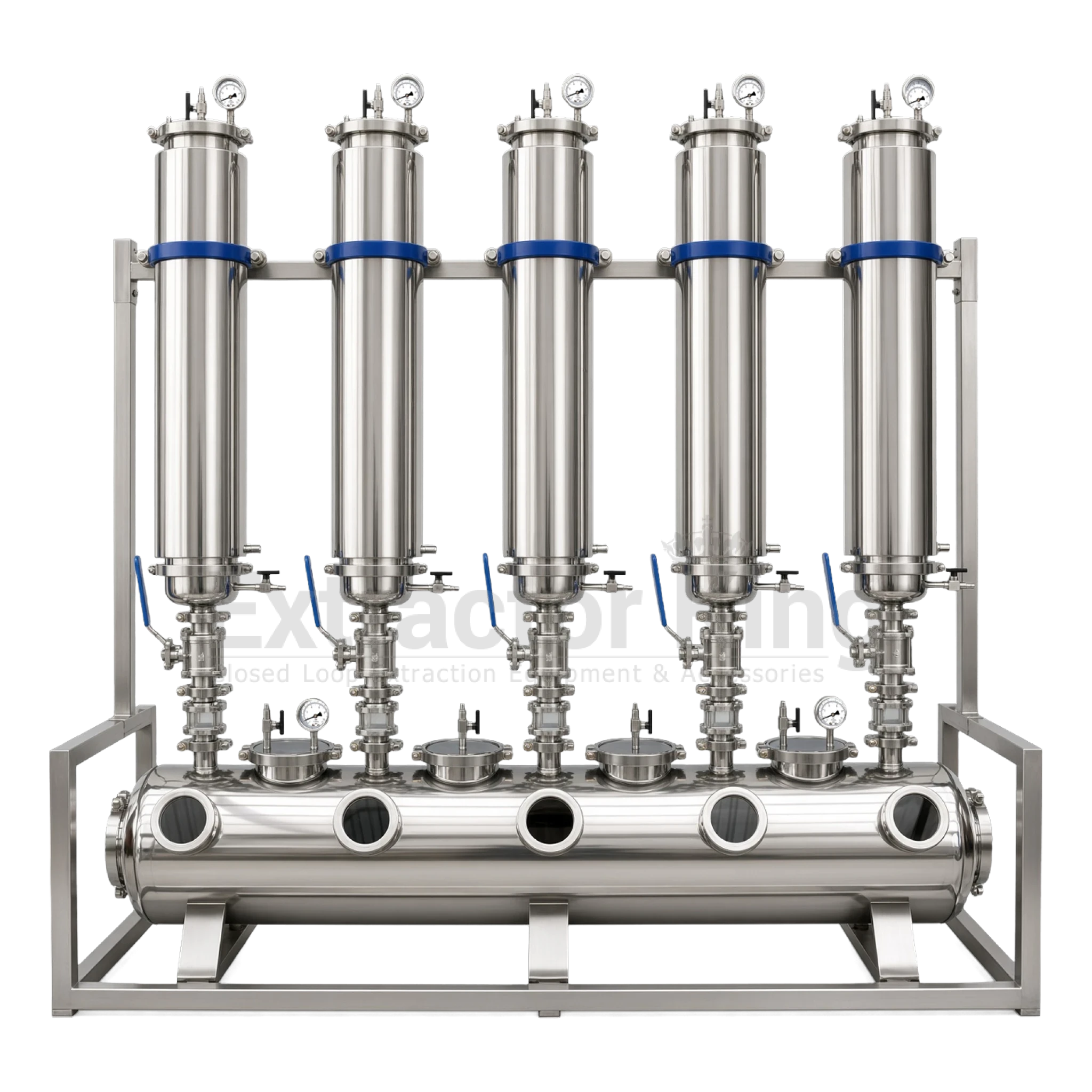

This is a 5 Column, 50LB capacity, closed loop passive-active hydrocarbon extraction system with honey pot base, frame & wheels.
In stock
Optional Must Have Accessories
|
CPS TRS21 Ignition Proof Recovery Pump - RK MAC Extraction Upgrade Installed | +CAD $2,098.79 |
|
CPS Pro-Set VPS12DU 12 CFM 2-Stage Ignition Proof Vacuum Pump | +CAD $1,098.87 |
|

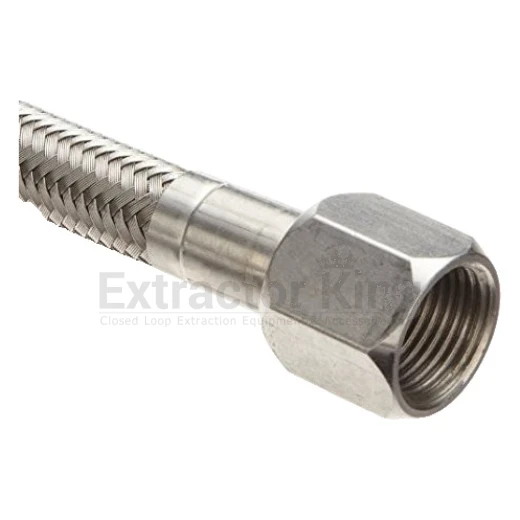

84"x3/8" JIC PTFE High Pressure Stainless Steel hose | +CAD $124.97 |
|
12'x3/8" JIC PTFE High Pressure Stainless Steel hose | +CAD $155.45 |
|
7.8 Cubic Foot Vacuum Oven - Science King | +CAD $12,194.65 |
|
3.4 Cubic Foot Vacuum Oven - Science King | +CAD $6,421.87 |
|

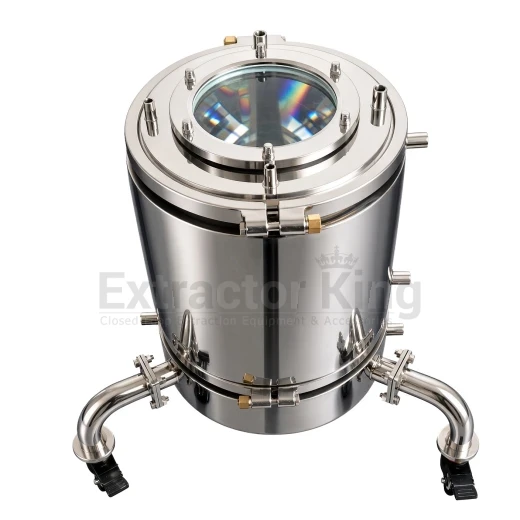

12" Jacketed Recovery Base w/Jacketed Platter, Wheels & Sight Glass | +CAD $3,289.64 |
Payment Providers
This 50LB stainless steel closed loop extraction system includes:
Â

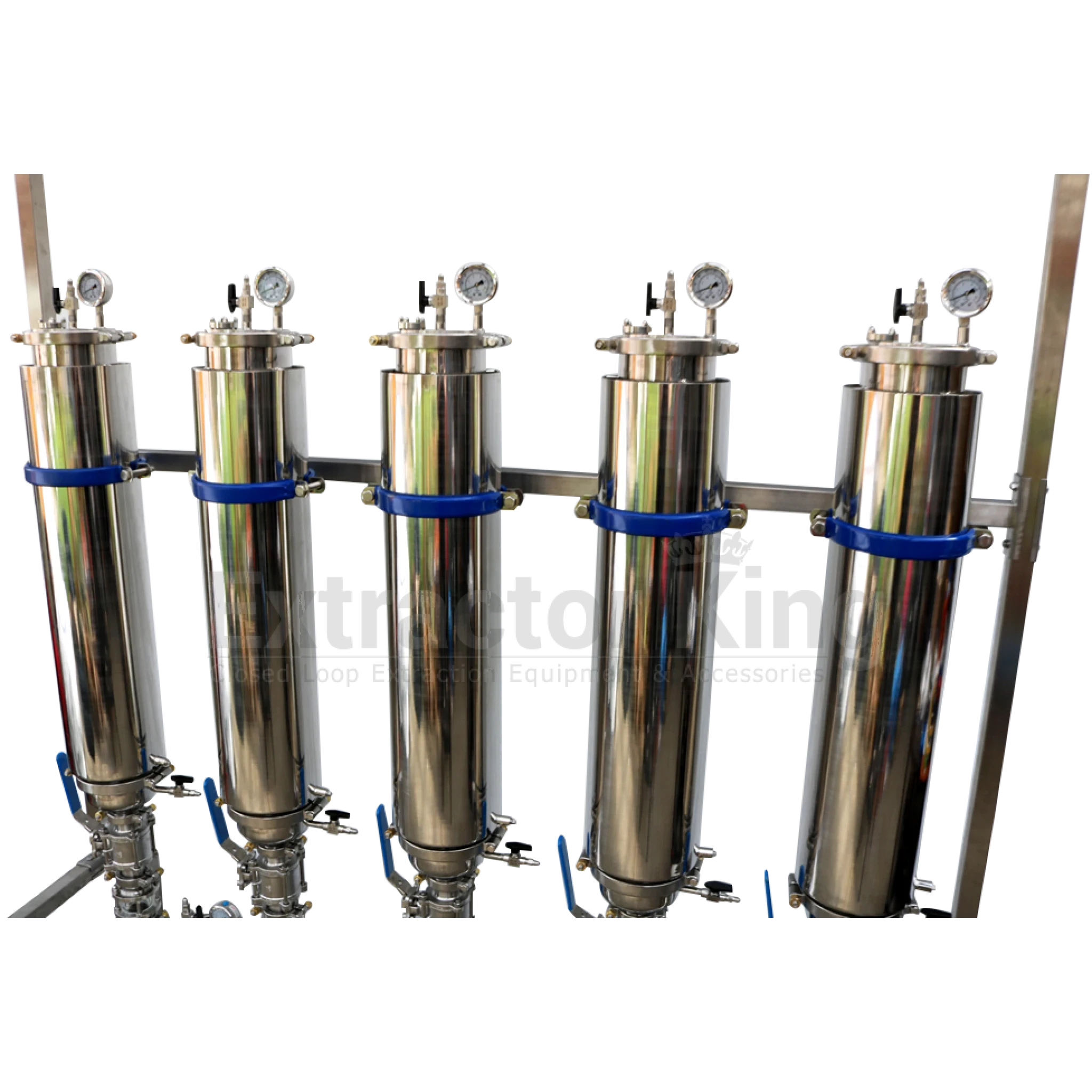

5x stainless steel material columns 36"x6" w/33"x8" dewaxing sleeves w/1/4" FNPT drain
5x 36"x6" Open triclamp Spools
5x material columns lids w/2" sight glasses, vacuum guages and 3/8"MNPT JIC w/moulded spray balls

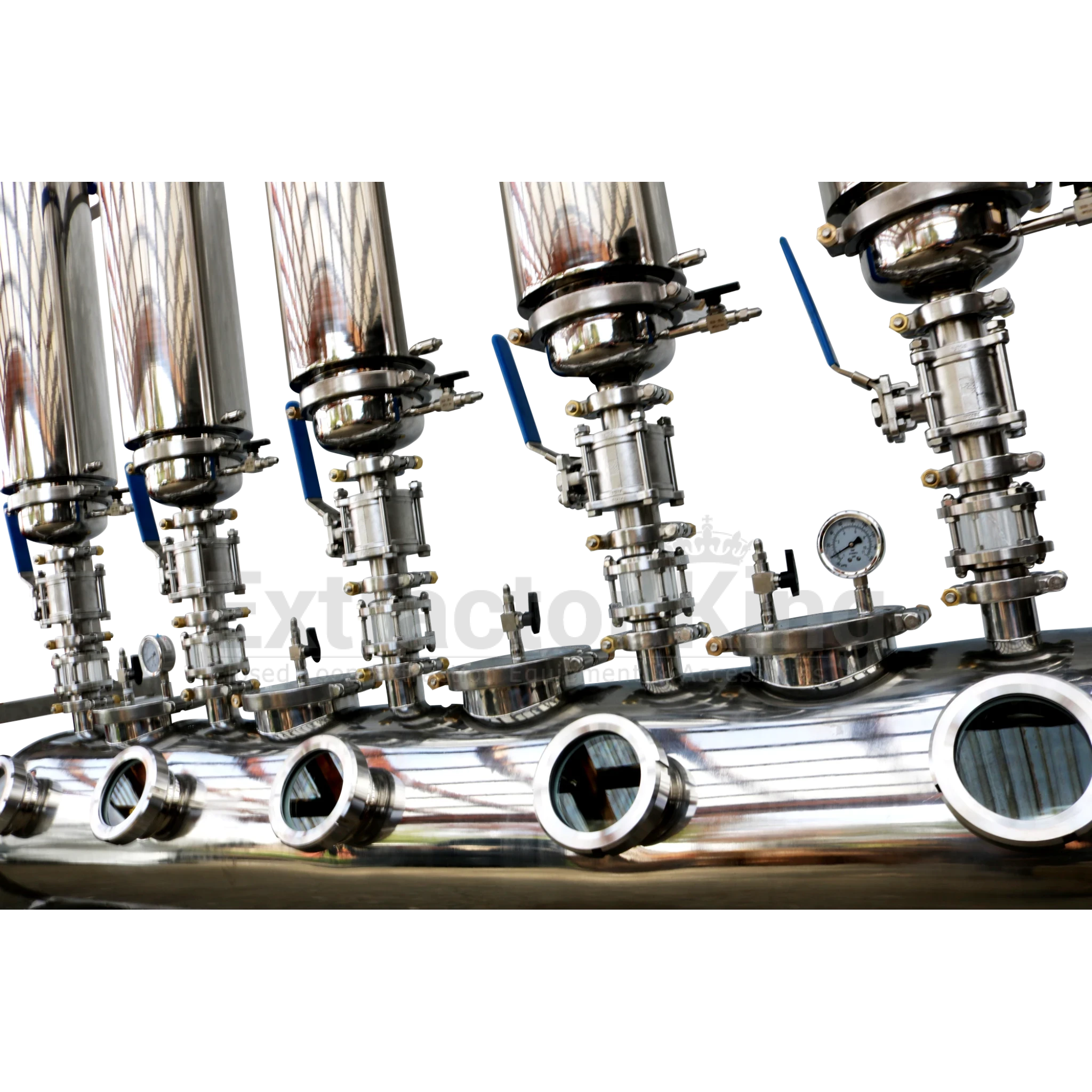

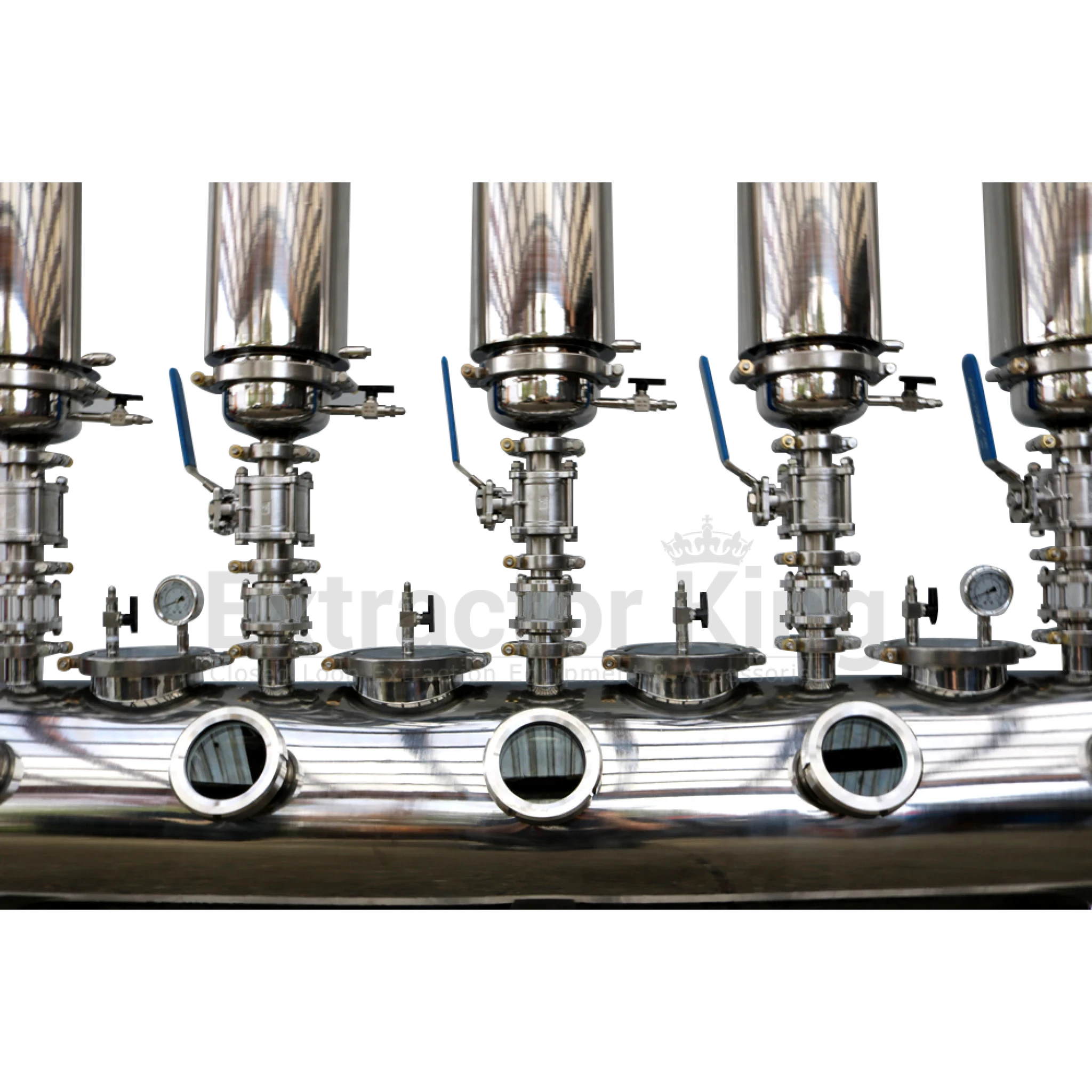

1x Bottom honey pot w/6'x14" base w/ removable caster wheel assembly, 5 4" union sight glasses on the tank
3x 6" Endcaps w/3x 3/8" MNPT & 2x 1/4" FNPT
5x 2" Heavy duty 3pc ball valve
5x 2" Inline sight glasses
8x 3/8" Swagelok valves with 3/8" stainless steel jic fittings
Â
Unlike other extractor systems, Extractor King Closed Loop Extractors come with all the bells and whistles. No extra costs for dewaxing columns, sight glasses, Swagelok valves, 3 piece ball valves, high pressure clamps & 1.5 times SS304 stainless steel thickness. All these options and more come standard with all Extractor King Extractors.
| Material capacity | 50 lb |
| Working pressure rating | 100 psi |
| Material | SS304 stainless steel (vessels and clamps) |
| Type | Closed loop passive-active hydrocarbon, 5 columns |
| Material columns | 5x 36" x 6" |
| Dewaxing sleeves | 33" x 8", with 1/4" FNPT drain |
| Spools | 5x 36" x 6" open tri-clamp |
| Column lids | 2" sight glasses, vacuum gauges, 3/8" MNPT JIC with moulded spray balls |
| Honey pot | 5x 4" union sight glasses; removable caster wheel assembly |
| End caps | 3x 6" with 3x 3/8" MNPT and 2x 1/4" FNPT |
| Ball valves | 5x 2" heavy duty 3-piece |
| Inline sight glasses | 5x 2" |
| Valves | 8x 3/8" Swagelok with 3/8" stainless steel JIC fittings |
