USA Lab H1-5 5L Full Bore Short Path Distillation Turnkey Kit
Reference:
Manufacturer: USA Lab
Our H1-5 5L Full Bore Short Path Distillation Kit is made with high quality borosilicate Glass and a wide 45/50 head to allow for excellent distillation , high production, and consistent results . This turnkey distillation equipment kit comes with a large…
In stock
Customize your product
Payment Providers
More info
Our H1-5 5L Full Bore Short Path Distillation Kit is made with high quality borosilicate Glass and a wide 45/50 head to allow for excellent distillation, high production, and consistent results. Â

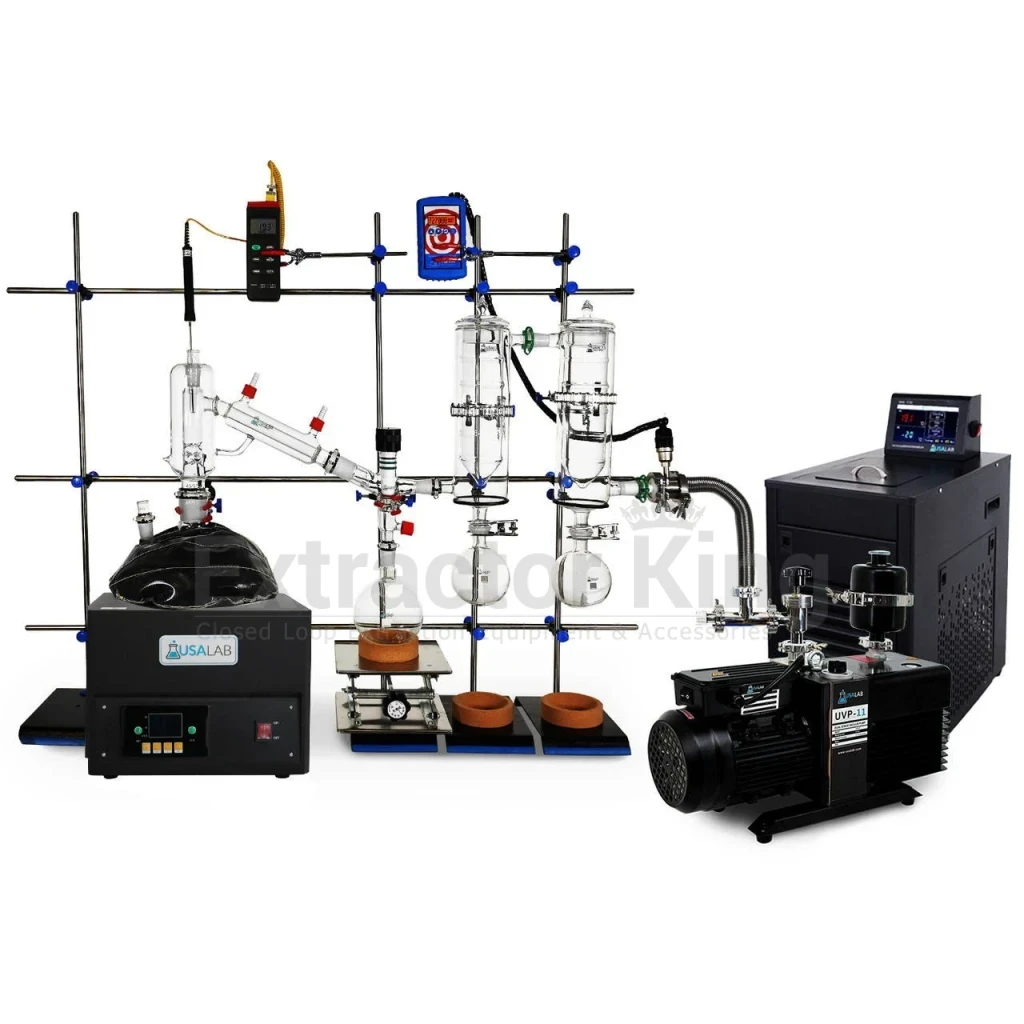

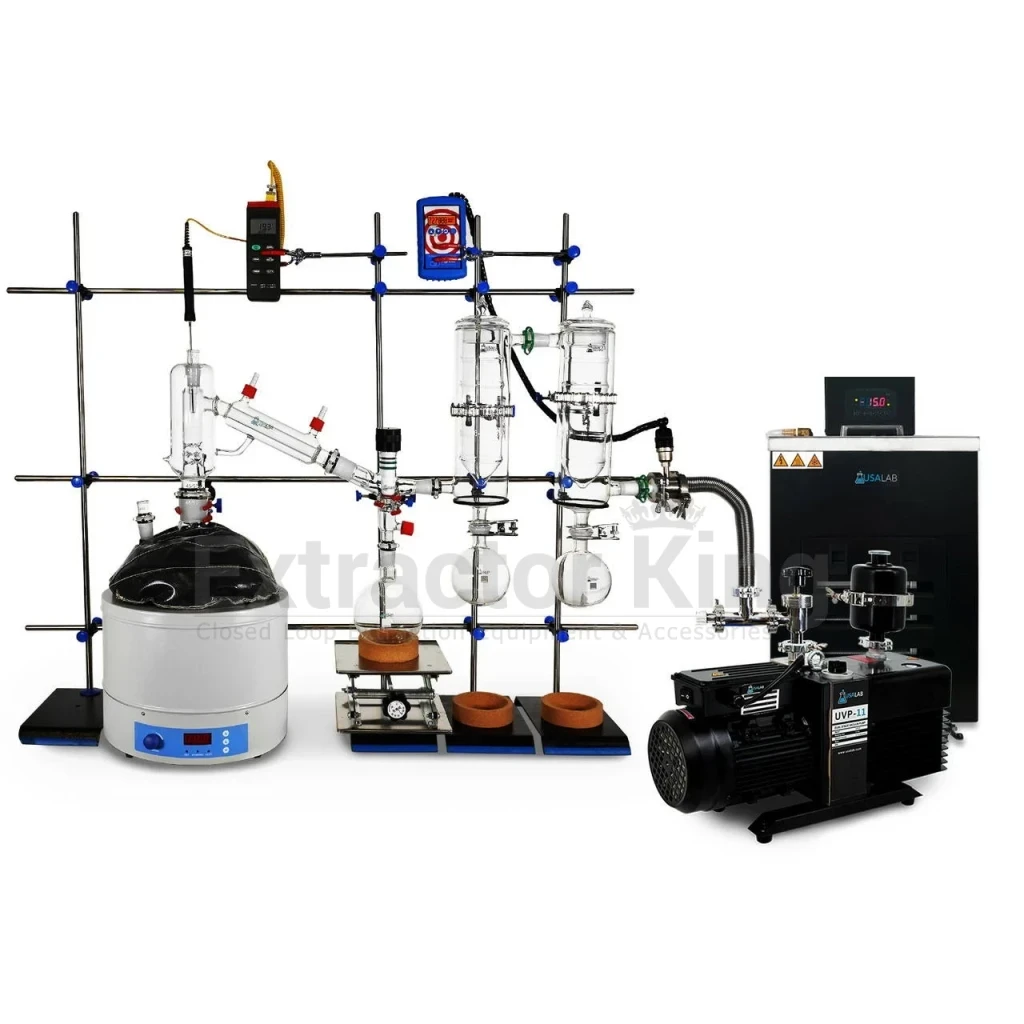

This turnkey distillation equipment kit comes with a large 45/50 distillation head, a 34/45 vacuum take-off adapter to allow for easy switching of receiving flasks, two 24/40 cold traps for large amounts of condensing, and full-bore attachments to allow for high pulling vacuum.
Choose the best quality at the best value with this lattice supported high quality glass distillation kit.
|
C-SD5L-H1TK Specifications |
|
|
Flask Size |
5L / 5000mL |
|
Flask Joint Sizes |
45/50 Main | 24/40 Side |
|
Distillation Head Joint Sizes |
45/50 Bottom | 24/40 Top | |
|
Isolation Adapter Joint Sizes |
34/45 Inlet | 24/40 Outlet |Â |
|
Left Cold Trap Joint Sizes |
24/40 |
|
Right Cold Trap Joint Sizes |
24/40 |
|
Optimal Capacity |
800-3000mL |
|
Batch Time |
4-8 Hours |
|
Main Body Flow Rate |
300-700 grams/hour |
|
Footprint |
80" x 24" x 40" Including Pump / Chiller |
|
Heating Mantle Power |
5LMANTLE: 220-240V 50/60Hz 15A |
|
USA-HM-5L: 110-120V 50/60Hz 15A |
|
|
Heater Chiller Requirements |
110-120V 50/60Hz 15A |
|
Vacuum Pump Requirements |
110-120V 50/60Hz 15A |
|
Warranty |
1 Year (Pump holds 2-year warranty) |
|
C-SD5L-H1TK Packing List |
|
|
Model |
Quantity |
|
5L Mantle (Options Below) |
1 |
|
(USA-HM-5L) |
- |
|
(5LMANTLE & 5L Thermal Shield) |
- |
|
USA Lab 11CFM UVP-11 |
1 |
| Â Â Â USA Lab -20 C to 180 C Heater UHC-720 |
1 |
|
DigiVac Bullseye Vacuum Gauge |
1 |
|
Digital K-type Thermometer w/ Probe |
1 |
|
Apiezon PFPE 501 Vacuum Grease 100g |
1 |
|
5L RBF - 2 neck 24/40 and 45/50 Center |
1 |
|
5L 45/50 H1-5 Distillation Head |
1 |
|
500mL RBF - 1 Neck 24/40 |
2 |
|
1000mL RBF - 1 Neck 24/40 |
1 |
|
34/45 Isolation Adapter |
1 |
|
24/40 Male Cold Trap |
1 |
|
24/40 Female Cold Trap |
1 |
|
Cold Trap Lid |
2 |
|
S35/20 500mL RBF |
2 |
|
5L Flask Thermowell 24/40 |
1 |
|
5L Head Thermowell 24/40 |
1 |
|
GL-18 Connection |
4 |
|
45/50 Keck Clamp |
1 |
|
34/45 Keck Clamp |
1 |
|
24/40 Keck Clamp |
4 |
|
Red Large Clamp Retort 3 Prong |
4 |
|
Chain Clamp for Lab Stand |
2 |
|
Stainless Steel S35 Pinch Clamp |
2 |
|
4" Diameter Extension Support Ring |
2 |
|
Boss Head Clamp |
18 |
|
Small Cork Stand |
2 |
|
Medium Cork Stand |
1 |
|
6" x 8" Lab Stand |
4 |
|
8" x 8" Lab Jack |
1 |
|
48" SS Rod |
3 |
|
KF25 to 24/40 PTFE Adapter |
1 |
|
KF25 to KF25 x 1/8" FNPT Adapter |
1 |
|
KF25 Bellow Hose 24" |
1 |
|
KF25 3-Way Tee |
1 |
|
KF25 Pressure Release Valve |
1 |
|
KF25 Right Angle Valve |
1 |
|
KF25 Wing Nut Clamp |
4 |
|
KF25 Vacuum Pump Centering Ring |
4 |
|
Silicone Hosing 3/8" |
10ft |
|
Mantle Manual |
1 |
|
Pump Manual |
1 |
|
Heater Chiller Manual |
1 |
| HEATING MANTLE OPTIONS & INFO | |
| USA Lab 5L W/ Insulating Top - 300°C 1200RPM | 220-240V 60Hz 15A 800W | SKU:5LMANTLE |
|
| USA Lab 5L W/ Heating Top - 300°C 3000RPM | 110-120V 60Hz 15A 800W | SKU:USA-HM-5L | |
| Â HEATER CHILLER INFO | |

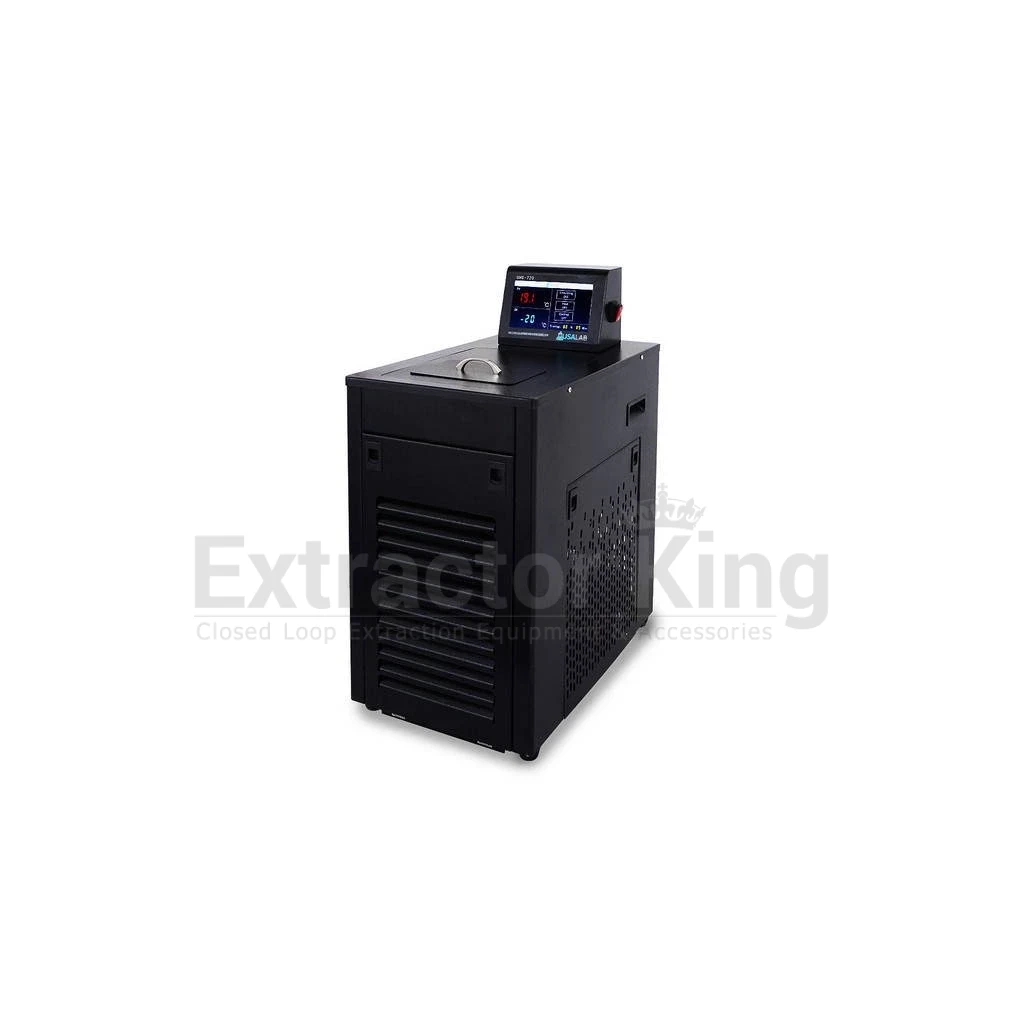

| USA Lab -20°C to 180°C 7L Compact Recirculating Heater Chiller 220V UHC-720 | |
| VACUUM PUMP INFO | |
| USA Lab UL Listed 11CFM UVP-11 2-Stage Vacuum Pump | 110-120V 60Hz 15A | SKU:UVP-11 | |
| VACUUM GAUGE INFO | |
|
DigiVac Bullseye Precision Vacuum Gauge |
|
| THERMOMETER INFO | |
|
USA Lab USA-TM Premium Digital K-type Thermometer w/ Probe |
|
|
VACUUM GREASE INFO |
|
|
Apiezon PFPE 501 High Temperature Vacuum Grease 100g |
Specifications
| Flask Sizes | 5L / 45/50 Main | 24/40 Side |
| Head Joint Size | 45/50 Main | 24/40 Top | 24/40 Side |
| Isolation Adapter Joint Sizes | 34/45 Inlet | 24/40 Outlet | 24/40 Bottom Discharge |
| Left Cold Trap Joint Sizes | Male 24/40 |
| Right Cold Trap Joint Sizes | Female 24/40 |
| Optimal Capacity | 800-3000mL |
| Batch Time | 4-8 Hours |
| Main Body Flow Rate | 300-700 grams/hour |
| 5LMANTLE Mantle Power | 220-240V 50/60Hz 15A |
| USA-HM-5L Mantle Power | 110-120V 50/60Hz 15A |
| Heater Chiller Power | 110-120V 50/60Hz 15A |
| Vacuum Pump Power | 110-120V 50/60Hz 15A |
| Warranty Term | 1 Year |
