10LB Closed Loop Extractor Passive-Active - Fully Jacketed Platter w/Wheels
Reference: CLE-10LB-PA-JFW
Manufacturer: Extractor King
10LB closed loop extraction system includes, 8"x36" stainless steel super chill material column w/10"x34" dewaxing sleeve and 3x 3/8" cooling ports, material column lid w/sight glass, vacuum gauge and 1/4"MNPT w/spray ball, 12 lid w/2x 1/4" MNPT, 2x 3/8" MNPT, 1x 1/4" FNPT, 2x 2" sightglass. 1x 12"x12" spool, 1x 12"x6" fully jacketed shatter/splatter w/full water jacket and 3/8" hose fittings.
In stock
Optional Must Have Accessories
|
CPS TRS21 Ignition Proof Recovery Pump - RK MAC Extraction Upgrade Installed | +CAD $2,098.79 |
|
CPS Pro-Set VPS12DU 12 CFM 2-Stage Ignition Proof Vacuum Pump | +CAD $1,098.87 |
|
84"x1/4" JIC PTFE High Pressure Stainless Steel Hose | +CAD $98.67 |
|
36"x1/4" JIC PTFE High Pressure Stainless Steel hose | +CAD $64.87 |
|
144"x1/4" JIC PTFE High Pressure Stainless Steel hose | +CAD $146.05 |
Payment Providers
This is an ISO, 3A & CE certified Extractor King 10LB passive-active closed loop extraction system with everything you need to get up and running. This professional grade extractor was CNC machined and manufactured in compliance with ISO, 3A & CE certifications. Unlike other extractor systems, Extractor King Extractors come with all the bells and whistles. No extra costs for dewaxing columns, sight glasses, Swagelok valves, 3 piece ball valves, high pressure clamps, jacketed splatter platter with wheels and 1.5 times ss304 thickness w/mirror polish finish. All these options and more come standard with all Extractor King Extractors.

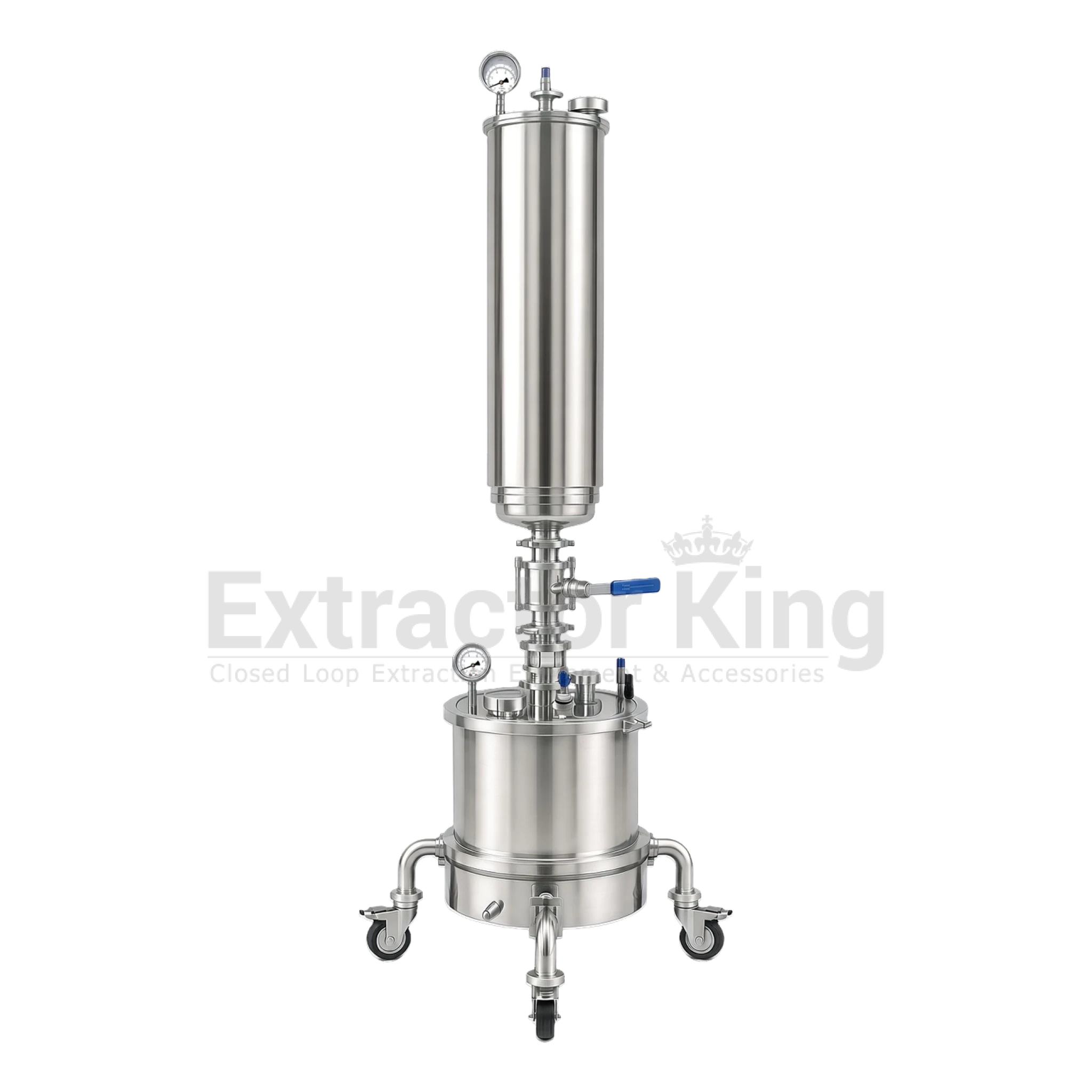

10LB Closed Loop Extractor -

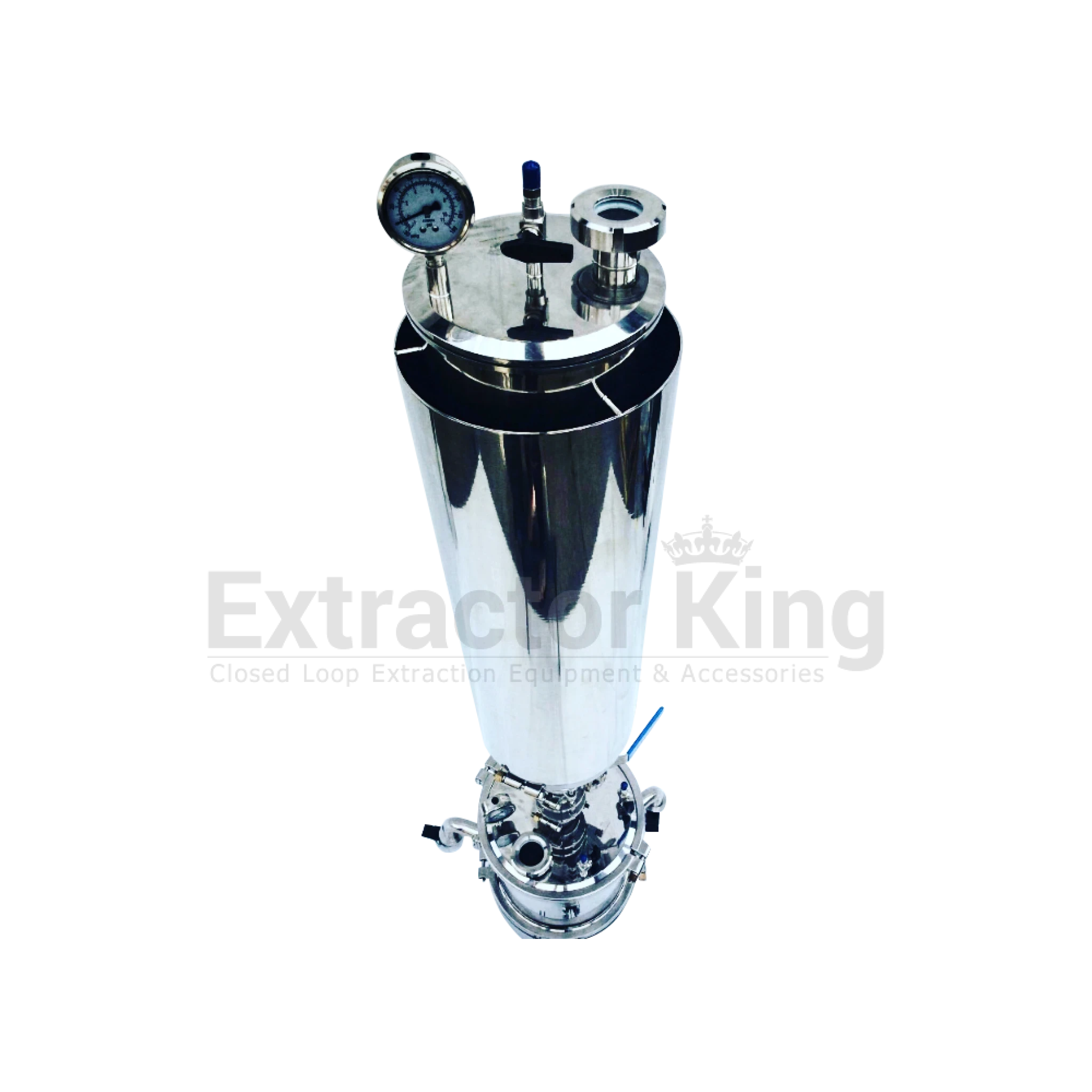

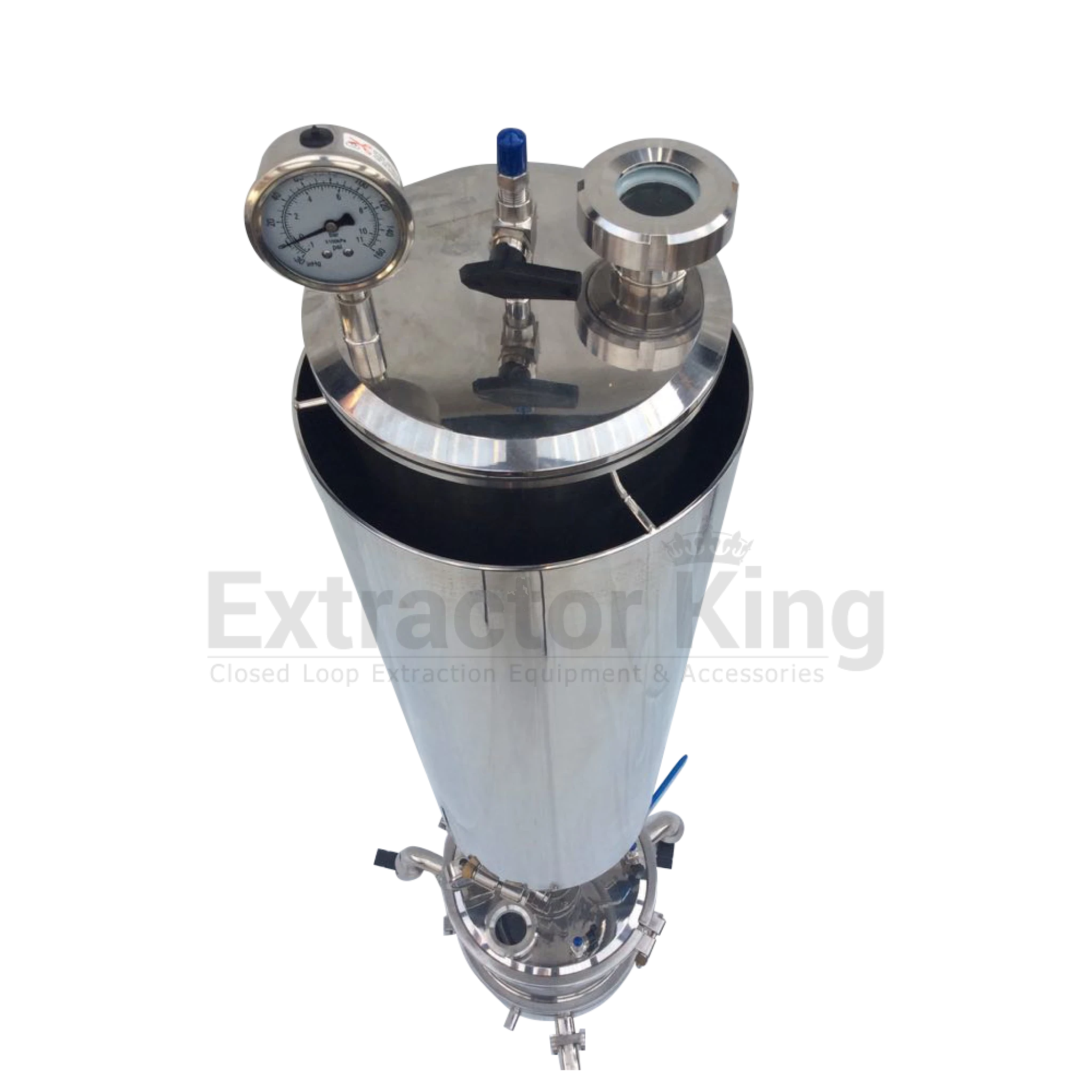

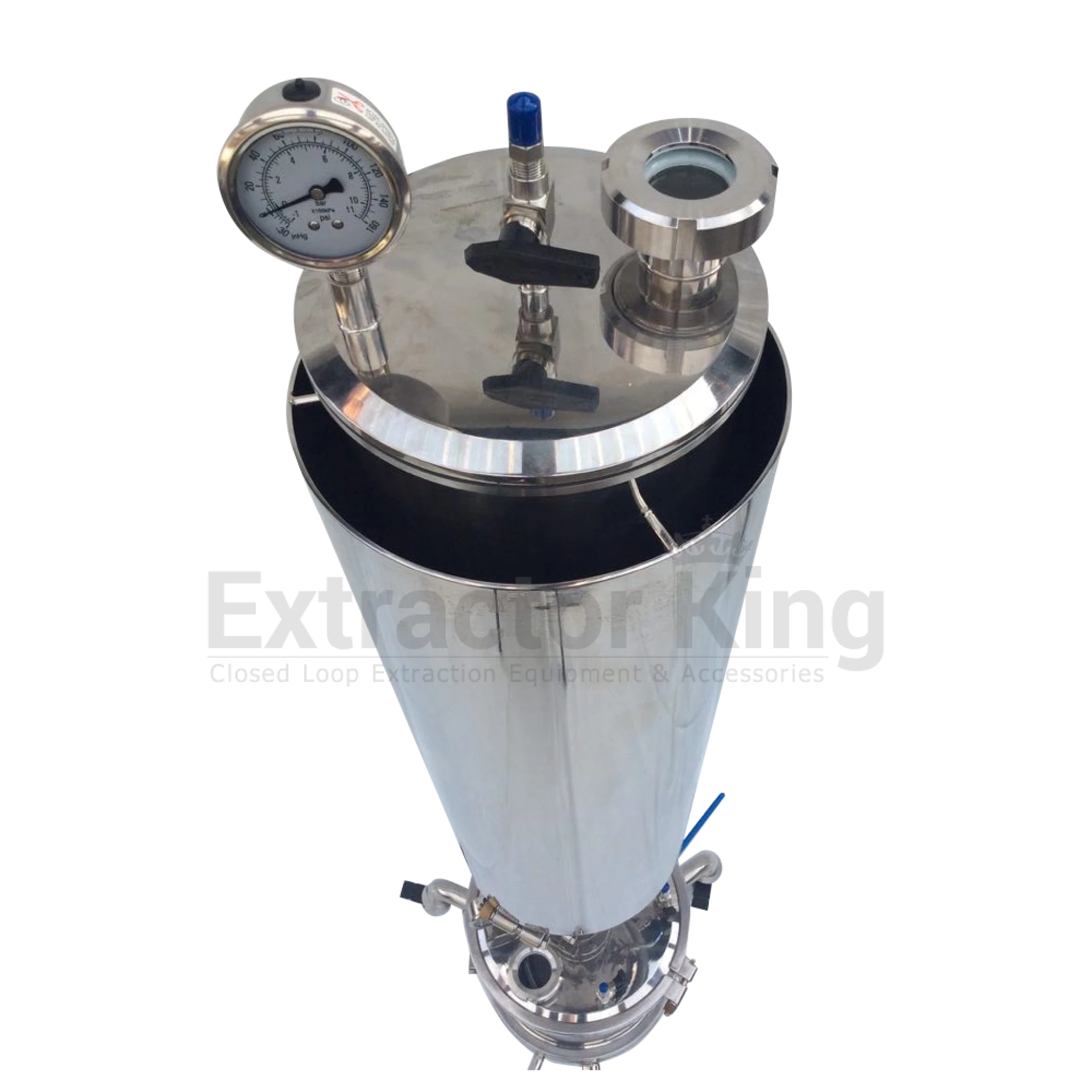

1x 8"x36" stainless steel super chill material column w/10"x34" dewaxing sleeve with 3x 3/8" cooling ports
1x 8" to 3" Hemispherical Reducer w/ rings and mesh screen

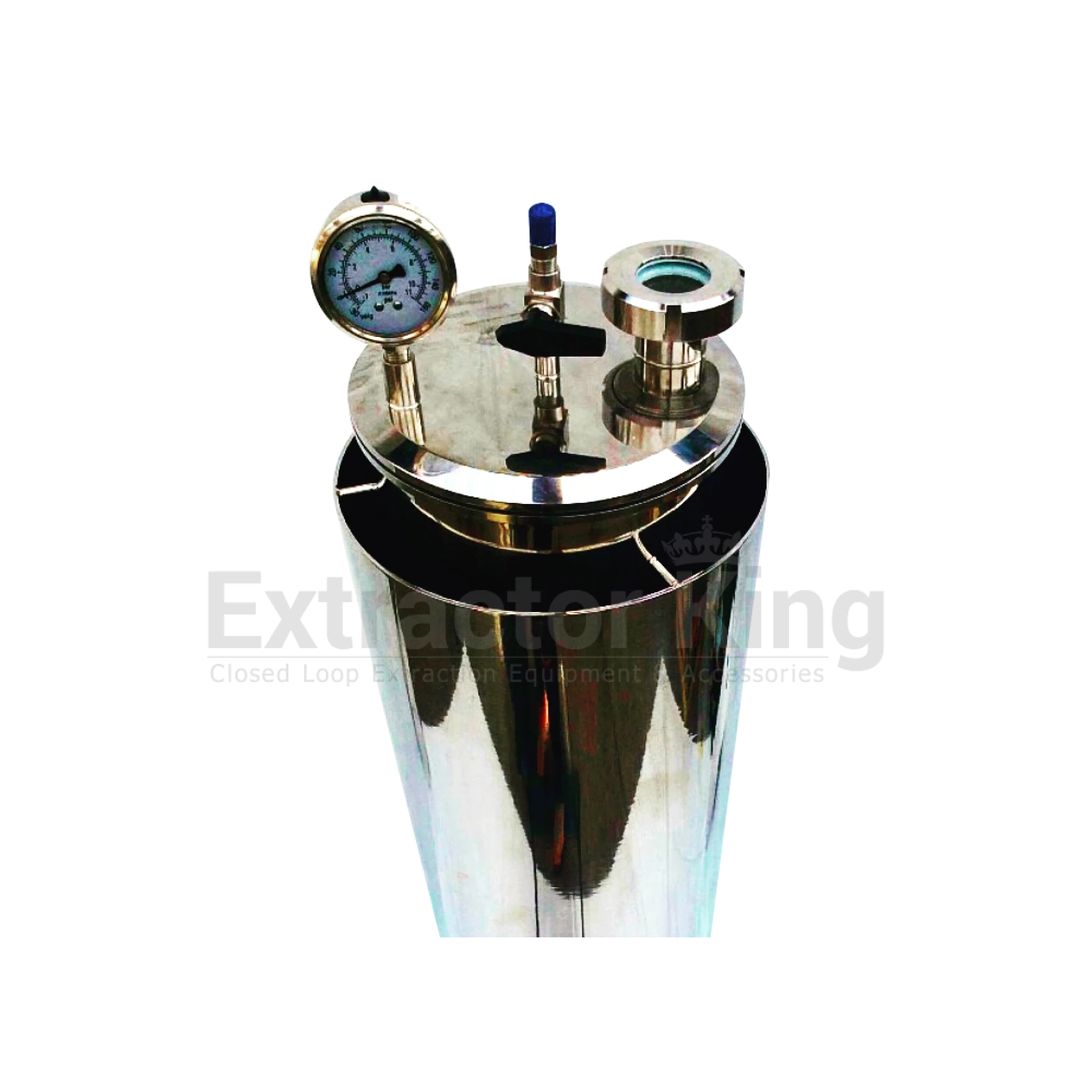

1x Material column lid w/2" union sight glass, 1x 1/4" MNPT, 1x stainless steel vacuum gauge and 1x 1/4" MNPT w/moulded spray ball
1x 12"x6" Jacketed shatter platter w/wheels & 2x 3/8" hose fittings

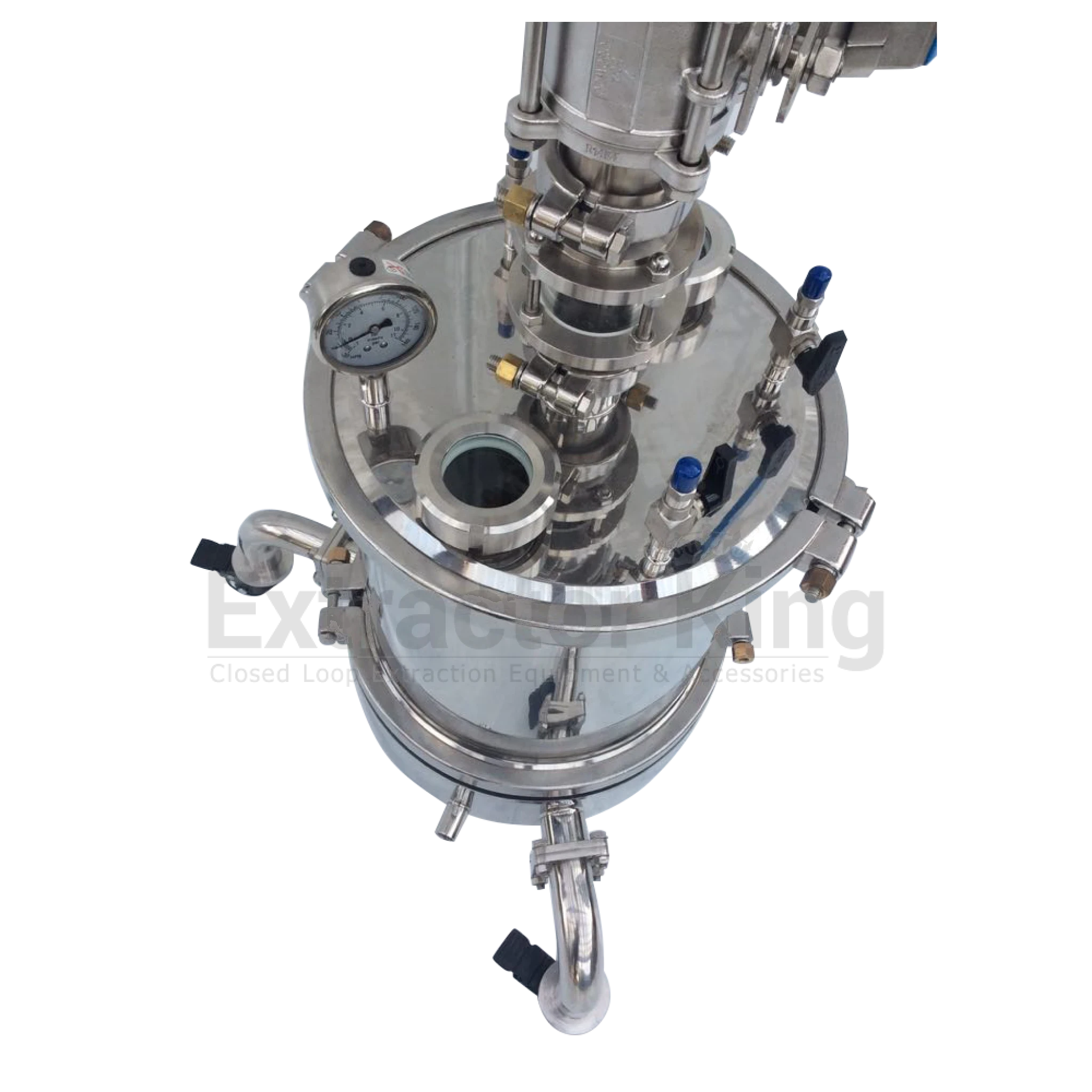

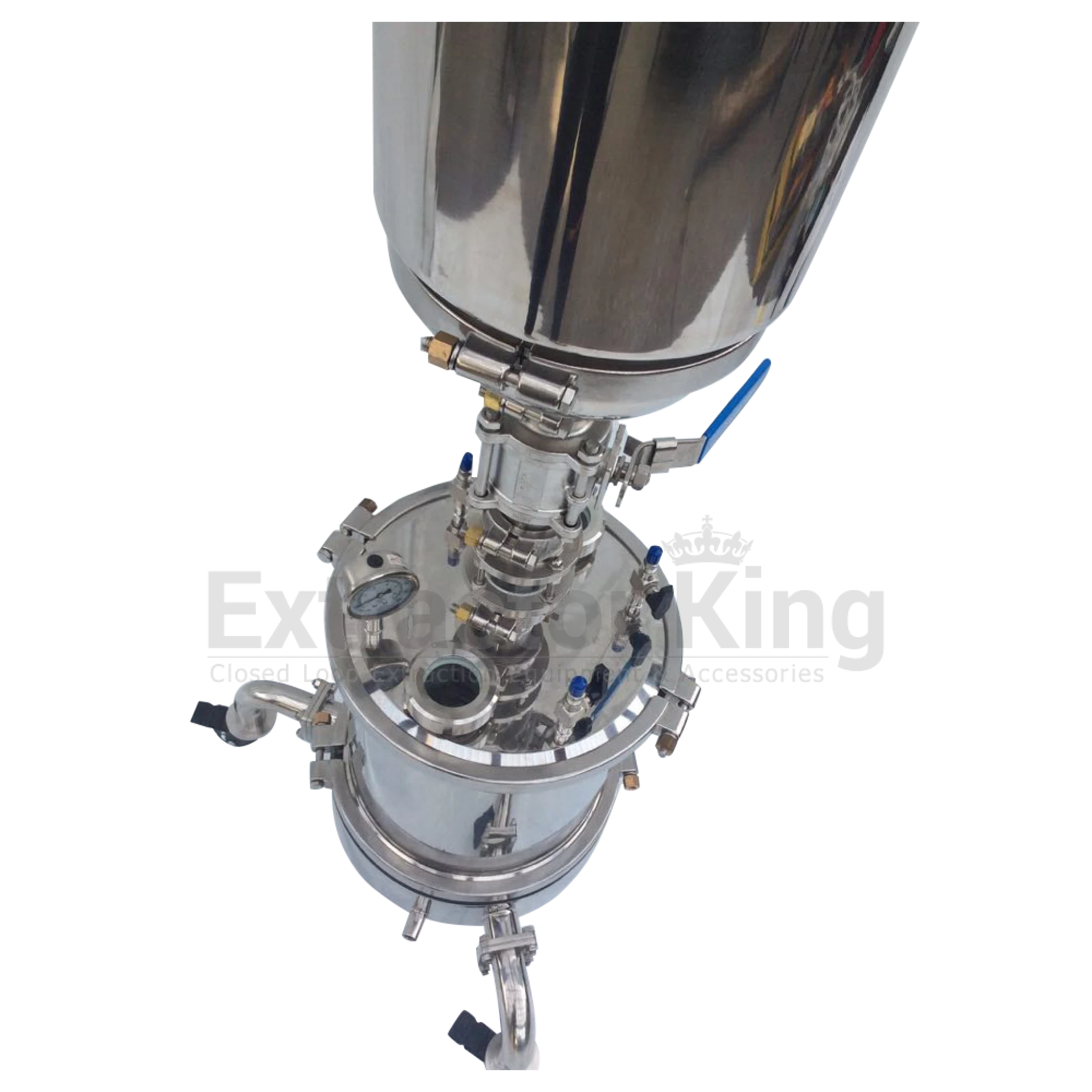

1x Main collection lid w/ 1x 3" Ferule, 3x 1/4" MNPT, 1x 1/4" FNPT, 1x Stainless Vacuum Guage
4x 1/4" Swagelok valves with stainless steel jic/sae fittings

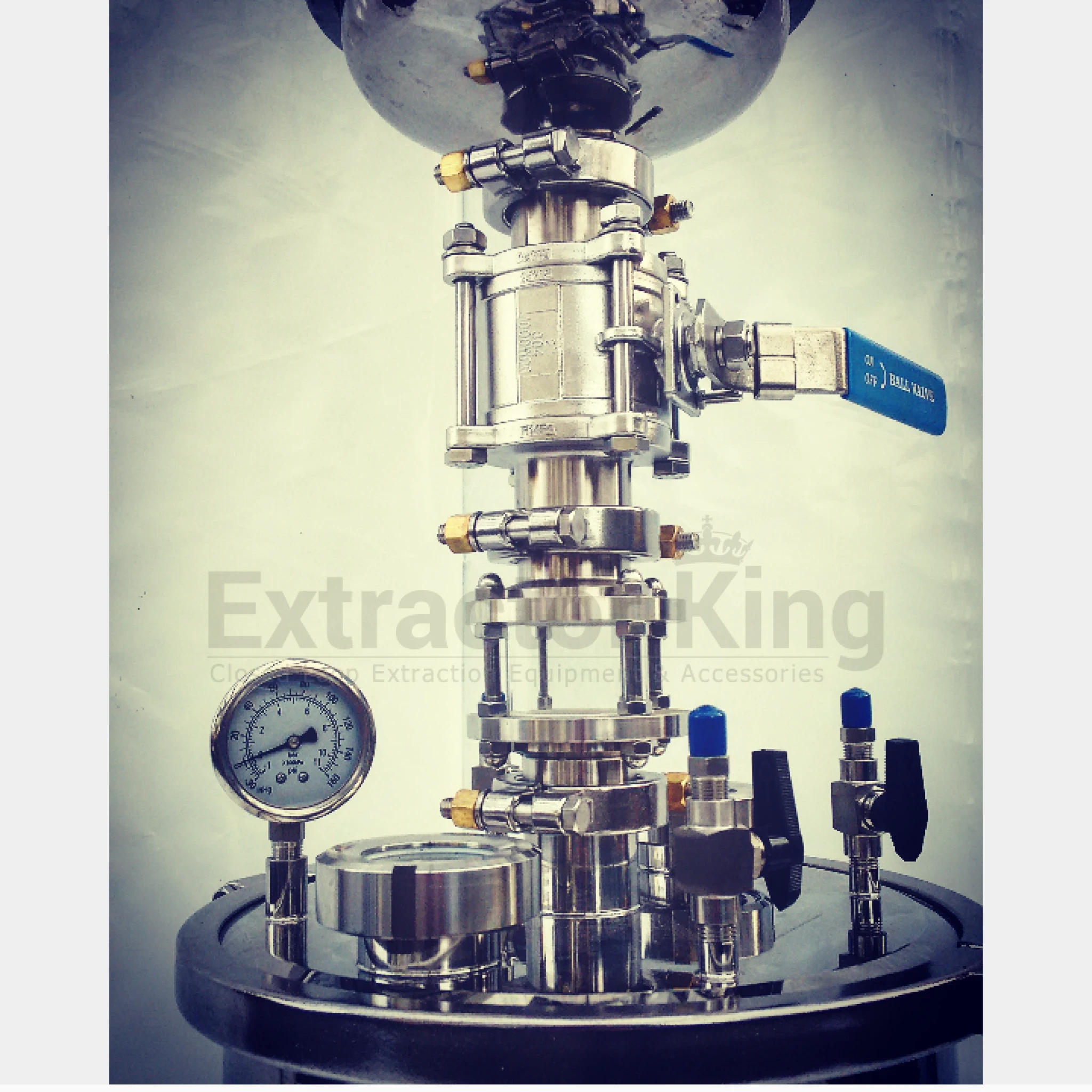

1x 3" heavy duty 3pc ball valve
1x 3" Short inline sight glass before the lid.
1x Complete set of triclamp gaskets and filters
| Material capacity | 10 lb |
| Working pressure rating | 100 psi |
| Material | SS304 stainless steel (vessels and clamps) |
| Type | Closed loop passive-active hydrocarbon |
| Material column | 8" x 36" super chill |
| Dewaxing sleeve | 10" x 34" |
| Column cooling ports | 3x 3/8" |
| Reducer | 8" to 3" hemispherical, with rings and mesh screen |
| Column lid | 2" union sight glass, 1/4" MNPT, stainless vacuum gauge, 1/4" MNPT with moulded spray ball |
| Splatter platter | 12" x 6" jacketed, with wheels and 2x 3/8" hose fittings |
| Main collection lid | 1x 3" ferrule, 3x 1/4" MNPT, 1x 1/4" FNPT, stainless vacuum gauge |
| Valves | 4x 1/4" Swagelok with stainless steel JIC/SAE fittings |
| Ball valve | 3" heavy duty 3-piece |
| Inline sight glass | 3" short, before the lid |
| Included | Complete set of tri-clamp gaskets and filters |
