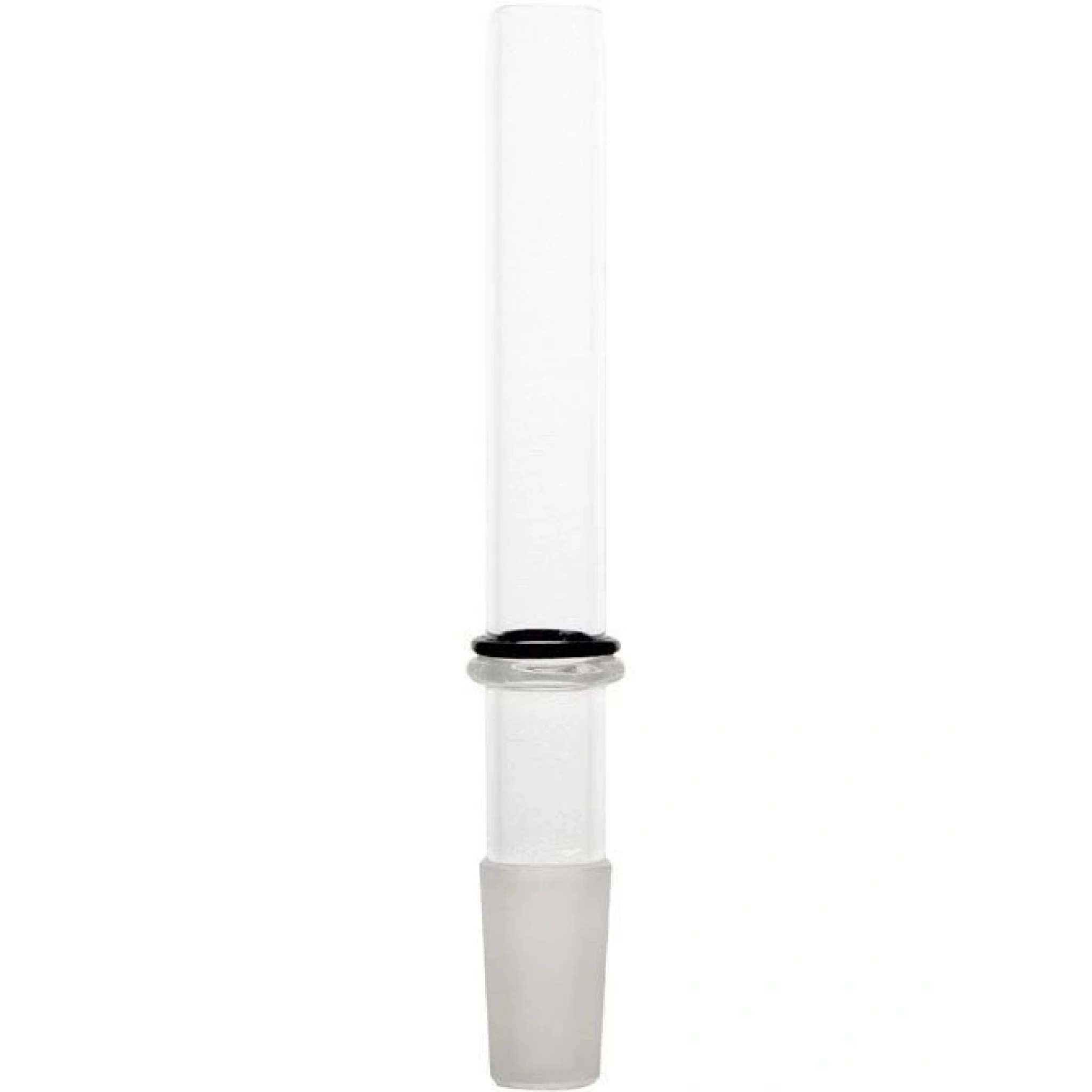

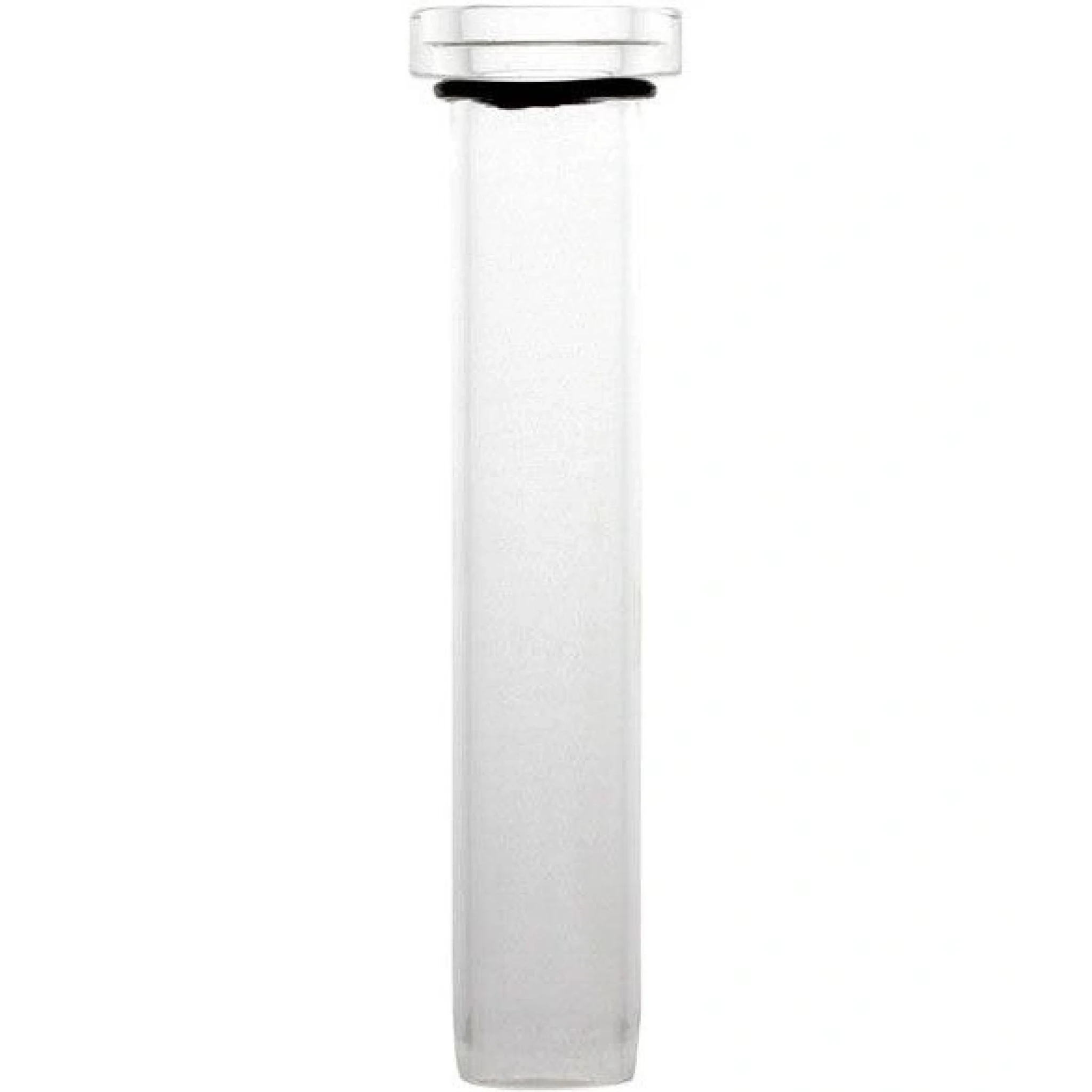

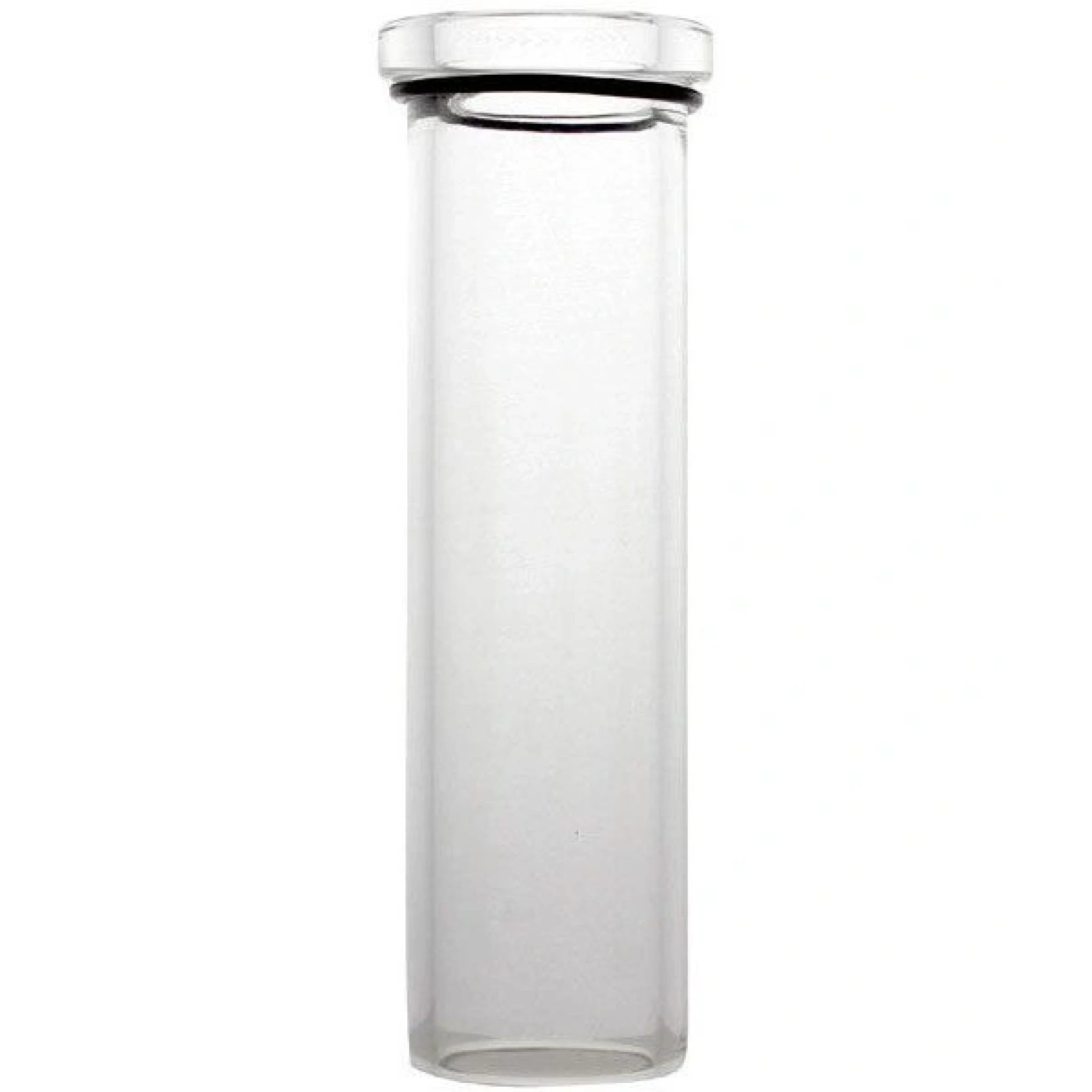

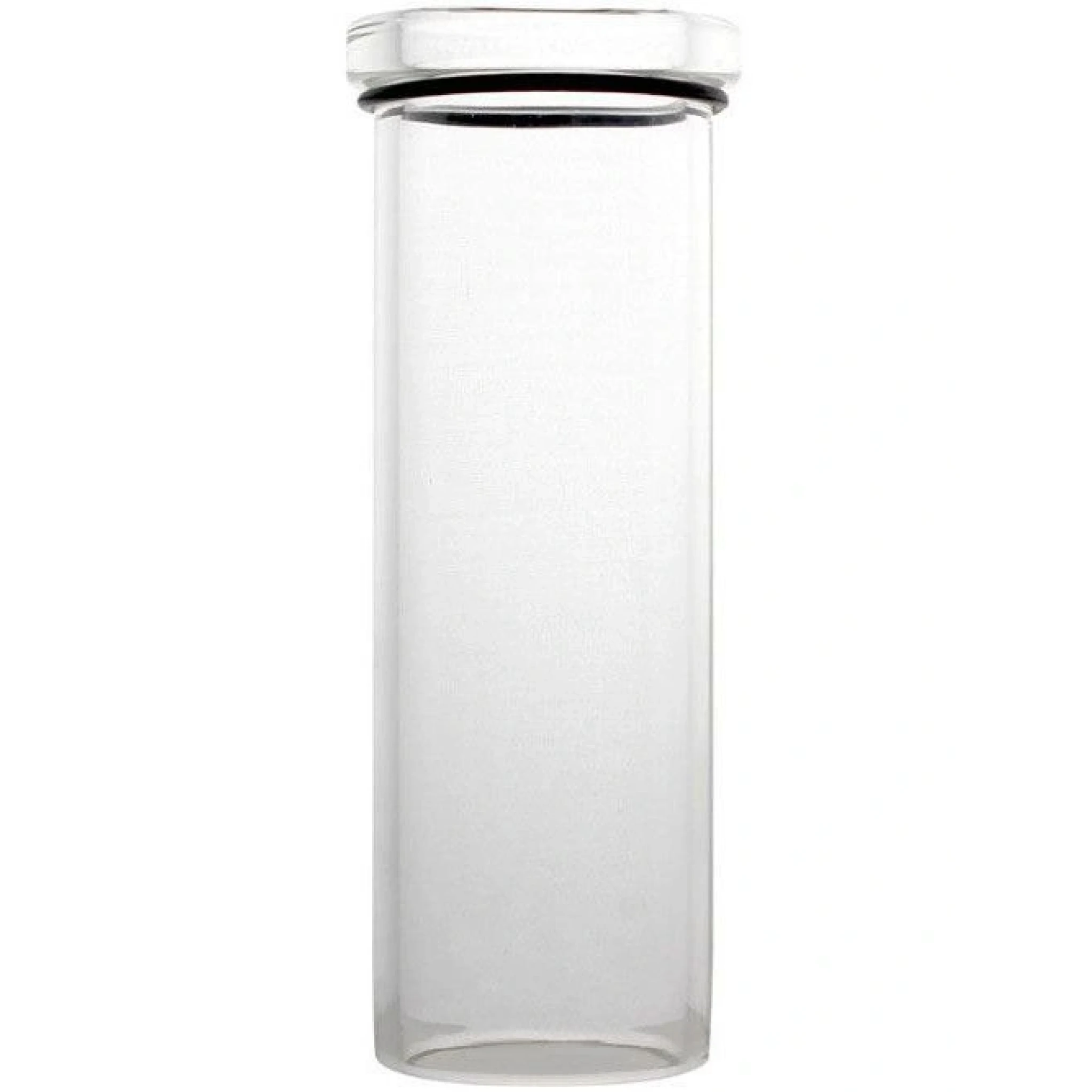

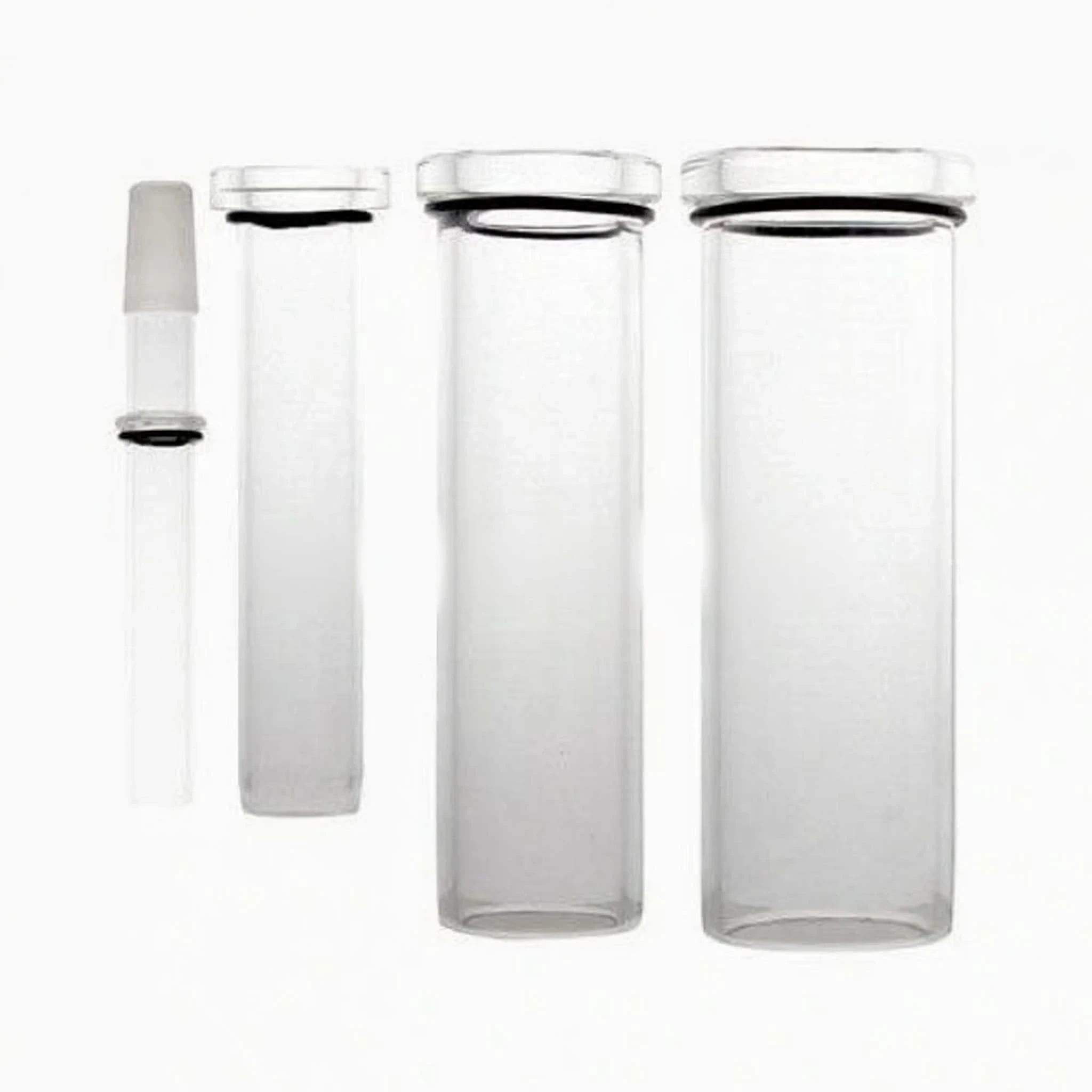

Ai SolventVap Rotary Evaporator Vapor Duct with Sealing Gasket

Dimensions:

SE.VD.SE05:
OD (Center Tube) : 22mm
ID (Condenser Side): 15.6 mm
ID (Flask Side): 14.2 mm
L: 194 mm


SE.VD-SE13:
OD (Condenser Side): 39.7 mm
OD (Flask Side): 28.7 mm
ID: 21.7 mm
L: 157 mm


SE.VD.SE26 (small neck):
OD (Condenser Side): 59.1 mm
OD (Flask Side): 49.6 mm
ID: 39.1 mm
L: 189 mm

SE.VD.SE26 (regular neck):
OD (Condenser Side): 68.85 mm
OD (Flask Side): 59.60 mm
ID: 49 mm
L: 190 mm

SE.VD 10-50L:OD(Condenser Side): 70.1 mm
OD (Flask Side): 60.2 mm
ID: 49.4 mm
L: 188 mm
