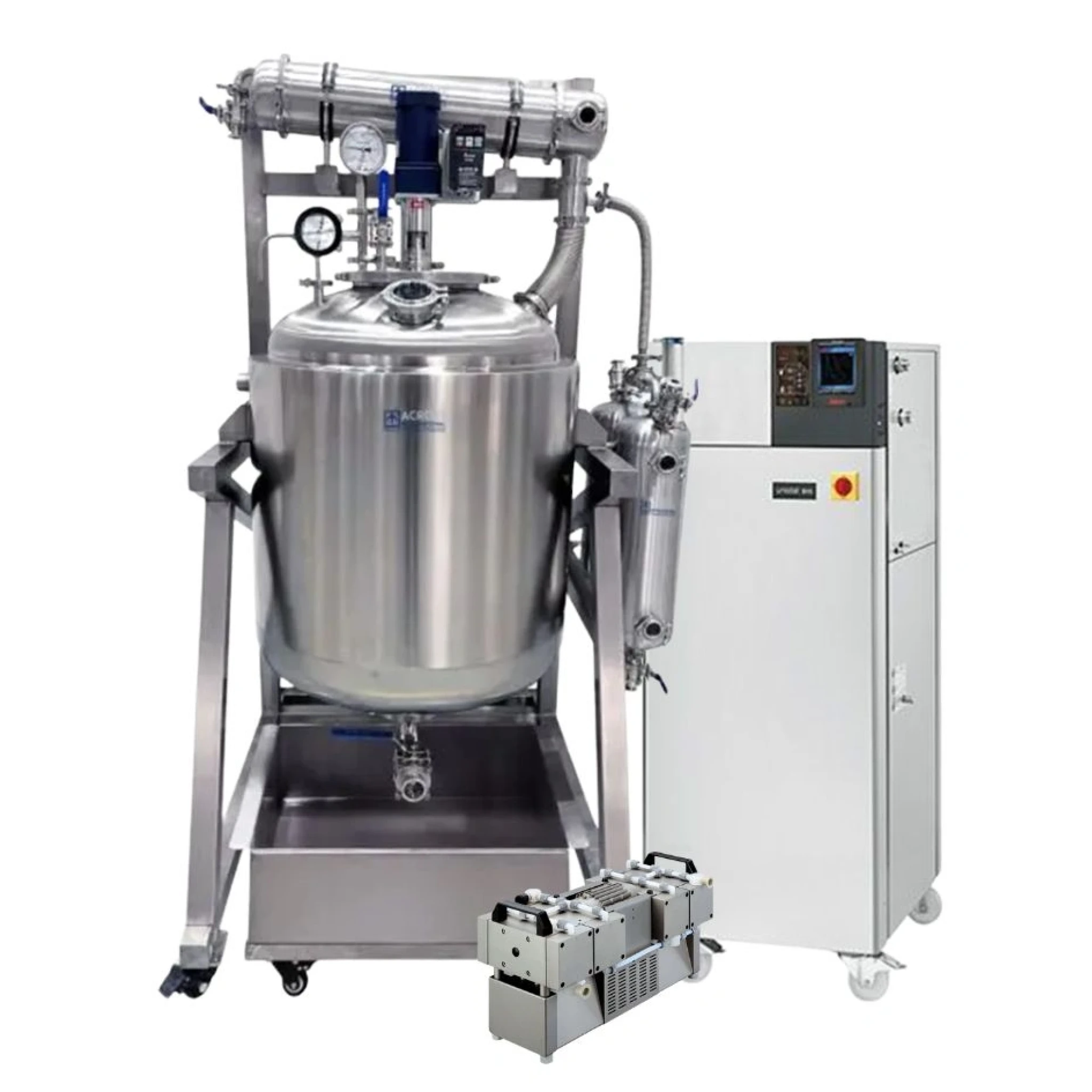

Winterization Package— 300L 316L SST Dual-Jacketed Reactor With Pump

Ai 316L Grade Stainless Steel Reactor Features

• Dual jacketed. Sealed outer insulation jacket provides best temperature performance inside chamber
• All wetted parts on main vessel and lid built with pharmaceutical grade 316L SST
• Shell and tube heat exchanger with 70 tubes for the best condensing results
• ElectroPolished internal chamber
  • Greatly reduces surface roughness by leveling micro-peaks and valleys
  • Improved vacuum pressures, out-gassing rates, and pumping speed
  • Prolong equipment lifespan by reducing friction and wear
  • Much better sterilized and semiconductor grade surface
  • Essential for the food and pharmaceutical industries
  • https://hollandaptblog.com/2014/03/20/what-is-electropolishing-and-why-is-it-so-important-in-the-pharmaceutical-industry
• Detachable condenser and collection tanks
• Dual collection tanks with big sight glass allows you to drain without breaking vacuum
• High drain port clearance for easy draining or added filtration

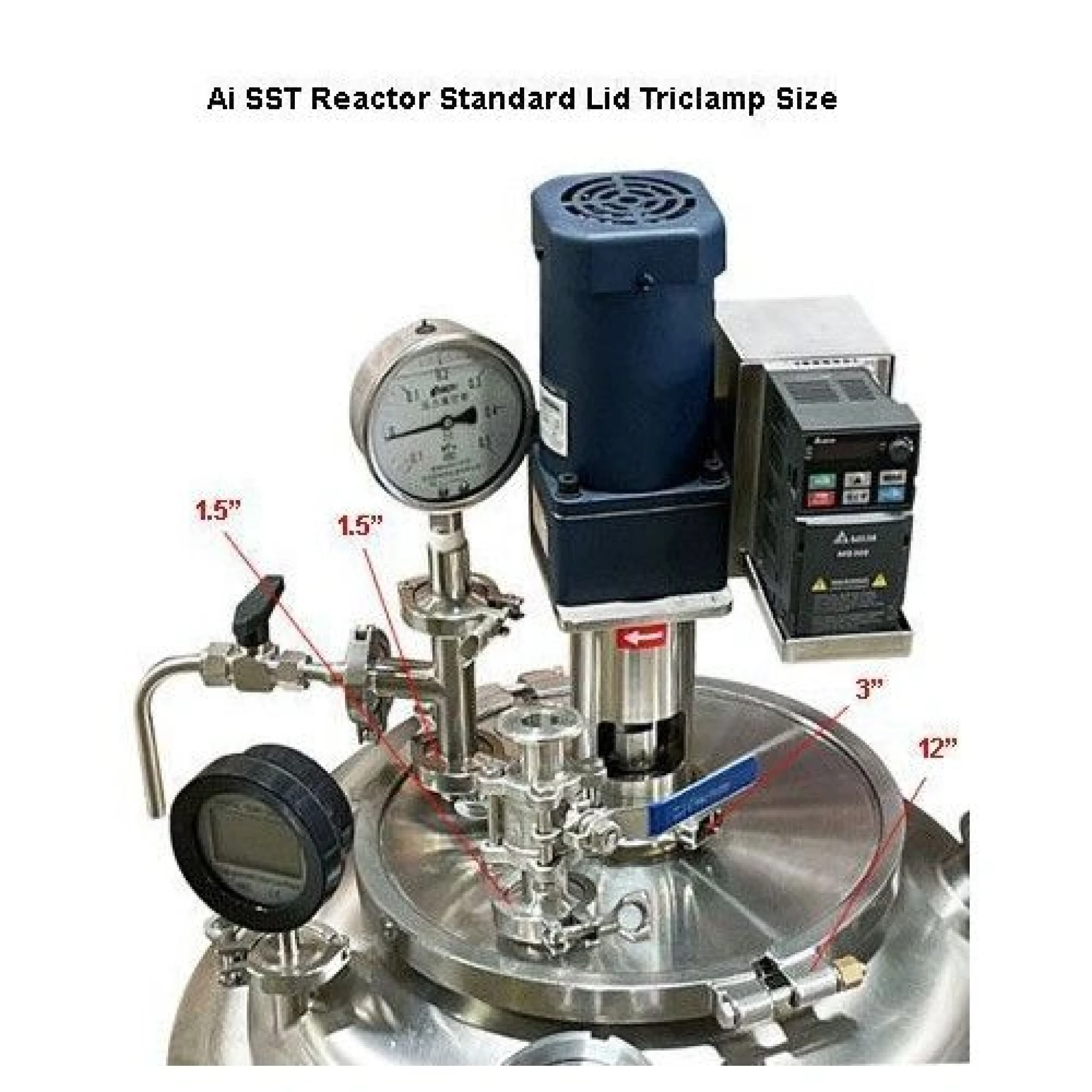

• Large ports (top 12" bottom 6") allows easy chamber cleaning
• Top placed vacuum port on condenser provides better flow and condensing results
• No messy cable, with space saving integrated stirring motor controller
• Heavy-duty stainless-steel frame with swivel casters
• Built-in flashlight gives you a clear view inside the chamber
• Positive/negative pressure gauge
• Matte finish stainless steel
• Customizable lid for various application
• Tons of tri clamps adapters available, e.g. tri clamp to hose barb/KF25/NPT
• Choice of bolted or pin clamp for various pressure applications
• Flexible bellow condenser connection reduces shipping damage
• Electric motor and controller model is ETL certified to UL and CSA standards
• Peer reviewed model (pneumatic motor and controller) is approved to be used with Acetone, Ethanol, Heptane, Hexane, Isopropyl Alcohol, Methanol, and Pentane.

CAUTION!

• Across International is not responsible for caustic chemical related damage to the stainless steel reactor internal and external parts and components.
• Never fill circulated heaters or chillers with water, always use Ai or manufacturer's recommended thermal fluid
• Always leave ample fluid space in heater reservoir to allow fluid heat expansion
• Always keep system vacuum passage or drain valve open when heating up circulation jackets
• Always make sure your vacuum pumps and diffusion pump fluid is clean and within limits

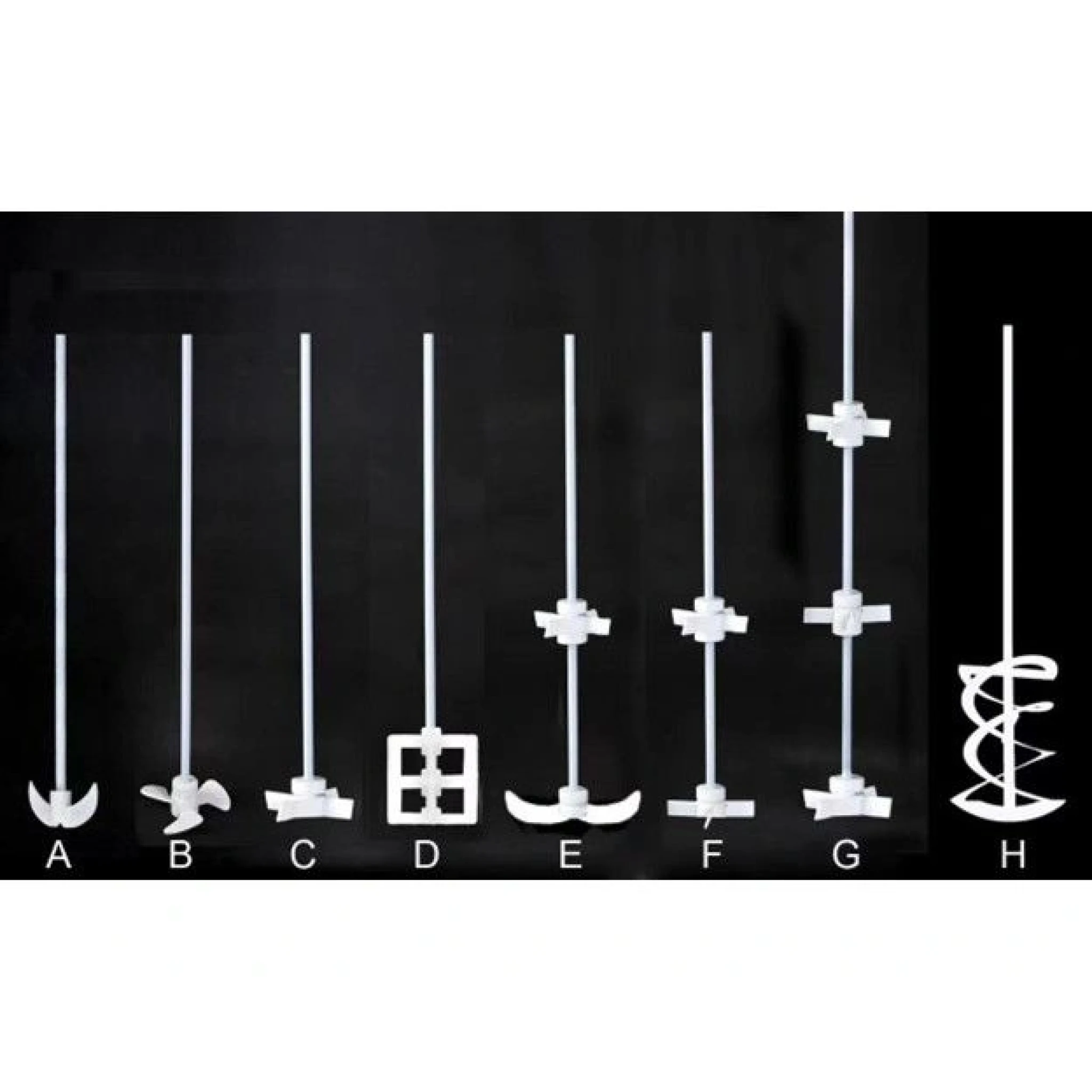

Impellar/Stirrer Options

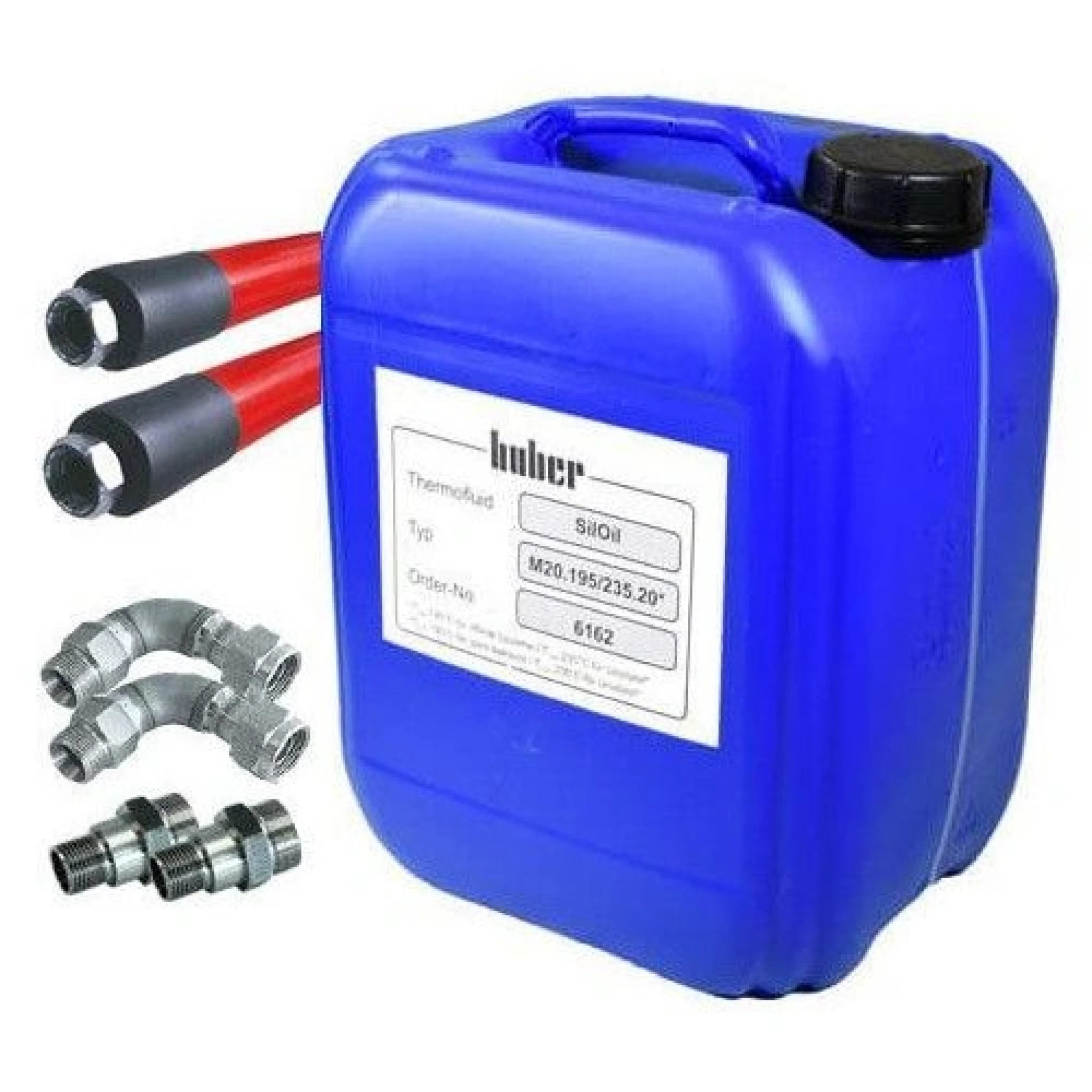

Huber Unistat 915w adapters, tubing and fluid for Ai 300L stainless steel reactors for Winterization

• P/N 6479 x 6 DW Therm (-90 to 200) 10L
• P/N 6461 x 2 90 degree M30 X 1.5 (male) to M30 X 1.5 (female)
• P/N 6427 x 2 Hose MT-350-2-M30x1,5 (f)
• P/N 13255 x 2 M30 X 1.5 (male) to 1" NPT (male)

For additional CS200 to cool the Unistat 915w (optional and not included in package as standard)

• P/N 16859 x 2 2 meter braided hose (G1" female)
• P/N 10979 x 2 G 1" male to a G 3/4" female adapter

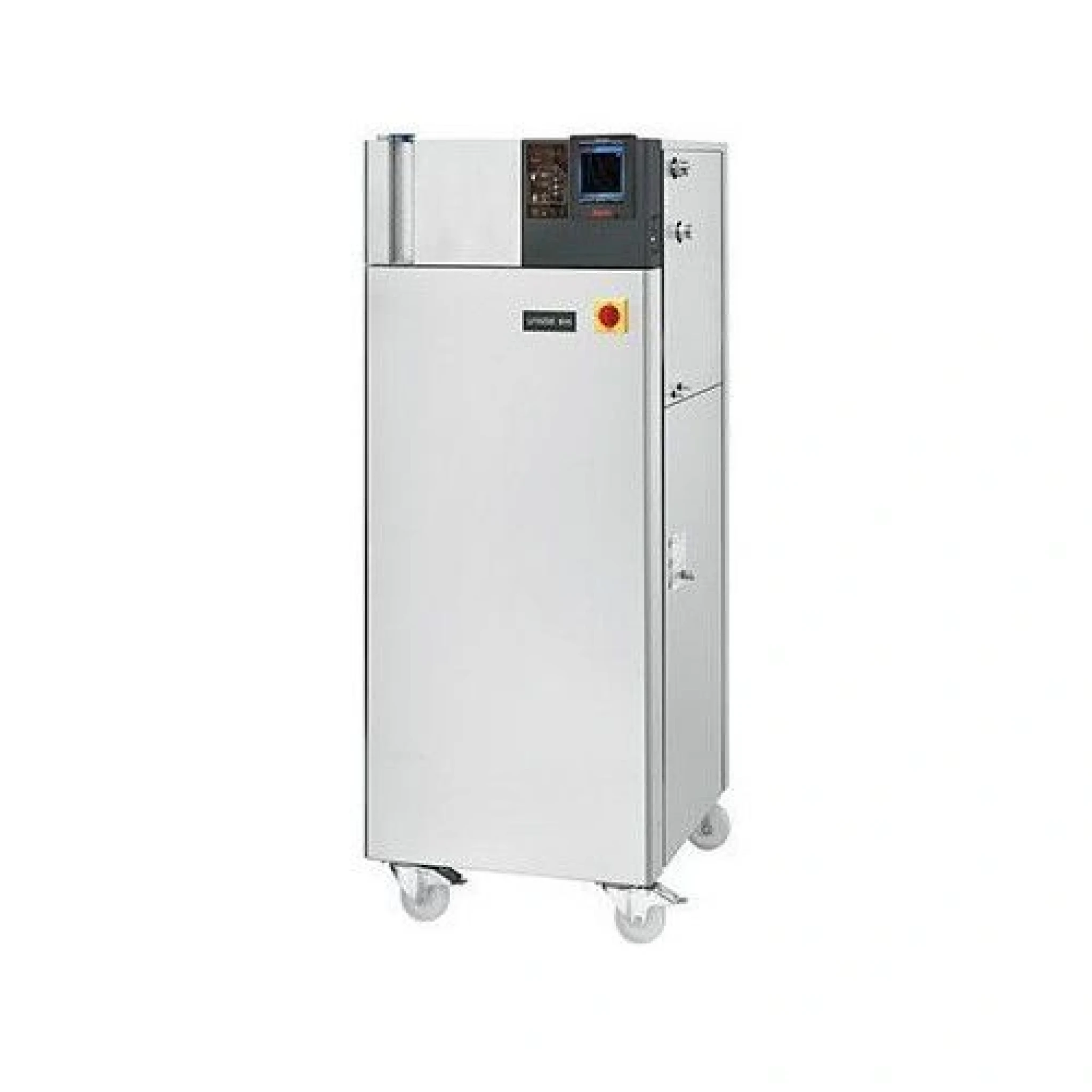

The Unistat 915w is a water-cooled chiller that must be coupled with a cool water source or paired with a water chiller in order to operate. If an air-cooled chiller is required please speak with your sales representative before purchase.

Standard Package
