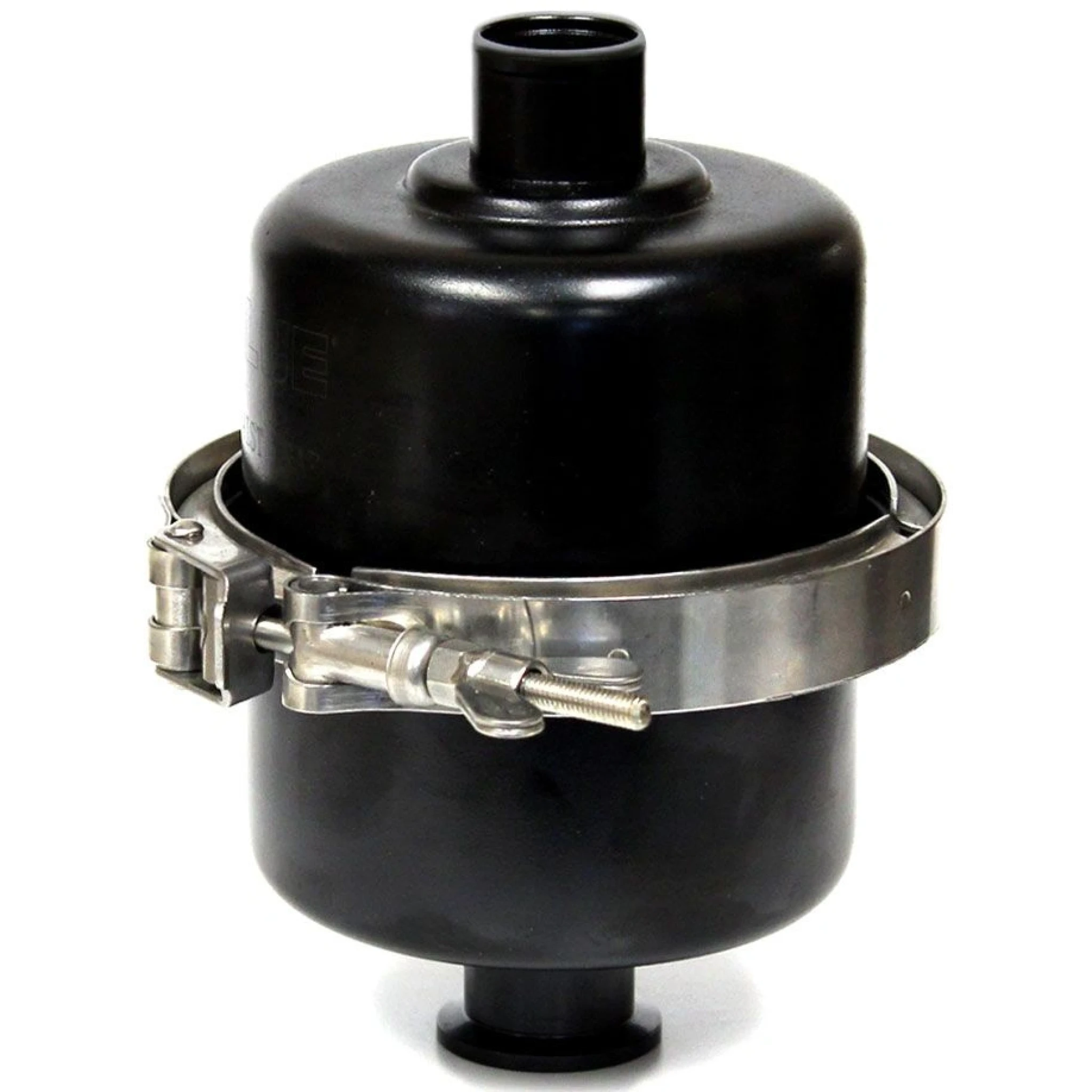

EZ-Swap Large Capacity Pump Exhaust Oil Mist Filter w/ Fittings
Reference:
Manufacturer: Across International
Our EZ-Swap large capacity series vacuum pump exhaust oil mist filters allow you to exam and replace filter element in a snap. This filter eliminates vacuum oil mist from polluting your work environment, it also returns trapped pump oil back to the pump and makes pumps much quieter to run.

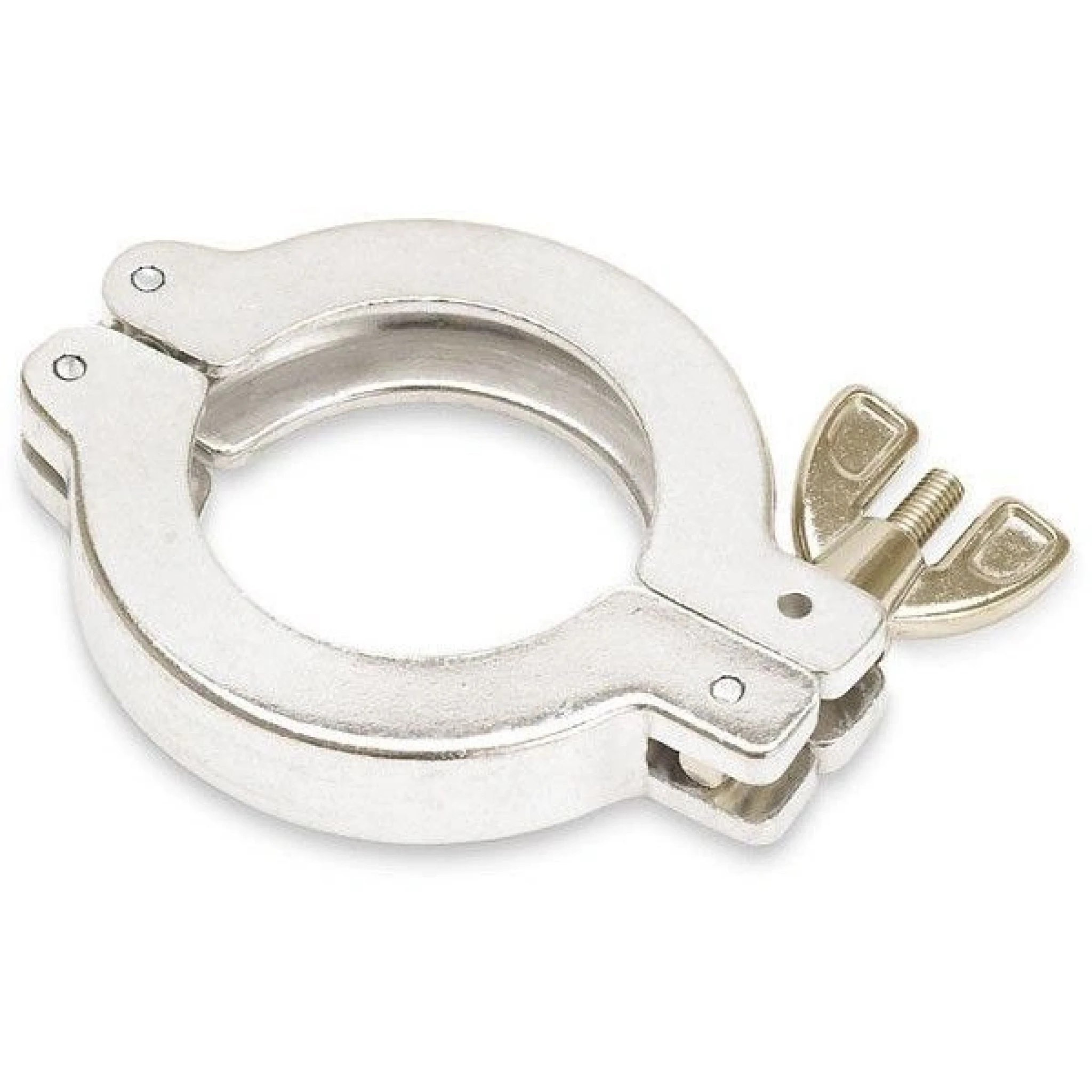

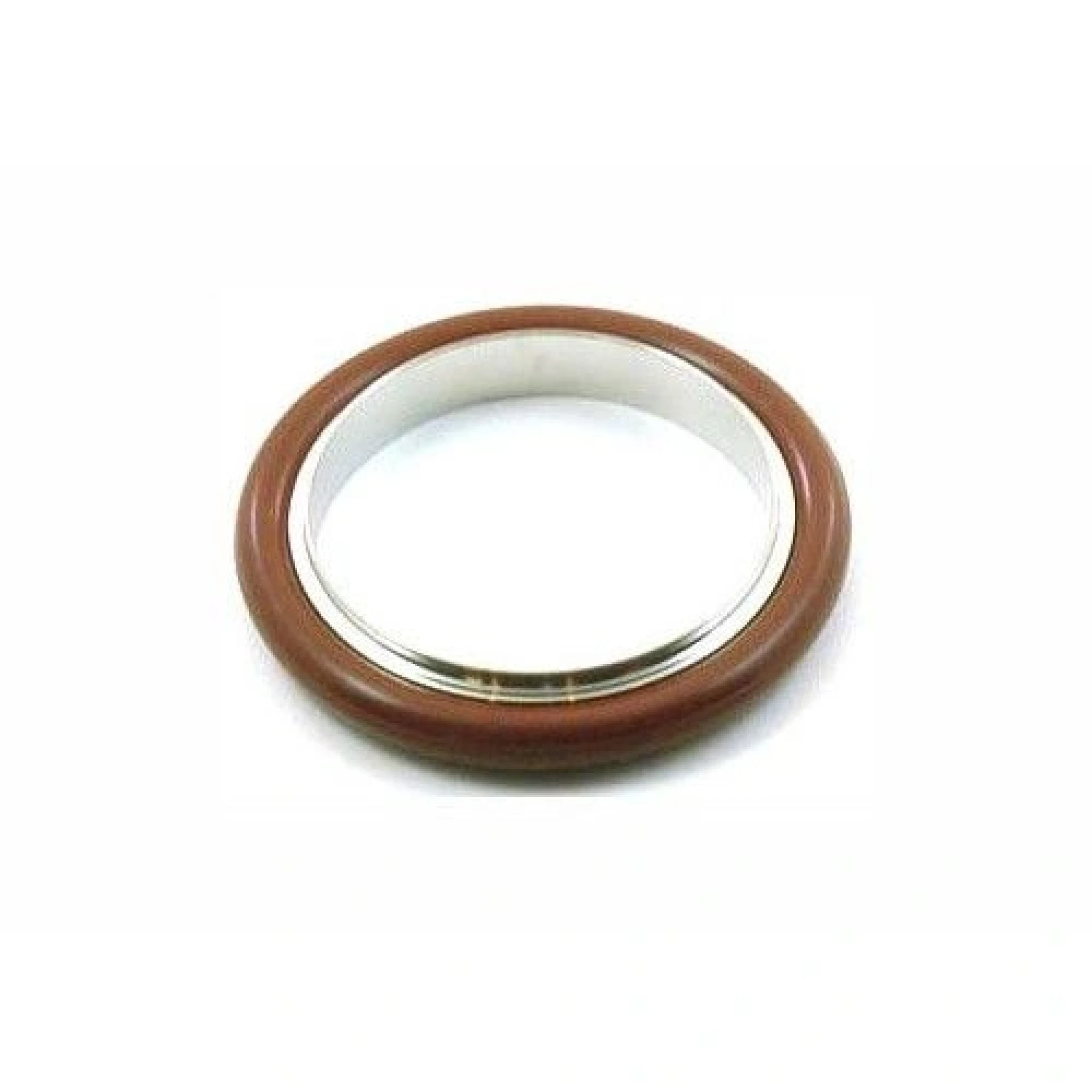

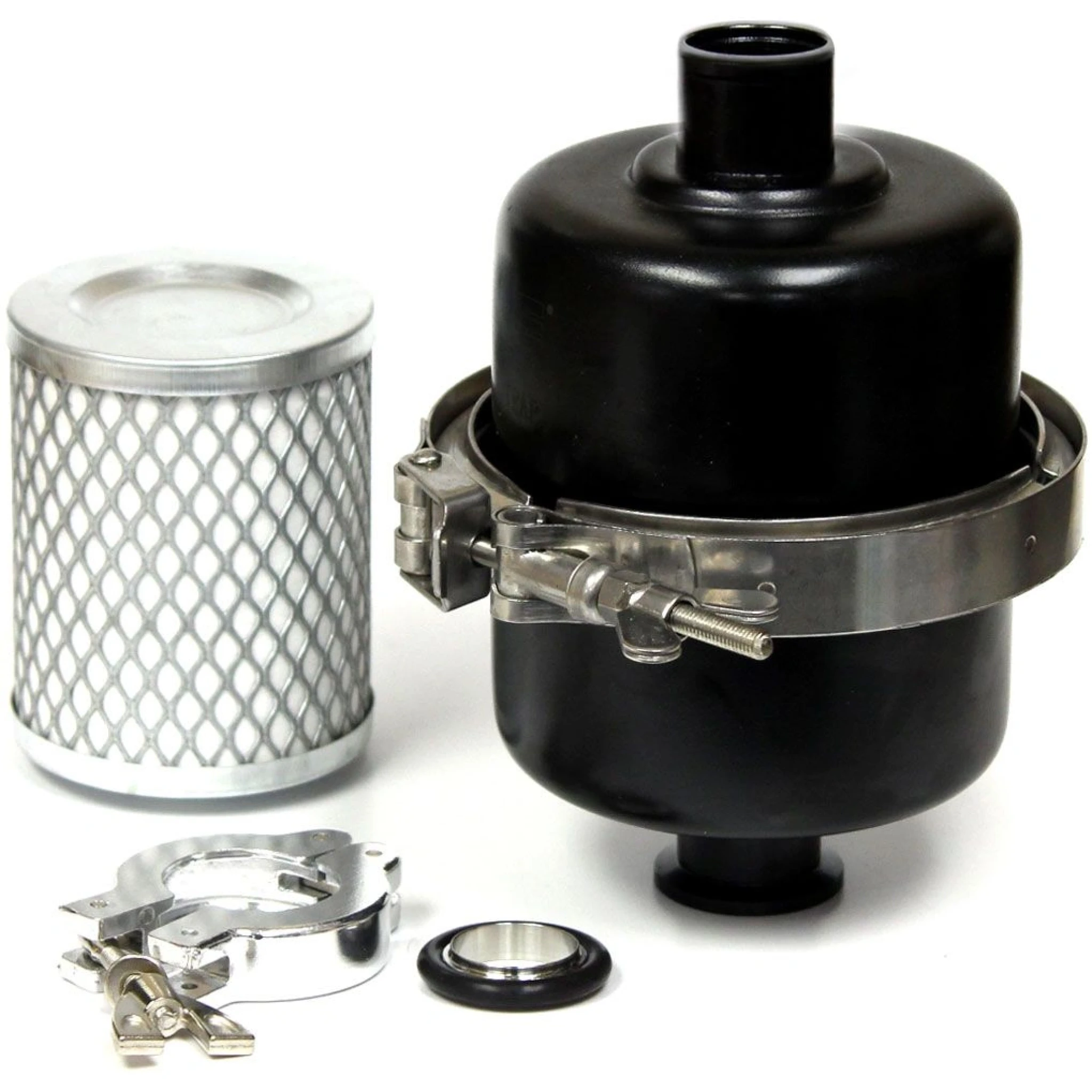

Comes with one replaceable filter element (installed), one KF25 clamp and one centering ring.
It is important to note that pumps should always be ran in a well ventilated area.
SMF-020 Exhaust filter thread size: M24X1.5
Customize your product
Payment Providers
| Filter height | 7.25 inches |
| Filter diameter | 5.5 inches |
| Inlet | KF25 |
| SMF-020 Exhaust filter thread size | M24X1.5 |
| Outlet | 30mm diameter |
| Unit weight | 2.25 Lbs |
| Case material | Powder coated steel |
| Filter clamp | Stainless steel |
| Replaceable filter element | 3.125 inches diameter, 4.125 inches height |
| Recommended for Ai pumps | SuperVac 11.3 cfm and 21 cfm |
