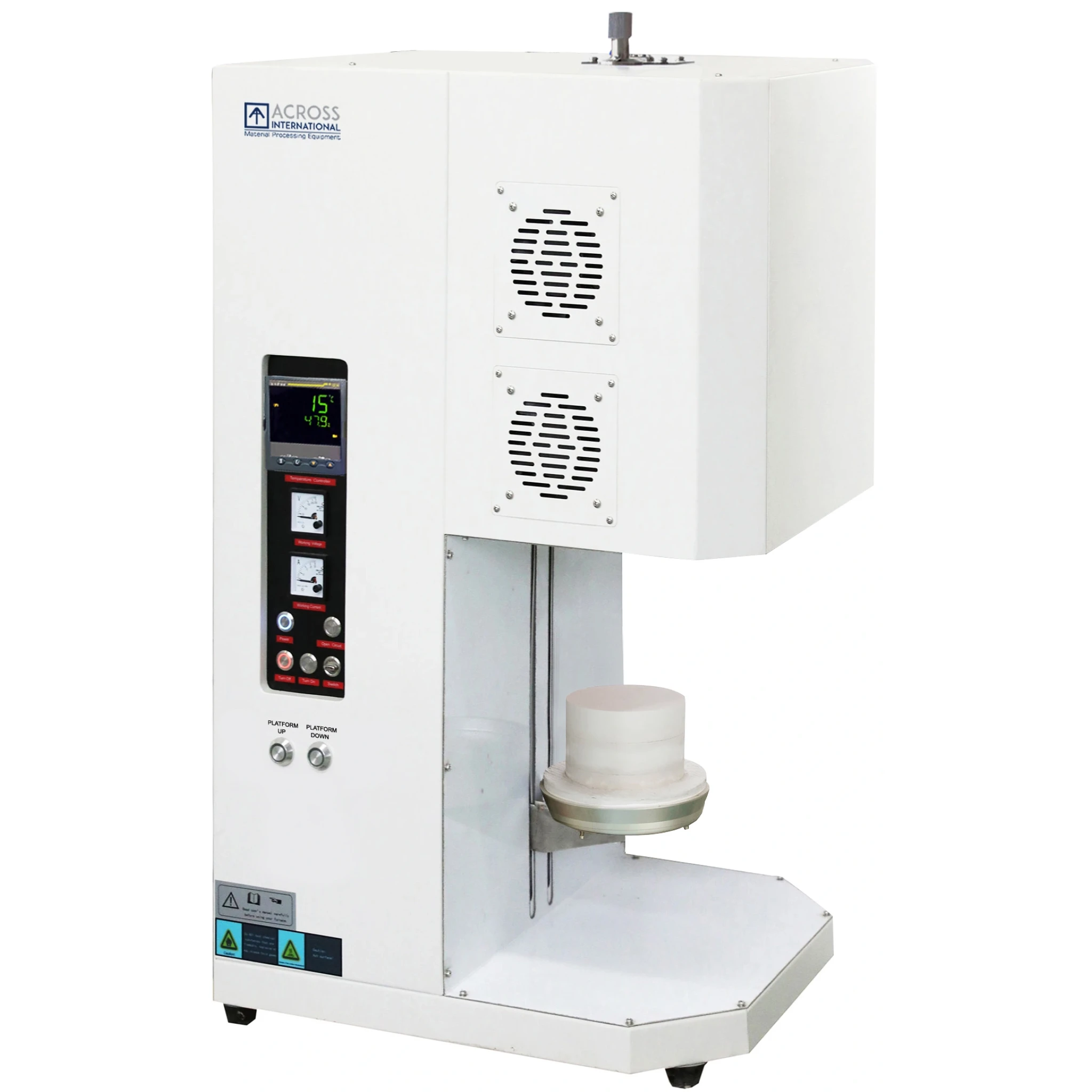

1700C Table-Top Motorized Bottom Loading Furnace with Optional Stirring
Reference:
Manufacturer: Across International
- Motorized bottom elevator hearth
- Eurotherm with multi-segment PID control provides optimum thermal process with minimal overshooting.
- Built-in ammeter and dual voltmeters for easy monitoring and troubleshooting.
- Built-in computer interface.
In stock
Customize your product
Payment Providers
BLF1700 series desktop bottom loading furnaces feature Molybdenum Silicide (MoSi2) Type 1800 heating elements with Mitsubishi (Japan) 1800 grade alumina fiber insulation. A double walled steel internal housing helps minimize heat loss to exterior surface.
Features
- Motorized bottom elevator hearth
- Eurotherm with multi-segment PID control provides optimum thermal process with minimal overshooting.
- Built-in ammeter and dual voltmeters for easy monitoring and troubleshooting.
- Built-in computer interface.
- Optional stirring fuction
Safety
- Overheat protection shuts down the furnace if temperature is outside of acceptable range (refer to controller's manual) or when the thermocouple is broken or malfunctions.
- Power failure protection resumes furnace operation right after the point of failure when power is reestablished.

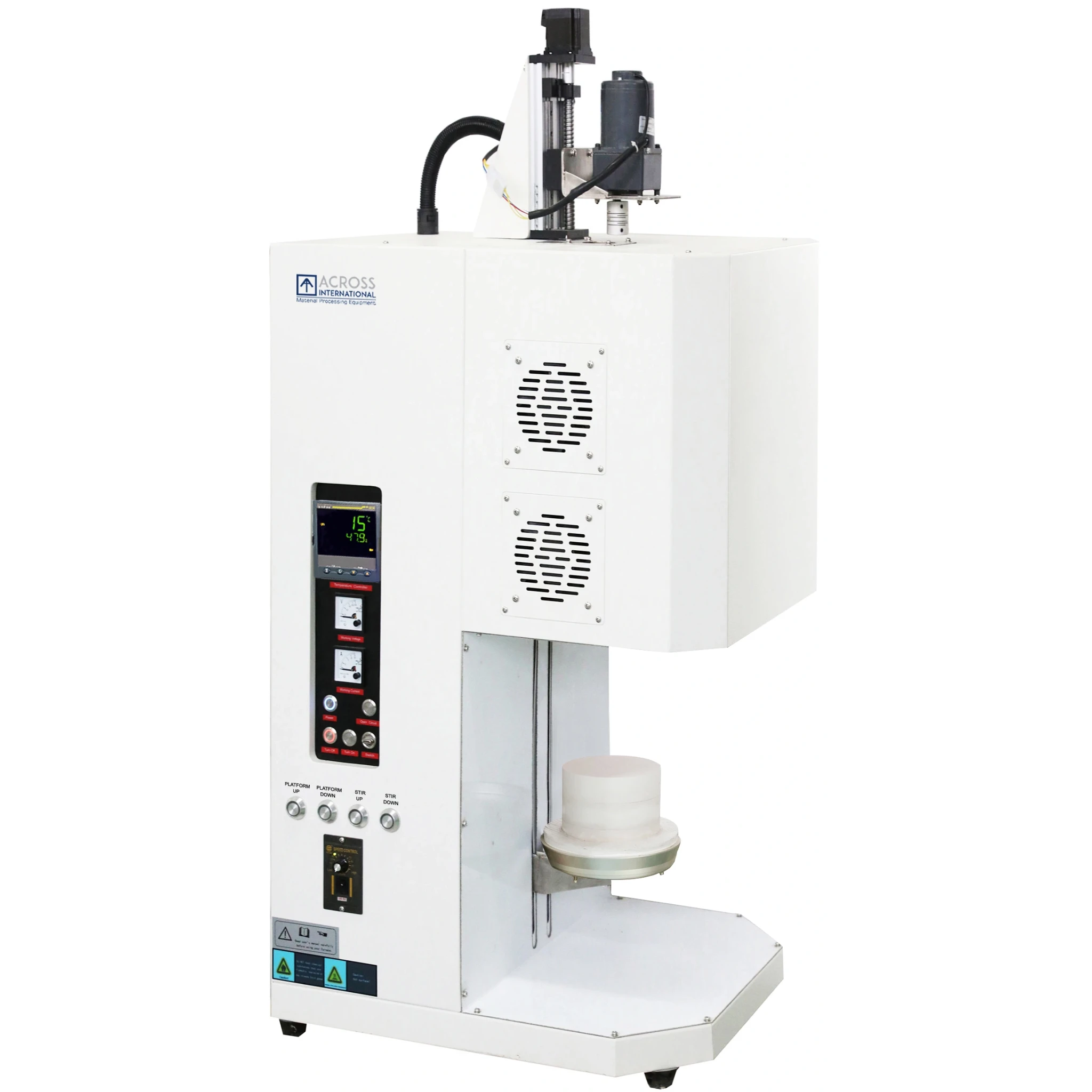

BLF with Optional Overhead Stirring System
| Model | BLF1700 |
| Electrical requirements | 208-240VAC, 50/60Hz, single phase |
| Min. working temperature | Ambient |
| Max. working temperature | 1700°C |
| Max. constant working temperature | 1600°C |
| Refractory lining | Mitsubishi (Japan) high quality 1600 grade fiber alumina |
| Heating element type | Molybdenum Silicide (MoSi2) Type 1800 |
| Thermocouple type | B |
| Temperature controller | Eurotherm 3204 Controller (UK) 5 Programs – Each program has 8 segments |
| Max heating rate | < 30°C / min |
| Recommended heating rate | 15°C / min |
| Furnace housing temperature | < 45°C |
| Bottom elevator hearth | Motorized |
| Warranty | 1 year |
| Chamber size (diameter x height) | 6x8" |
| Chamber capacity | 0.13 cu ft |
| Power | 5 kW |
| Dimensions | 27.5x31.5x47" |
Standard Package
| 1700C max bottom loading furnace | 1 pc |
| Thermocouple - type B | 1 pc |
| Thermal gloves | 1 pair |
| Eurotherm USB software | 1 pc |
| User's manual | 2 pc |
