USA Lab Table Top High Speed Refrigerated Centrifuge - 16000rpm w/ 6x50ML Rotor
Reference: USA-UGL16-KIT-6\u00d750ml
Manufacturer: USA Lab
USA-UGL16 Table Top High Speed Refrigerated Centrifuge The USA Lab USA-UGL16 Table Top High Speed Refrigerated Centrifuge is engineered for laboratories that demand precision, safety, and energy efficiency. Featuring a brushless frequency motor with powerful…
In stock
Payment Providers
More info

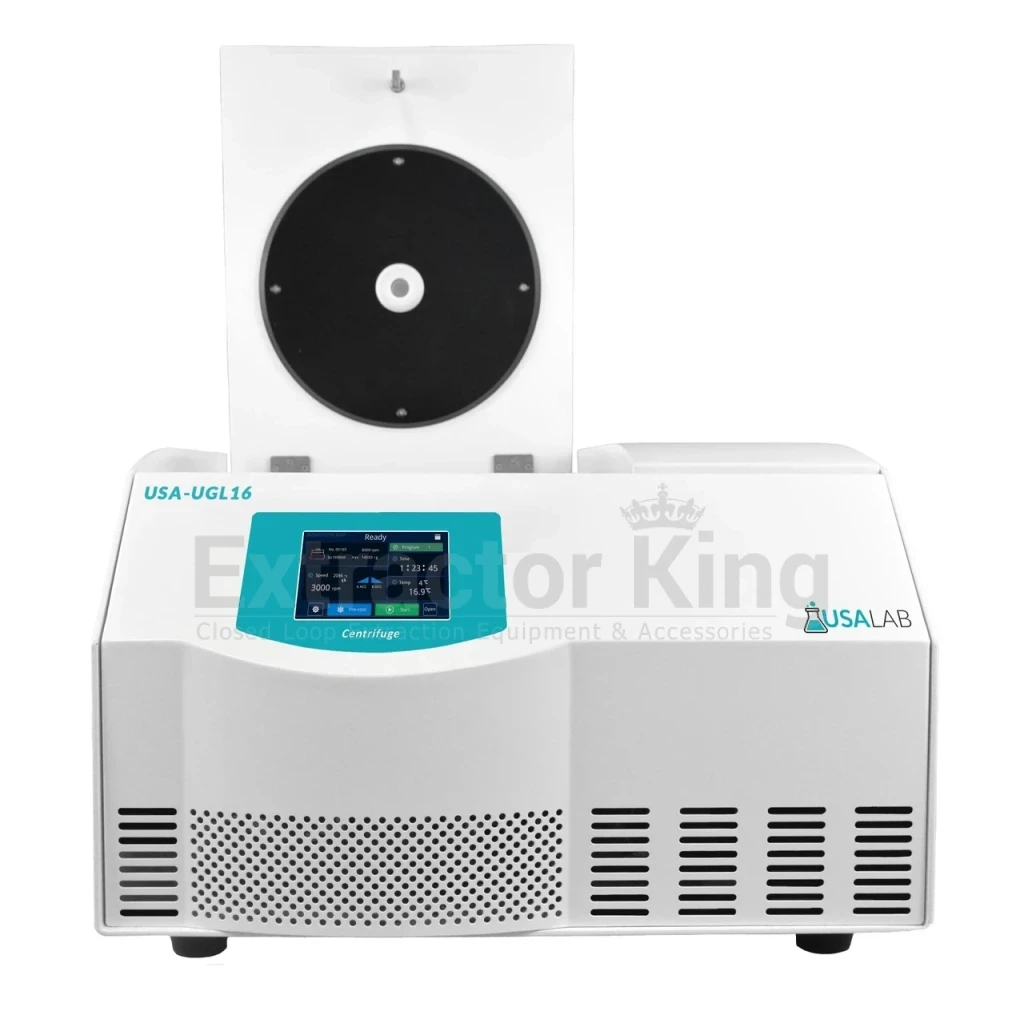

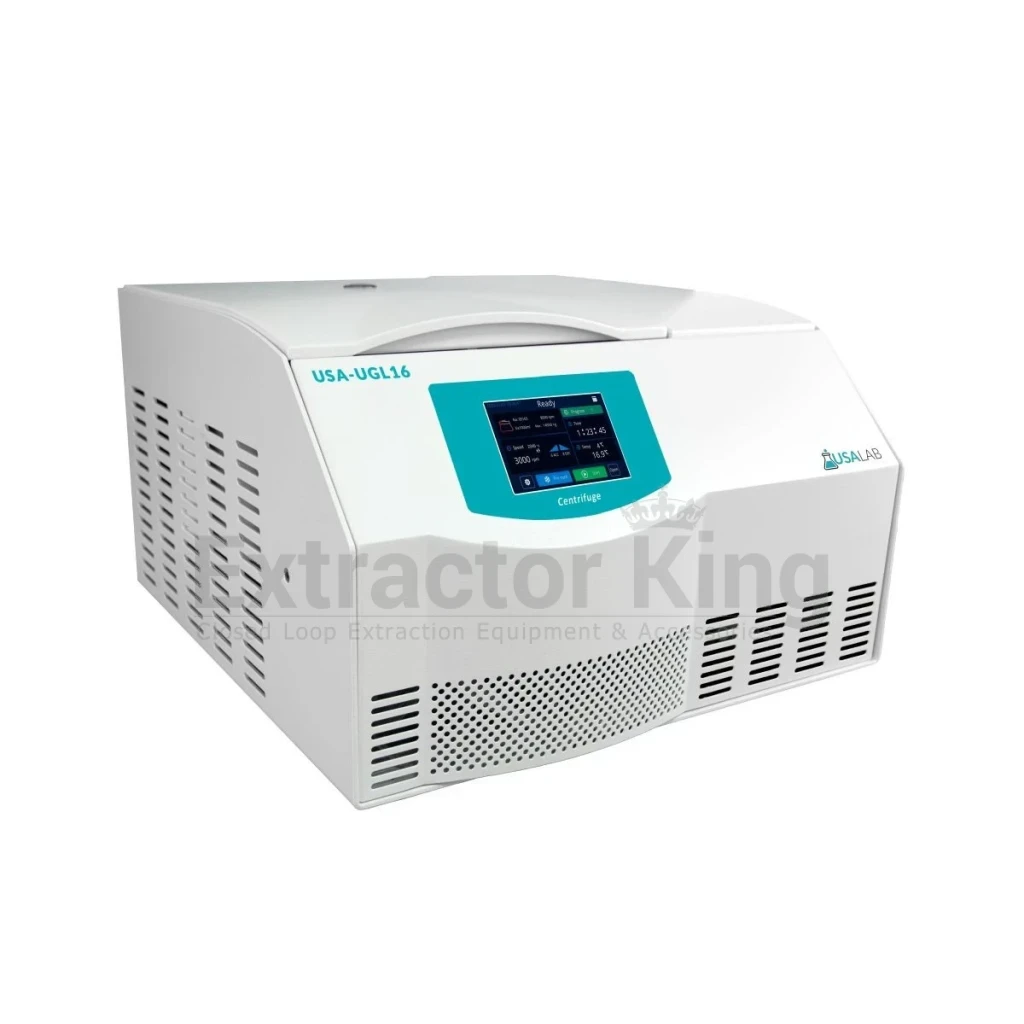

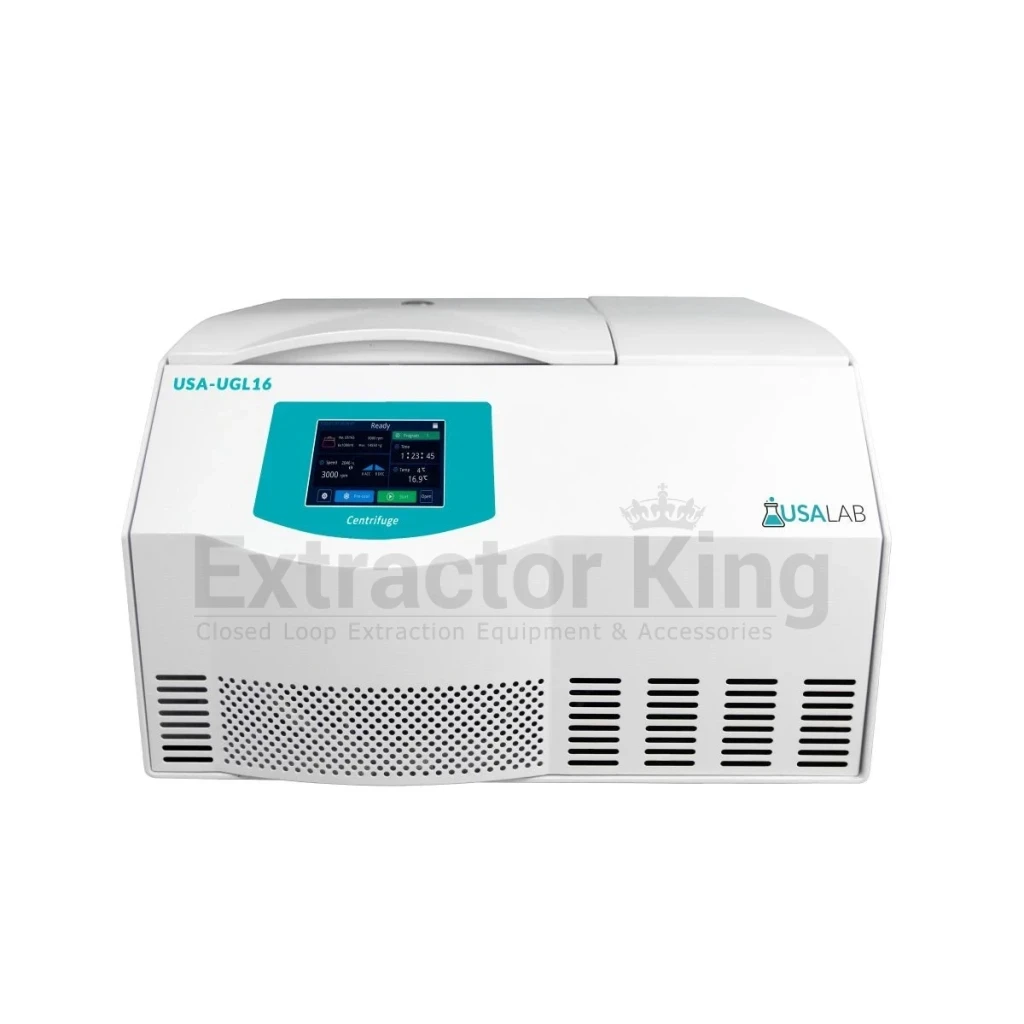

USA-UGL16 Table Top High Speed Refrigerated Centrifuge
The USA Lab USA-UGL16 Table Top High Speed Refrigerated Centrifuge is engineered for laboratories that demand precision, safety, and energy efficiency. Featuring a brushless frequency motor with powerful torque, this centrifuge provides rapid acceleration and deceleration while remaining maintenance-free and free from carbon powder contamination.

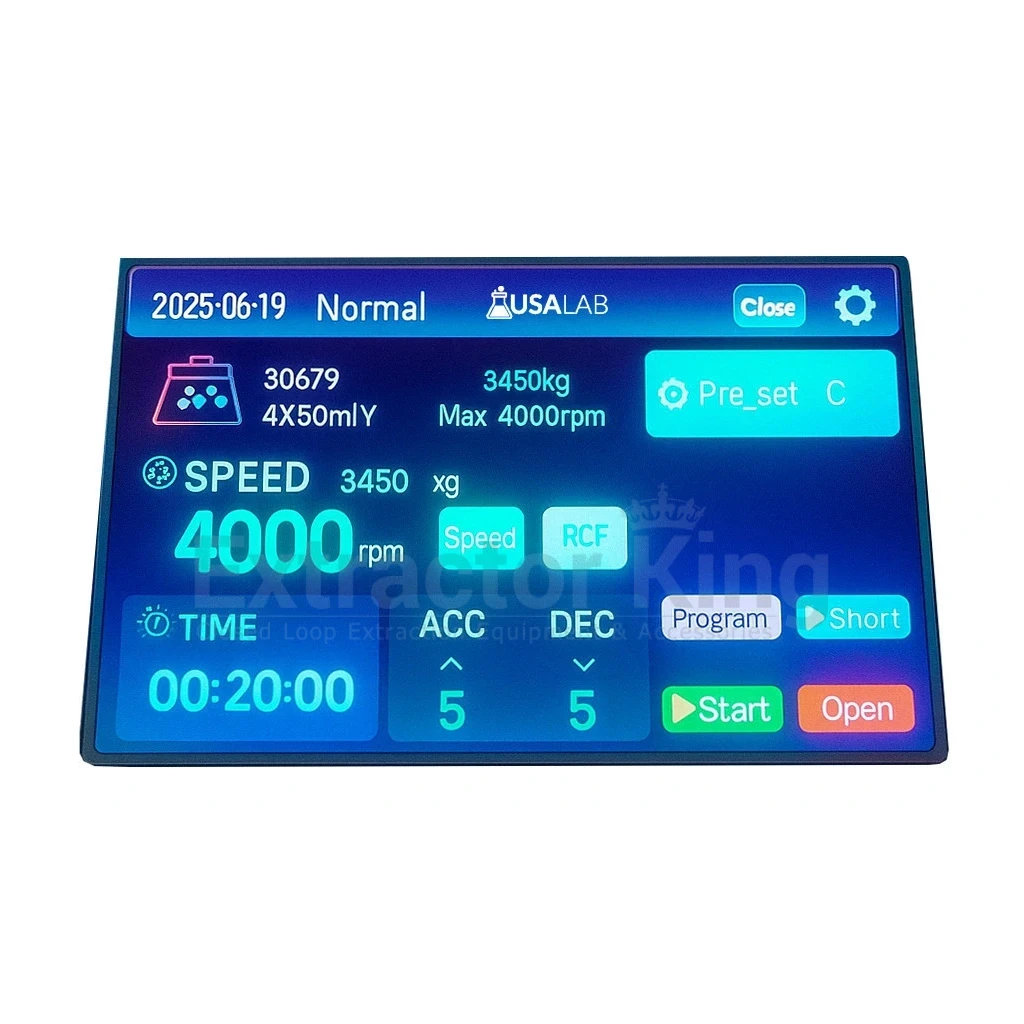

The USA-UGL16 uses an imported fluorine-free dual-cycle cooling system with both heating and cooling capability, providing precise temperature control across a range of centrifugation applications. Its microprocessor control and digital LCD display allow operators to monitor and adjust temperature, speed, time, and RCF parameters with ease.
With 10 programmable memory settings, 10 acceleration/deceleration profiles, pre-cooling functionality, and advanced safety protections, the USA-UGL16 provides flexible and reproducible operation. Its high-strength steel body, stainless steel chamber, explosion-proof inner sleeve, and specialized spring taper sleeve rotor connection provide durable construction and convenient rotor installation.
Why this USA-UGL16 Centrifuge?
- High-speed refrigerated performance — reaches up to 16,000 RPM and 20,600 × g for demanding centrifugation workflows.
- Eco-friendly cooling technology — imported fluorine-free dual-cycle cooling provides both heating and cooling capability across a -20°C to 40°C range.
- Advanced safety system — automatic lid locking, overspeed protection, over-temperature protection, imbalance detection, and triple-layer protective construction.
- Flexible programmable operation — 10 memory settings and 10 acceleration/deceleration profiles support customized and repeatable workflows.
- Convenient rotor installation — specialized spring taper sleeve connection allows fast, simple, and direction-free rotor installation.
Technical Specifications
| Specification | Details |
|---|---|
| Model | USA-UGL16 |
| Product Name | USA-UGL16 Table Top High Speed Refrigerated Centrifuge |
| Brand | USA Lab |
| Equipment Type | Table Top High Speed Refrigerated Centrifuge |
| Control / Working Mode | Microprocessor Control with Digital LCD Display |
| Max. Speed | 16,000 r/min |
| Max. Capacity | 6 × 100 ml |
| Max. RCF | 20,600 × g |
| Timer | 0–99 h 59 min 59 sec |
| Speed Accuracy | ±20 r/min |
| Noise | ≤58 dBA |
| Temperature Range | -20°C to 40°C | -4°F to 104°F |
| Temperature Accuracy | ±1°C |
| Electrical Requirements | AC 110V, 60Hz |
| Programmable Settings | 10 memory settings; 10 acceleration/deceleration profiles |
| Cooling System | Imported fluorine-free dual-cycle cooling system with heating and cooling capability |
| Rotor Capacity | 6 × 100 ml |
| Rotor Connection | Specialized spring taper sleeve connection |
| Dimensions / Net Weight | 620 × 570 × 380 mm | 24.4 × 22.4 × 15 in. / 82 kg | 180 lbs |
FAQ
What is the maximum speed and capacity of the USA-UGL16 Table Top High Speed Refrigerated Centrifuge?The USA-UGL16 reaches a maximum speed of 16,000 RPM, provides a maximum RCF of 20,600 × g, and accommodates up to 6 × 100 ml tubes.
The USA-UGL16 uses an imported fluorine-free dual-cycle cooling system with both heating and cooling capability. The temperature range is -20°C to 40°C with ±1°C temperature accuracy.
The USA-UGL16 includes automatic lid locking, overspeed protection, over-temperature protection, imbalance detection, and triple-layer protective construction consisting of a high-strength steel body, stainless steel chamber, and explosion-proof inner sleeve.
Yes. The microprocessor-controlled digital LCD display allows operators to monitor and adjust speed, time, RCF, and temperature. The centrifuge also provides 10 programmable memory settings, 10 acceleration/deceleration profiles, and a pre-cooling function for flexible laboratory workflows.
All items are carefully packaged to ensure safe delivery. In the rare event that your item arrives damaged, please notify us within 3 days of receipt. We will promptly provide a replacement or issue a refund.
Please note that any damage occurring after delivery is not covered under warranty. We appreciate your understanding and your trust in our products.
Specifications
| Brand | USA Lab |
| Max. Speed | 16000rpm |
| Max. Capacity | 6x100ml |
| Speed Accuracy | ±20r/min |
| Voltage | 110V, 60 Hz |
| Dimensions (W × D × H) | 620×570×380mm | 24.4 x 22.4 x 15 (in) |
| Warranty Term | 1 Year |
