  5. Bridgman Crystal Growth Tube Furnace 1700C 60-100mm OD 1-Zone With Mosi2 Heating Elements
New

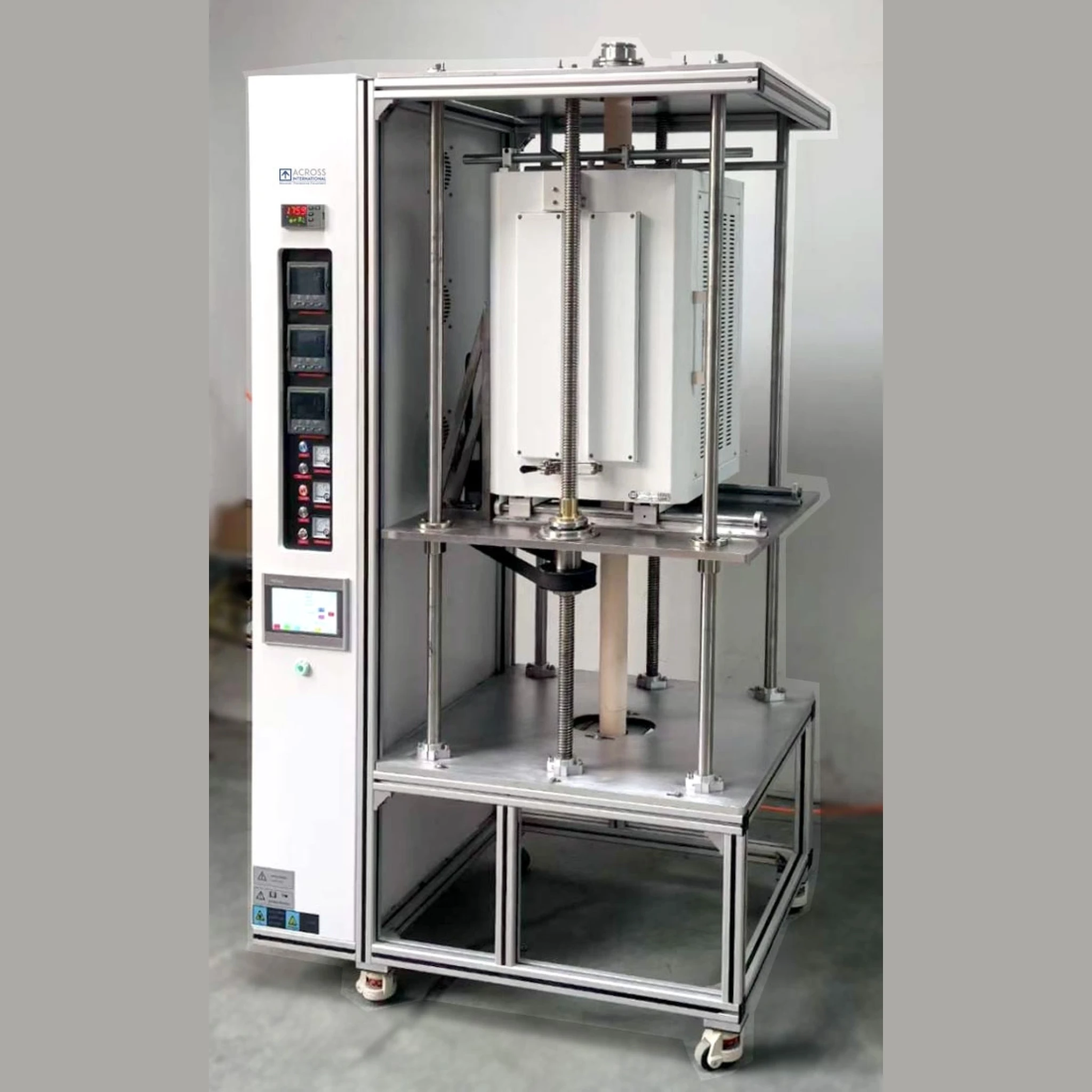

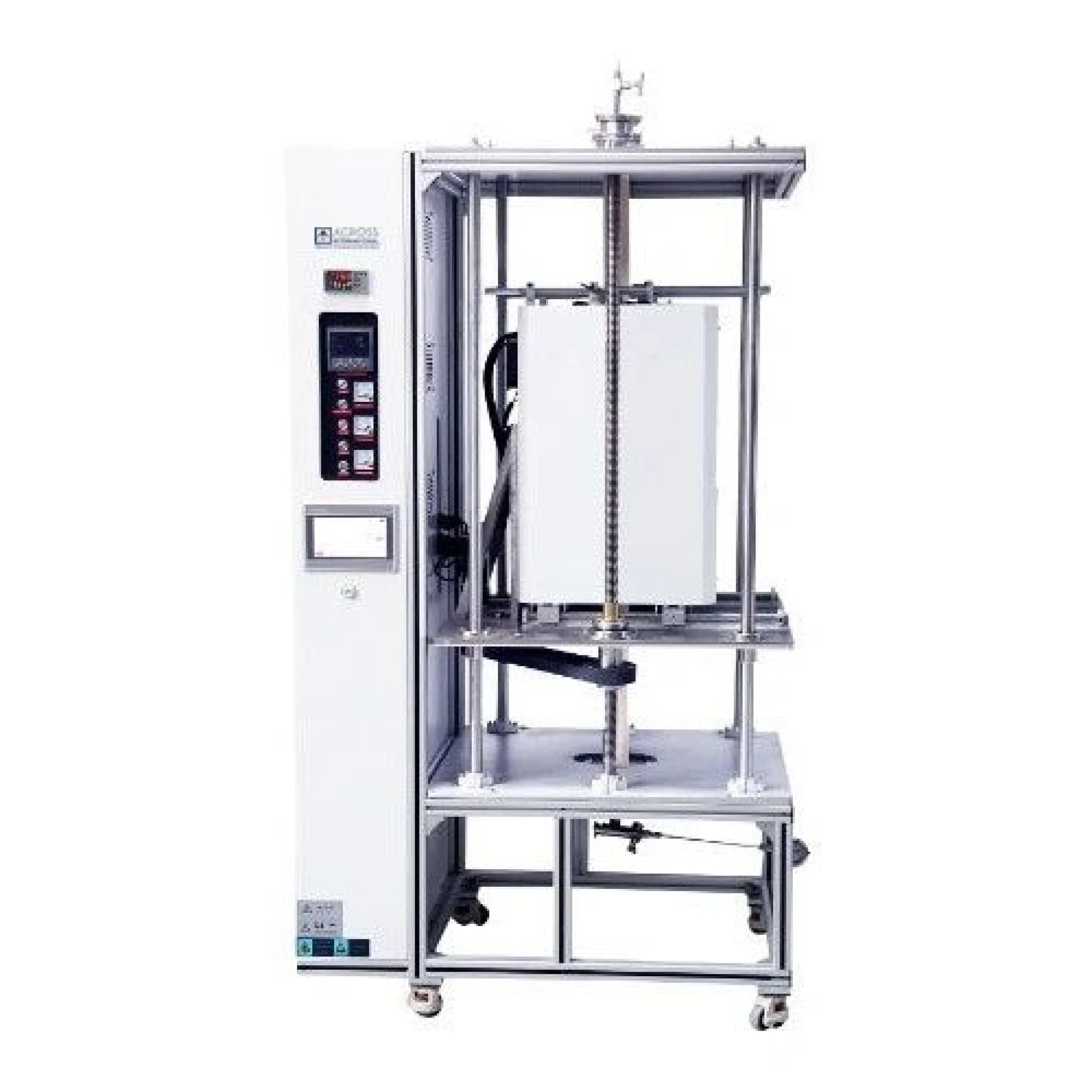

Ai CGF1700F 1700°C Crystal Growth Furnace, white furnace chamber in aluminium frame with lead screw and control cabinet

Bridgman Crystal Growth Tube Furnace 1700C 60-100mm OD 1-Zone With Mosi2 Heating Elements

Reference:

Manufacturer:

  • Swing-open furnace chamber for fast and easy tube access
  • Digital multi-segment automatic hoisting control
  • High precision Eurotherm 3504 PID controller provides optimum thermal process with minimal overshoot
  • Built-in computer interface

CAD $69,688.51

Customize your product

Payment Providers
Payment Providers
Add to wishlist
Please give us a call for the details on the sizes. Ai CGF1700F series Crystal Growth Furnaces come with swing-open chamber; it also features the famous Mitsubishi (Japan) high-quality grade 1800 alumina fiber insulation, and MoSi2 Molybdenum Silicide heating elements. A double-walled steel internal housing helps minimize heat loss to the exterior surface.

Furnace operation is controlled by high precision 50-segment Eurotherm 3504 (UK), allowing the user to connect to a PC for remote control and monitoring of the furnace. You can also save or export test results.


Features

  • Swing-open furnace chamber for fast and easy tube access
  • Digital multi-segment automatic hoisting control
  • High precision Eurotherm 3504 PID controller provides optimum thermal process with minimal overshoot
  • Built-in computer interface
  • Durable type K thermocouple
  • Additional thermocouple and Eurotherm temperature display

Safety

  • Automatic hoisting limit switch
  • Overheat protection shuts down the furnace if the temperature is outside of the acceptable range (refer to controller's manual) or when the thermocouple is broken or malfunctions.
  • Power failure protection resumes furnace operation right after the point of failure when power is reestablished.

Warning! NEVER fill the furnace with explosive gases, including Hydrogen, Carbon Monoxide, and Methane.
