Edwards ITX20K Inlet Trap/Filter
Reference:
Manufacturer: Edwards
Protection against various aggressive vapors, which may attack the pump or pump oil Prevent high molecular weight vapors (such as might arise in a resin treatment plant), from reaching the pump. These vapors could cause lacquering or clogging The standard sorbent (activated charcoal), has relatively high trapping properties (absorbs around 25% of its own weight), even when large amounts of water vapor are being pumped. When filled with activated alumina on two-stage pumps, backstreaming of pump oil can be controlled
These catchpots minimize the entry of condensable vapors into the pump. Sorbent charge not supplied. Supplied with NW25 clamp, centering ring and ‘O’ ring.
In stock
Customize your product
Payment Providers
Overview

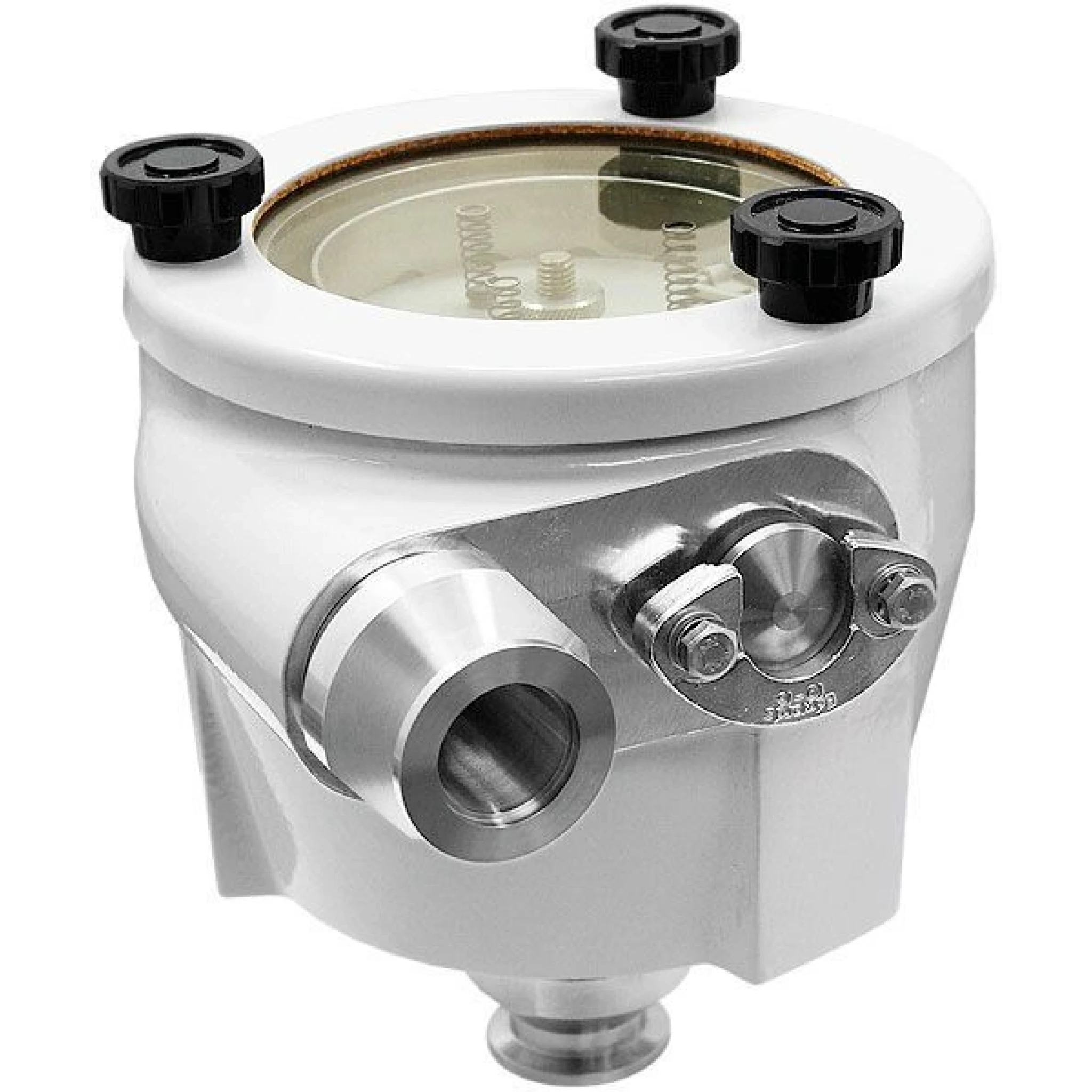

The Edwards 20K inlet traps fit on the inlet of a vacuum pump and stop vapours, condensate or dust from reaching the pump and its oil. Choose the type at checkout.
The chemical trap uses activated charcoal, which absorbs around 25% of its own weight even when large amounts of water vapour are pumped, and keeps high molecular weight vapours (such as those from resin treatment) from lacquering or clogging the pump. Filled with activated alumina on a two-stage pump, it helps control oil backstreaming. The catchpot collects condensable vapours before they enter the pump. Each trap is supplied with an NW25 clamp, centring ring and O-ring.
Key features
- ITO20K inlet catchpot, 1.84 L capacity (A441-10-000, no element)
- ITC20K inlet chemical trap
- ITD20K inlet desiccant trap (A445-10-000)

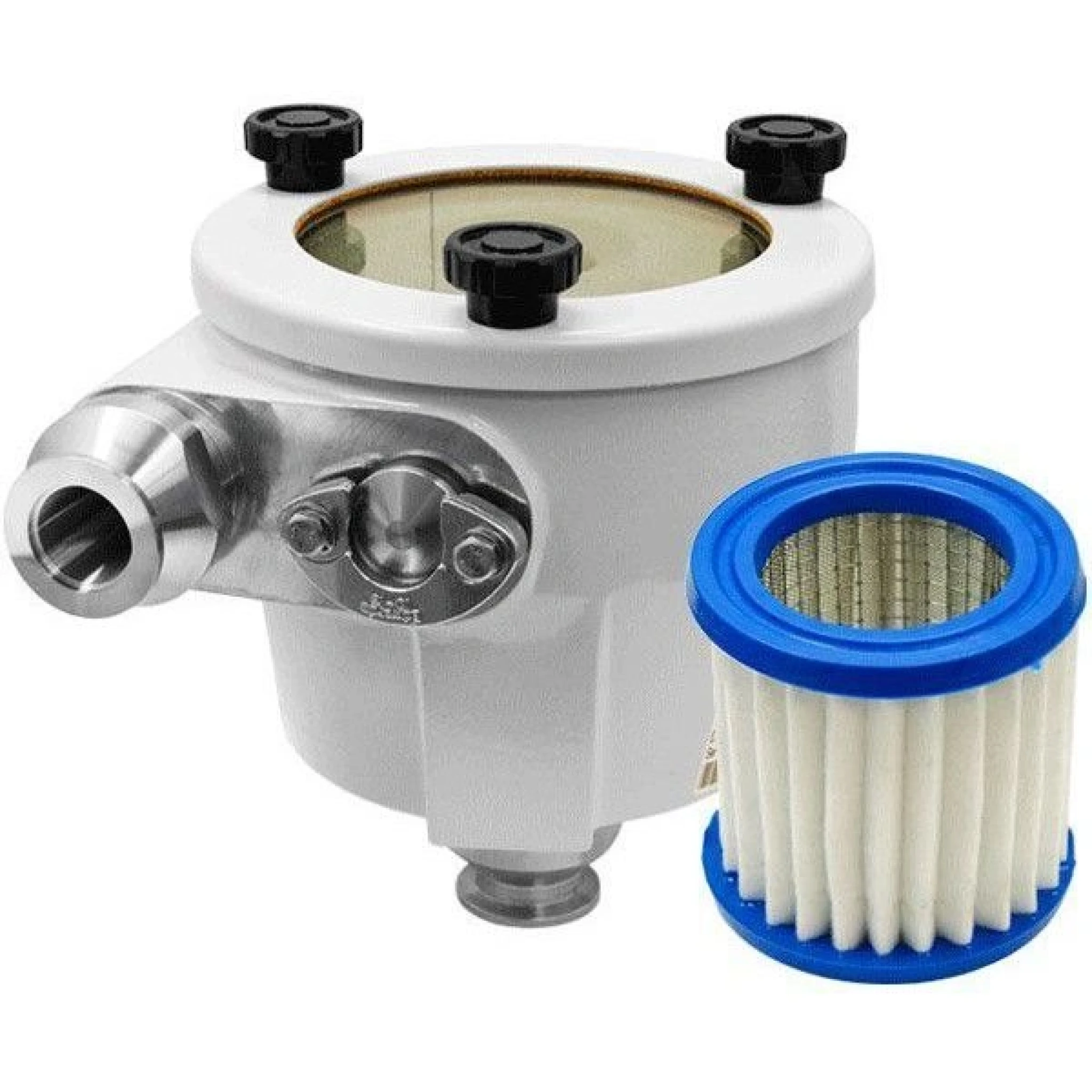

- ITF20K inlet dust filter (A442-15-000)
- NW25 clamp, centring ring and O-ring supplied
Delivery and pickup
- Ships across Canada and to the USA by Purolator, UPS or FedEx - live rates at checkout.
- Free pickup in Langley, BC.
- We deliver orders of $1000 or more in the Lower Mainland and Fraser Valley ourselves.
Questions
Which trap do I need?
The catchpot for condensable vapours, the chemical trap for aggressive or high molecular weight vapours, the desiccant trap for moisture, and the dust filter for particles.
What connection does it use?
NW25. A clamp, centring ring and O-ring are supplied.
| Connection | NW25 |
| ITO20K catchpot | 1.84 L, A441-10-000, no element |
| ITC20K chemical trap | Activated charcoal sorbent |
| ITD20K desiccant trap | A445-10-000 |
| ITF20K dust filter | A442-15-000 |
| Supplied with | NW25 clamp, centring ring, O-ring |
