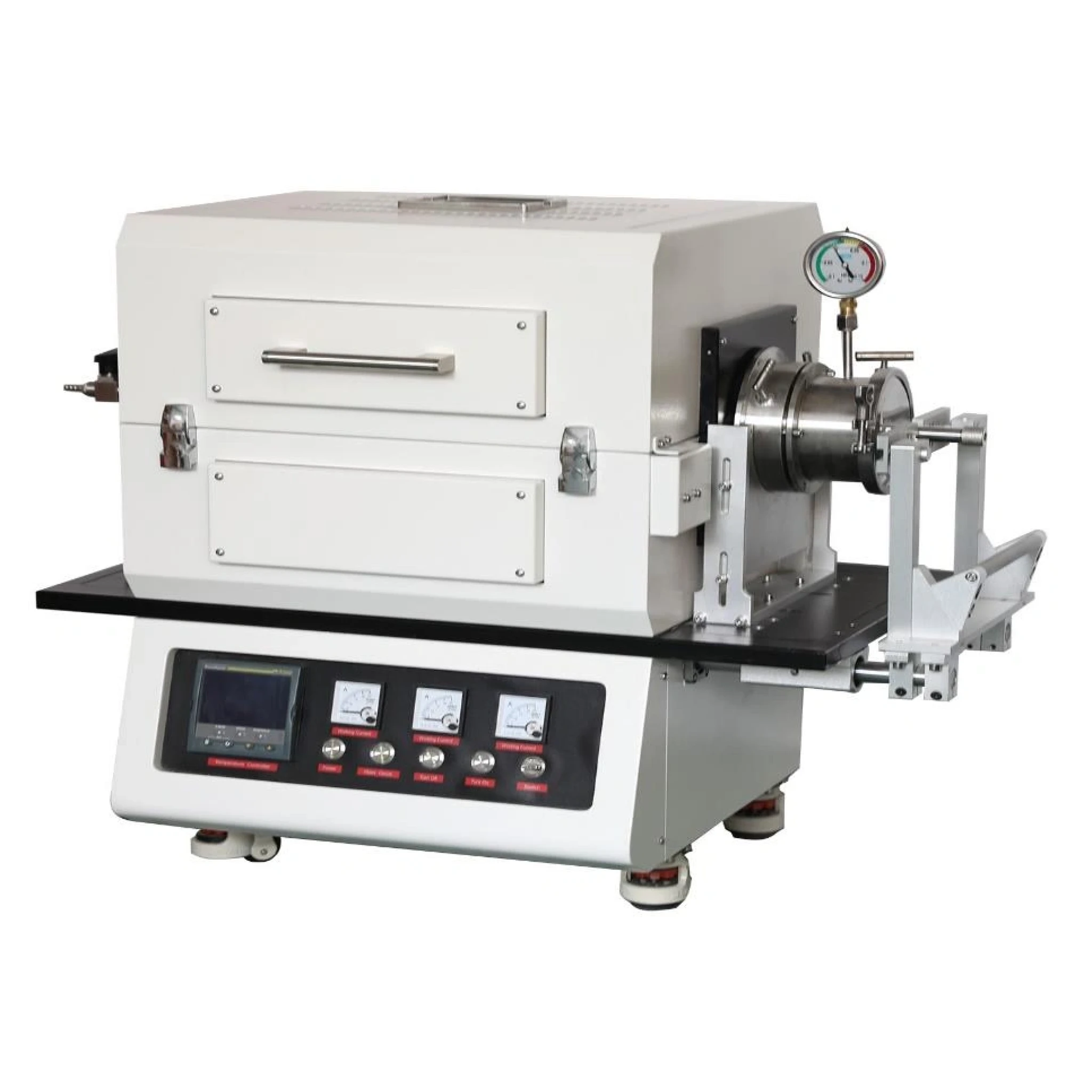

RTP1200 Fast Sintering Furnace With Halogen Light
Reference: RTP1200
Manufacturer: Across International
- Overheat protection shuts down the furnace if temperature is outside of acceptable range (refer to controller's manual) or when the thermocouple is broken or malfunctions.
- Power failure protection resumes furnace operation right after the point of failure when power is reestablished.
- Limit switch turns off furnace once top is open.
In stock
Payment Providers
Please call us for the price (Quote), thank you.

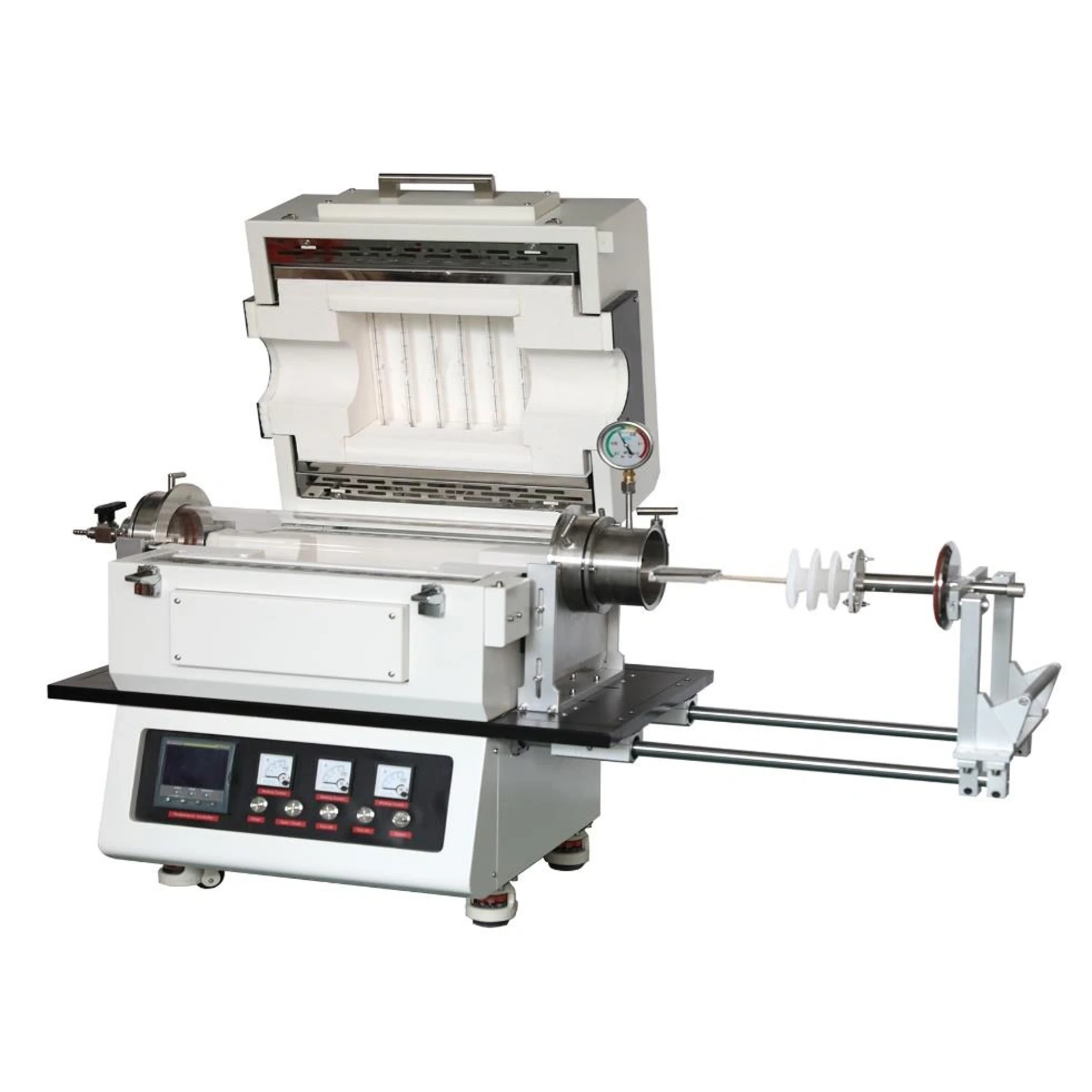

RTP1200 furnaces (Rapid Thermal Processing) with Halogen light heating elements feature a chamber with Mitsubishi (Japan) high-quality grade 1900 alumina fiber insulation and 12 pcs Halogen light tubes. A dual-wall steel housing helps minimize heat loss to exterior surface.
Furnace operation is controlled by 50-segment Eurotherm (UK) digital controller with a built-in communication port, allowing the user to connect to a PC for remote control and monitoring of the furnace.
Safety
- Overheat protection shuts down the furnace if temperature is outside of acceptable range (refer to controller's manual) or when the thermocouple is broken or malfunctions.
- Power failure protection resumes furnace operation right after the point of failure when power is reestablished.
- Limit switch turns off furnace once top is open.
Warning! NEVER fill furnace with explosive gases, including Hydrogen, Carbon Monoxide and Methane.
| Power Input | 208-240 AC, 50/60 Hz single phase, 12 KW Max. |
| Heating Elements | 12 pcs Halogen light tube |
| Heating Zone | 10" length with 4" constant temperature zone within +/-5ºC uniformity |
| Working Temperature | 600ºC – 700 ºC Max for Continuous 1100ºC Max. for < 10 minutes 1000ºC Max. for < 20 minutes 800ºC Max. for < 120 minutes |
| Max. Heating Rate | 50ºC/sec |
| Cooling Rate | Max. Cooling: 60ºC/min (Under vacuum: 200 m-torr), 117ºC/min (under atmospheric pressure) Lowest Cooling: 10 ºC / minute |
| Flanges | Water Cooled (submersible water pump included, chiller optional) |
| Thermocouple | K type |
| Temperature Controller Eurotherm 3504 | • 50 segments programmer (ramp and dwelling) • +/- 1 ºC temperature control accuracy • PC communication port |
| Quartz Tube | Dia 4 inch × 23-inch length |
| Dimensions | 40 × 20 × 30（L× W × H） |
Standard Package
| RTP 1200 fast sintering furnace unit | 1 pc |
| Quartz process tube, 580 mm length, 100 mm OD | 2 pc |
| Water-cooled stainless steel vacuum sealing flange set with pressure gauge | 1 set |
| Clamp, O-ring, and valve assembly (pre-installed) | 1 set |
| Spare flange O-rings | 5 pc |
| Circular quartz heating spiral with mounting hardware | 1 pc |
| Stainless steel hanging hook | 1 pc |
| Alumina thermal insulation block for 90 mm OD tube | 2 pc |
| High-temperature protective gloves | 1 pair |
| Crucible holder assembly | 1 pc |
| USB / RS485 computer communication kit | 1 set |
| Allen key tool | 1 pc |
| 80A UL-listed Bussmann fuse | 2 pc |
| Type-K thermocouple sensor | 1 pc |
| Thermal support plate | 1 pc |
| Extra mounting bolts | 12 pc |
| Push-to-connect adapter (10 mm to 16 mm tubing) | 1 pc |
| Submersible cooling pump with hose barb fitting | 1 pc |
| 16 mm tubing | 1 pc |
| 10 mm tubing | 1 pc |
| Furnace and temperature controller manual | 1 pc |
| Eurotherm USB OR Shimaden CD for software | 1 pc |
