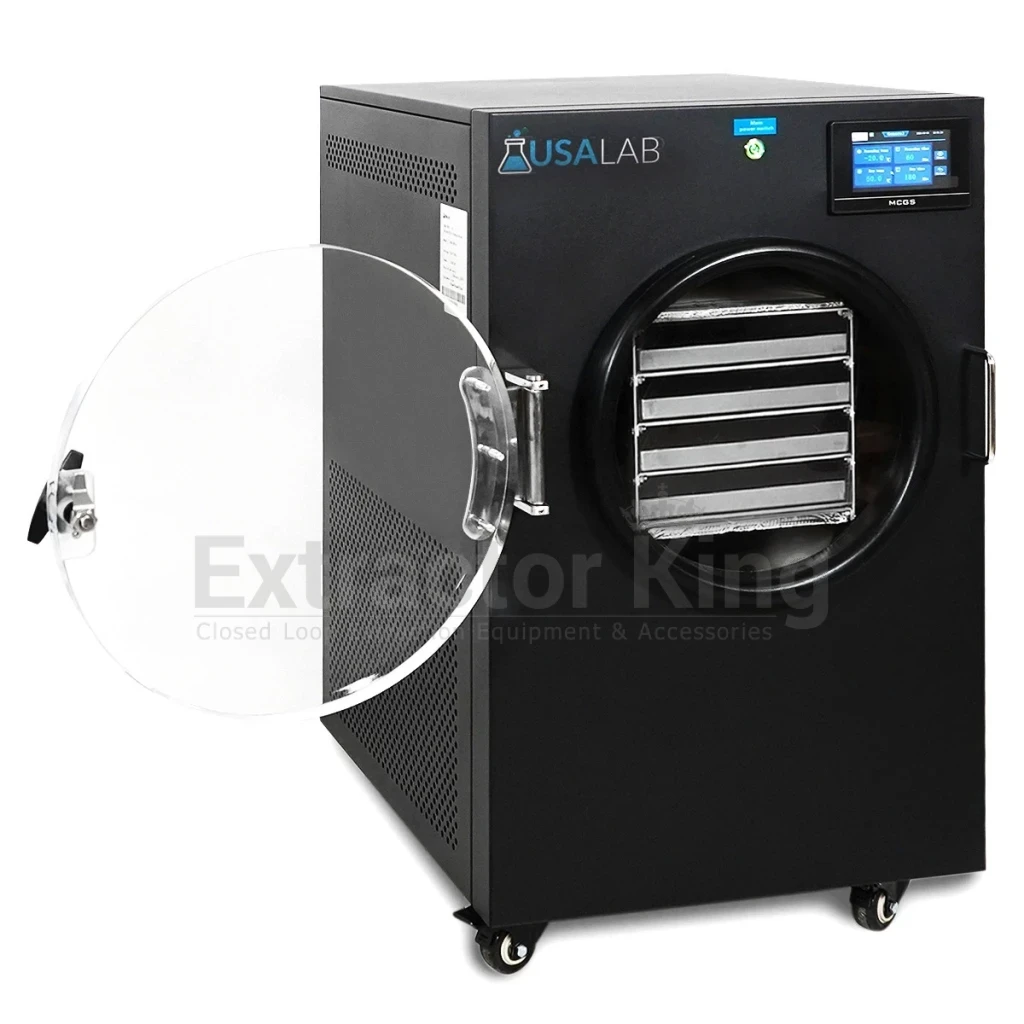

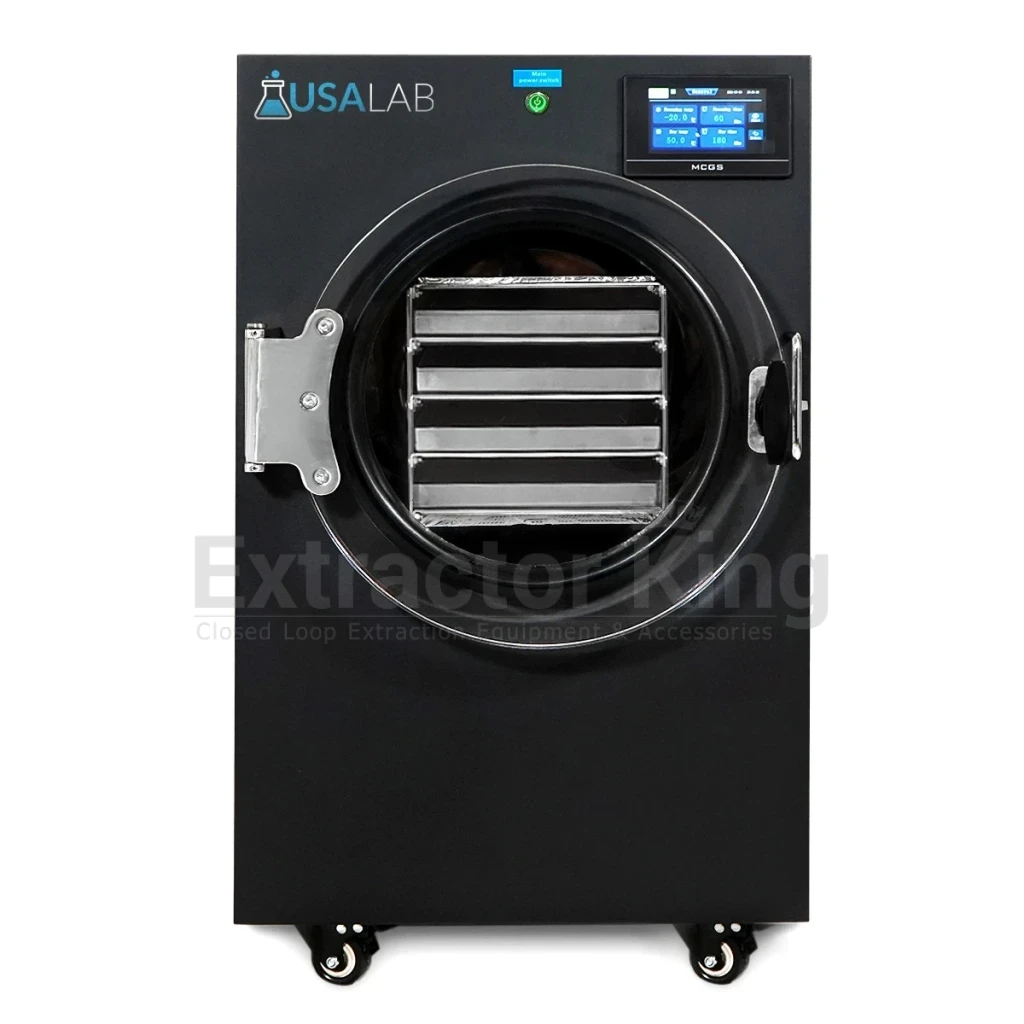

USA Lab -35°C Scientific Freeze Dryer 1-2 Gallons Per Batch / 4L Ice Capacity / 3 Year Warranty
Reference: USA-SFD-4-TK
Manufacturer: USA Lab
The USA Lab Scientific Freeze Dryer is not just a regular lab freeze dryer. This unit is equipped with a LCD Touchscreen Display and customizable recipe control. The controller allows you to quickly run several programs including custom 12 step recipes for…
In stock
Payment Providers
More info

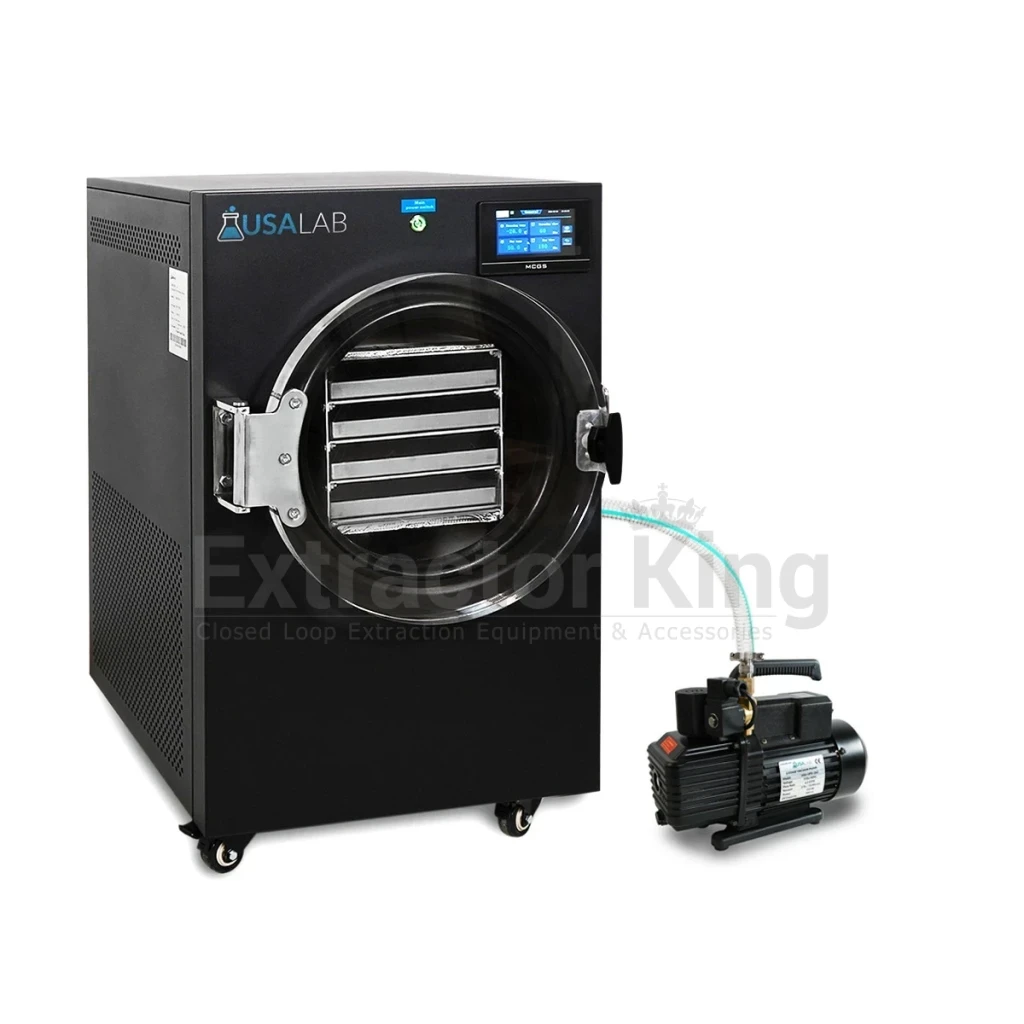

VPD-265 Included.
* V2.0 *
SOFTWARE UPDATE PACKAGE
UPDATE INSTRUCTIONS
|

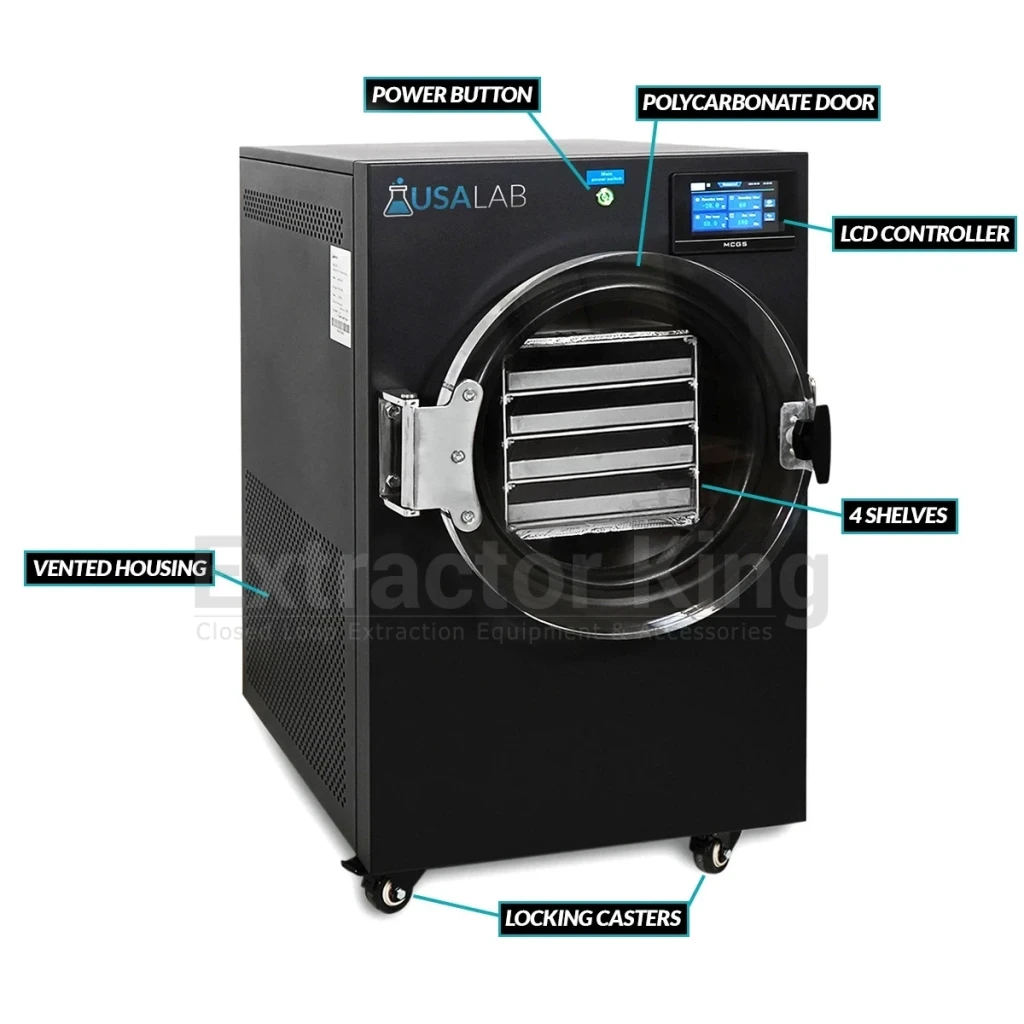

USA-SFD-4 FEATURES |
||
|
• Powerful and fast cooling speed down to -35°C. |
||
|
• 1-2 Gallons per batch |
||
|
• High quality UL Listed SECOP compressor. |
||
|
• Recipe Customization. |
||
|
• Controllable rate of freezing. |
||
|
• Controllable freeze temperature. |
||
|

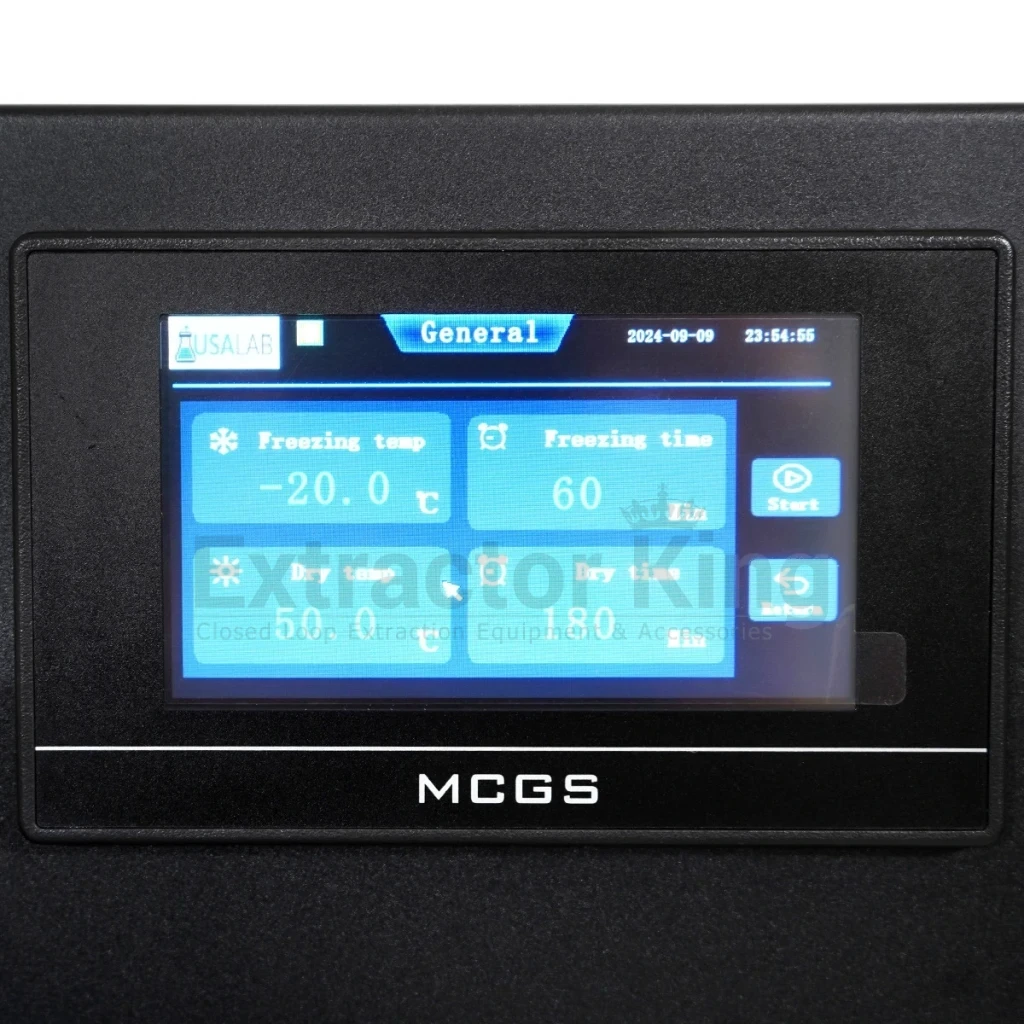

• LCD touchscreen controller for easy operation. |
||
|
• Organic transparent polycarbonate for easy viewing of the process. |
||
|
• 3 Year warranty with US based parts and support. |
||
|
• Simple and reliable KF25 connection. |
||
|
• Stable performance, simple operation, and low noise. |
||
|
SPECIFICATIONS |
||
|
Model |
USA-SFD-4 |
|
|
Power Requirements |
110-120V 1900W 16.5A(20A Required) 1P / 5-20P Plug installed |
|
|
Cold Trap Temperature |
-35°C / -31°F |
|
|
Optimal Operating Conditions |
10-25°C / 50-77°F |
|
|
Relative Humidity |
≤70% |
|
|
Holding Ice Capacity |
4 Liters |
|
|
Batch Amount |
1-2 Gallons Per shelf = 0.05ft3 (95.9in3) Total = 0.22ft3 (383.62in3) |
|
|
Compressor Type |
UL Listed SECOP |
|
|
Collector Material |
Stainless Steel |
|
|
Shelving Material |
Stainless Steel |
|
|
Chamber Material |
Stainless Steel |
|
|
Controller Type |
LCD Touch Screen |
|
|

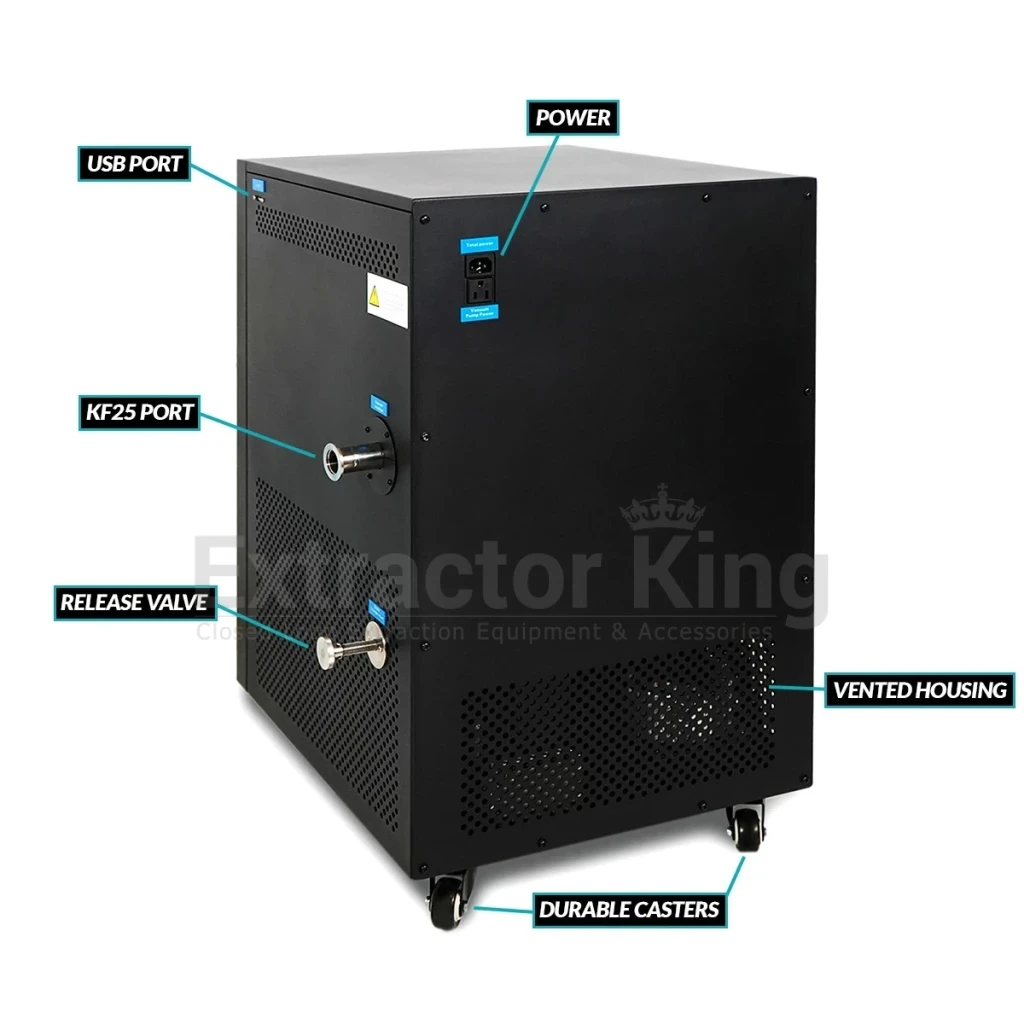

Vacuum Connection |
KF25 |
|
|
Purge Valve |
Included - 3/8" Outlet |
|
|
Exterior Finish |
Powder Coated Black Aluminum |
|
|

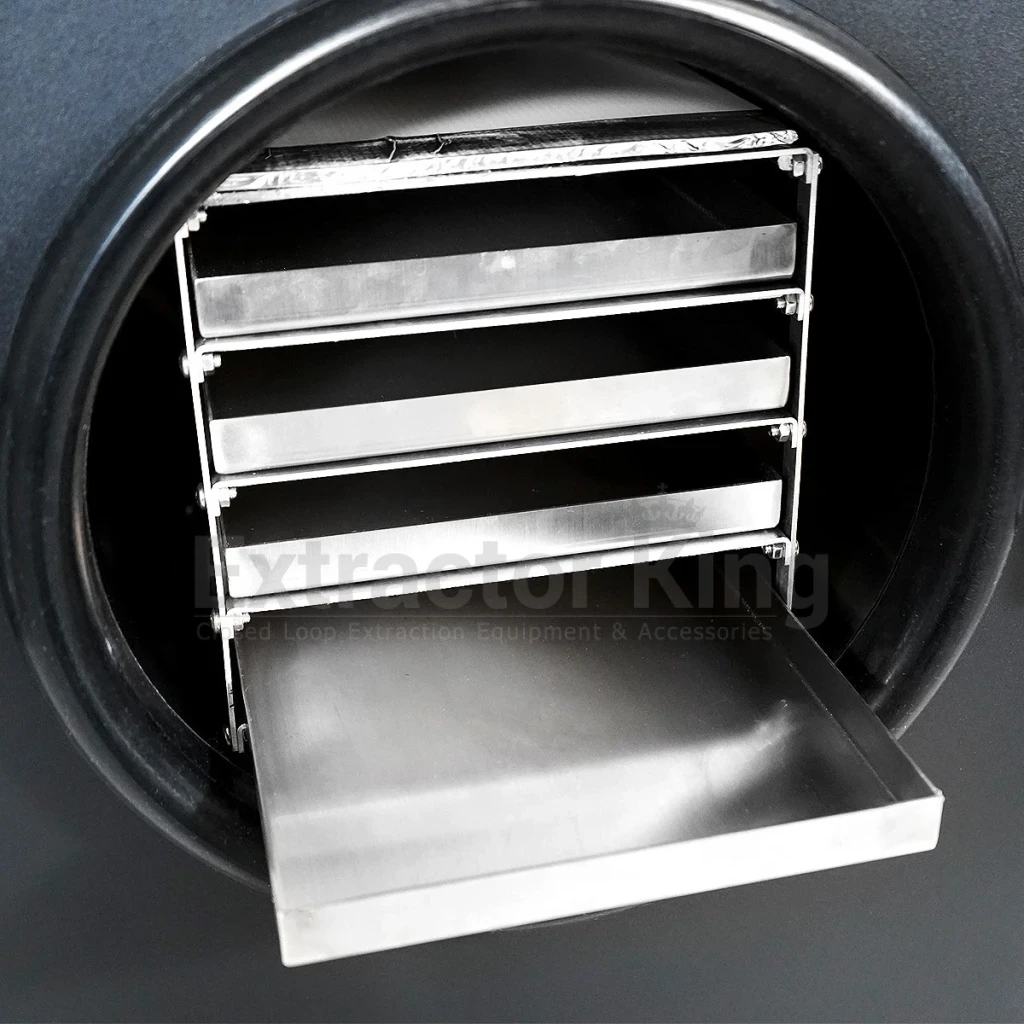

Shelving Dimensions |
16.5"L x 7.75"W x 0.75"H (4 included) |
|
|

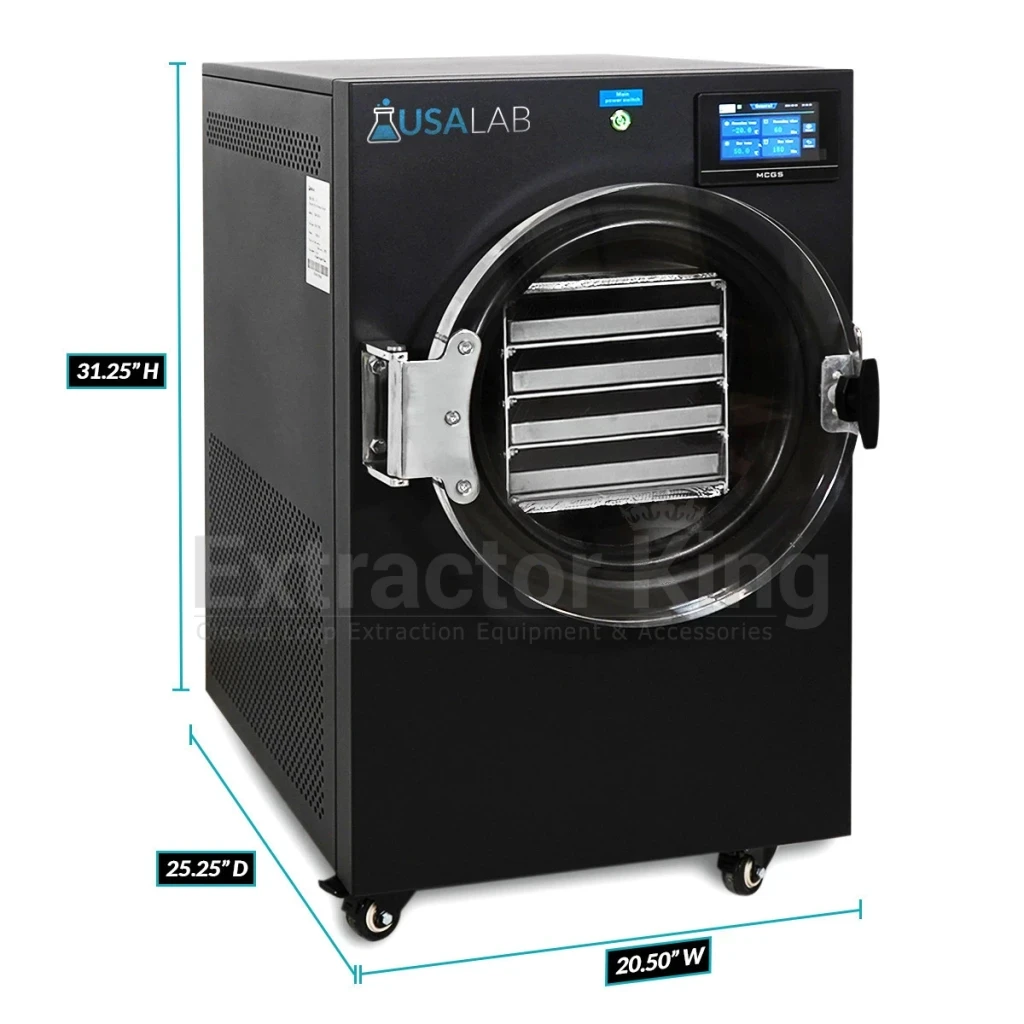

External Dimensions |
25.25"L x 20.5"W x 31.25"H |
|
|
Weight |
248lbs |
|
|
Shipping Weight |
~370lbs |
|
|
Warranty |
3 Years |
|
|
PACKING LIST |
||
|
Model |
Quantity |
|
|
USA Lab USA-SFD-4 Freeze Dryer |
1 |
|
|
7.75" x 16.5" Shelf |
4 |
|
|
24" KF25 Vacuum Line |
1 |
|
|
KF25 Clamp |
2 |
|
|
KF25 O-ring |
2 |
|
|
Manual |
1 |
|
|
USA-VPD-265 |
Details |
|
Model |
USA-VPD-265 |
|
Power |
110-120V - 60Hz - 5.4A - 5-15 Plug |
|
Motor Wattage |
550W |
|
Flow Rate |
6.5 CFM |
|
Ultimate Vacuum |
2 Pa - 15 Micron |
|
Oil Capacity |
380 mL |
|
Exterior Dimensions |
13" L x 6" W x 13" H |
|
Weight |
23 lbs |
|
Oil Included |
1x 16oz Bottles |
Specifications
| Power Requirements | 110-120V 1900W 16.5A(20A Required) 1P / 5-20P Plug installed |
| Cold Trap Temperature | -35°C / -31°F |
| Holding Ice Capacity | 4 Liters |
| Batch Amount | 1-2 Gallons |
| Compressor Type | UL Listed SECOP |
| Controller Type | LCD Touch Screen |
| Vacuum Pump | VPD-265 Included |
| Vacuum Connection | KF25 |
| Shelving Dimensions | 16.5"L x 7.75"W (4 included) |
| External Dimensions | 25.5" D x 20.5" W x 31.25" H |
| Weight | 248lbs |
| Compressor Warranty | 3 Years |
| Warranty Term | 1 Year |
