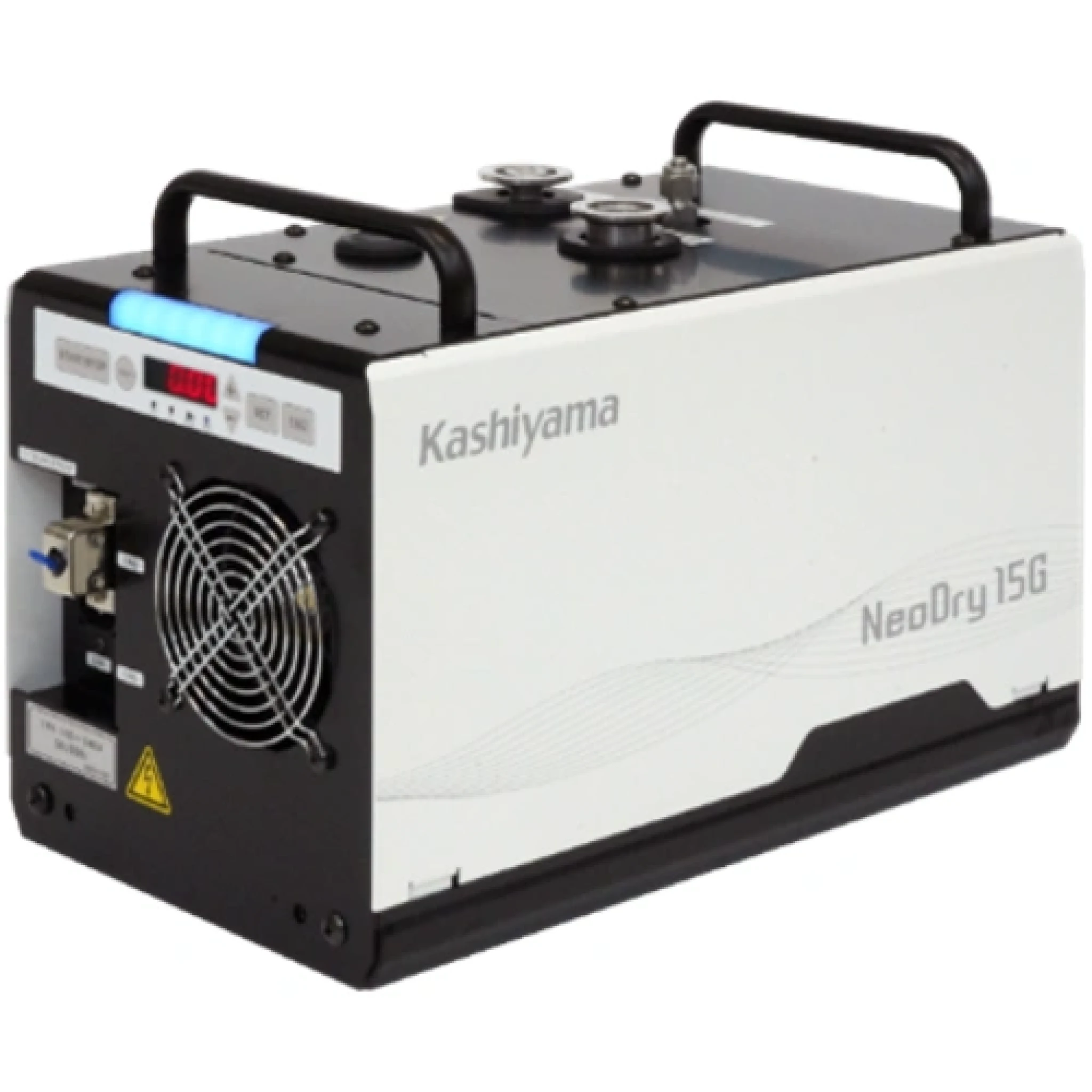

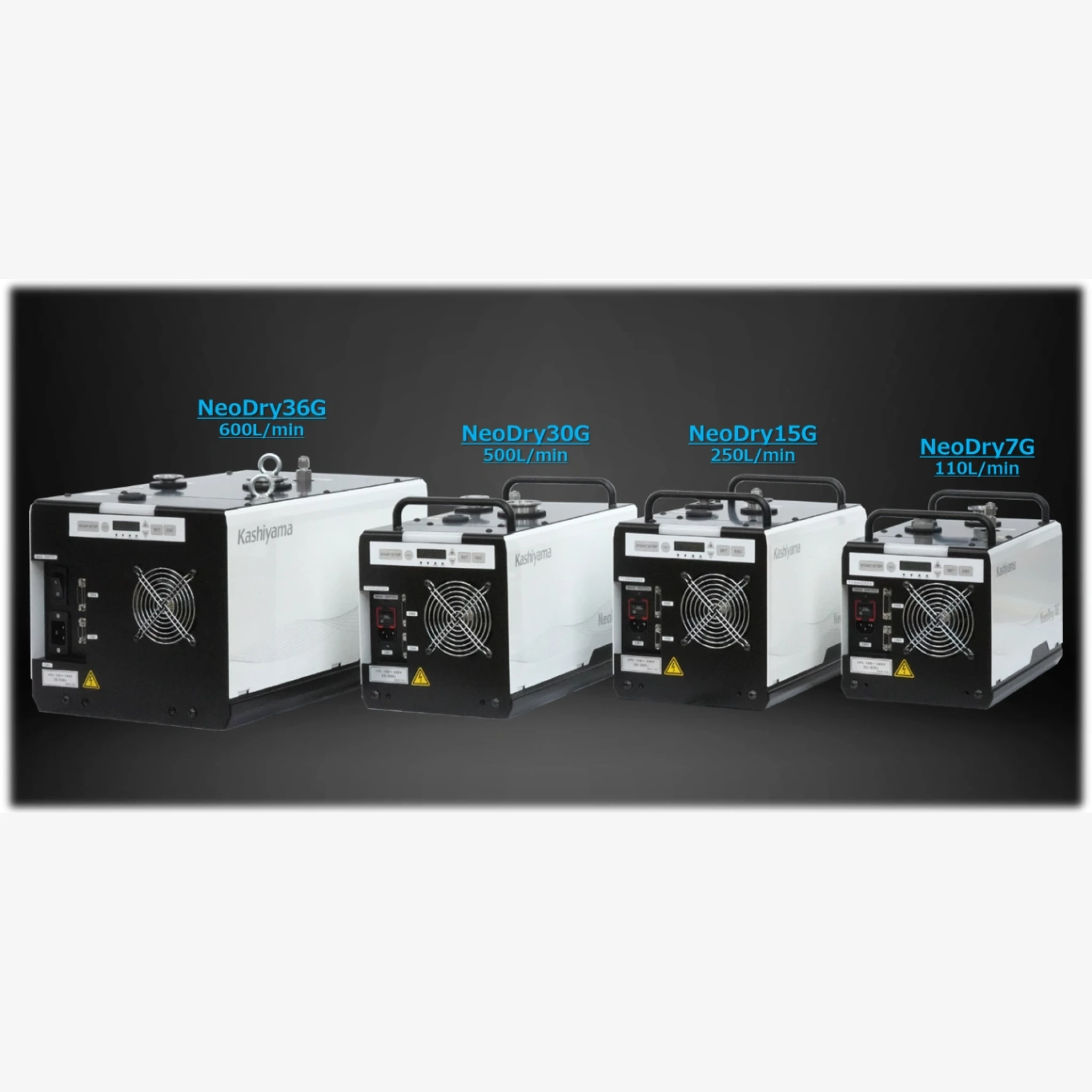

Kashiyama Neodry G series Vacuum Pump
Reference:
Manufacturer: Kashiyama
- Wide Voltage Range: Automatically switches between 1-phase 100V and 200V.
- Quieter & Temperature Optimization: Typically 45 dB (51 dB for 36G) at ultimate pressure. Fan control optimizes pump temperature.

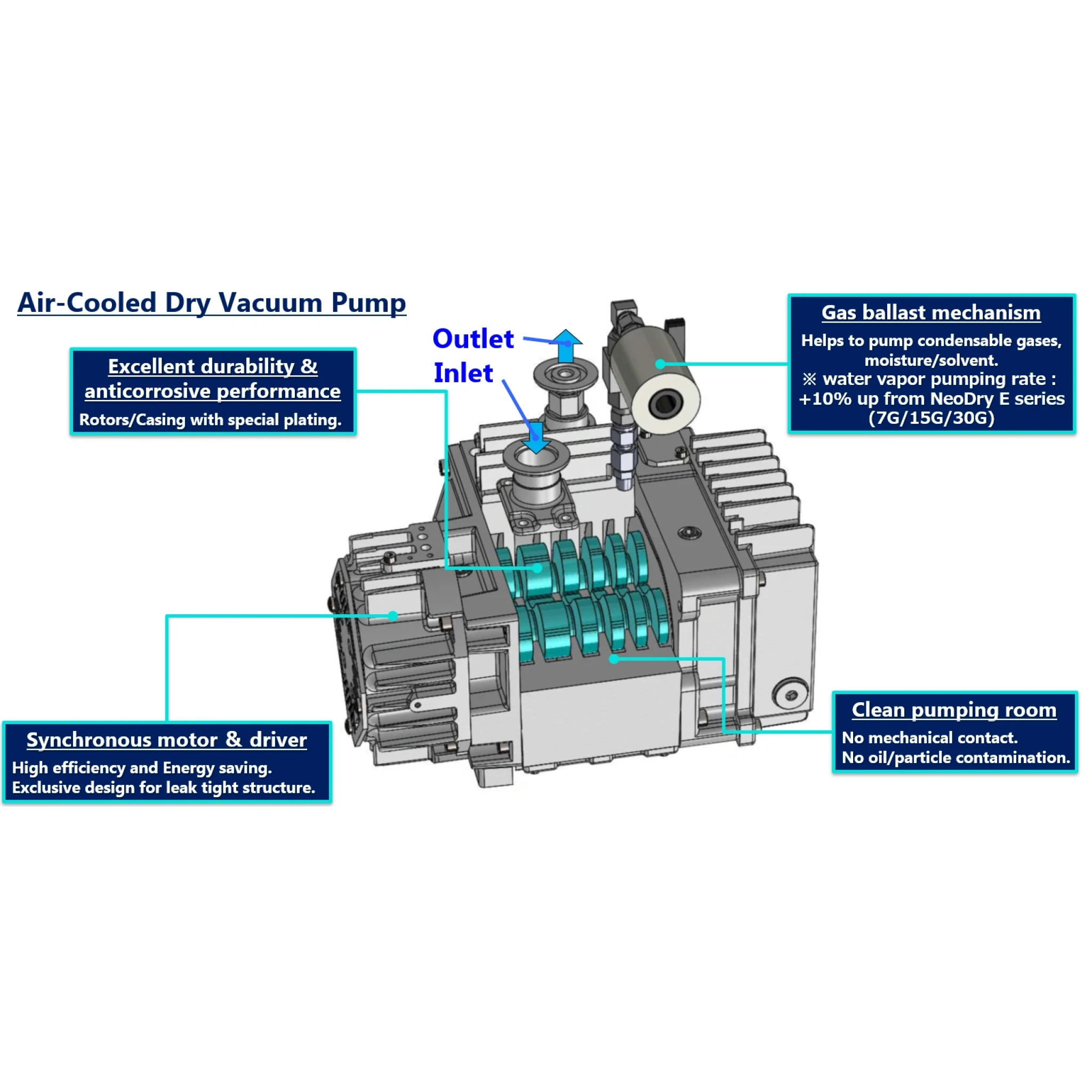

- Water Vapor Evacuation Performance Upgraded: Gas ballast enables the vacuuming of condensable gases and provides a 10% improvement in water vapor evacuation performance, except for 36G.
- IEC Power Connector: IEC connector included for convenience.
Customize your product
Payment Providers
Call for pricing
Kashiyama Industries, Ltd. is a global manufacturer of advanced vacuum technology solutions, specializing in high-performance dry vacuum pumps and related vacuum systems ideal for semiconductor manufacturing, electronics, research laboratories, and other high-tech industries. Founded in 1946 and headquartered in Japan, the company has built a reputation for engineering innovation, product reliability, and customer-focused solutions, with a worldwide network of sales and service locations.

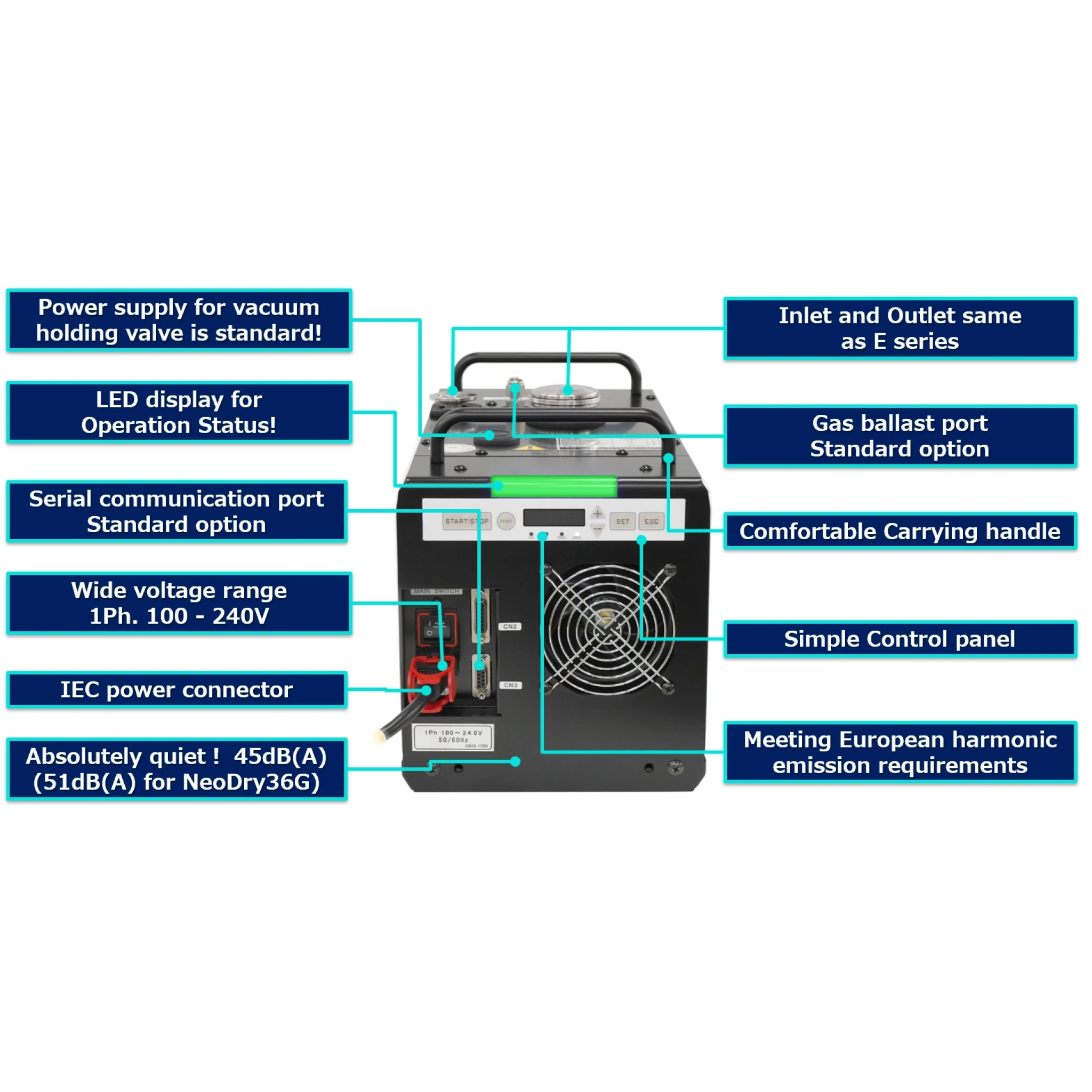

Features:
- Wide Voltage Range: Automatically switches between 1-phase 100V and 200V.

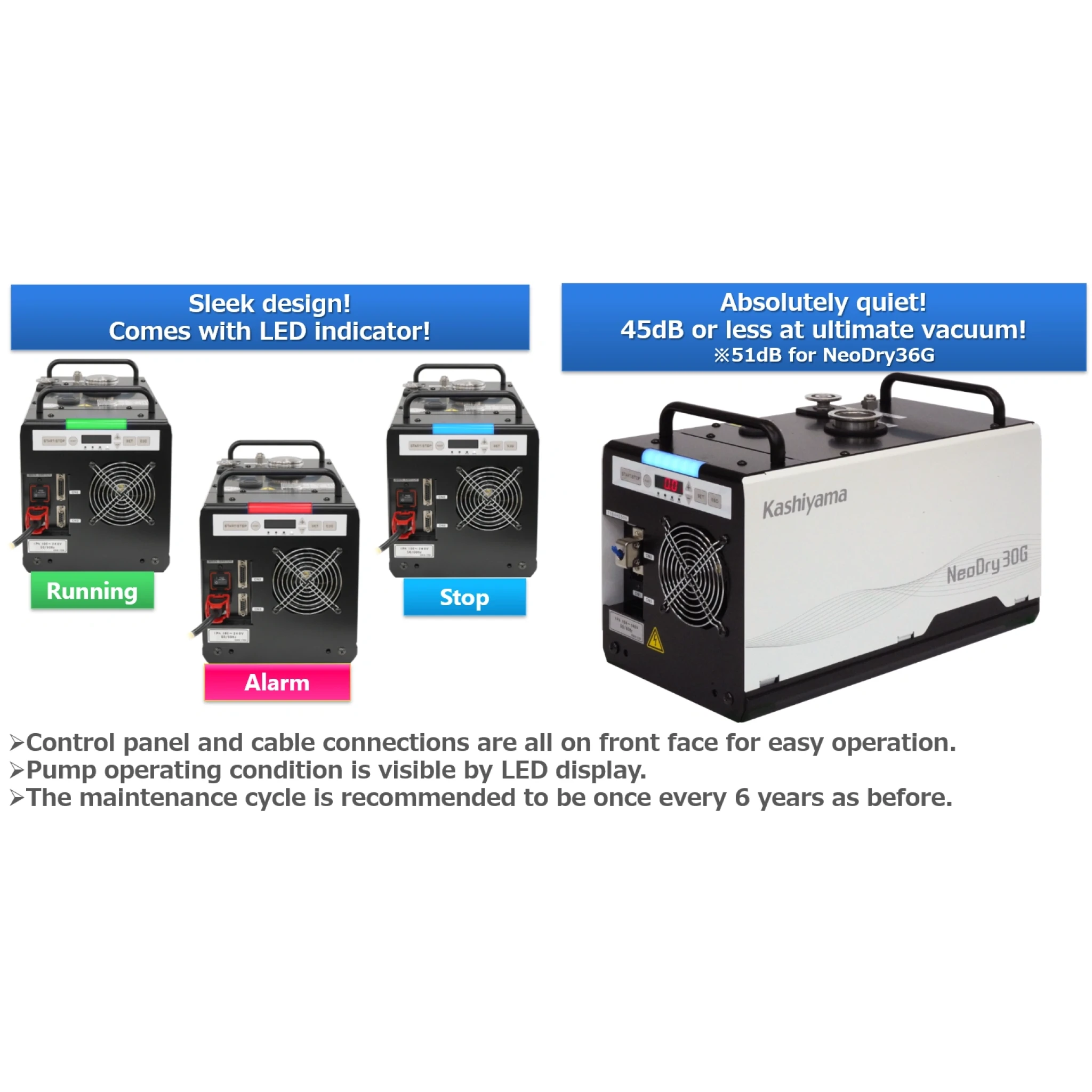

- Quieter & Temperature Optimization: Typically 45 dB (51 dB for 36G) at ultimate pressure. Fan control optimizes pump temperature.

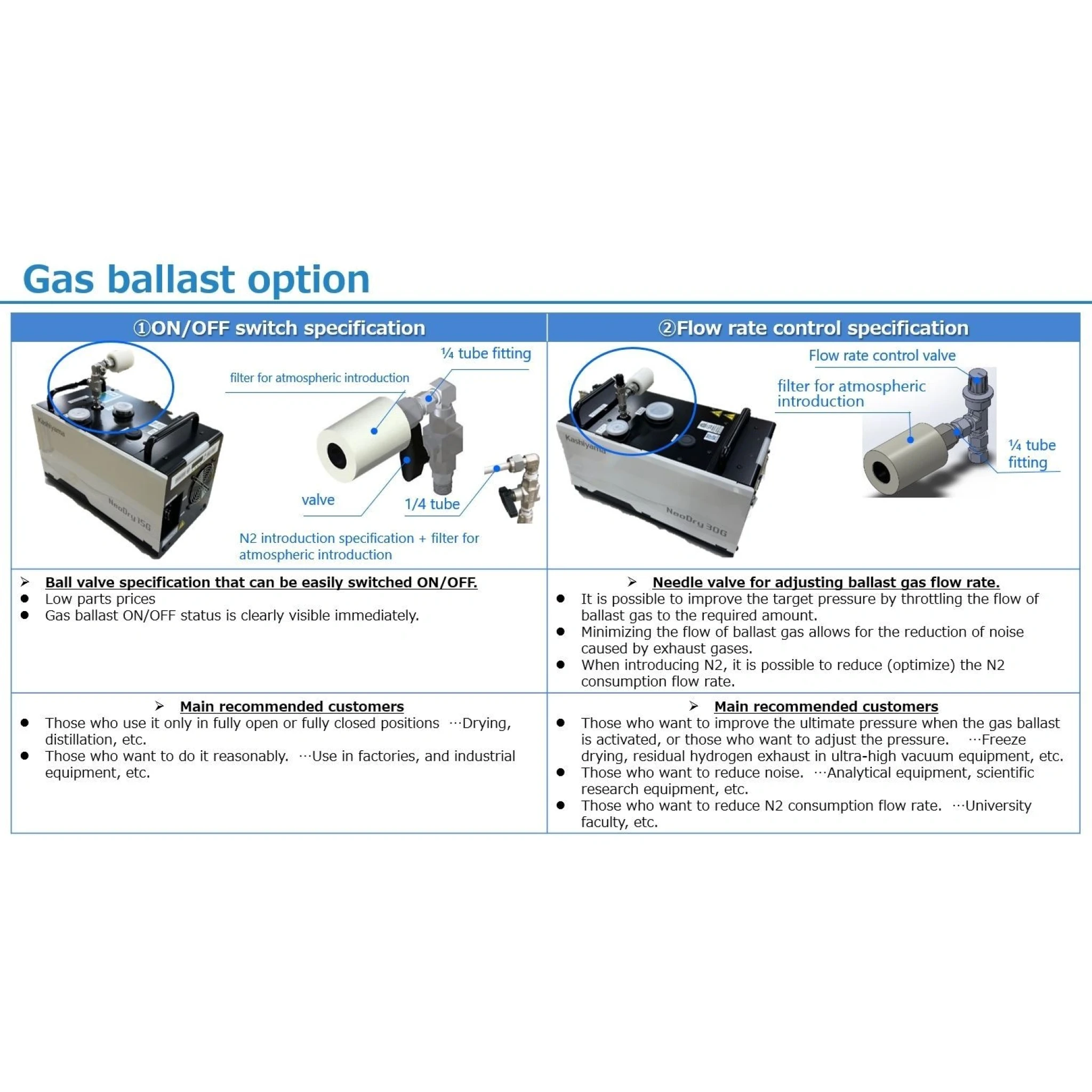

- Water Vapor Evacuation Performance Upgraded: Gas ballast enables the vacuuming of condensable gases and provides a 10% improvement in water vapor evacuation performance, except for 36G.
- IEC Power Connector: IEC connector included for convenience.
- Meets Harmonic Standards: Complies with European harmonic emission requirements.
- Serial Communication Port: RS485 port available for data communication and speed control.

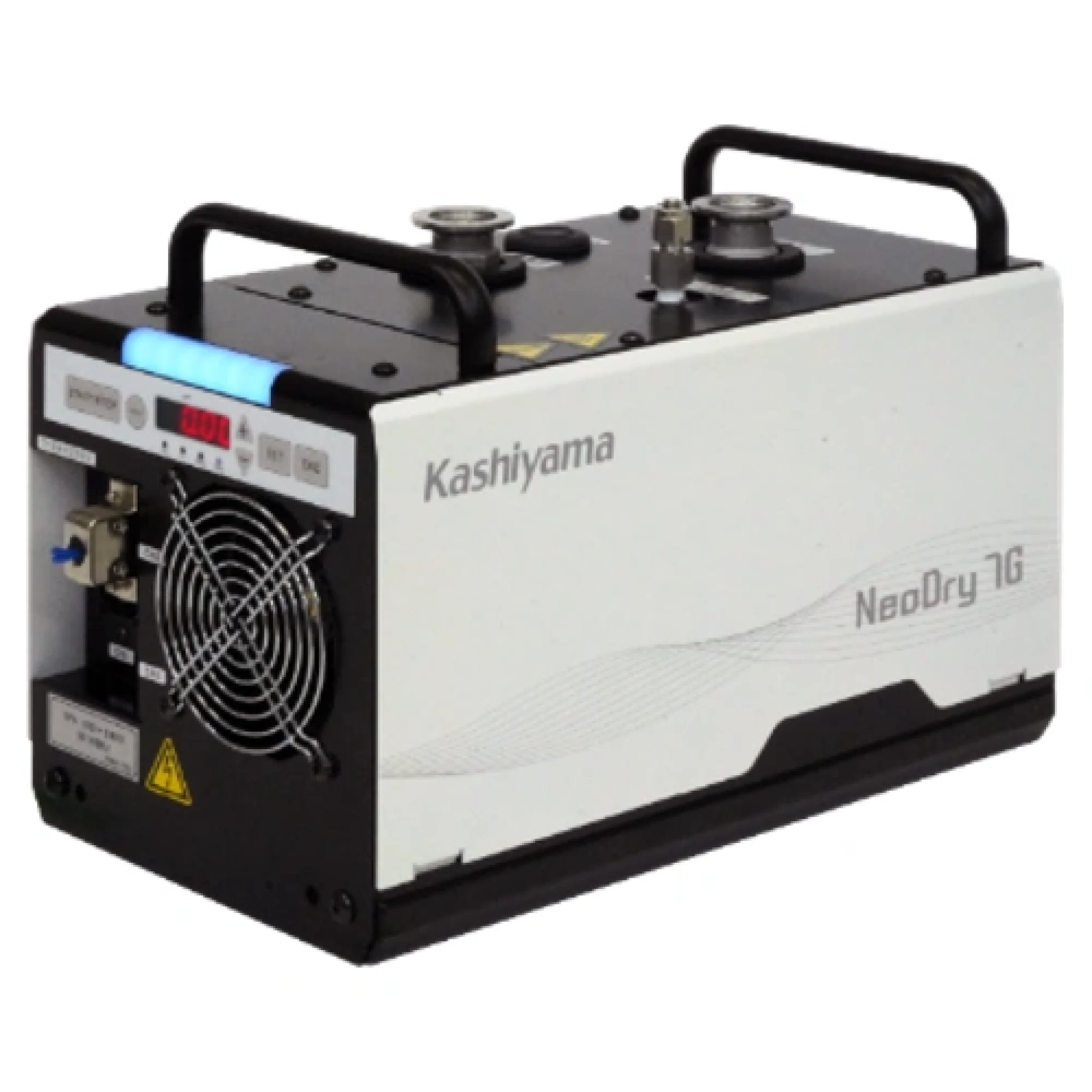

| Spec. / Products | NeoDry7G |
Max. pumping speed | 110 [3.9] |
Ultimate pressure Torr Pascals [Torr] | 5.0 [0.0375] |
| Supply voltage (50/60Hz) | Single Phase, AC100-240V |
| Gas ballast mechanism | Optional (N2 model is available) |

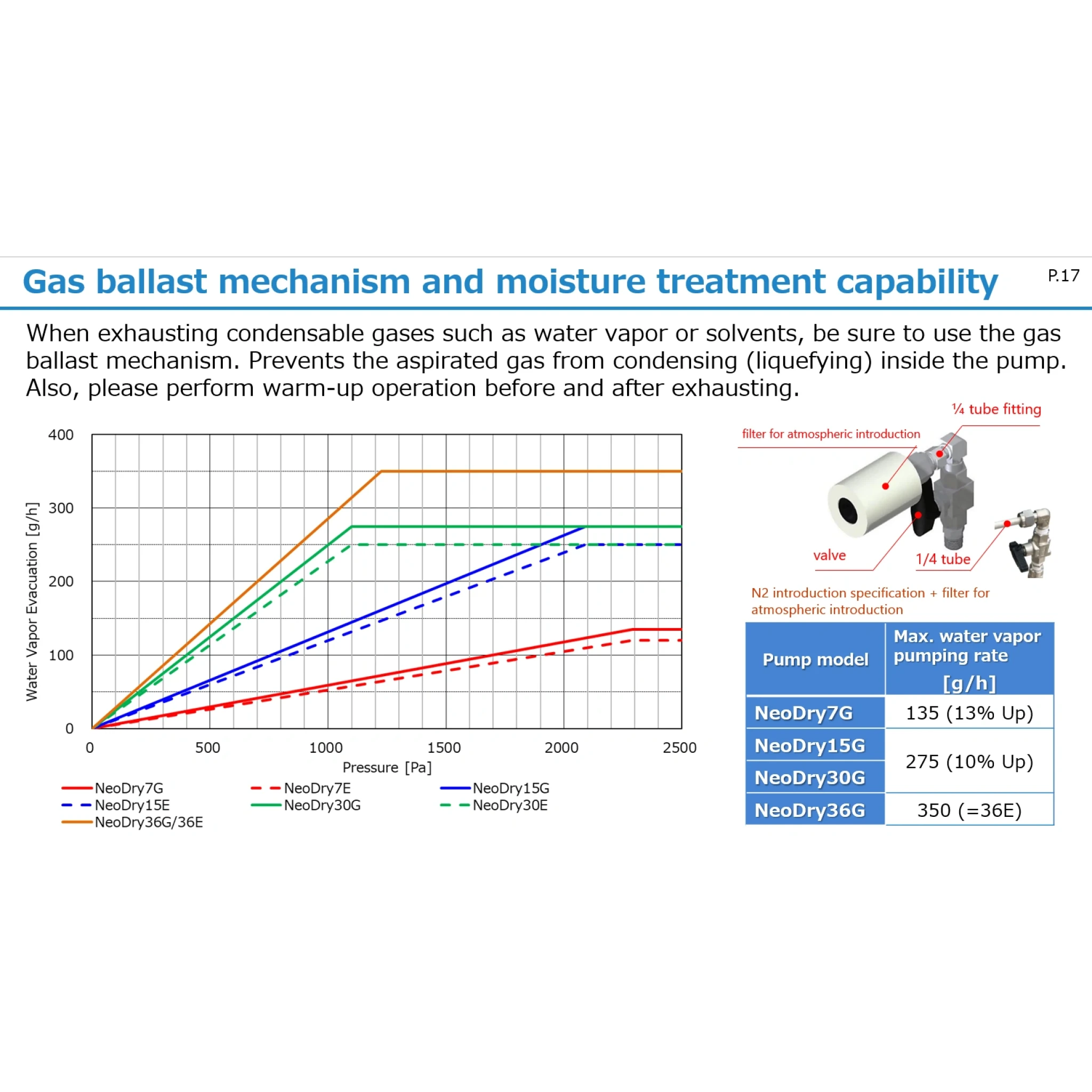

| Max allowable moisture[g/h] (With gas ballast) | 135 |
| Noise [dB(A)] (Inlet closed) | 45 |
| Vibration [μmp-p] (Inlet closed) | ≦8 |
| Mass [kg] | 19 |
| Inlet size | NW25 |
| Outlet size | NW25 |
| Power consumption at ultimate pressure [kW] | 0.28 |
| Dimensions [mm] L×W×H | 360×196×196 |
| Certificate | UL/ CSA standard |
