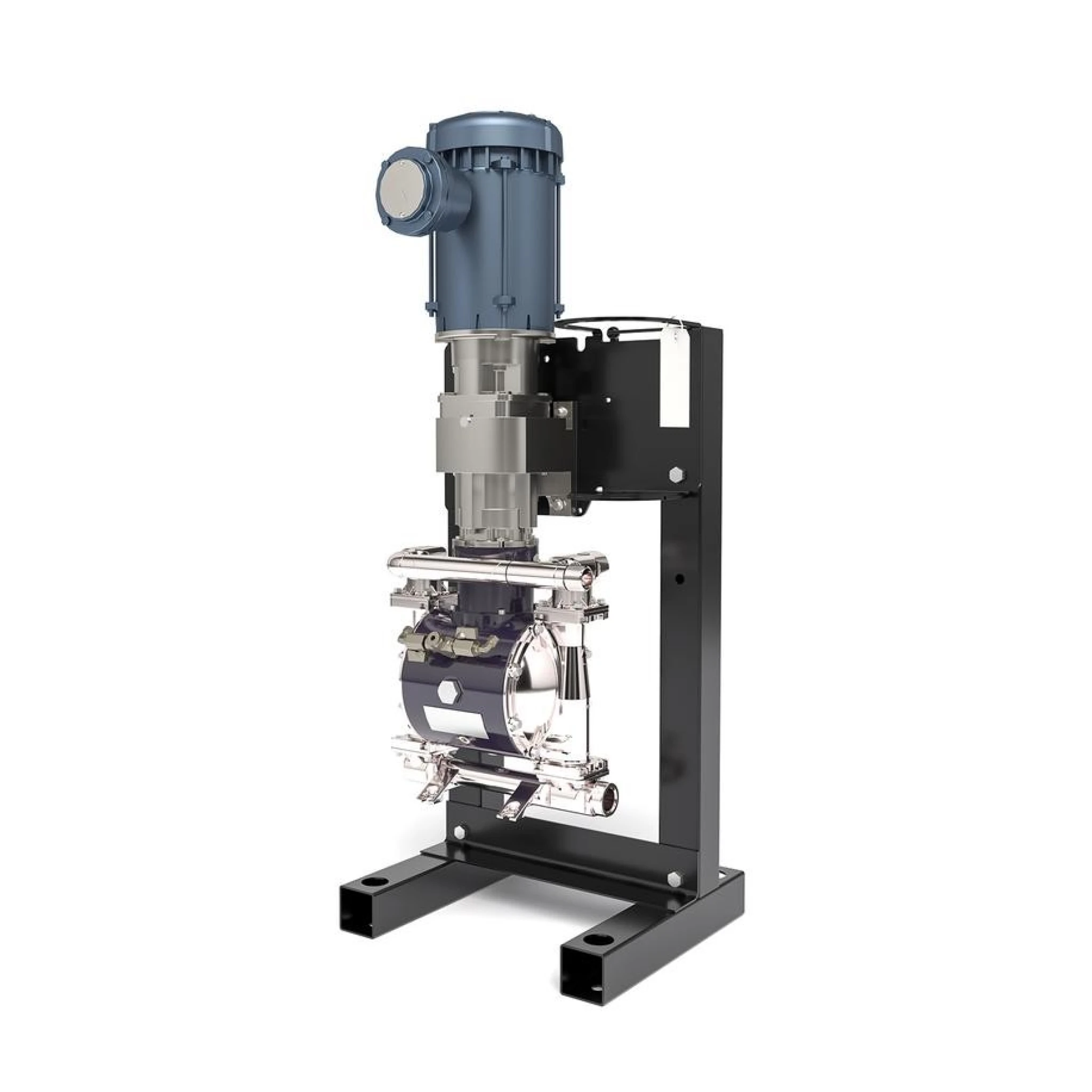

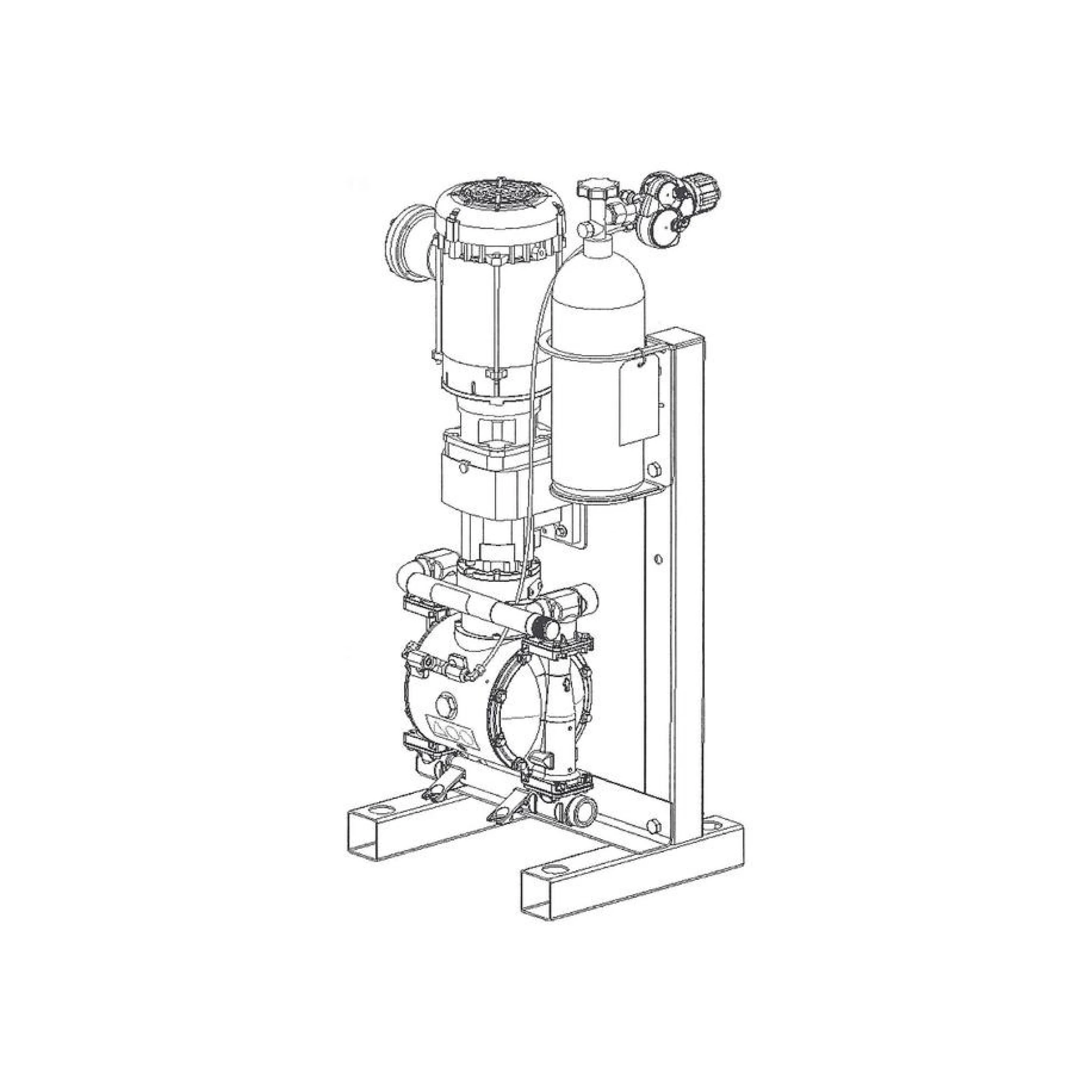

MVP Master Vapor Recovery Pump - Liquid
Reference: MVP-REC-LIQ
Manufacturer: Master Vapor MVP
The Master Vapor Pump - Liquid is a certified liquid recovery pump designed for solvent extraction processing. This pump is designed specifically for LP-Gas and Ethanol liquid recovery and is ideal for LP-Gas or LP-Gas / Ethanol mixtures.
Optional Must Have Accessories
|
84"x1/4" JIC PTFE High Pressure Stainless Steel Hose | +CAD $98.67 |
|
Inline Drying Filter w/ 1/4" JIC | +CAD $39.37 |
Payment Providers
Engineering Specifications:
- Maximum pumping outlet pressure - 70 PSI
- Center Section CO2 charge range 5 to 80 PSI
(10-15psi over inlet pressure recommended) - CO2 Inlet Size: 1 /4 in. npt(f)
- Maximum Pump Speed 135 cpm (cycle per minute)
- Process Inlet and Outlet Size: 1 in. npt
- Electric Motor: Explosion proof for C1D1 Hazardous areas
- Motor Specifications: 2HP, 3,600 rpm, 60Hz
- Size: 18.3” x 15.4” base x 42.3” tall
- Weight: 173.2 lb
Temperature Operating Details:
- FKM: -40° to 275°F (-40° to 135°C)
- PTFE: +40° to 220°F (+4° to 104°C)
Motor Option:
- Model MVP-LIQUID-1PH: Single-phase: 115/208-230V, 20/10 FLA (full load amps)
- Model MVP-LIQUID-3PH: Three-phase: 208-230/460V, 5.2/2.6 FLA, Inverter-rated
Compliance Details:
- Meets Class 1 Division 1 hazardous area facility requirements (when installed correctly)
- One year manufacturer’s warranty (see Operation Manual)
| Max Outlet Pressure | 70 PSI |
| Center Section CO2 Charge | 5 to 80 PSI (10-15 psi over inlet pressure recommended) |
| Max Pump Speed | 135 cpm (cycles per minute) |
| Process Inlet/Outlet | 1 in. NPT |
| Motor | 2HP, 3,600 rpm, 60Hz, explosion proof |
| Single-Phase Model | MVP-LIQUID-1PH: 115/208-230V, 20/10 FLA |
| Three-Phase Model | MVP-LIQUID-3PH: 208-230/460V, 5.2/2.6 FLA, inverter-rated |
| Size | 18.3" x 15.4" base x 42.3" tall |
| Weight | 173.2 lb |
| Temperature (FKM) | -40° to 275°F (-40° to 135°C) |
| Temperature (PTFE) | +40° to 220°F (+4° to 104°C) |
| Compliance | Meets Class 1 Division 1 hazardous area requirements (when installed correctly) |
