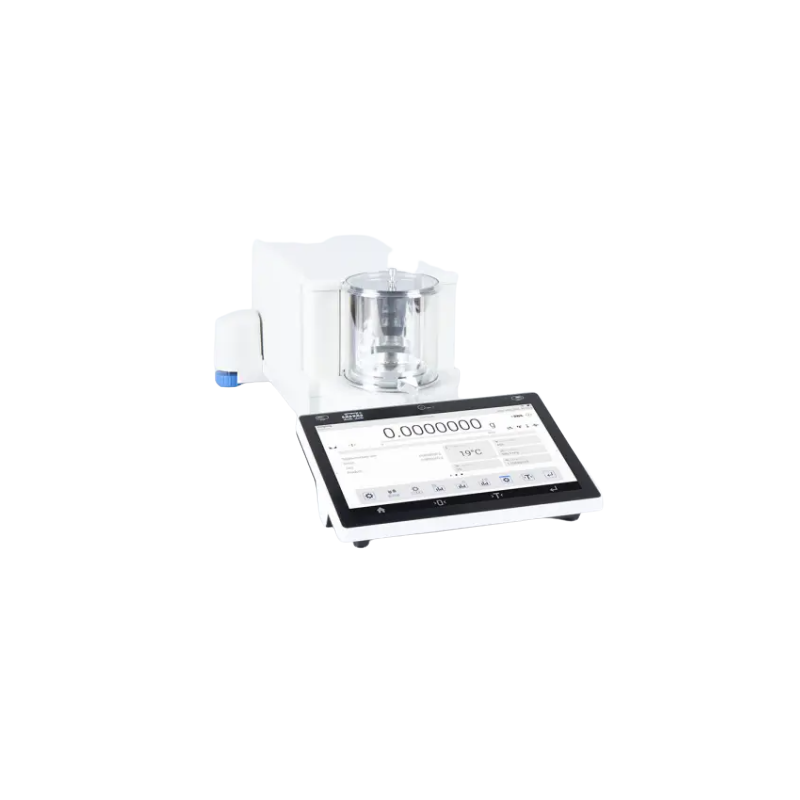

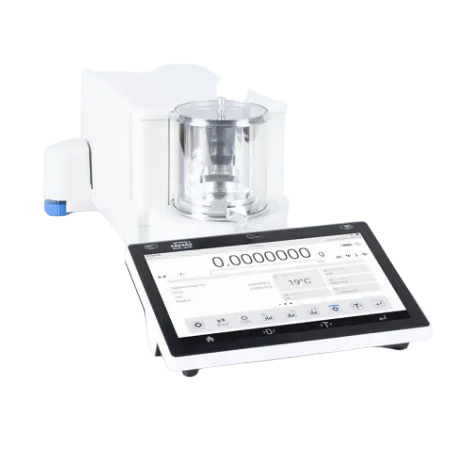

Radwag UYA 6.5Y.KO Mass Comparator 6.1 g Capacity 0.1 µg Readability Ø16 mm
Reference: RADW-UMB-6-1G-MC
Manufacturer: Radwag
The newest line of Radwag mass comparators enables adjusting mass standards and weights according to the OIML recommendations (R-111) from 1mg to 5 g in class E1 and lower.
In stock
Mass comparators are used for both, ensuring traceability of mass measurements and verification of weights in accordance with the principles of legal metrology. RADWAG Mass Comparators have gained recognition among Accredited Calibration Laboratories in many countries.
The standard equipment of the UYA 6.5Y.KO mass comparator is an anti-draft chamber eliminating imperfect conditions in weighing rooms (air drafts). The mass comparator is placed inside the anti-draft chamber. Sliding side panes enable easy access to the weighing chamber.
Mass comparator UYA 6.5Y.KO comprises two components. One of them holds the electronic module, and the other precise mechanical measuring system. Such solution guarantees elimination of temperature influence (warming of electronic elements) on the comparator's indications. The comparator features an aesthetic, cylindrically shaped weighing chamber with glass draft shield and automatic door opening system. All elements of the weighing chamber are manufactured from glass or metal to minimize the influence of electrostatic charges on the measuring result.
| Model | UYA 6.5Y.KO |
| Product Code | WL-408-0007 |
| Maximum Capacity | 6.1 g |
| Readability | 0.1 µg |
| Repeatability | 0.4 µg (Max); 0.2 µg (5% Max) |
| Permissible Repeatability | 0.6 µg |
| Linearity | ±3 µg |
| Calibration Range (E1) | 1 mg – 5 g |
| Electric Compensation Range | 0 – +6.1 g |
| Stabilization Time | 30 s |
| Adjustment | Internal (automatic) |
| Display | 10" graphic colour touchscreen |
| Weighing Pan | ø16 mm |
| Weighing Device Dimensions | 370×160×175 mm |
| Control Unit Dimensions | 249×170×72 mm |
| Anti-draft Chamber | 560×350×255 mm |
| Communication | 2×USB-A, USB-C, RS 232 (COM3), HDMI, Ethernet, Wi-Fi, Hotspot |
| Operating Temperature | +15 to +30 °C |
| Relative Humidity | 40% – 60% |
| Weight | 10.6 kg net; 16.5 kg gross |
