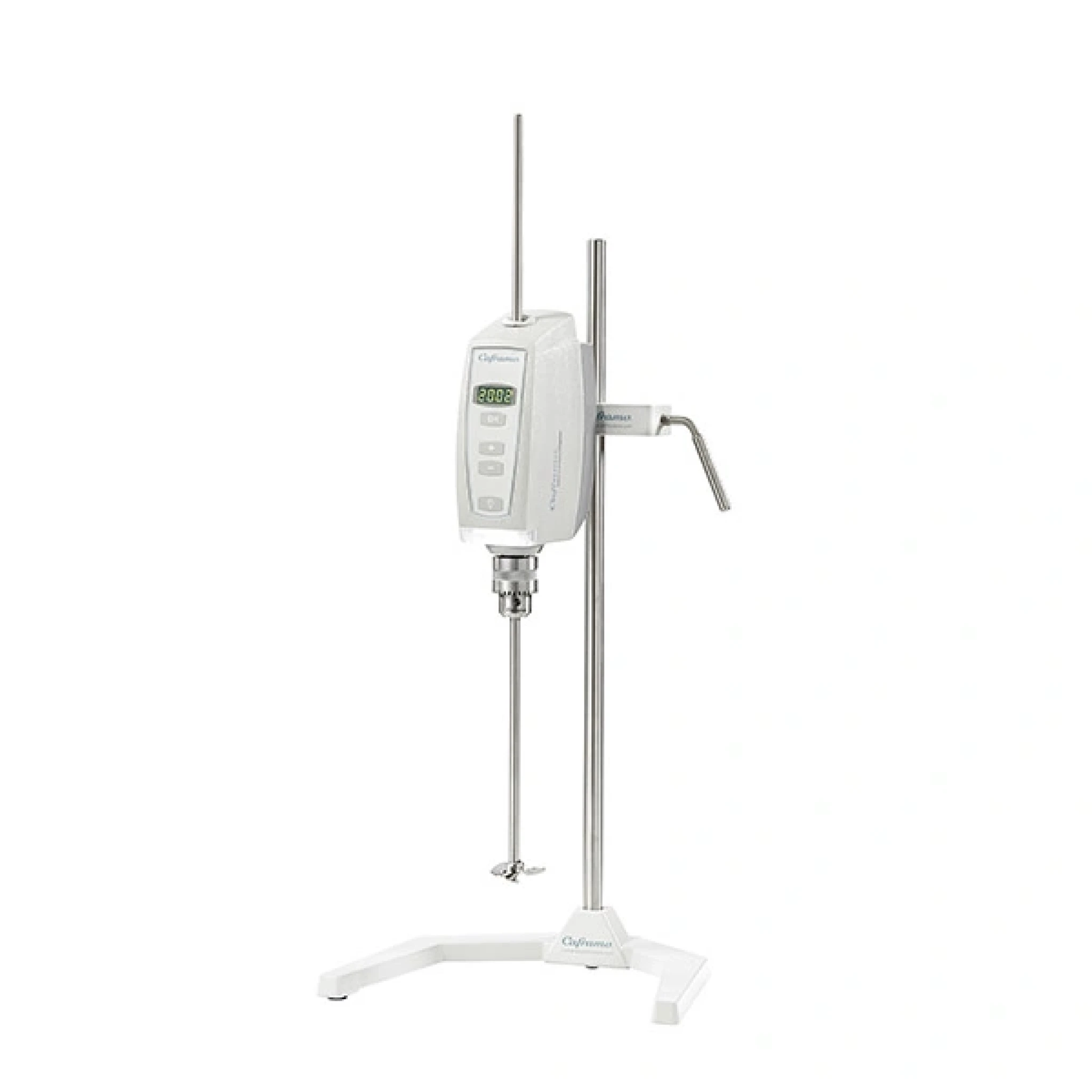

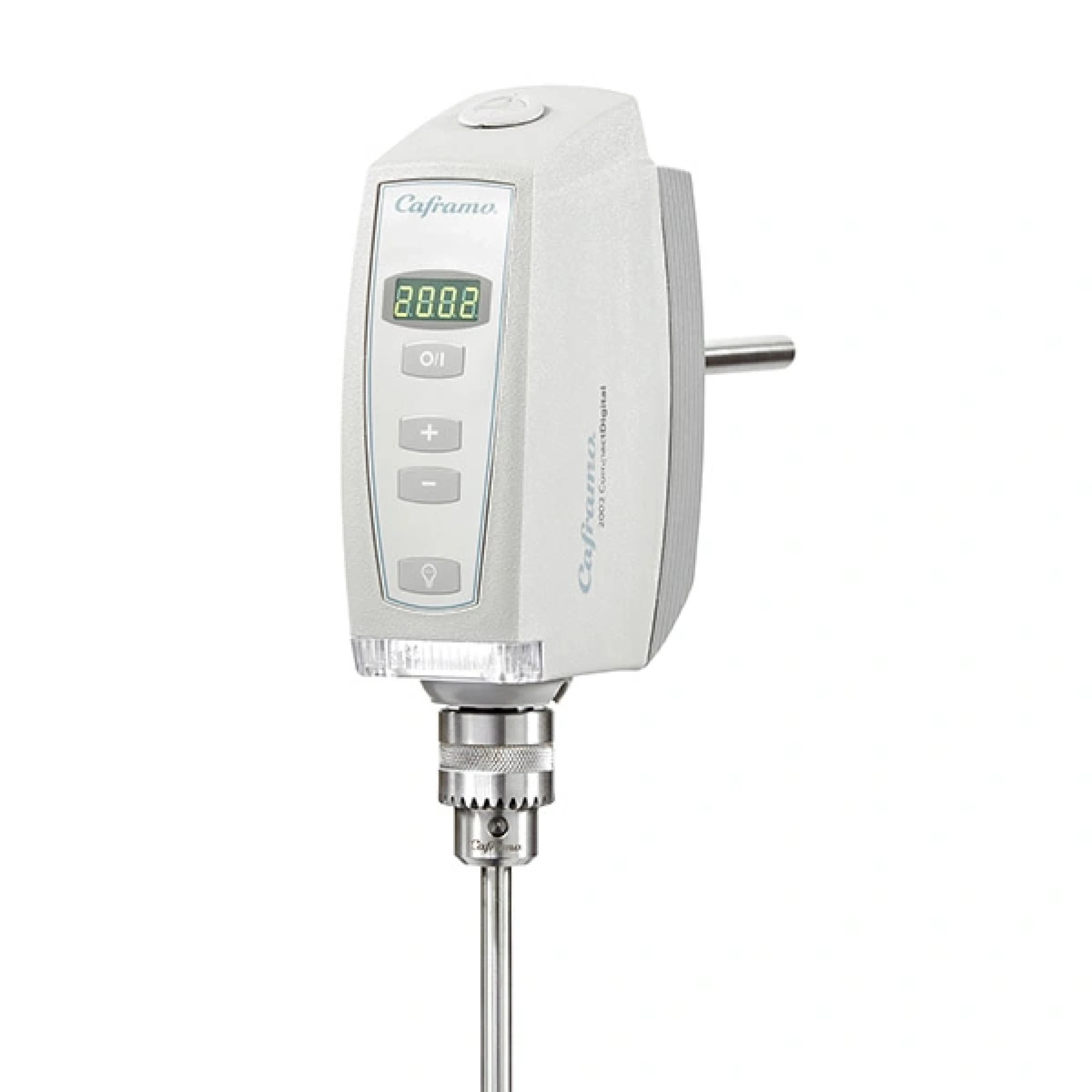

Caframo BDC2002 Compact Overhead Stirrer
Reference:
Manufacturer: Across International
Caframo’s BDC2002 offers ultimate versatility and maximizes productivity. With the push of a button, the unique Stirlight™ lights up so that solutions can be seen clearly. Engage the Auto Start feature to start or resume stirring automatically when power is supplied by control equipment or after a power outage. Included in each purchase: Overhead stirrer motor, chuck, chuck key, support rod, external power supply, grounded power cord, manual in four languages (English, French, Spanish and German) and three year warranty.
Customize your product
Payment Providers
Features
- Stirlight™
- Sealed housing
- Brushless DC motor
- Digital display
- Through shaft
- Auto Start
- Electronic digital control
Benefits
- Allows monitoring of mixing properties of batches
- Keeps liquids and moisture out in aggressive environments
- High efficiency (less heat)
- Precise speed adjustment
- Easy impeller adjustment saves time
- Resumes stirring at last set speed automatically when power is restored
- Set speed is maintained as viscosity changes
- Automatic overload protection
| Model | BDC2002 |
| Speed | 40-2002 rpm |
| Volume Maximum | 25 L (6.5 US Gallons) |
| Viscosity Maximum | 15,000 mPas (15,000 cP) |
| Torque Maximum | 70 Ncm (6 in-lbs = 100 in-oz) |
| Output Power | 40 Watts (1/18 hp) |
| Speed Display | Yes |
| Speed Accuracy | ± 1 rpm or ± 3% of reading |
| Torque Display | No |
| Zero Torque | No |
| Timer | No |
| Through Shaft | Yes |
| Chuck Maximum Shaft Diameter | 10 mm (⅜ in) |
| Chuck Guard | Available |
| Rotation Direction | Clockwise only |
| Auto Start | Yes |
| Housing | Epoxy-coated zinc |
| Weight | Power Supply: 0.5 kg (1 lb), Stirrer: 3.0 kg (7 lb) |
| IP Rating | IP42 |
| Voltage | 100-240 volt must use Caframo power supply |
| Frequency | 50/60 Hz |
| Ambient Temperature Operation | 5-40 °C (41-104 °F) |
| Relative Humidity Operation | 80 % |
| Approvals | CSA listed to Canada and US standards |
| Warranty | 3 years |
