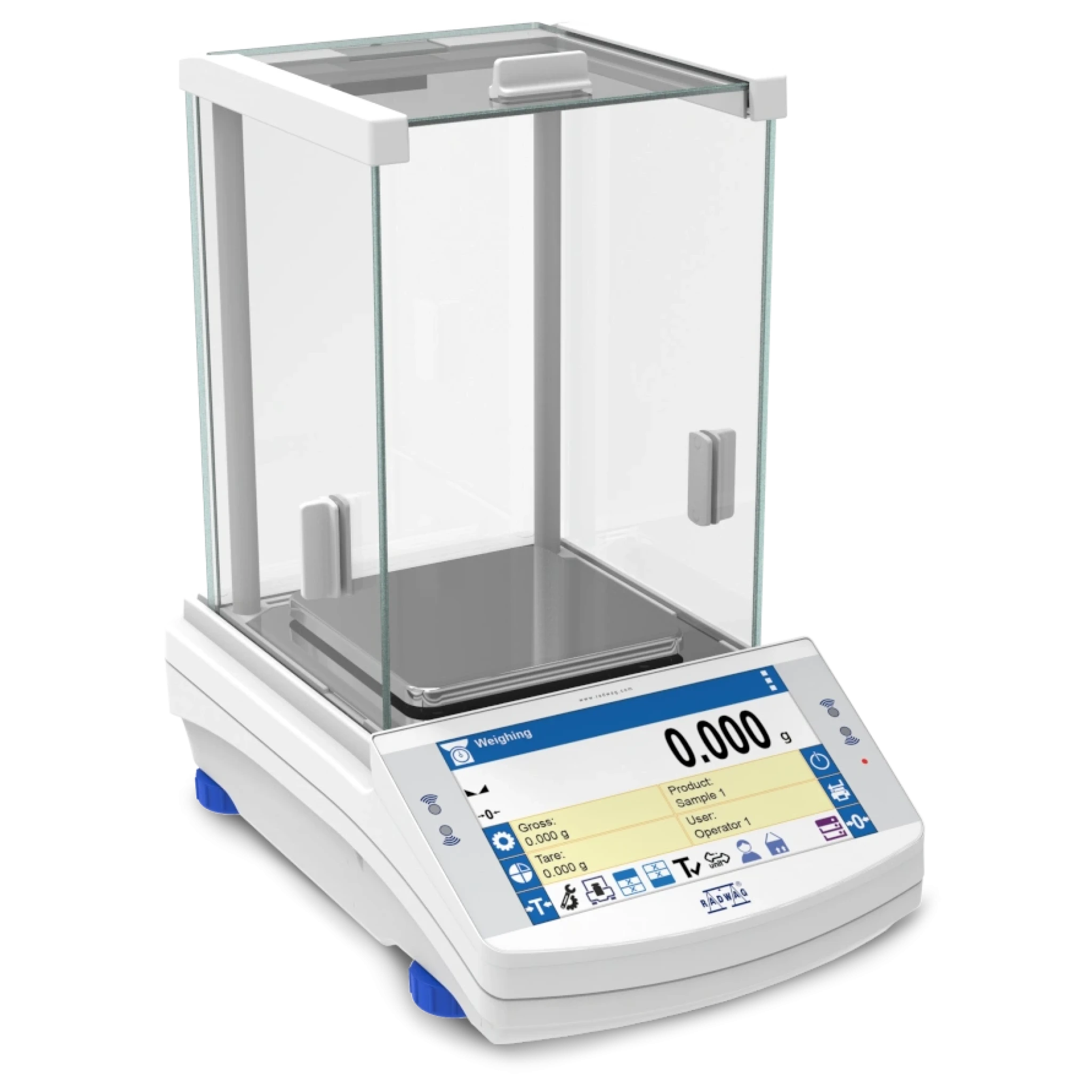

PS 600.X7 Precision Balance
PS X7 Precision Balances are distinguished by their simplicity of use, clarity of menu and intuitive layout of information on the display. Much of this is due to the 7-inch touchscreen display, but the latest generation of capacitive display, which provides maximum operating comfort, is not the only advantage of these balances.\ PS X7 Precision Balances have a readability [d] of 1 to 10 mg, and a maximum capacity [Max] of 200 to 10,100 g; both of these parameters vary depending on the model. An advantage of this series balances is internal (automatic) adjustment, which relieves the user from having to carry out this complicated and precision-demanding procedure himself.The PS X7 balances are equipped with two infrared sensors, which allow for non-contact operation. Built-in IR sensors allow numerous operations (e.g. tarring, transmitting the result to a printer or selecting successive steps of a particular process, etc.) to be performed handsfree, by simply moving a hand across the sensor. The balances housing is made of plastic, and the pan is made of stainless steel. PS X7 Precision Balances enable user to design the layout of the information on the display through a wide selection of widgets. Personalizing the PS X7 balance display gives access to information and operating results directly from the main display panel.

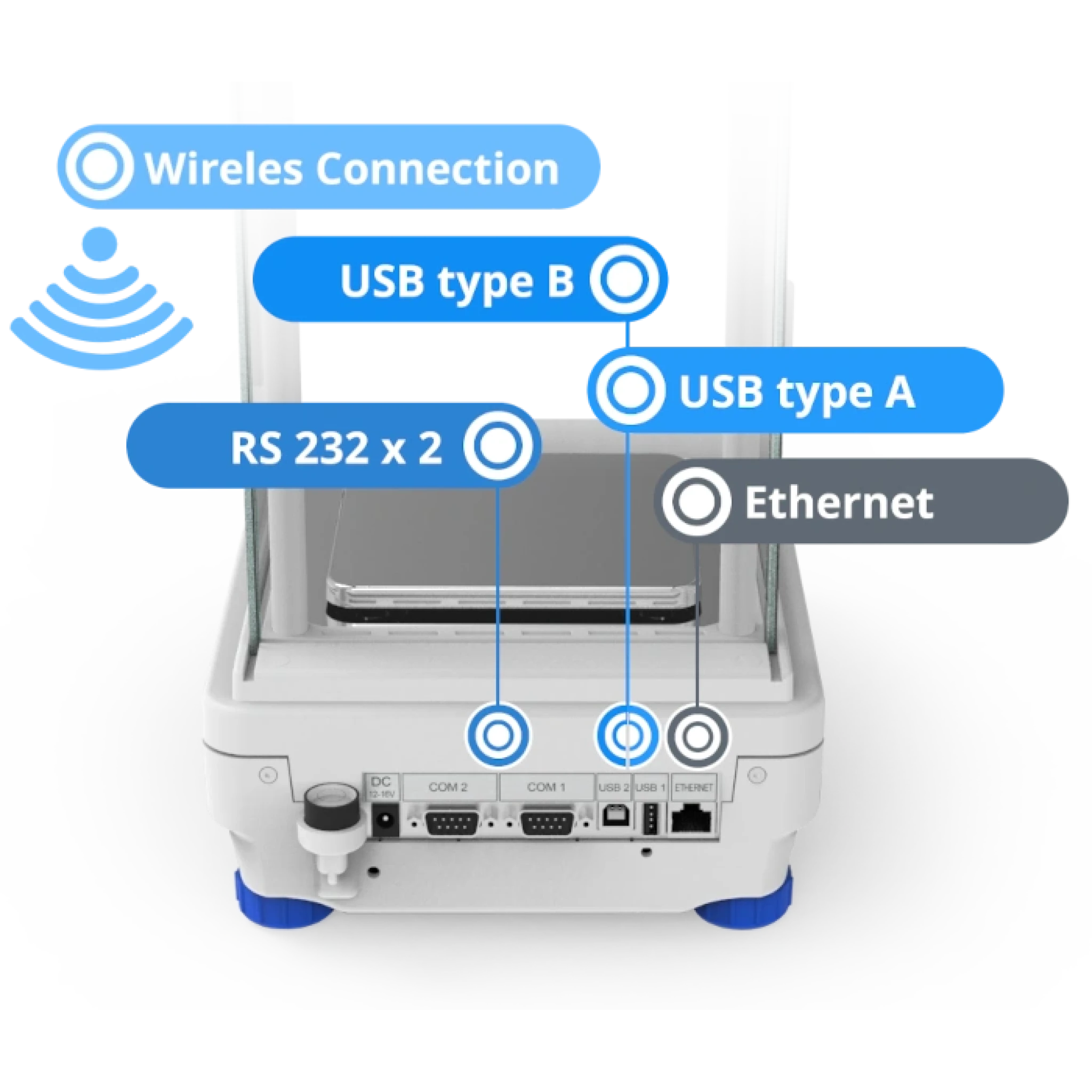

PS X7 Precision Balances are equipped with multiple communication interfaces: 2 x RS232, USB-A, USB-B, Ethernet and Wi-Fi®. The balances housing is made of plastic, and the pan is made of stainless steel.
Databases in X7 series balances
In PS X7 Precision Balances the information system is based on 9 databases which allow several users to work with database storing several products. The registered weighing results can be subject to further analysis.
The data is registered in 9 databases:
- Products (5 000 products)
- Users (100 users)
- Packaging (100 packaging types)
- Customers (1 000 customers)
- Formulations (100 formulations)
- Formulations reports (500 reports)
- Ambient Conditions (10 000 records)
- Weighings (50 000 records)
- ALIBI memory (512 000 records)
USB interface facilitates quick transfer and copying of any results of your work (measurements, reports, databases) to a computer or another balance. Data management on the balance is also possible online, through remote access to the balance and its database.
PS X7 Precision Balances feature ALIBI memory, which guarantees safety as it automatically records measurements, and allows data prereview, copying and archiving.
The ALIBI memory allows to record up to 512 000 weighment records.
| Maximum capacity [Max] | 600g |
| Minimum load | 20mg |
| Readability [d] | 1mg |
| Verification unit [e] | 10mg |
| Tare range | -600g |
| Standard repeatability [5% Max] | 0.5mg |
| Standard repeatability [Max] | 1.5mg |
| Standard minimum weight (USP) | 1g |
| Standard minimum weight (U=1%, k=2) | 0.1g |
| Linearity | ±3mg |
| Stabilization time | 2s |
| Adjustment | internal (automatic) |
| OIML Class | II |
| Leveling system | manual |
| Display | 7″ graphic colour touchscreen |
| Delivery components | Balance, weighing pan, weighing pan shield, grounding bumper ×1, bumper ×3, power supply. |
| Weighing pan dimensions | 128×128mm |
| Packaging dimensions W x D x H | 545×455×575mm |
| Net weight | 3.99kg |
| Gross weight | 5.5kg |
| Protection class | IP 43 |
| Database capacity | Products, Users, Packaging, Customers, Formulations, Formulations reports, Ambient Conditions, Weighings, Alibi memory |
| Touch-free operation | 2 IR Sensors |
| Communication interface | 2×RS232¹, USB-A, USB-B, Ethernet, Wi-Fi® |
| Power supply | Adapter: 100 – 240V AC 50/60Hz 0.6A; 12V DC 1.2A |
| Power consumption | 4 W |
| Operating temperature | +10 – +40°C |
| Ambient conditions monitoring (option) | THBR 2.0 System, THBR BOX, THB P, THB W, THB S |
| Relative humidity | 40% – 80% |
