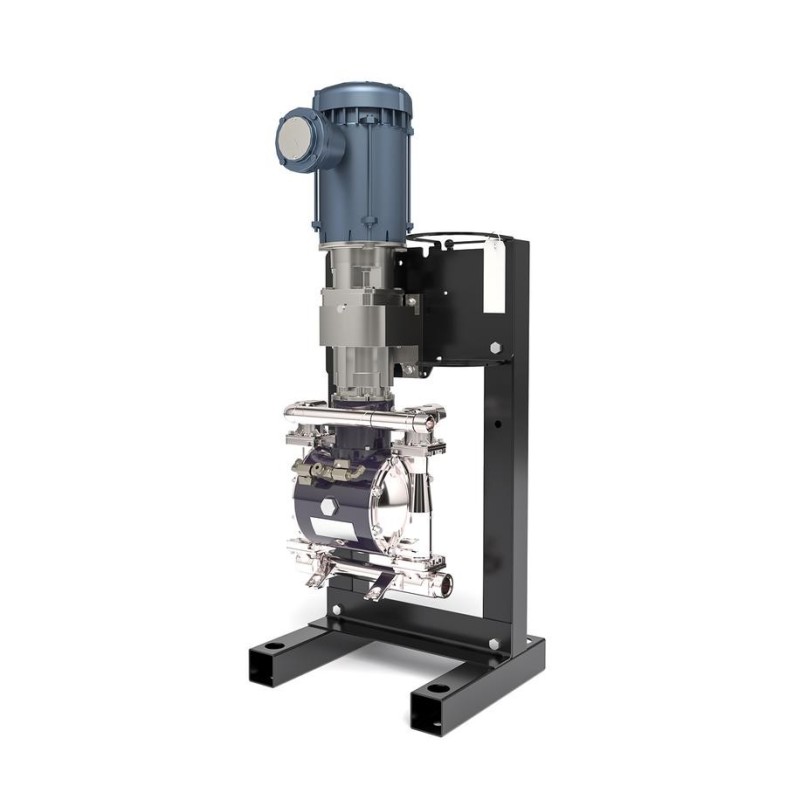

MVP Master Vapor Recovery Pump - Liquid

New

The Master Vapor Pump - Liquid is a certified liquid recovery pump designed for solvent extraction processing. This pump is designed specifically for LP-Gas and Ethanol liquid recovery and is ideal for LP-Gas or LP-Gas / Ethanol mixtures.

More details

Payment Providers
Payment Providers

Add to my wishlist

More info

Engineering Specifications:

  • Maximum pumping outlet pressure - 70 PSI
  • Center Section CO2 charge range 5 to 80 PSI
    (10-15psi over inlet pressure recommended)
  • CO2 Inlet Size: 1 /4 in. npt(f)
  • Maximum Pump Speed 135 cpm (cycle per minute)
  • Process Inlet and Outlet Size: 1 in. npt
  • Electric Motor: Explosion proof for C101 Hazardous areas
  • Motor Specifications: 2HP, 3,600 rpm, 60Hz
  • Size: 18.3” x 15.4” base x 42.3” tall
  • Weight: 173.2 lb

Temperature Operating Details:

  • FKM: -40° to 275°F (-40° to 135°C)
  • PTFE: +40° to 220°F (+4° to 104°C)

Motor Option:

  • Model MVP-LIQUID-1PH: Single-phase: 115/208-230V, 20/10 FLA (full load amps)
  • Model MVP-LIQUID-3PH: Three-phase: 208-230/460V, 5.2/2.6 FLA, Inverter-rated

Compliance Details:

  • Meets Class 1 Division 1 hazardous area facility requirements (when installed correctly)
  • One year manufacturer’s warranty (see Operation Manual)
  • Made in the USA
