Graphite Crucible Set 75ml
Reference: GRC.75
Manufacturer: Across International
High purity (99.9%) heat resistant graphite crucibles with flat bottom. Good for use with induction heating, recommended for precious metals casting. Comes with a silicon dioxide (SiO2) jacket to prevent melting material leaking in case the graphite crucible breaks. Volume: 75ml. Compatible induction coils: 75mm ID coils.
Graphite, often called black lead, can tolerate thermal shock and withstands constant working temperature up to 1500C or 3600C (vacuum condition). They are the best electrical conductive material known to man, 4 times of steel, 5 times of copper and 100 times of non-metallic materials. They also have higher thermal conductivity than steel, iron and lead, plus resistant to acid, alkali and organic solvent.
Attention! ALWAYS wear protective eyewear/goggles during operation.
Dimension:
Height(all deep): 88.42mm
Outside Diameter: 58.09mm
Inside Diameter: 34.42mm
Inside deep: 77.44mm
In stock
Payment Providers
Overview

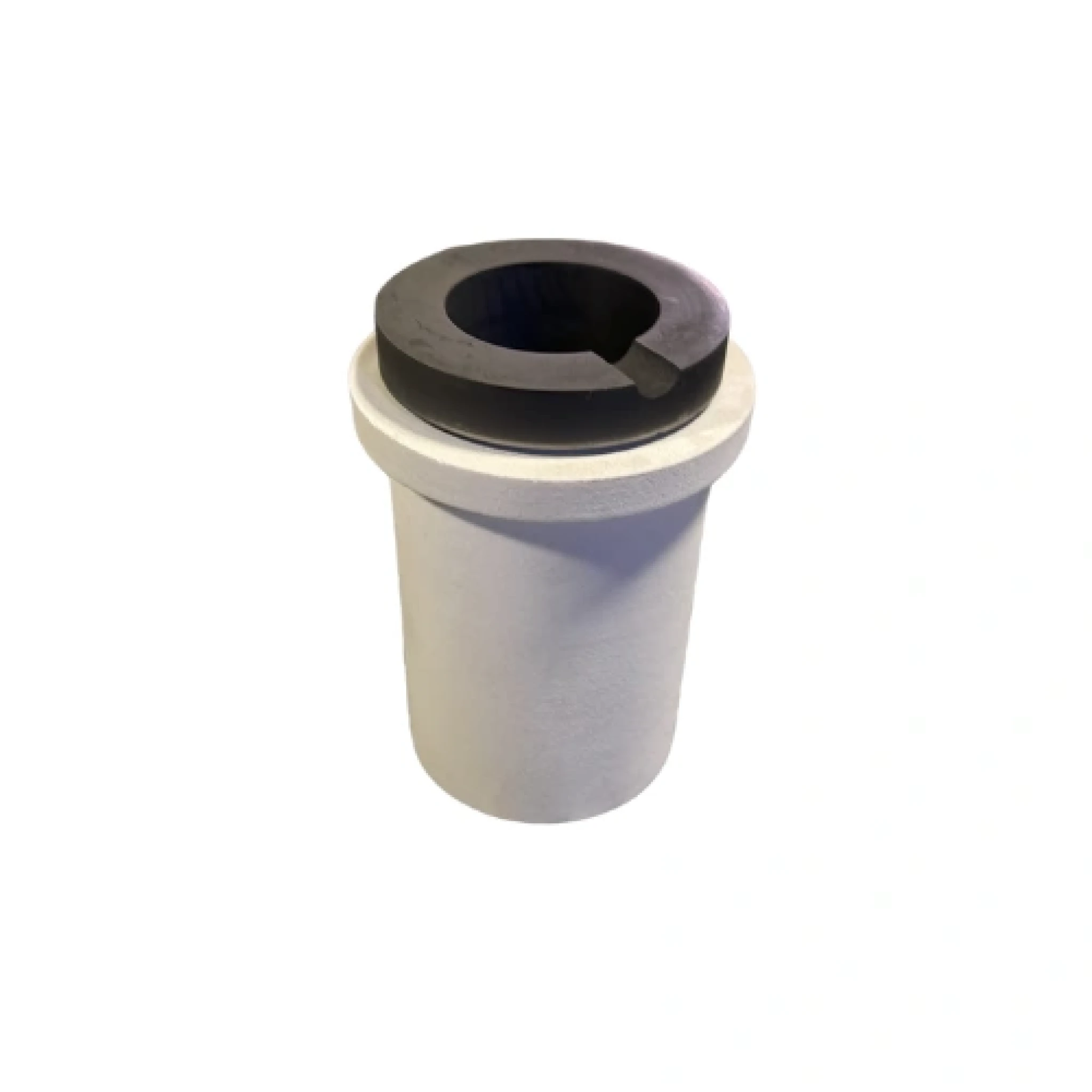

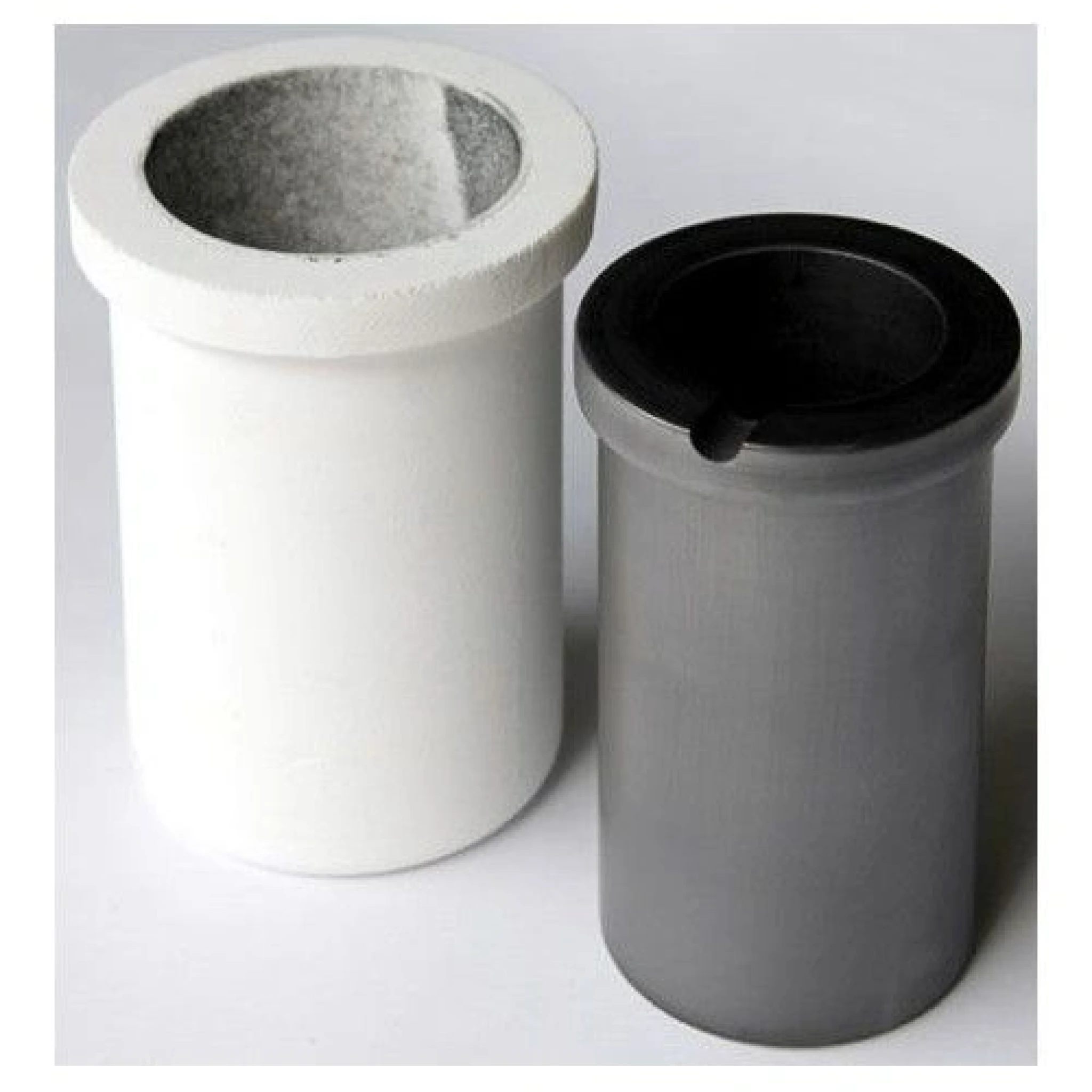

A flat-bottom graphite crucible from Across International, 75 ml, made of 99.9% pure graphite inside a silicon dioxide (SiO2) jacket. The jacket keeps molten material contained if the graphite cracks. It is made for induction heating, is recommended for precious metal casting, and fits 75 mm ID induction coils. This set measures 58.09 mm outside diameter and 88.42 mm high, with a 34.42 mm inside diameter and 77.44 mm inside depth.
Graphite handles thermal shock and resists acids, alkalis and organic solvents. Always wear protective eyewear when melting.
Key features
- 75 ml capacity
- 99.9% purity graphite
- SiO2 outer jacket
- Flat bottom
- Fits 75 mm ID induction coils
- Constant working temperature up to 1500 °C
Compatible with

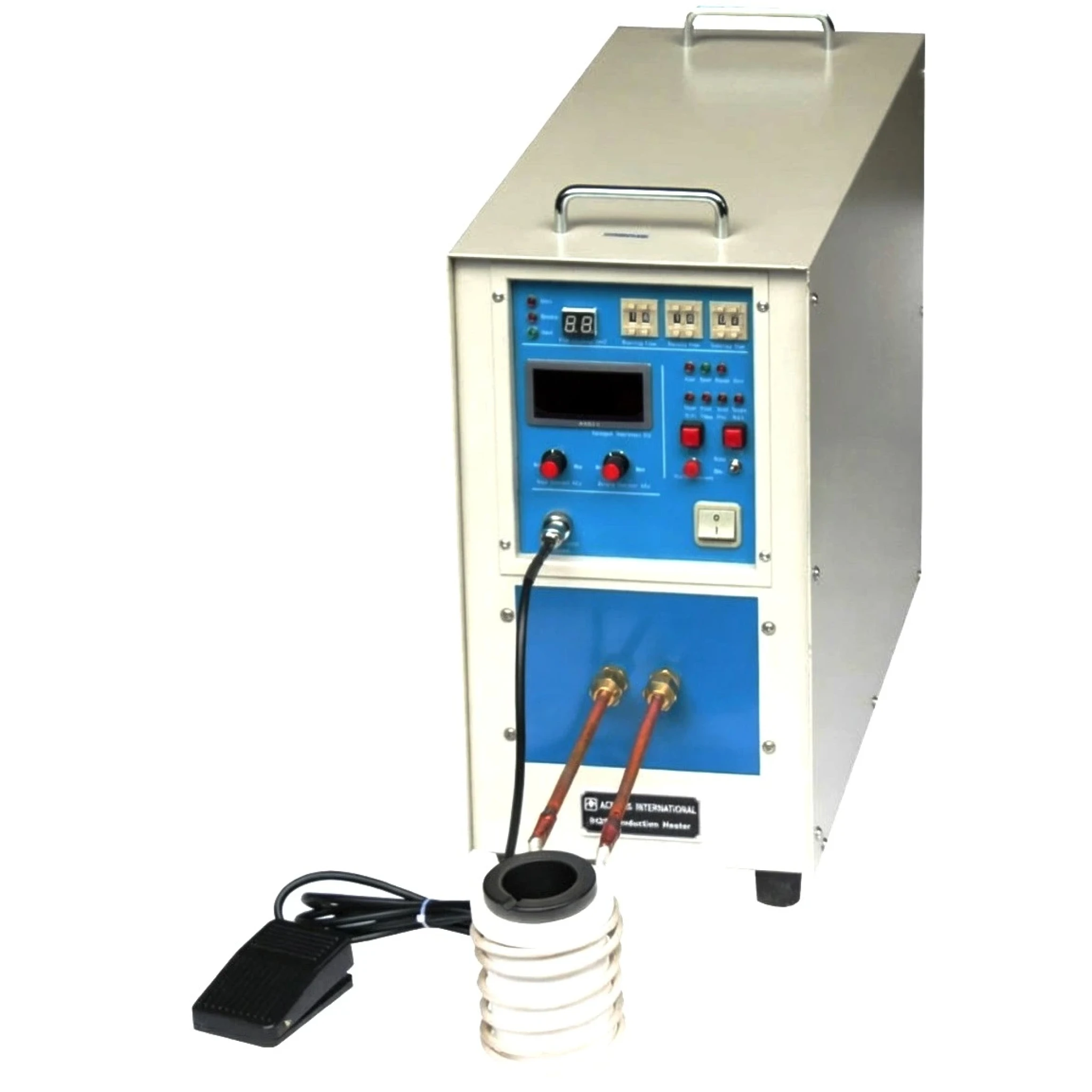

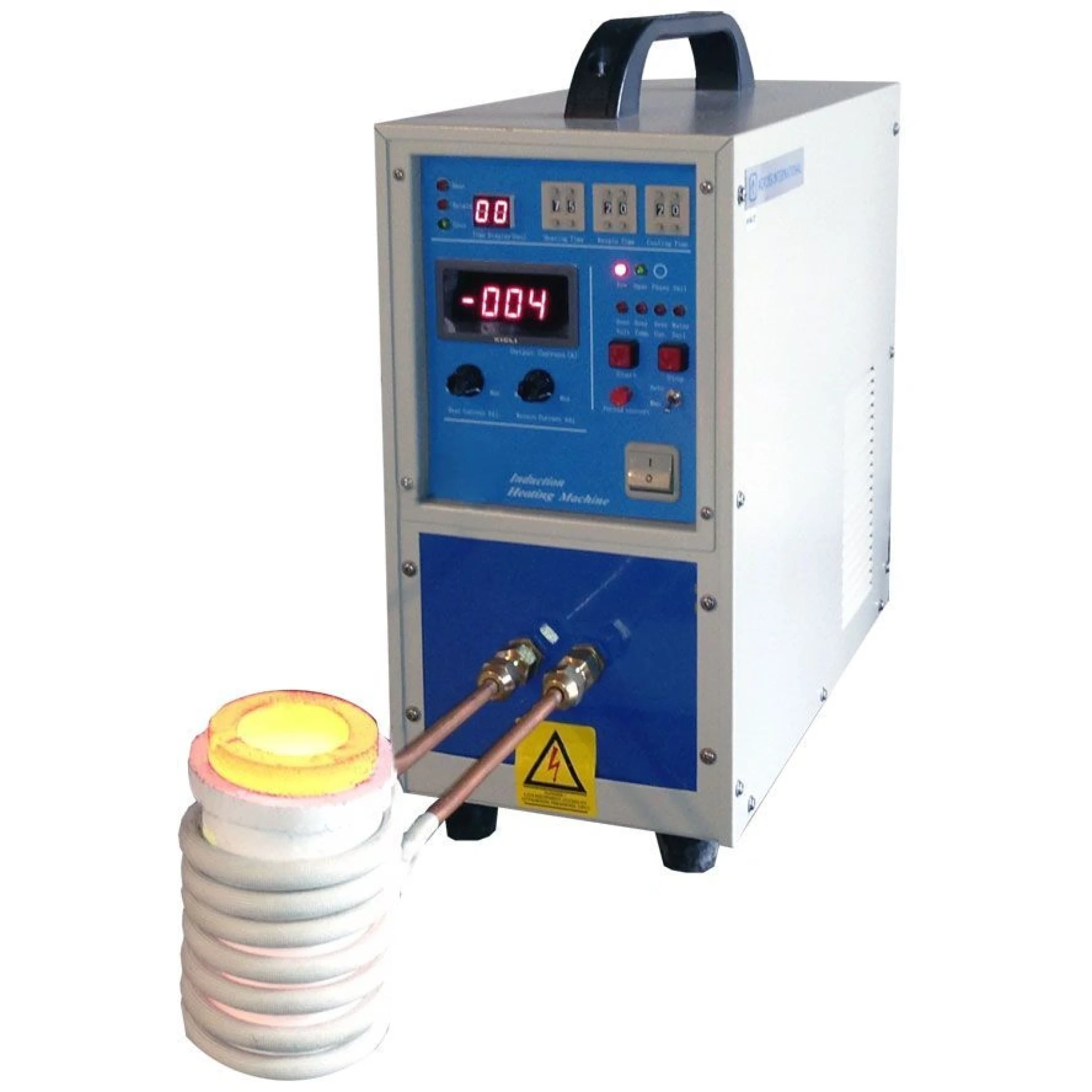

Induction heaters with 75 mm ID coils.
Delivery and pickup
- Ships across Canada and to the USA by Purolator, UPS or FedEx - live rates at checkout.
- Free pickup in Langley, BC.
- We deliver orders of $1000 or more in the Lower Mainland and Fraser Valley ourselves.
Questions
Why the SiO2 jacket?
It contains the molten metal if the graphite crucible breaks.
What coil size does it fit?
75 mm ID induction coils.
| Capacity | 75 ml |
| Graphite purity | 99.9% |
| Jacket | Silicon dioxide (SiO2) |
| Outside diameter | 58.09 mm |
| Inside diameter | 34.42 mm |
| Height | 88.42 mm |
| Inside depth | 77.44 mm |
| Fits | 75 mm ID coils |
