Ai DigiM 10L 300°C 1200 RPM PID Controlled Heating & Stirring Mantle
Reference:
Manufacturer: Across International

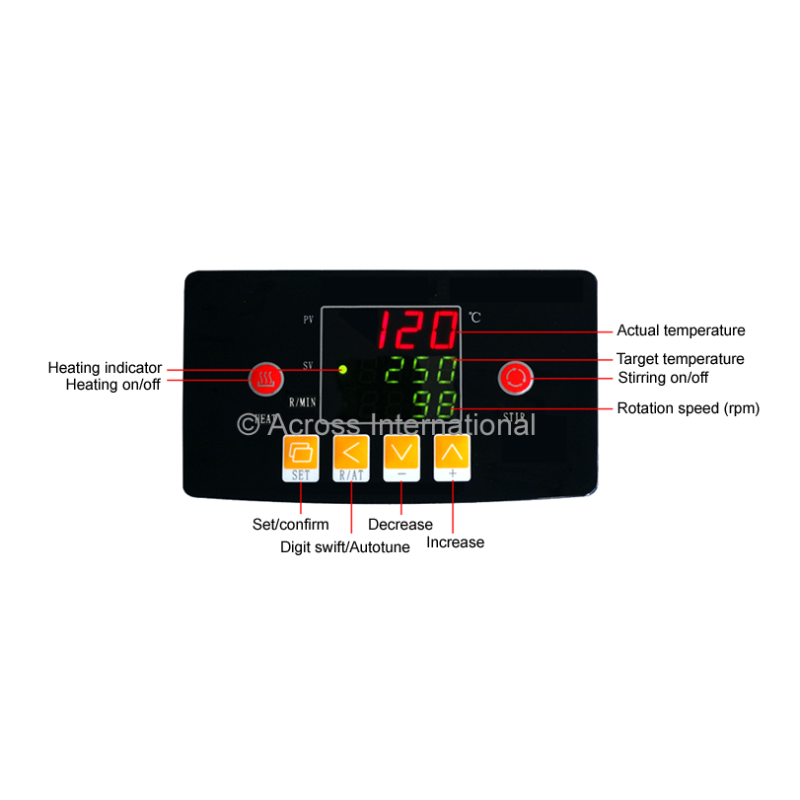

Across International DigiM 10L heating and stirring mantle come standard with digital display for the most accurate control. The large display interface makes it easy to quickly and precisely adjust temperature and rotation speeds.
In stock
Payment Providers
The DigiM mantle is equipped with two sets of thermocouples for proper temperature and speed detection. The heating jacket is pre-treated before shipment, which ensures that no smoke or odors (caused by heat) are released into your work environment.
A heating mantle wraps around the bottom of a round flask and heats it evenly, without the hot spots of a hot plate or the mess of an oil bath. This 10L DigiM holds a 10 litre flask and combines heating up to 300°C with magnetic stirring up to 1200 RPM, so the contents stay mixed while they heat.
In an extraction lab it is typically used under the boiling flask of a short path distillation setup, or for heating and stirring large batches of solvent or crude. Steady stirring helps prevent bumping and keeps the temperature uniform through the whole volume.
| Model | DigiM10 |
| Electrical requirements | 110V 60Hz 1-Phase, 2050 watts, 24A or 220V 50/60Hz 1-Phase, 2050 watts, 12A |
| Heating | Ambient to 300°C |
| Stirring | Maximum speed: 1200 rpm Motor power: 40 watts Motor type: brushless DC motor |
| Controller | PID control with digital temperature and rotation speed display |
| External thermocouple | Type: PT100 Cable length: 43 inches Stainless steel probe length: 15 inches Stainless steel probe diameter: 5 mm |
| Flask holder | Maximum flask capacity: 10 liters Top opening diameter: 11.75 inches Depth: 6.5 inches |
| Dimensions (WxDxH) | Unit: 18 x 17.5 x 13 inches, shipping: 22 x 21 x 18 inches |
| Weight | Unit: 30 lbs, shipping: 40 lbs |
| Safety | Thermocouple failure protection |
| Certification | UL/CSA optional |
| Warranty | One year |
Standard package
|
Part description |
Quantity |
| Ai DigiM 10L digital heating & stirring mantle | 1 pc |
| External temperature probe | 1 pc |
| Internal temperature plug | 1 pc |
| Boss head | 1 pc |
| Stainless steel support rod (15 inches) | 1 pc |
| PTFE coated stir bar | 1 pc |
| 5L flask cork ring stand | 1 pc |
| 4 prong stainless steel clamp opens to 3 1/2" | 1 pc |
| User's manual | 1 pc |
