Ai DigiM 5L 300°C 2000 RPM PID Controlled Digital Heating Mantle
Reference:
Manufacturer: Across International

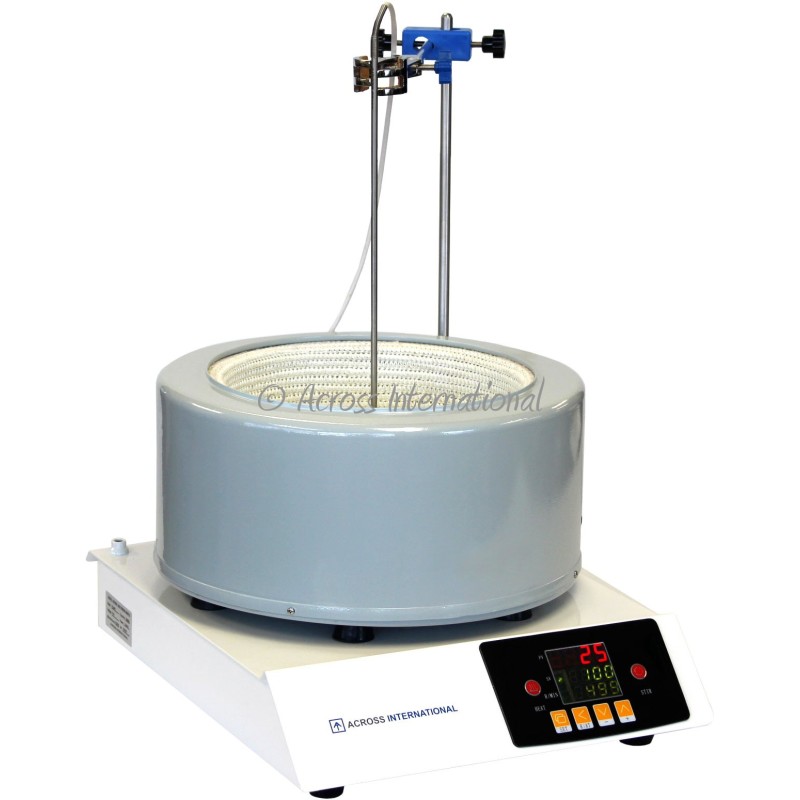

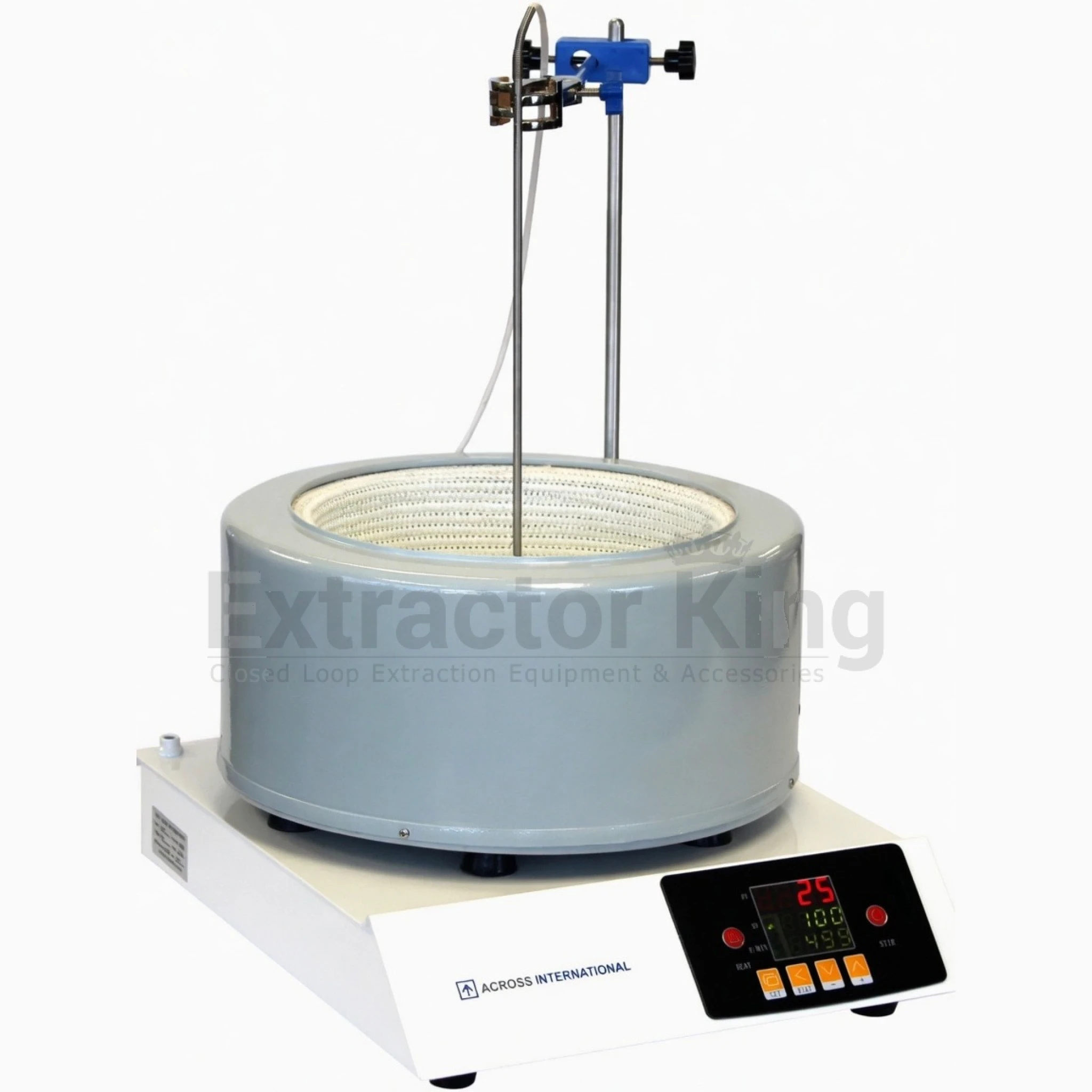

Across International DigiM 5L heating and stirring mantle come standard with digital display for the most accurate control. The large display interface makes it easy to quickly and precisely adjust temperature and rotation speeds.
In stock
Payment Providers
The DigiM mantle is equipped with two sets of thermocouples for proper temperature and speed detection. The heating jacket is pre-treated before shipment, which ensures that no smoke or odors (caused by heat) are released into your work environment.
| Model | DigiM5 |
| Electrical requirements | 110V 60Hz 1-Phase, 1100 watts, 12A or 220V 50/60Hz 1-Phase, 1100 watts, 6A |
| Heating | Ambient to 300°C |
| Stirring | Maximum speed: 2000 rpm Motor power: 40 watts Motor type: brushless DC motor |

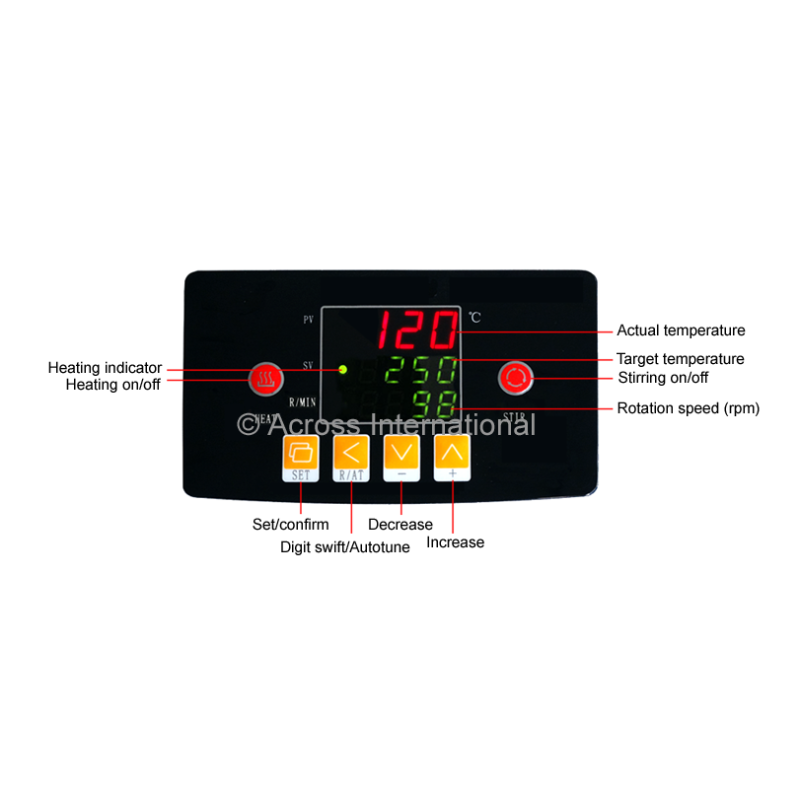

| Controller | PID control with digital temperature and rotation speed display |
| External thermocouple | Type: PT100 Cable length: 43 inches Stainless steel probe length: 15 inches Stainless steel probe diameter: 5 mm |
| Flask holder | Maximum flask capacity: 5 liters Top opening diameter: 9 inches Depth: 5.5 inches |
| Dimensions (WxDxH) | Unit: 13.5 x 17 x 10 inches, shipping: 20 x 16 x 16 inches |
| Weight | Unit: 22 lbs, shipping: 32 lbs |
| Safety | Thermocouple failure protection |
| Certification | UL/CSA optional |
| Warranty | One year |
Standard package
|
Part description |
Quantity |
| Ai DigiM 5L digital heating & stirring mantle | 1 set |
| External temperature probe | 1 pc |
| Internal temperature plug | 1 pc |
| Boss head | 1 pc |
| Stainless steel support rod (15 inches) | 1 pc |
| PTFE coated stir bar | 1 pc |
| 5L flask cork ring stand | 1 pc |
| 4 prong stainless steel clamp opens to 3 1/2" | 1 pc |
| User's manual | 1 pc |
