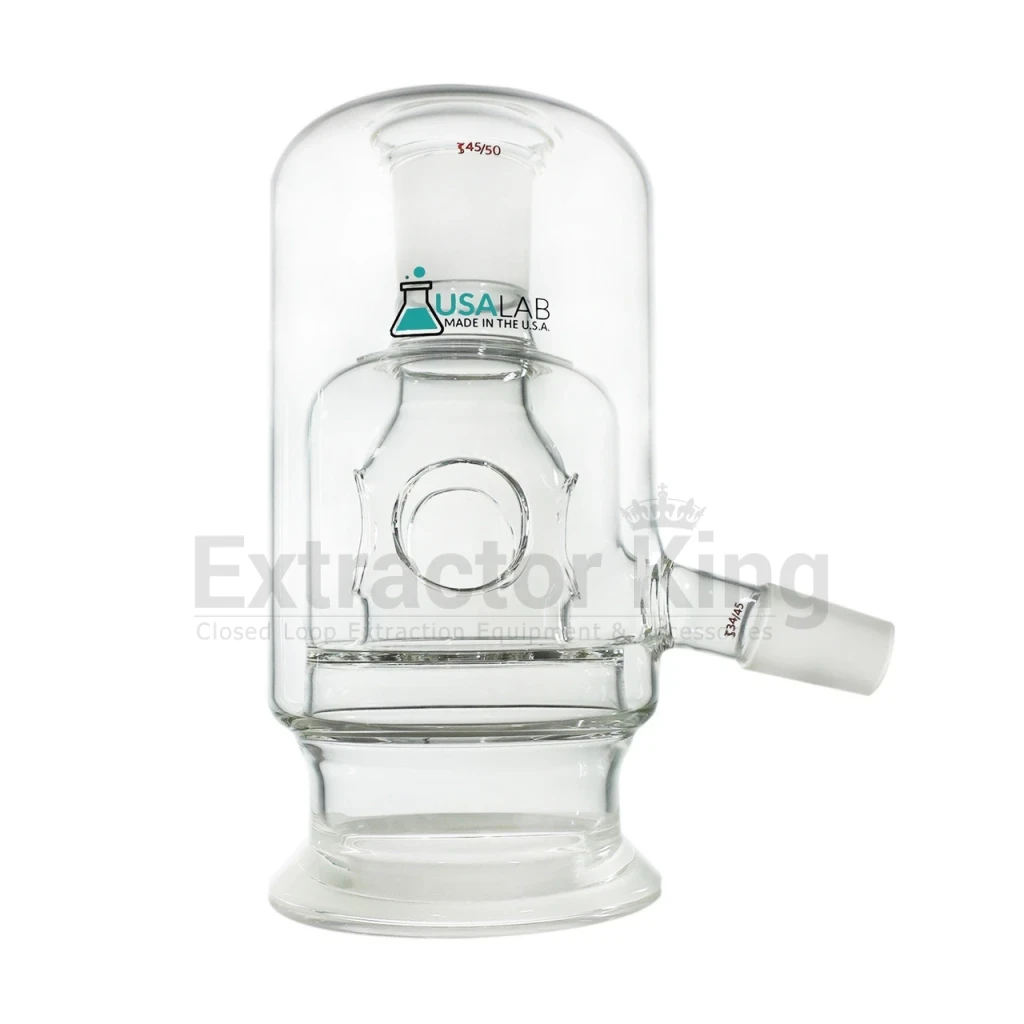

USA Made N4 100MM Jacketed Distillation Head - 45/50 Top - 34/45 Side
Reference: N4-100MM-HEAD
Manufacturer: USA Lab
The USA Made N4 100MM Jacketed Distillation Head is designed for efficient vapor movement and condensation within 12L and 22L short path distillation systems. Its 100mm opening provides a large internal flow path, while the four openings inside the head…
In stock
Payment Providers
More info
USA Made N4 100MM Jacketed Distillation Head - 45/50 Top - 34/45 Side
The USA Made N4 100MM Jacketed Distillation Head is designed for efficient vapor movement and condensation within 12L and 22L short path distillation systems. Its 100mm opening provides a large internal flow path, while the four openings inside the head support minimal reflux and fast vapor travel.
The four internal openings also provide an efficient path for condensing vapors traveling through the head. Once condensed, the material collects on the shelf below the openings, supporting organized vapor-to-liquid collection during the distillation process.
This jacketed distillation head features a 45/50 top joint for a thermowell and a 34/45 joint on the arm. It is specifically paired with USA Lab 12L and 22L Short Path Distillation Kits for compatible system configurations.
Why this 100MM Jacketed Distillation Head?
- Large 100MM opening — provides an efficient internal flow path for compatible short path distillation assemblies.
- Four internal openings — designed to support minimal reflux and faster vapor travel through the head.
- Efficient vapor condensation — the internal opening configuration supports condensation of vapors traveling upward through the head.
- Collection shelf — condensed vapor collects on the shelf below the internal openings.
- System-specific connections — includes a 45/50 top joint for a thermowell and a 34/45 joint on the arm.
- 12L & 22L compatibility — designed to pair with USA Lab 12L and 22L Short Path Distillation Kits.
Technical Specifications
| Specification | Details |
|---|---|
| Product Name | USA Made N4 100MM Jacketed Distillation Head - 45/50 Top - 34/45 Side |
| Product Type | Jacketed Distillation Head |
| Product Configuration | N4 |
| Country of Manufacture | USA |
| Primary Opening | 100MM |
| Top Joint | 45/50 |
| Side Joint | 34/45 |
| Internal Openings | Four |
| Internal Opening Function | Supports minimal reflux and fast vapor travel |
| Condensation Function | Supports efficient condensation of vapors traveling through the head |
| Collection Feature | Shelf below internal openings |
| Thermowell Connection | 45/50 top joint |
| Arm Connection | 34/45 joint |
| Head Design | 100MM jacketed configuration |
| Compatible Kit Size | 12L and 22L |
| System Compatibility | USA Lab 12L & 22L Short Path Distillation Kits |
| Primary Application | Short Path Distillation |
| Vapor Handling | Vapor travel, condensation, and collection |
| Intended Use | Compatible laboratory and process distillation assemblies |
FAQ
What is the opening size of the USA Made N4 100MM Jacketed Distillation Head?The USA Made N4 100MM Jacketed Distillation Head features a 100MM opening designed to support efficient vapor flow when used with compatible short path distillation assemblies.
The head has a 45/50 joint on the top for a thermowell and a 34/45 joint on the arm.
The four internal openings are designed to support minimal reflux and fast vapor travel while providing an efficient path for condensation. Condensed vapor collects on the shelf below the openings.
The USA Made N4 100MM Jacketed Distillation Head is designed to pair with USA Lab 12L and 22L Short Path Distillation Kits when the system components have compatible connections.
All items are carefully packaged to ensure safe delivery. In the rare event that your item arrives damaged, please notify us within 3 days of receipt. We will promptly provide a replacement or issue a refund.
Please note that any damage occurring after delivery is not covered under warranty. We appreciate your understanding and your trust in our products.
Specifications
| Brand | USA Lab |
| Head connection | 100 MM |
| Top Connection | 45/50 |
| Arm Connection | 34/45 |
| Glass | Made in USA |
| Warranty Term | 1 Year |
