Ai DigiM 2L 300°C 1200 RPM PID Controlled Heating & Stirring Mantle
Reference:
Manufacturer: Across International

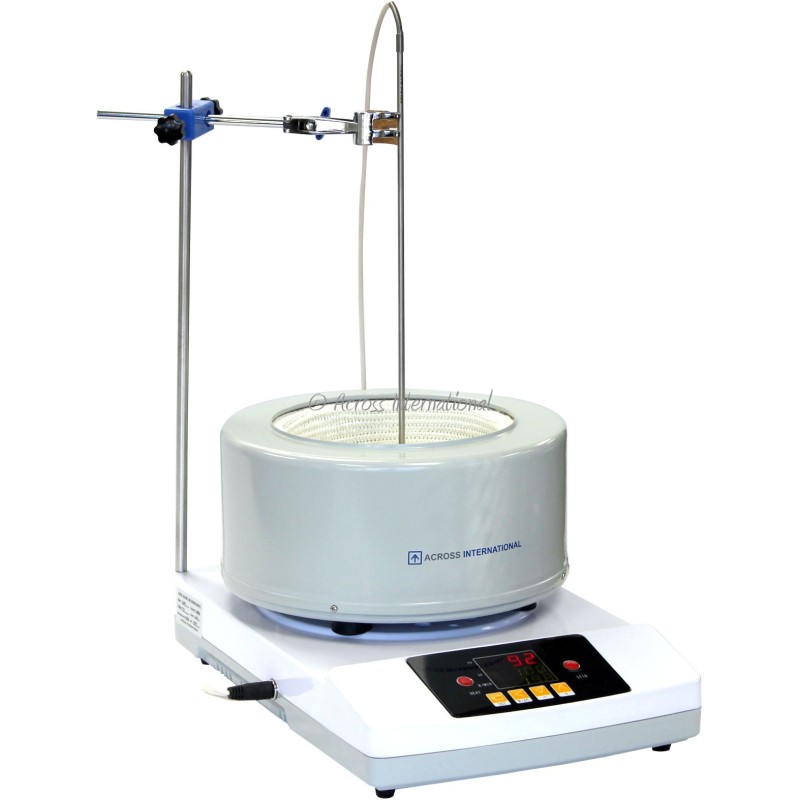

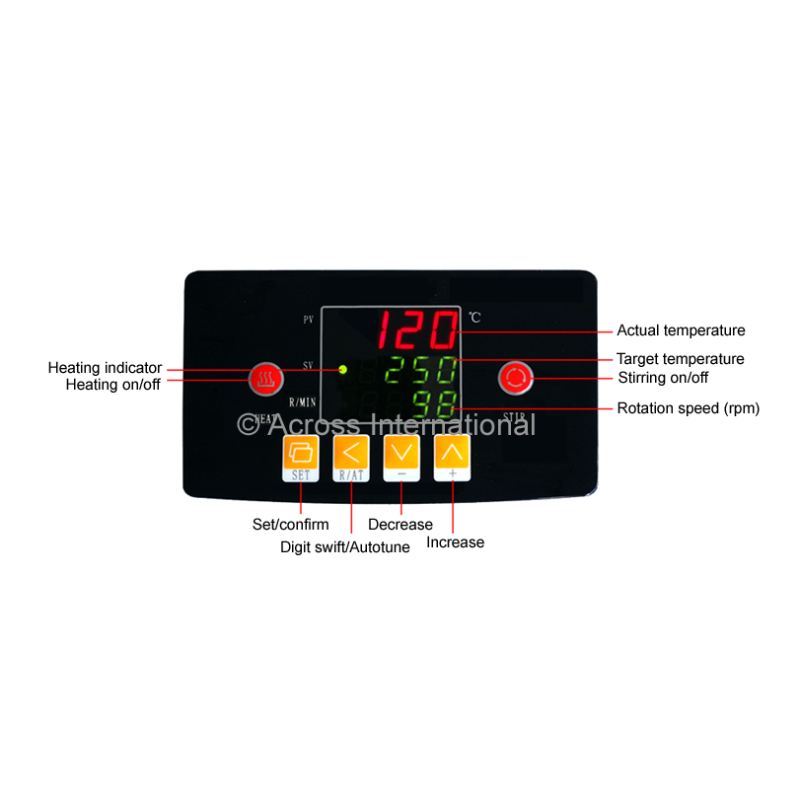

Across International DigiM 2L heating and stirring mantle come standard with digital display for the most accurate control. The large display interface makes it easy to quickly and precisely adjust temperature and rotation speeds.
In stock
Payment Providers
The DigiM mantle is equipped with two sets of thermocouples for proper temperature and speed detection. The heating jacket is pre-treated before shipment, which ensures that no smoke or odors (caused by heat) are released into your work environment.
A heating mantle surrounds the bottom of a round flask and heats it evenly, avoiding the hot spots of a hot plate and the mess of an oil bath. This 2L DigiM holds a 2 litre flask, heats up to 300°C and stirs up to 1200 RPM. PID control holds the set temperature closely instead of overshooting.
The 2 litre size suits small short path distillation runs, method development and other bench-scale work where you want precise, repeatable heating with constant mixing.
| Model | DigiM2 |
| Electrical requirements | 110V 60Hz 1-Phase, 700 watts, 8A or 220V 50/60Hz 1-Phase, 700 watts, 4A |
| Heating | Ambient to 300°C |
| Stirring | Maximum speed: 1200 rpm Motor power: 40 watts Motor type: brushless DC motor |
| Controller | PID control with digital temperature and rotation speed display |
| External thermocouple | Type: PT100 Cable length: 40 inches Stainless steel probe length: 9 inches Stainless steel probe diameter: 5 mm |
| Flask holder | Maximum flask capacity: 2 liters Top opening diameter: 6.5 inches Depth: 4 inches |
| Dimensions (WxDxH) | Unit: 11 x 16 x 8.5 inches, shipping: 20 x 14 x 13 inches |
| Weight | Unit: 14 lbs, shipping: 25 lbs |
| Safety | Thermocouple failure protection |
| Certification | UL/CSA optional |
| Warranty | One year |
Standard package
|
Part description |
Quantity |
| Ai DigiM 2L heating mantle | 1 set |
| External temperature probe | 1 pc |
| Internal temperature plug | 1 pc |
| Boss head | 1 pc |
| Stainless steel support rod (15 inches) | 1 pc |
| PTFE coated stir bar | 1 pc |
| 2L flask cork ring stand | 1 pc |
| 4 prong stainless steel clamp opens to 3 1/2" | 1 pc |
| User's manual | 1 pc |
