SonoMechanics 2L Stirring & Mixing Equipment Set

The bottom outlet of the glass vessel and the hose inlet in the cap of the Impeller Assembly makes it ideal for flow-through, recirculating applications, so a liquid pump will be needed whether used with the Industrial Sonomechanics LSP-600 system, BSP-1200 flow-through system to make smaller nanoemulsion batches (e.g. only 1 L at time), or another type of equipment.

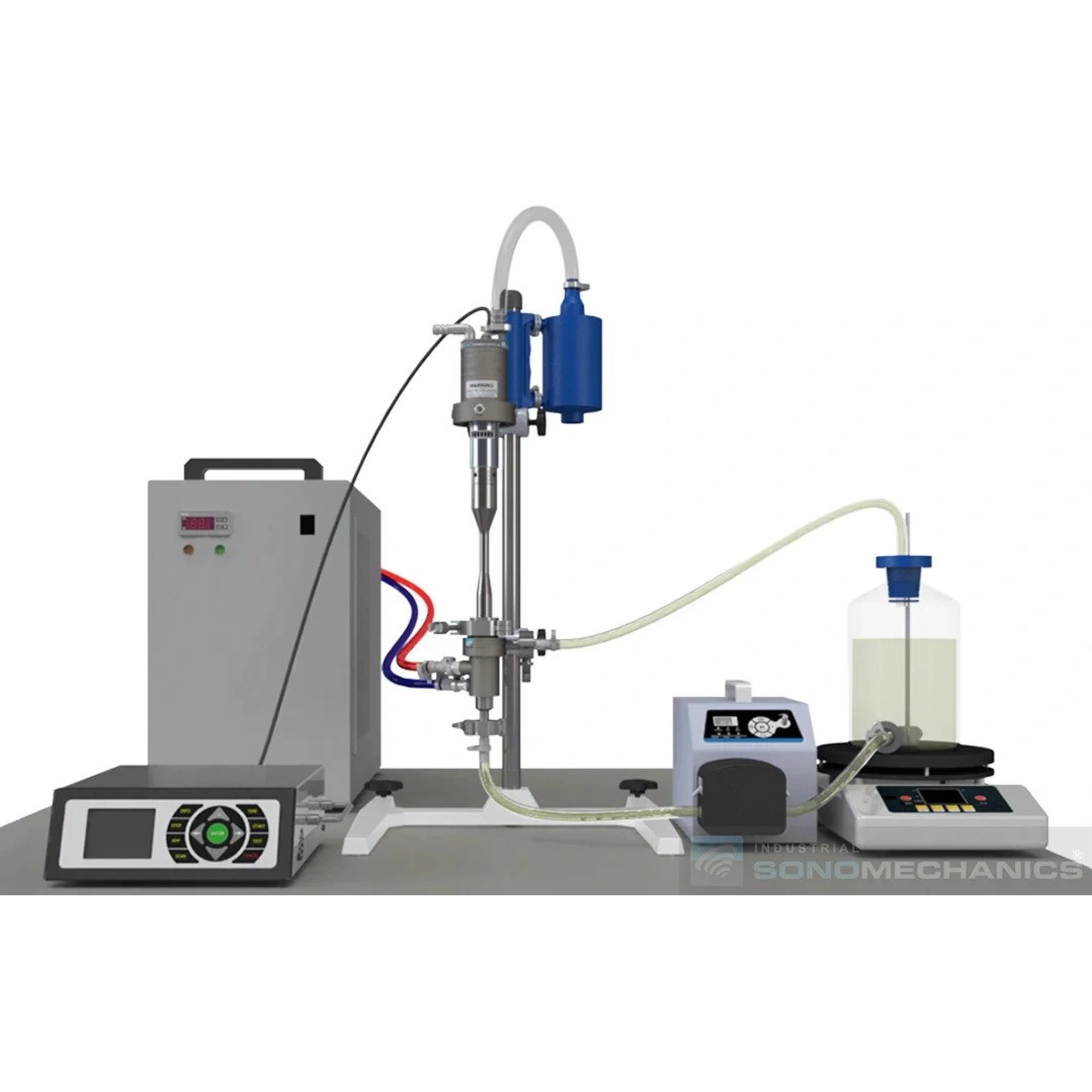

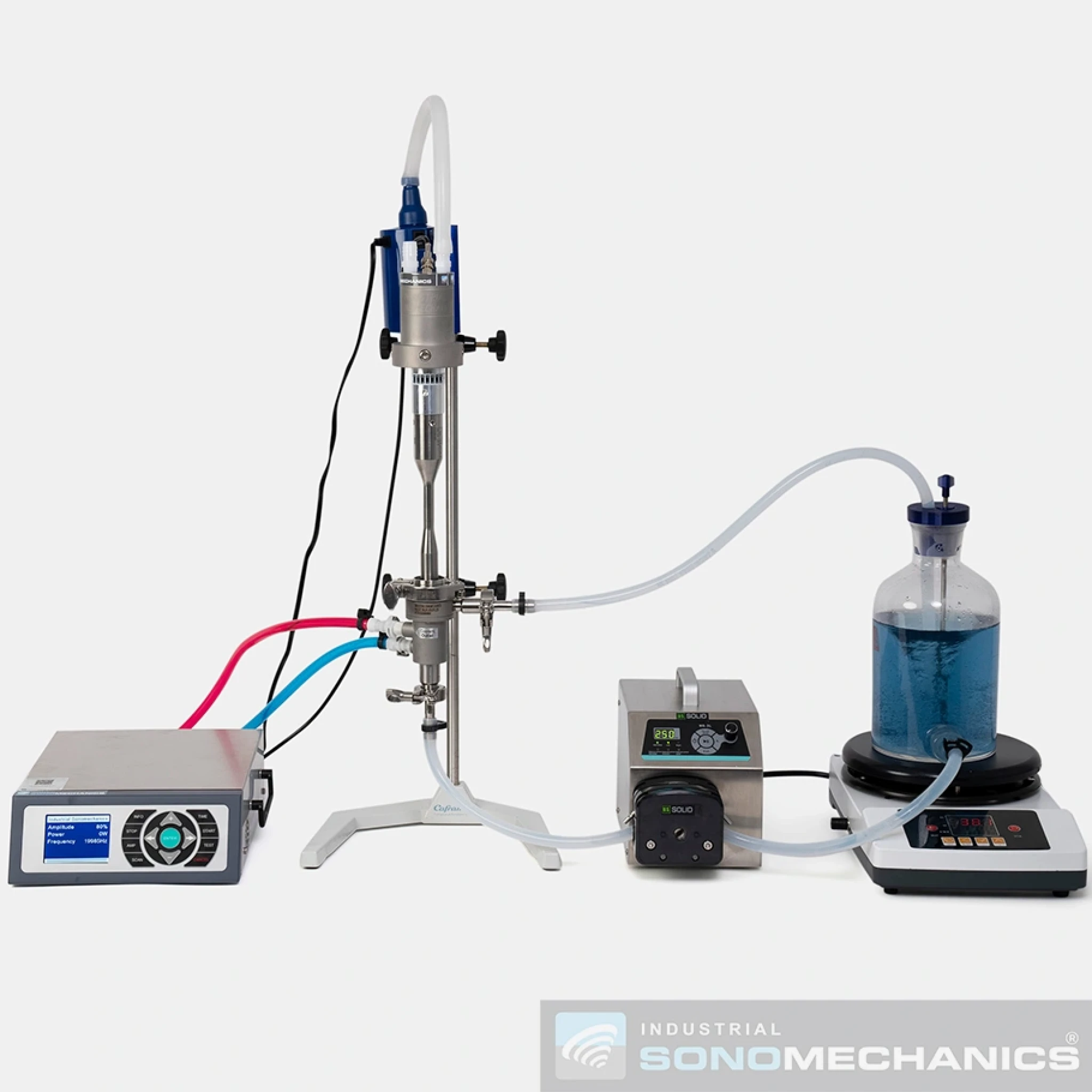

This 2 L Stirring/Mixing Equipment Set is typically used with the LSP-600 (or BSP-1200, in some cases) ultrasonic processor configured in the flow-through mode to work with liquid volumes from about 500 ml to 2 L. It can also be used for general stirring and mixing applications, including:

• Dispersing solids into liquids (e.g., mixing powders into water, dissolution, production of slurries and micro/nano-particle suspensions)
• Liquid/liquid blending (e.g., emulsifying, mixing viscous liquids with each other)
• Stirring multi-component liquids to maintain consistency during processing

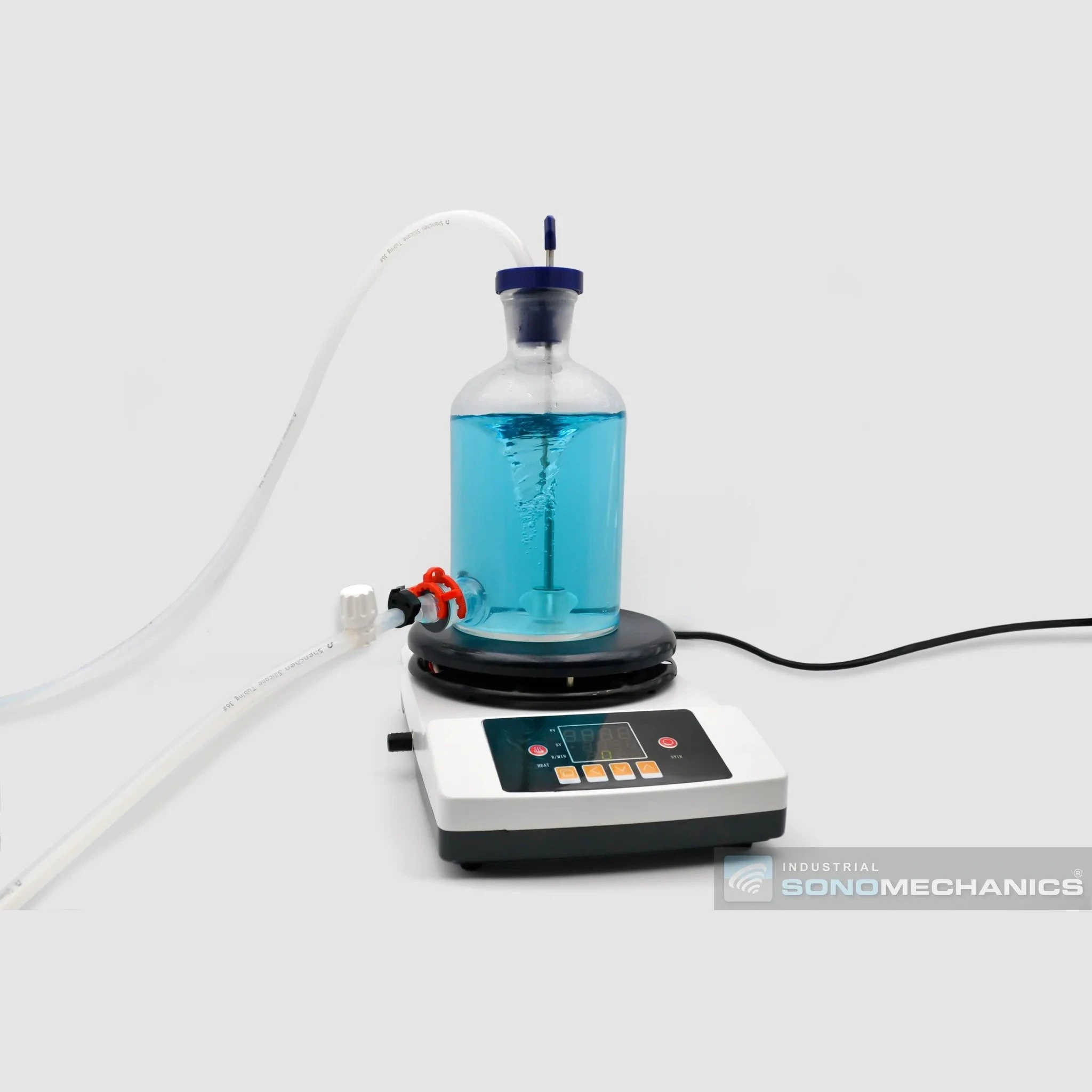

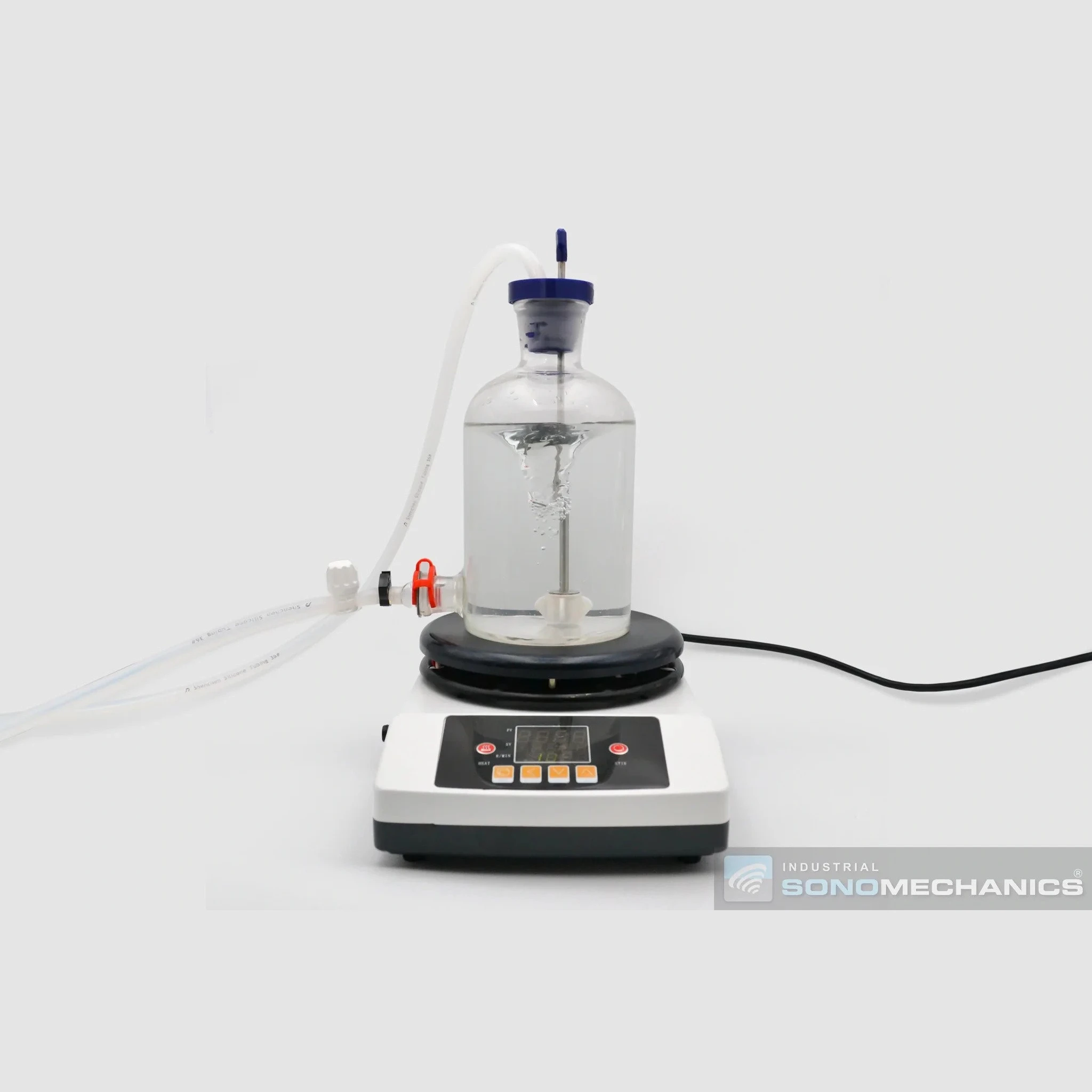

The 2 L Stirring/Mixing Equipment Set includes:

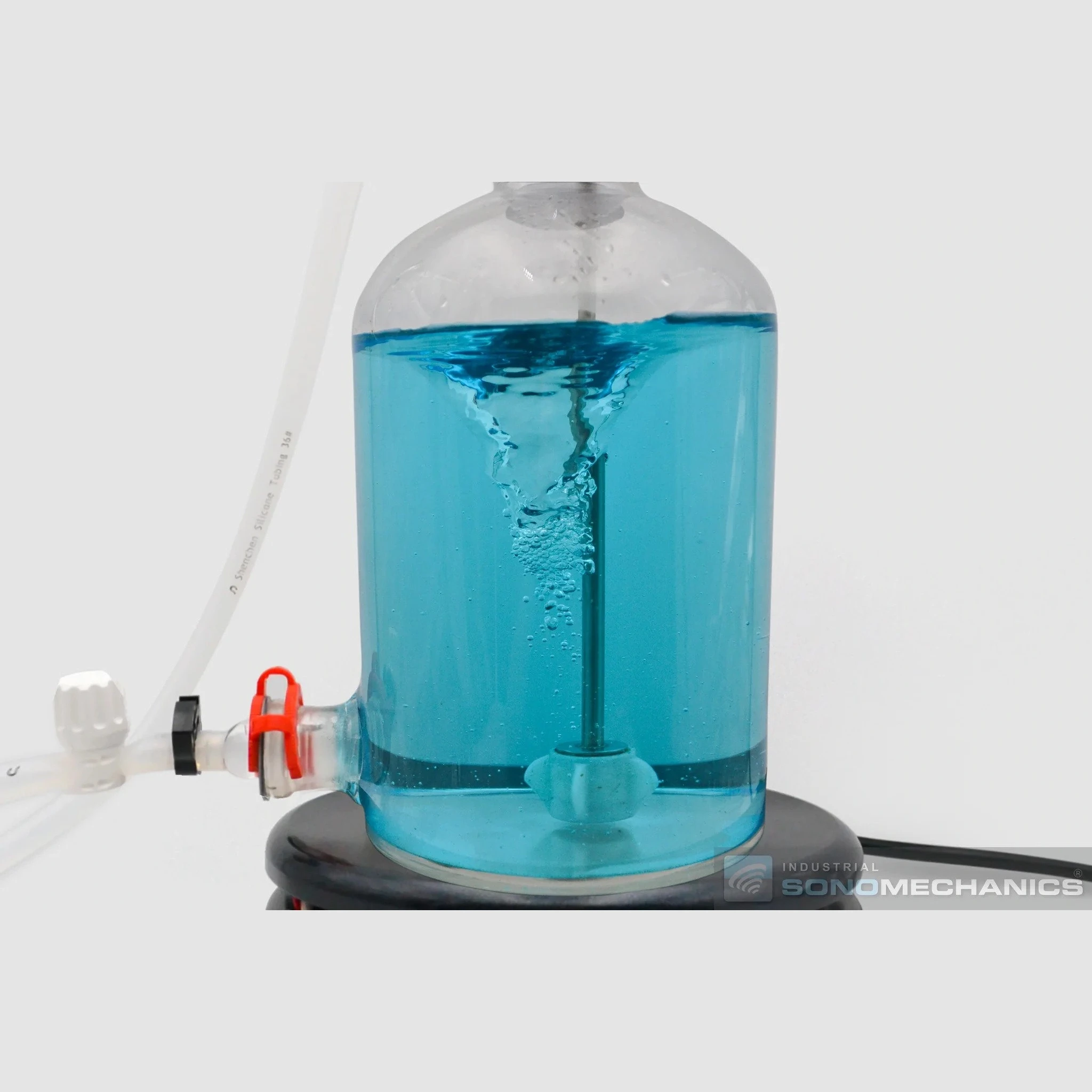

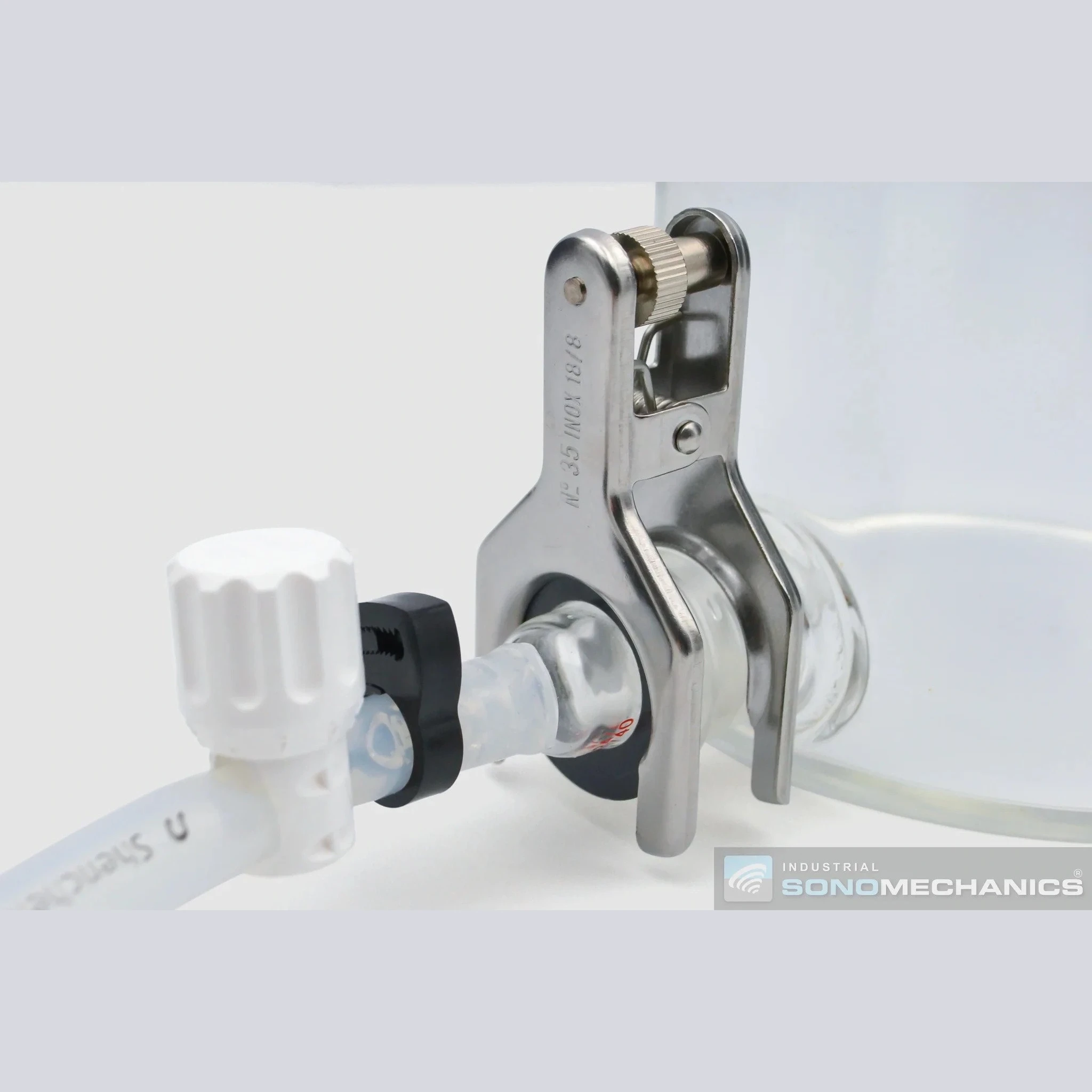

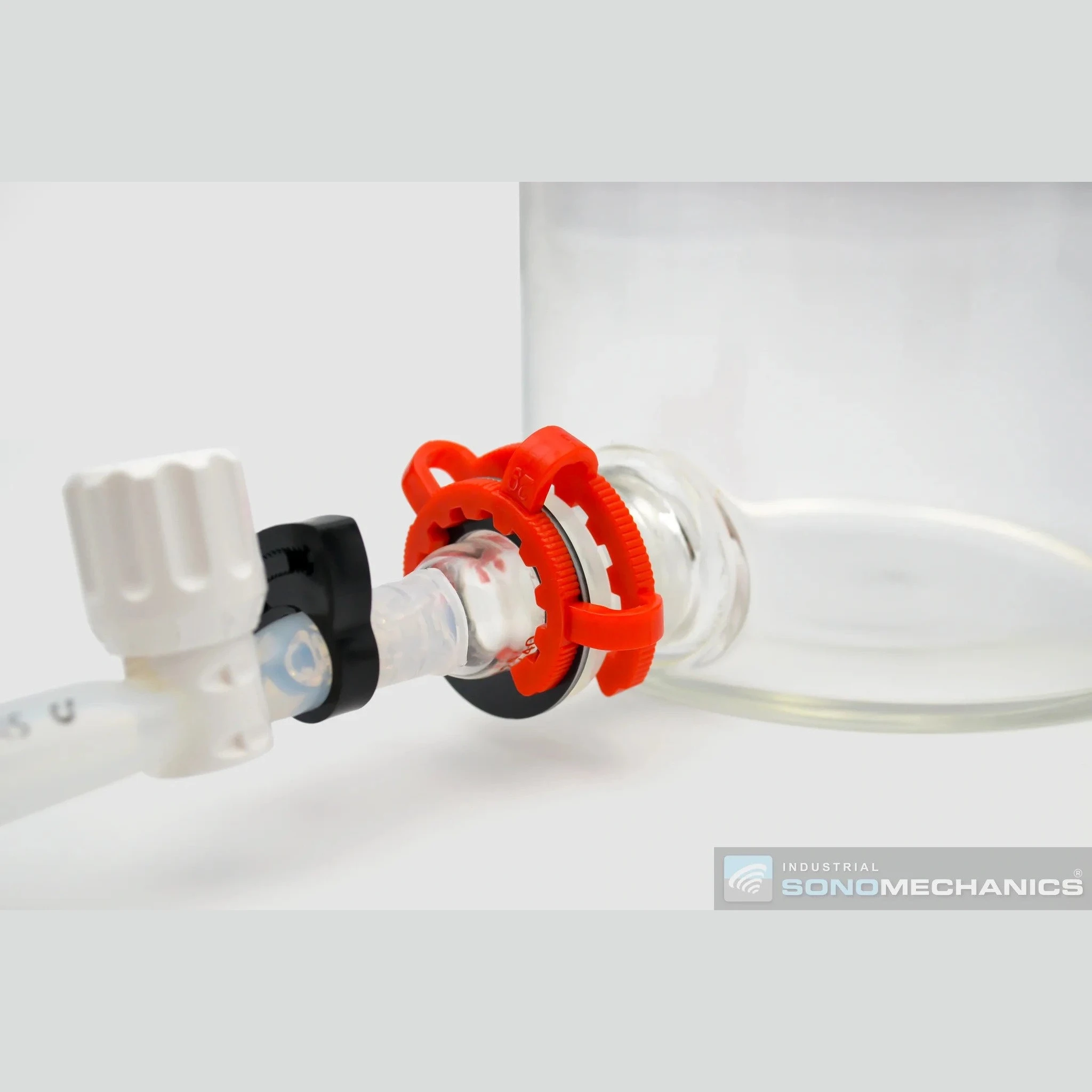

• 2 L Storage/Mixing Vessel with bottom outlet
• Magnetically driven Impeller Assembly with hose inlet
• Large-Capacity Magnetic Stirrer with Hotplate to drive the impeller

Lead time to shipping: 1 week.

FAQs

Q1. I already a magnetic stirrer. Can I purchase the storage/mixing vessel and impeller assembly separately?

Yes, but please note that not all magnetic stirrers will work correctly with these items. For best performance we recommend using this Large-Capacity Magnetic Stirrer with Hotplate. Here are the links to the individual items:

• 2 L Storage/Mixing Vessel
• Impeller Assembly for 2 L Storage/Mixing Vessel

Q2. Can I use this vessel for a process other than nano-emulsification, such as extraction, dispersing or homogenization?

Yes. Please keep in mind, however, that this Equipment Set may not be suitable for viscous materials such as creams or pastes.

Q3. Can I use my own pump when using this equipment set in the flow-through mode?

Yes. With this Equipment Set, you are not restricted to any specific type of pump.

Q4. Do you have assembly instructions?

Yes. Please take a look a the below video.
