20LB Turn Key Closed Loop Extractor Setup w/ Vacuum Oven & Pumps

Reference: TK-CLE-20LB

Manufacturer:

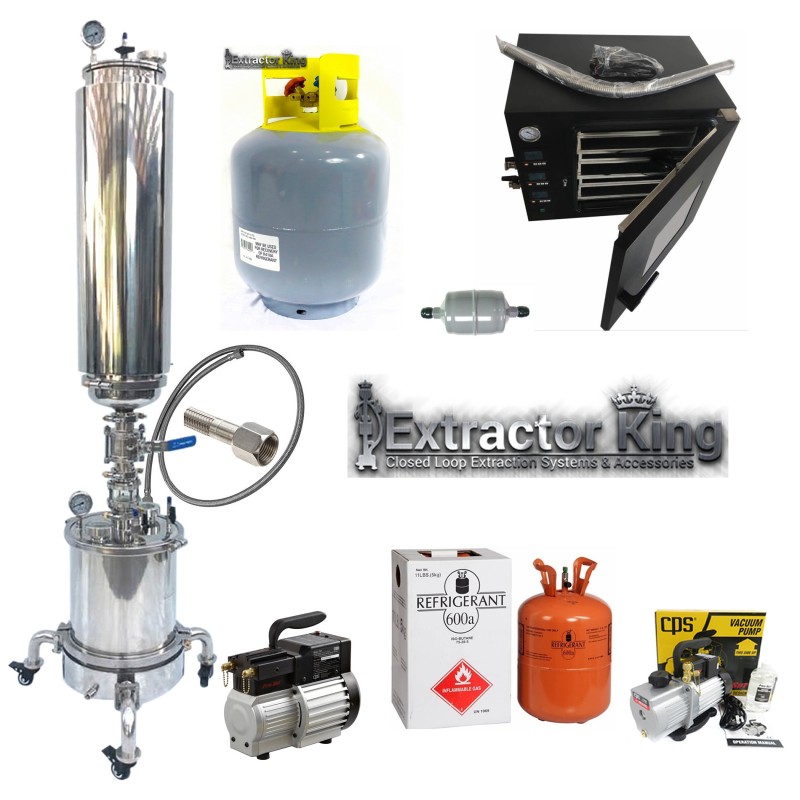

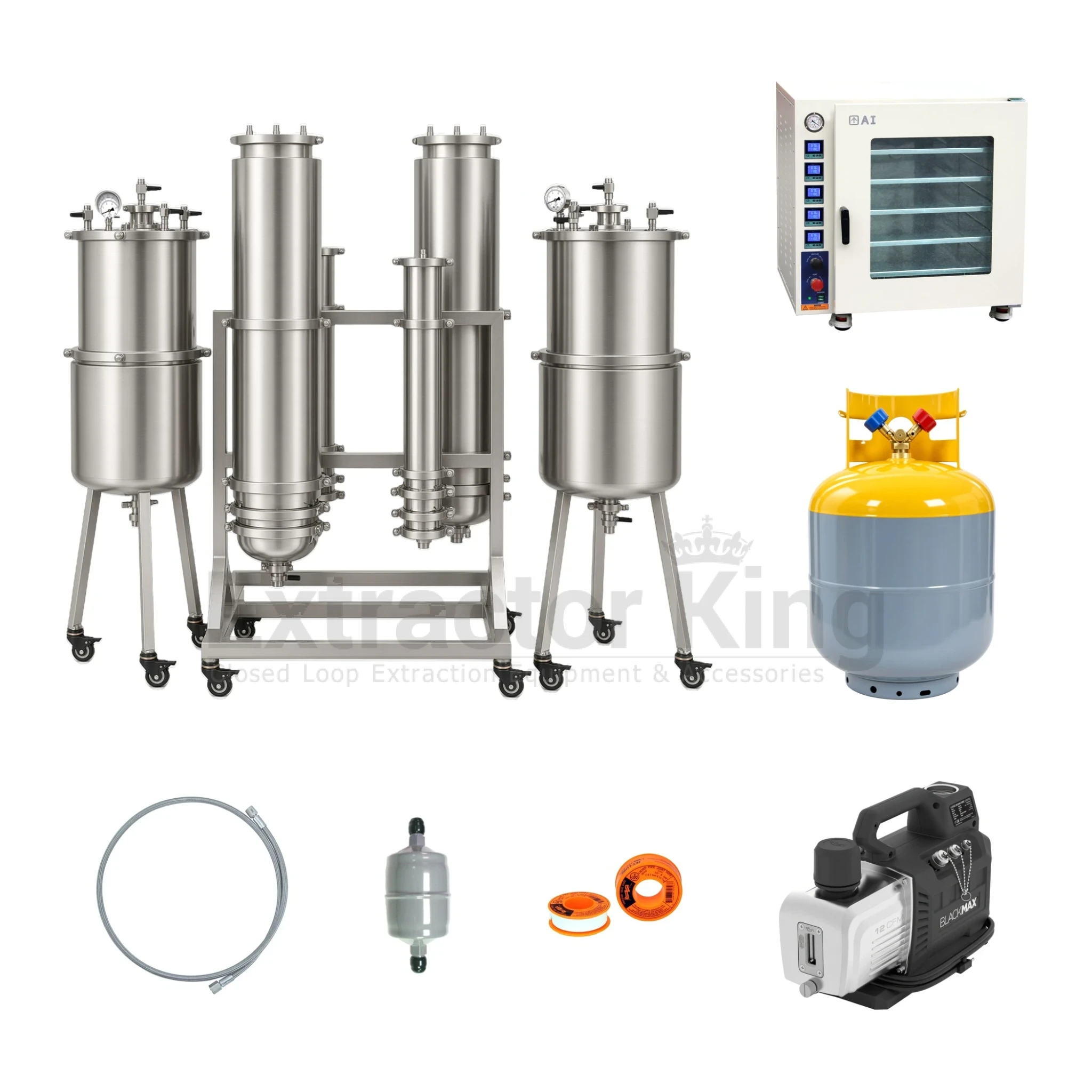

This is an turn key Extractor King 20LB passive-active closed loop extractor system with everything you need to get up and running incuding our 20LB rack extractor with two dewaxing material columns, jacketed bases on wheels and two color remediation columns, an Across International 7.5 cubic foot vacuum oven and a BlackMax 12 CFM vacuum pump

In stock

CAD $37,127.12

Optional Must Have Accessories

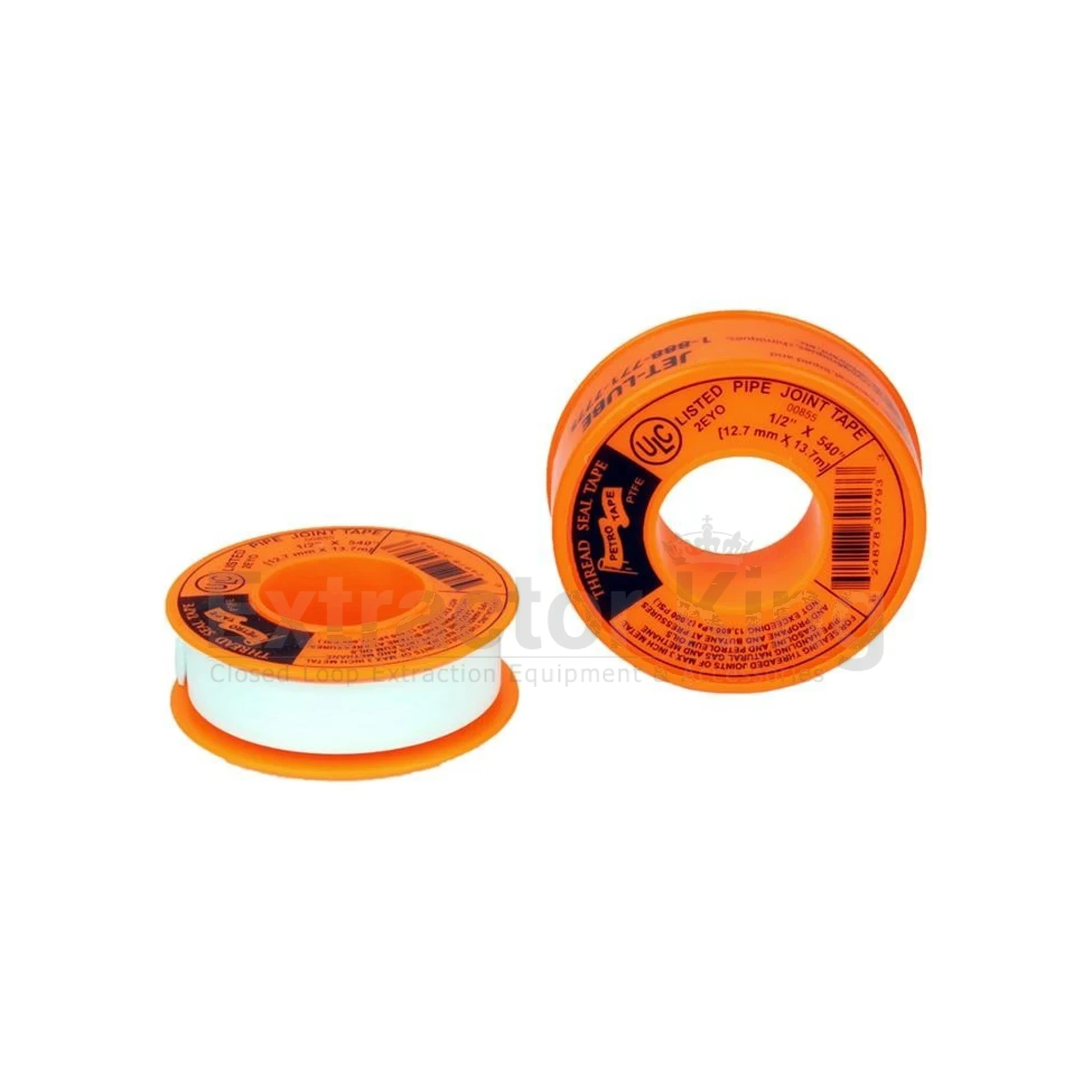

  Petro-Tape PTFE Pipe Thread Tape, two rolls of white tape on orange spools, white background  Petro-Tape (PTFE Pipe Tape)
+CAD $9.99
  CPS GS40 Combustible Gas Leak Detector, red handheld unit with a flexible metal probe, white background  GS40 Electronic Combustible Gas Detector
+CAD $335.80
  CPS LS780C Refrigerant Leak Detector, yellow handheld unit with a flexible metal probe, white background  LS780C Refrigerant Leak Detector
+CAD $244.50
  CPS Vacuum Pump Oil, 1 Gallon, six white gallon jugs with yellow and black labels  CPS Pro-Set Premium Vacuum Pump Oil 1 Gallon (VPOG)
+CAD $64.97
  CPS Vacuum Pump Oil, 1 Quart, white bottle with red and yellow label, white background  CPS Pro-Set Premium Vacuum Pump Oil 1 Quart (VPOQ)
+CAD $28.67
Payment Providers
Payment Providers
Add to wishlist

This is an ISO, 3A & CE certified Extractor King 20LB passive-active closed loop extraction system with everything you need to get up and running. This professional grade extractor was CNC machined and manufactured in compliance with ISO, 3A & CE certifications. Unlike other extractor systems, Extractor King Extractors come with all the bells and whistles. No extra costs for dewaxing columns, sight glasses, Swagelok valves, 3 piece ball valves, high pressure clamps, jacketed splatter platter with wheels and 1.5 times ss304 thickness w/mirror polish finish. All these options and more come standard with all Extractor King Extractors.

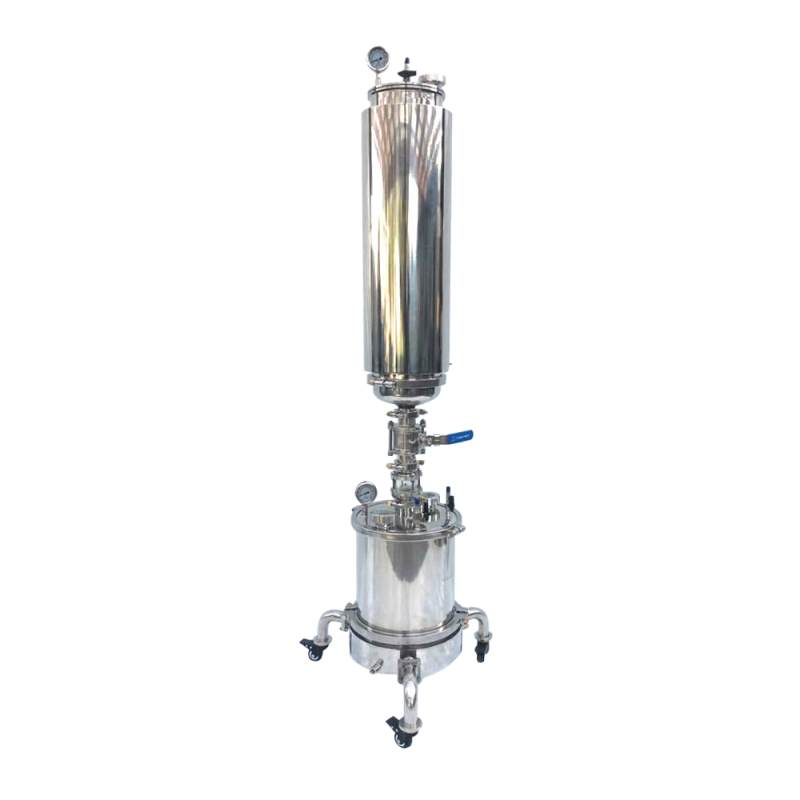

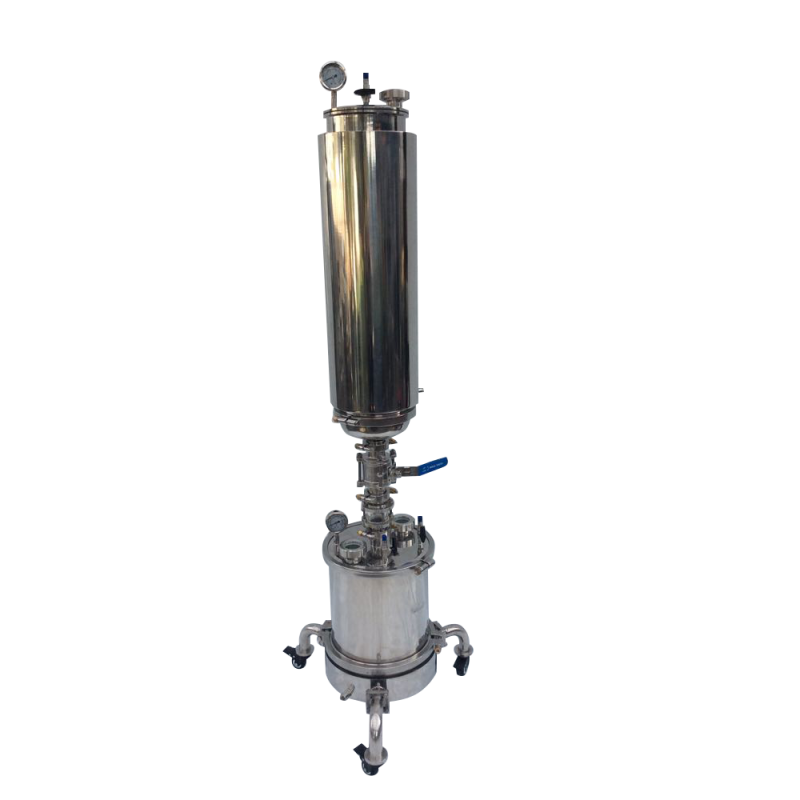

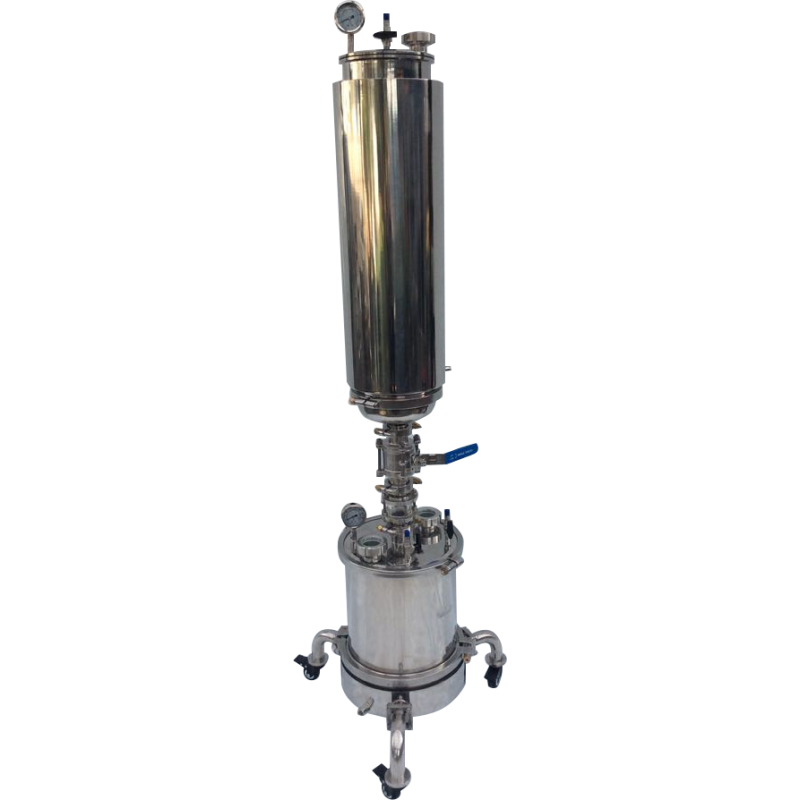

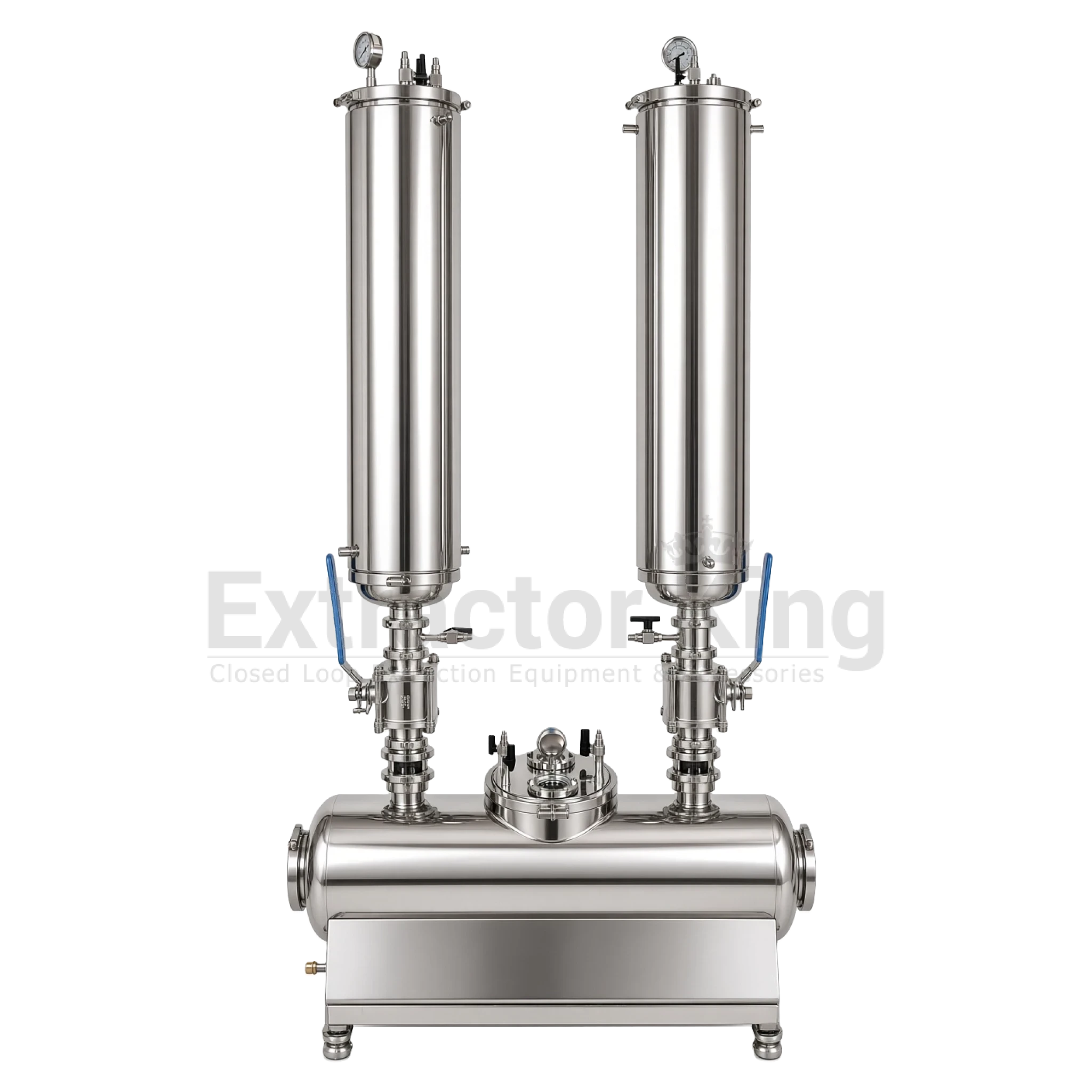

20LB Closed Loop Rack Extractor -

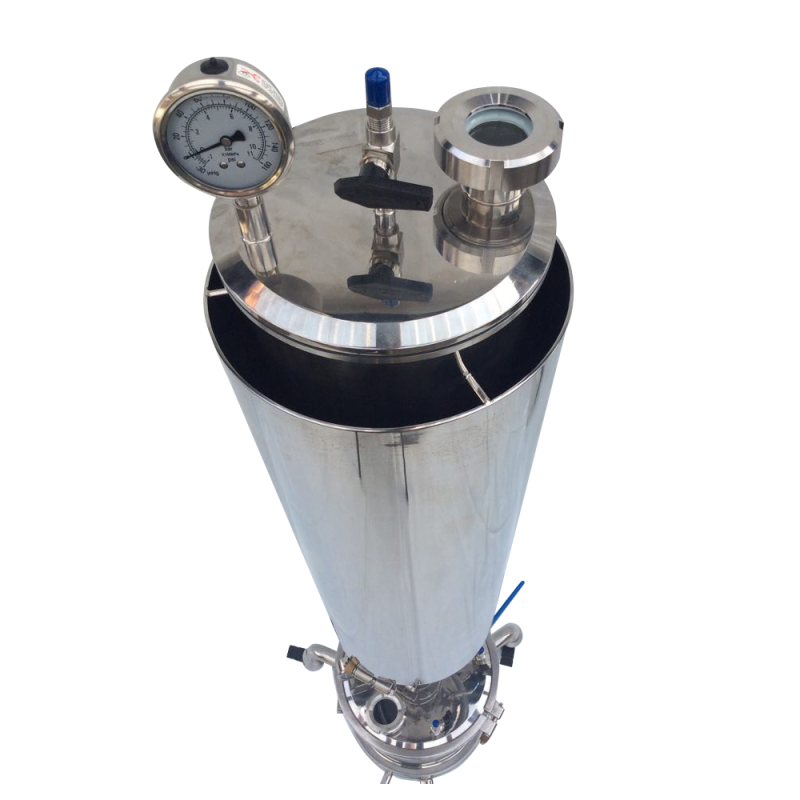

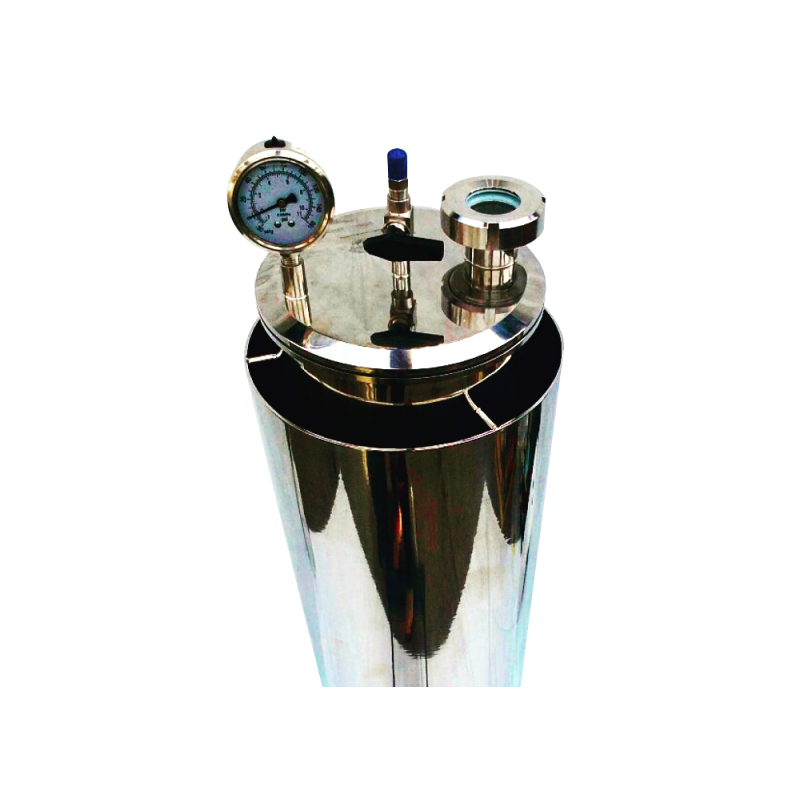

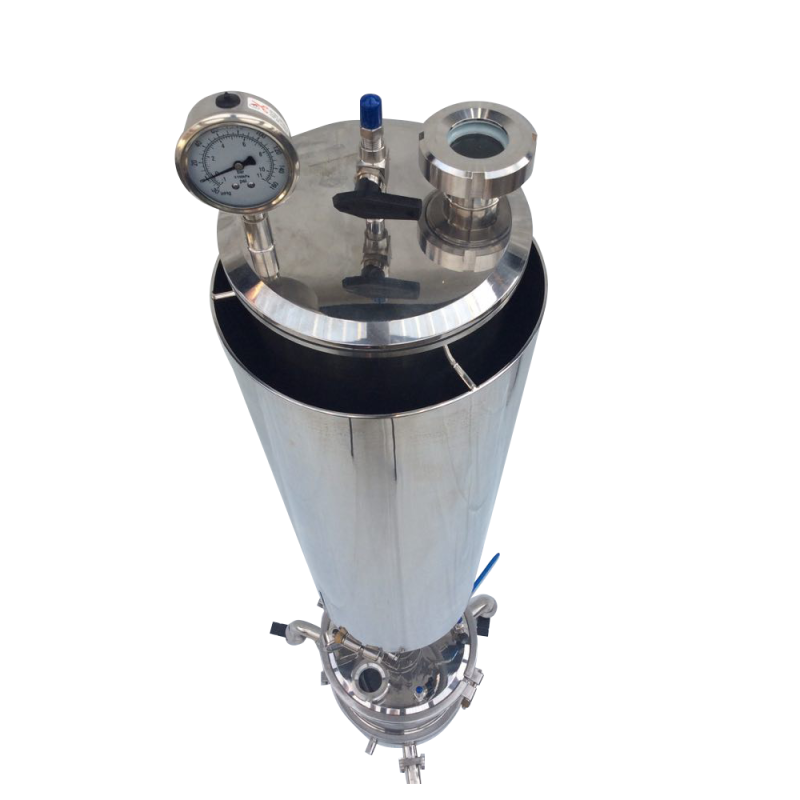

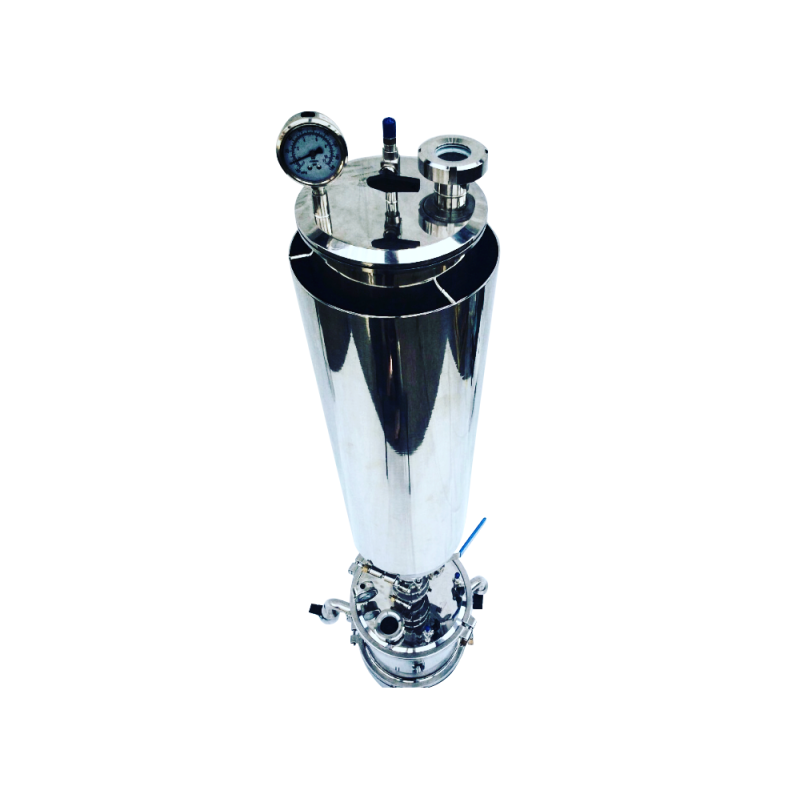

2x 10LB stainless steel material columns 36"x8" w/34"x10" dewaxing sleeves
Rolling rack system

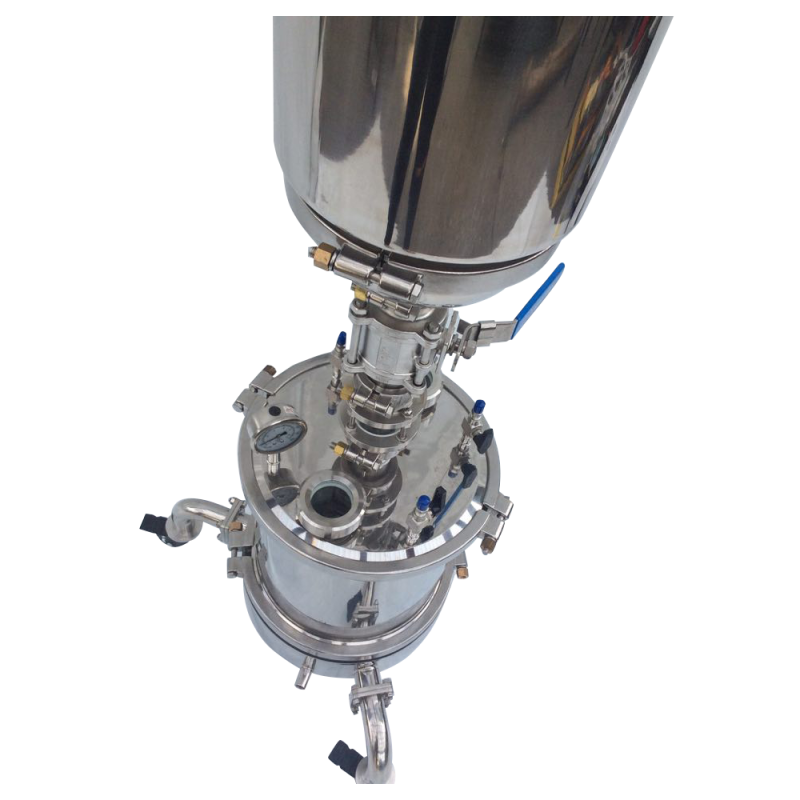

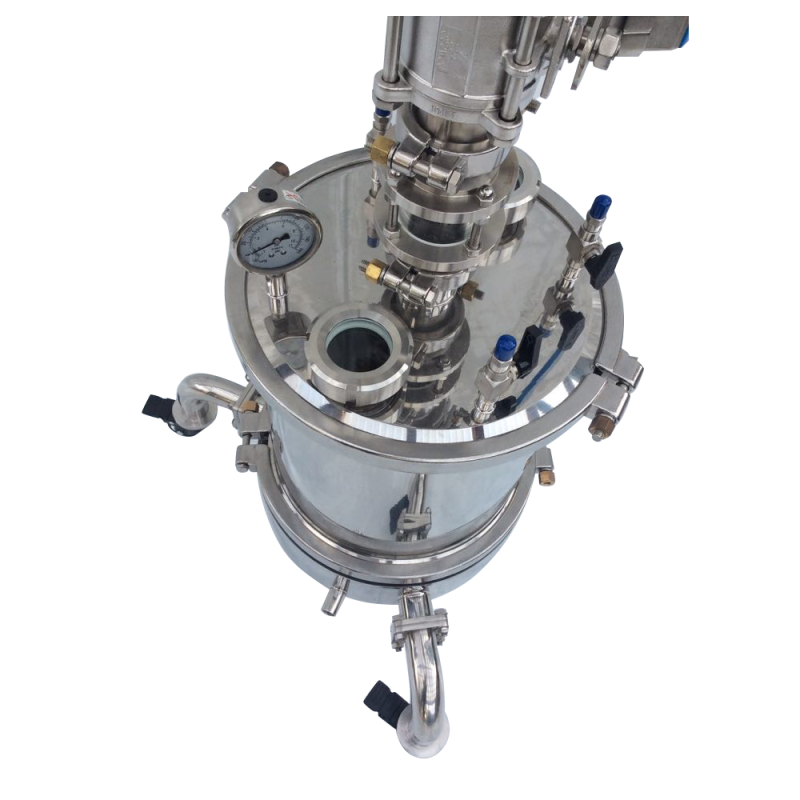

Main honey pots with 12"x36" jacketed bases w/wheels
2x Color remediation columns with sintered filter disks that attach to the rack

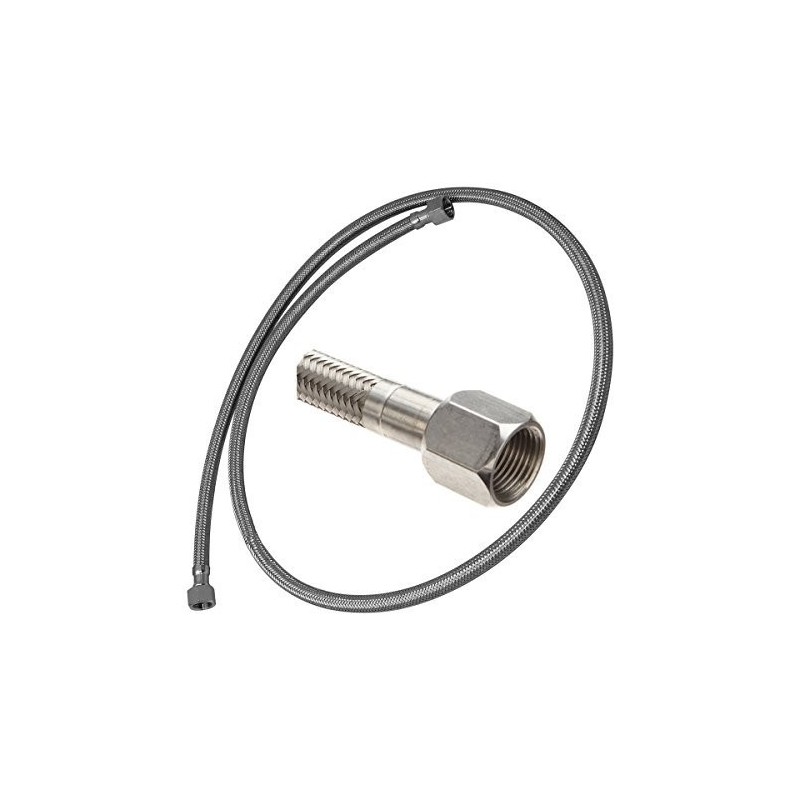

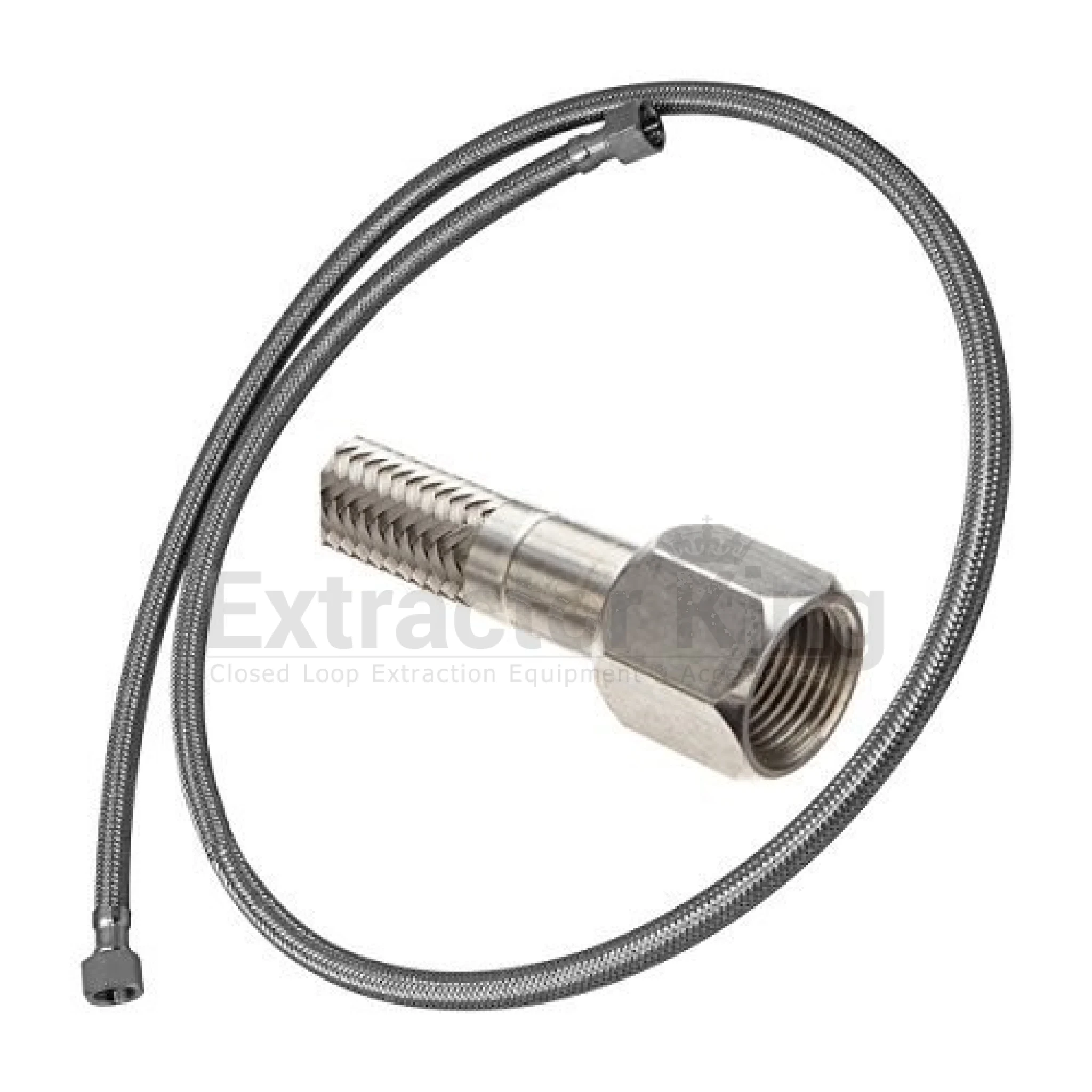

Hoses -
2x 7' High Pressure Braided Stainless Steel JIC Hoses
1x 3' High Pressure Braided Stainless Steel JIC Hoses

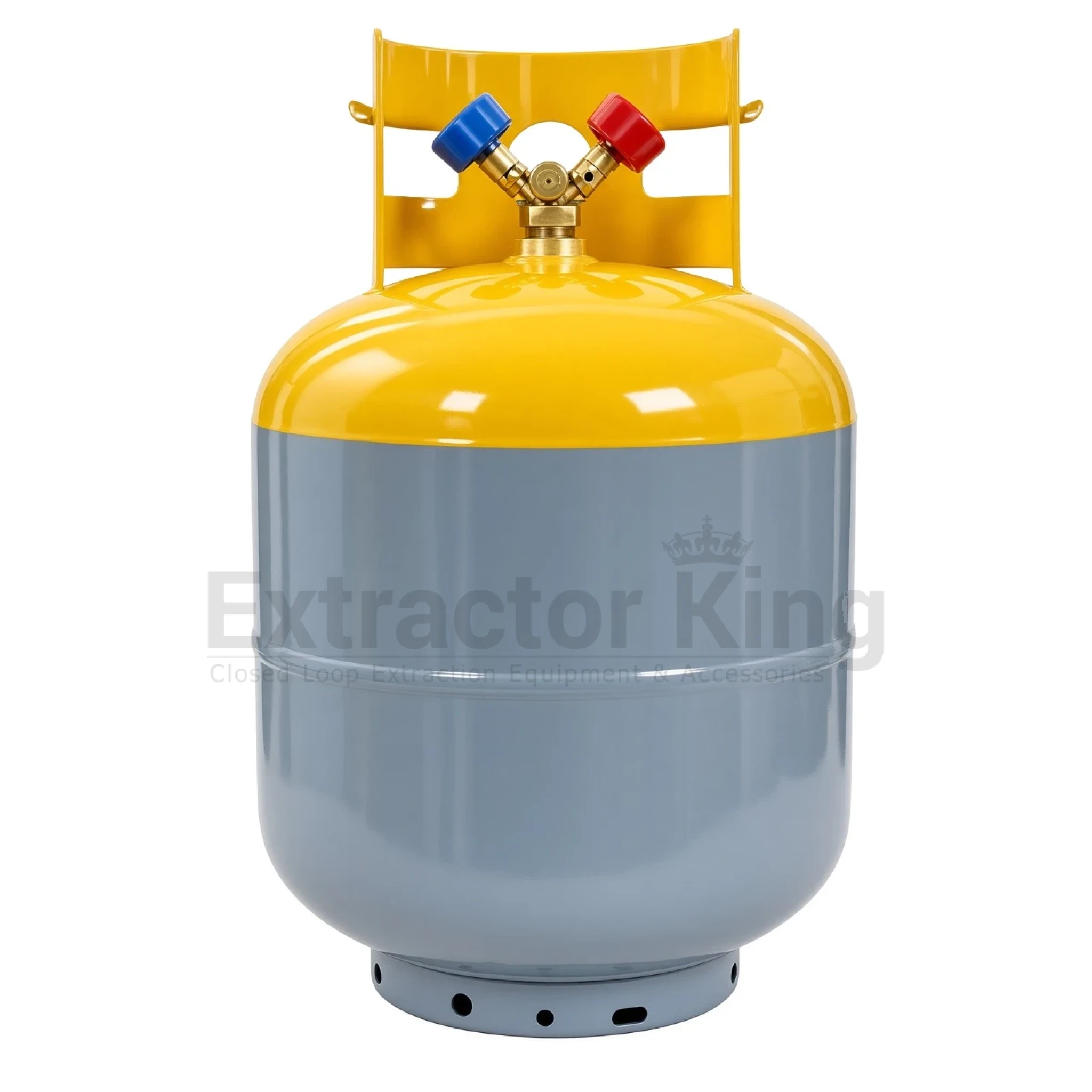

Solvent Reclaim Tank

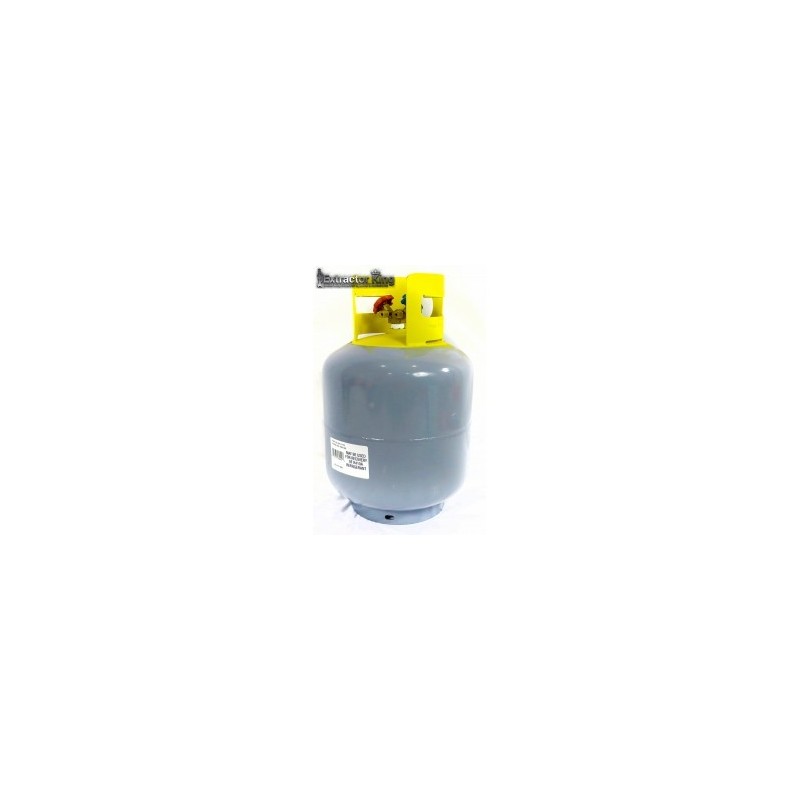

1x 50LB Reclaim Tank w/2x 1/4 JIC + Vapour & Liquid Vales

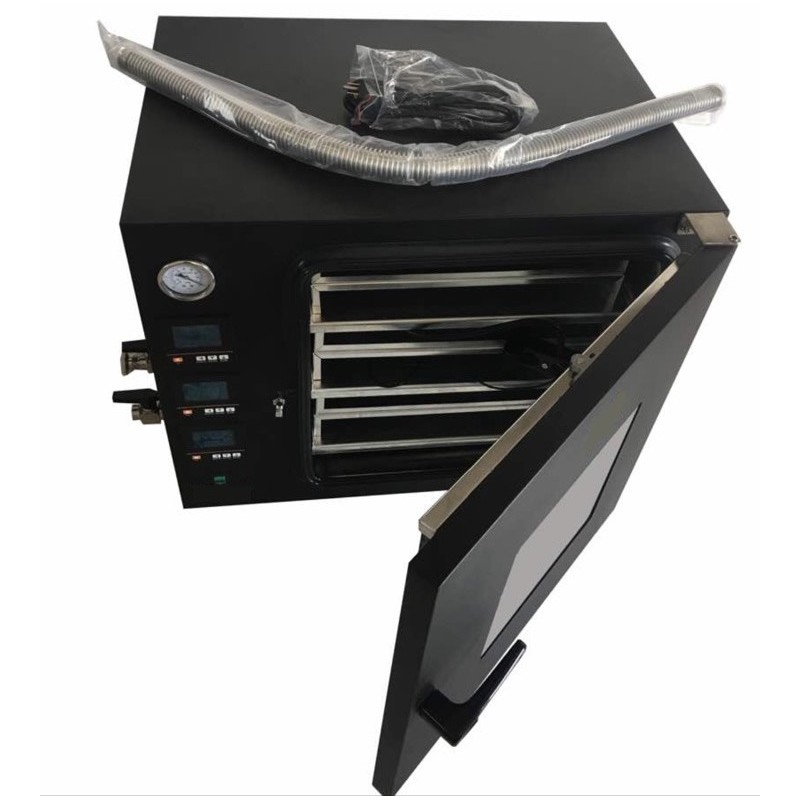

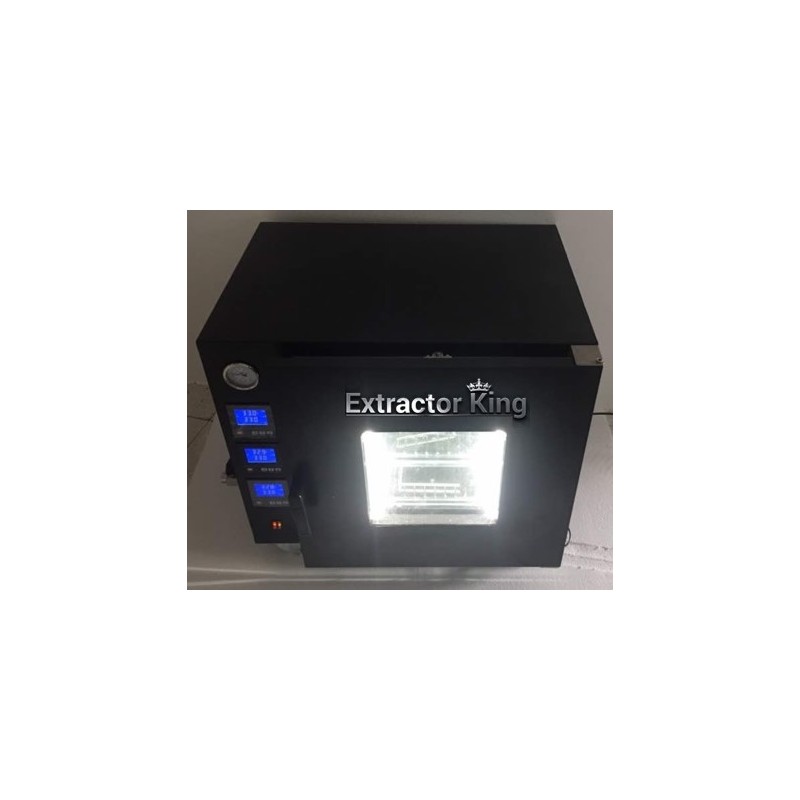

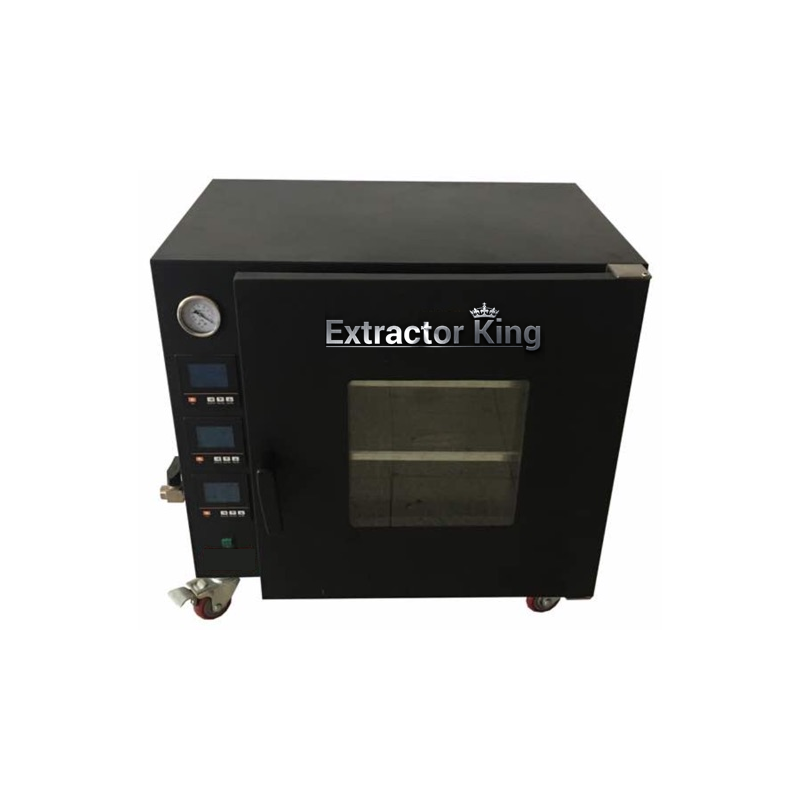

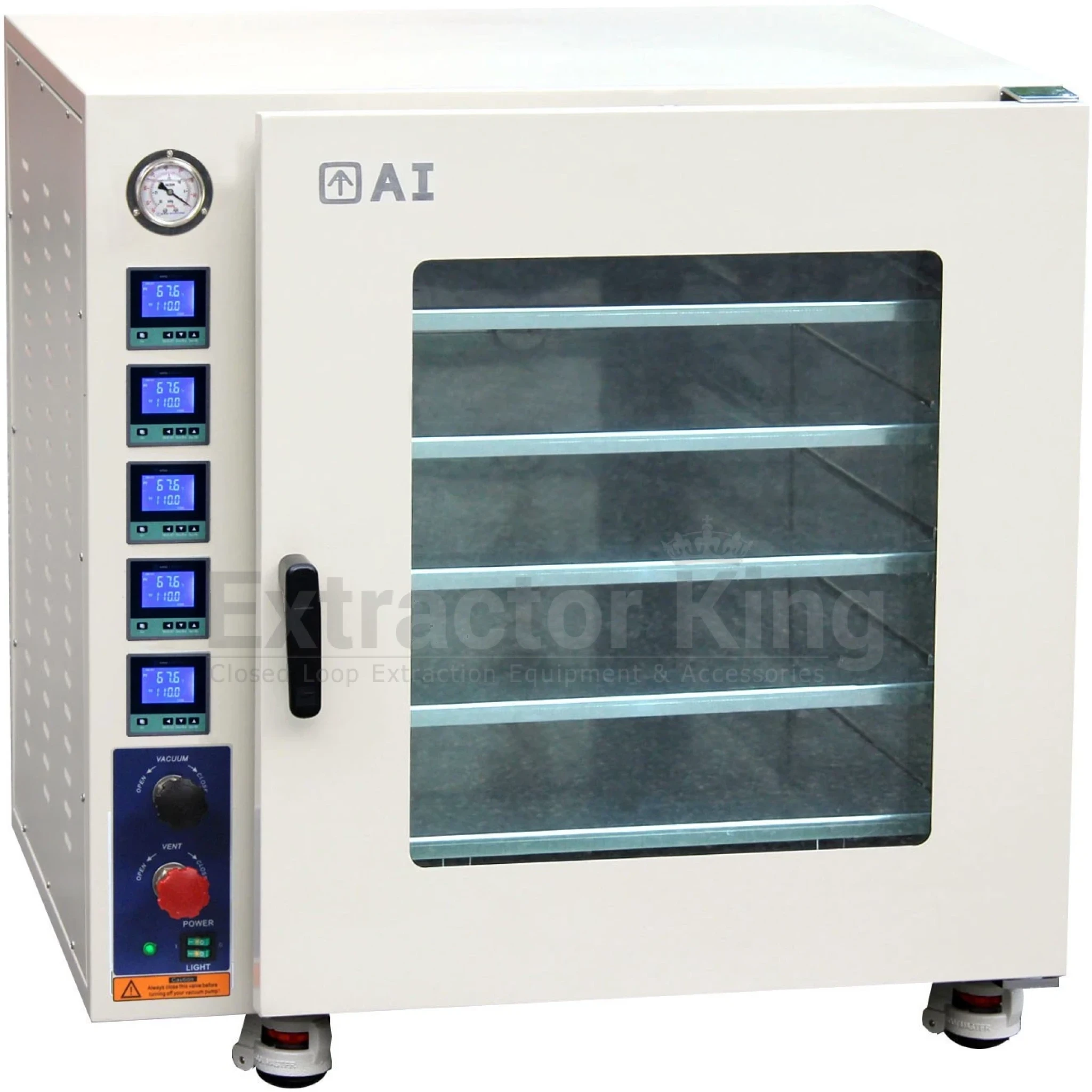

1x Across International AccuTemp 7.5 Cubic Foot Vacuum Oven (110V) -
5 aluminum heating shelves, each with its own heater, in-shelf temperature sensor and digital temperature controller
3rd gen low proportional gain temperature controllers, +/- 1°F accuracy in °F or °C
All stainless steel internal tubing, stainless steel vacuum and vent valves and oil-filled vacuum gauge
Dual layer observation window with 3/4" tempered safety glass and 3" thermal insulation
White LED light pre-installed, swivel casters with locks
Every oven passes two 24-hour vacuum leak tests before it ships
Two year manufacturer warranty

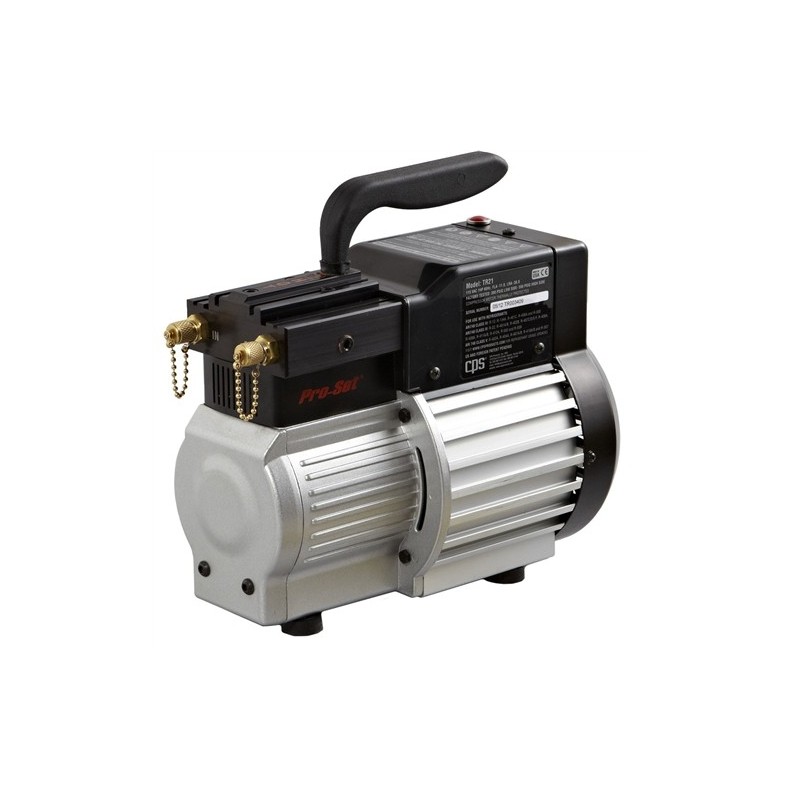

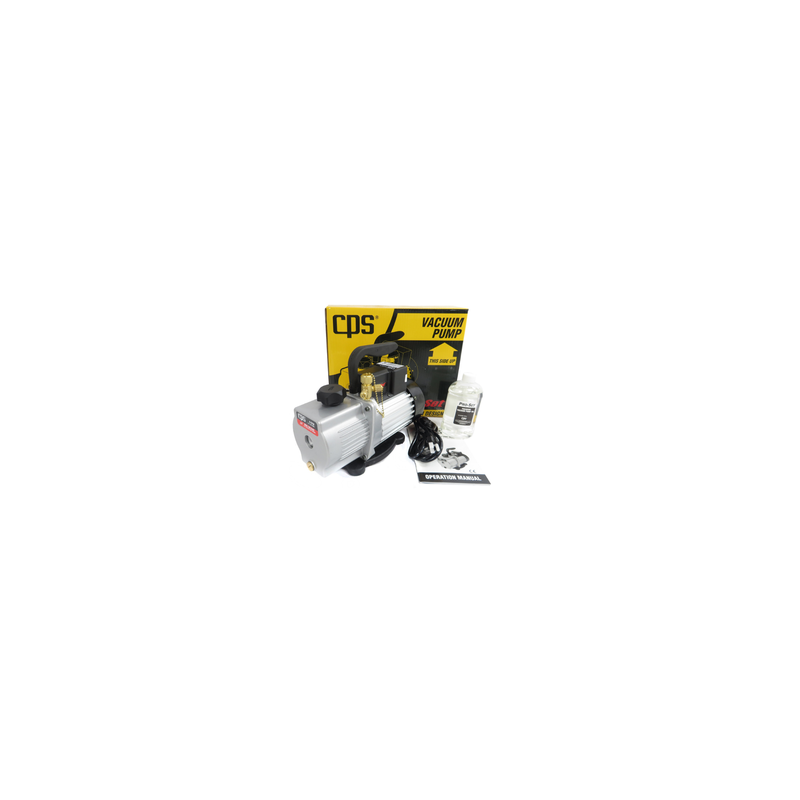

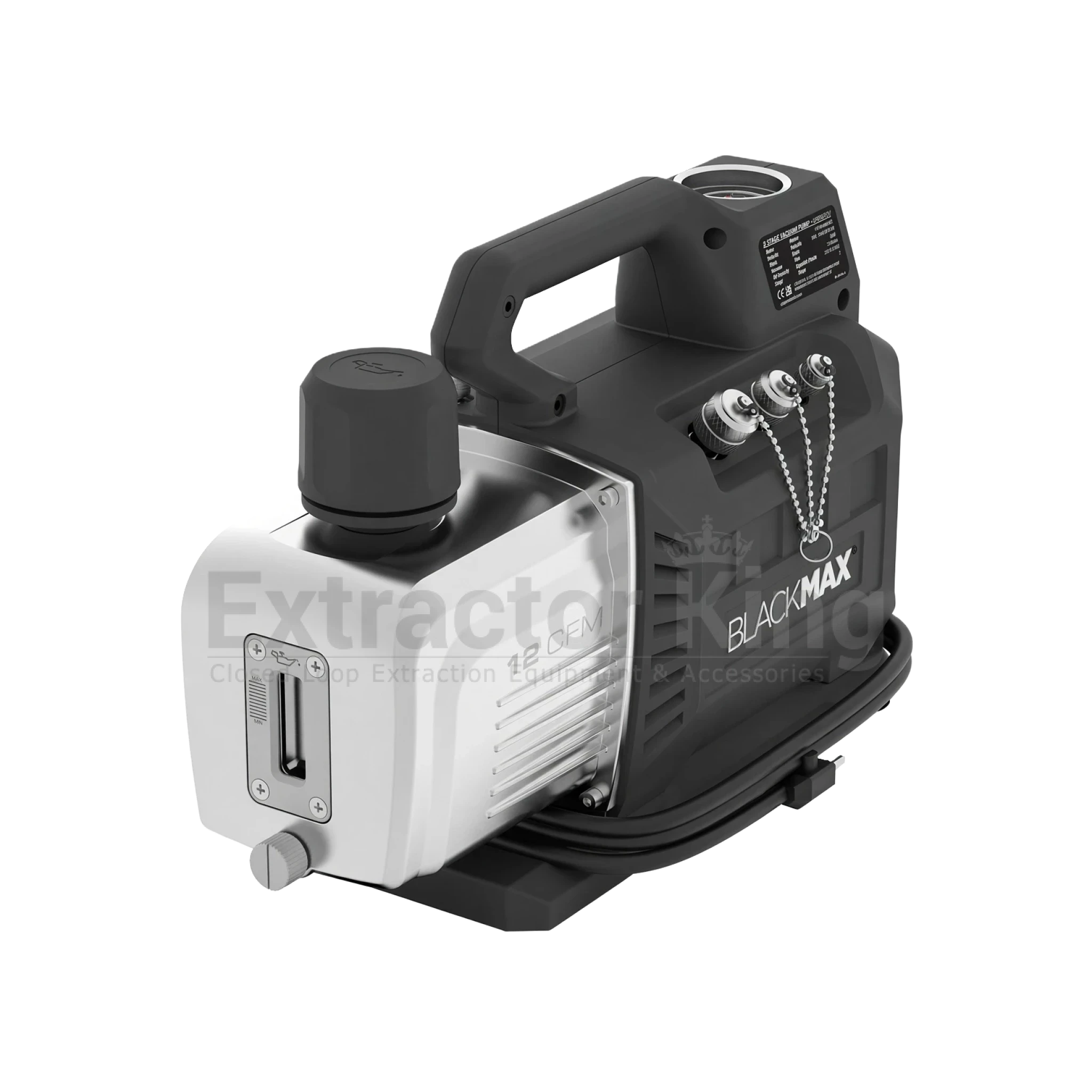

1x BlackMax 12 CFM Ignition Proof 2 Stage Vacuum Pump (CPS VPBM12V) -
Free air displacement: 12 CFM
2-stage, ultimate vacuum 15 microns
1 HP (500 W) variable-speed brushless DC motor
Ignition-proof, sparkless switch and components, safe for A2L and A3 refrigerants
Universal 100 V to 240 V, 50/60 Hz, 10 ft locking IEC power cord
Oil capacity: 23.0 oz (0.68 L)
In-line 1/4", 3/8" and 1/2" SAE connections
Auto shut-off solenoid valve, gas ballast valve, built-in vacuum gauge and large oil sight glass
Weight: approx. 23.2 lbs (10.8 kg)

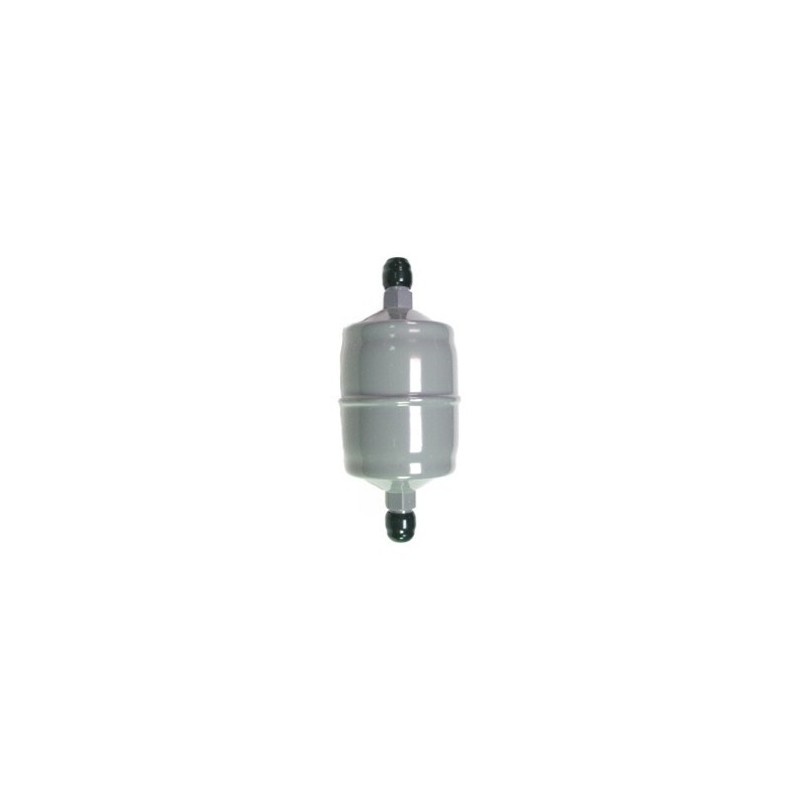

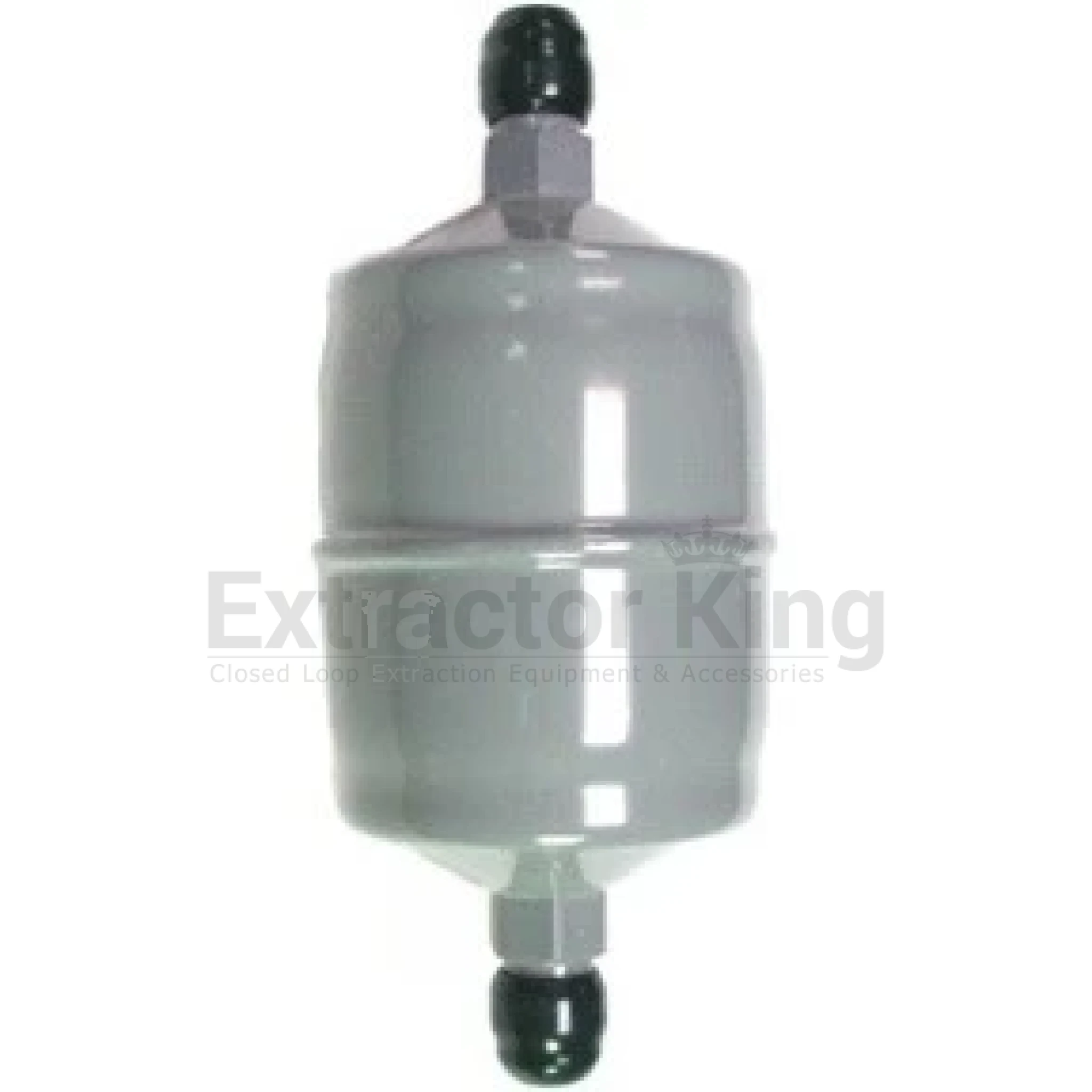

1x 1/4" JIC Inline Drying Filter

*Safety Training & Usage Tutorial Services are also available. Please inquire.
