USA Lab ChillTrap™ Mechanical Cold Trap Bath -30ºC w/ Glass or KF25 Insert
Reference:
Manufacturer: USA Lab
USA Lab ChillTrap™ Mechanical Cold Trap – −30°C, 3× Glass Inserts or KF25 Steel Insert The ChillTrap™ mechanical cold trap captures and removes condensable vapors, solvents, and impurities to protect your vacuum pumps and preserve sample integrity. With a…
In stock
Customize your product
Payment Providers
More info
USA Lab ChillTrap™ Mechanical Cold Trap – −30°C, 3× Glass Inserts or KF25 Steel Insert
The ChillTrap™ mechanical cold trap captures and removes condensable vapors, solvents, and impurities to protect your vacuum pumps and preserve sample integrity. With a powerful −30°C setpoint and precision control, it maintains a highly effective cold zone for reliable trapping across diverse workflows.
Choose between three openable glass traps with 3/8″ barbed connections or a sealed stainless insert with dual KF25 ports. Built with a stainless-steel interior and powder-coated steel exterior, ChillTrap™ delivers durability, easy cleaning, and consistent performance.
Ideal for short-path distillation, rotary evaporation, freeze drying support, solvent recovery, and analytical sample prep where pump protection and contamination control are critical.
Operate in a well-ventilated area and follow vacuum glassware safety best practices. Verify electrical requirements before installation.
Inspect inserts and seals before each run; replace any damaged components promptly.
Why this ChillTrap™ cold trap?
- Superior vapor capture — −30°C trapping protects pumps, boosts vacuum stability, and reduces backstreaming.
- Configurable inserts — choose 3 × glass traps (3/8″ barbs) or a sealed stainless insert with KF25 ports.
- Robust construction — stainless interior and powder-coated exterior withstand demanding lab environments.
- Simple controls — LCD touchscreen controller for quick setpoints and at-a-glance monitoring.
- Broad applications — ideal companion to short-path, rotary evaporation, solvent recovery, and analytical prep.
Technical Specifications

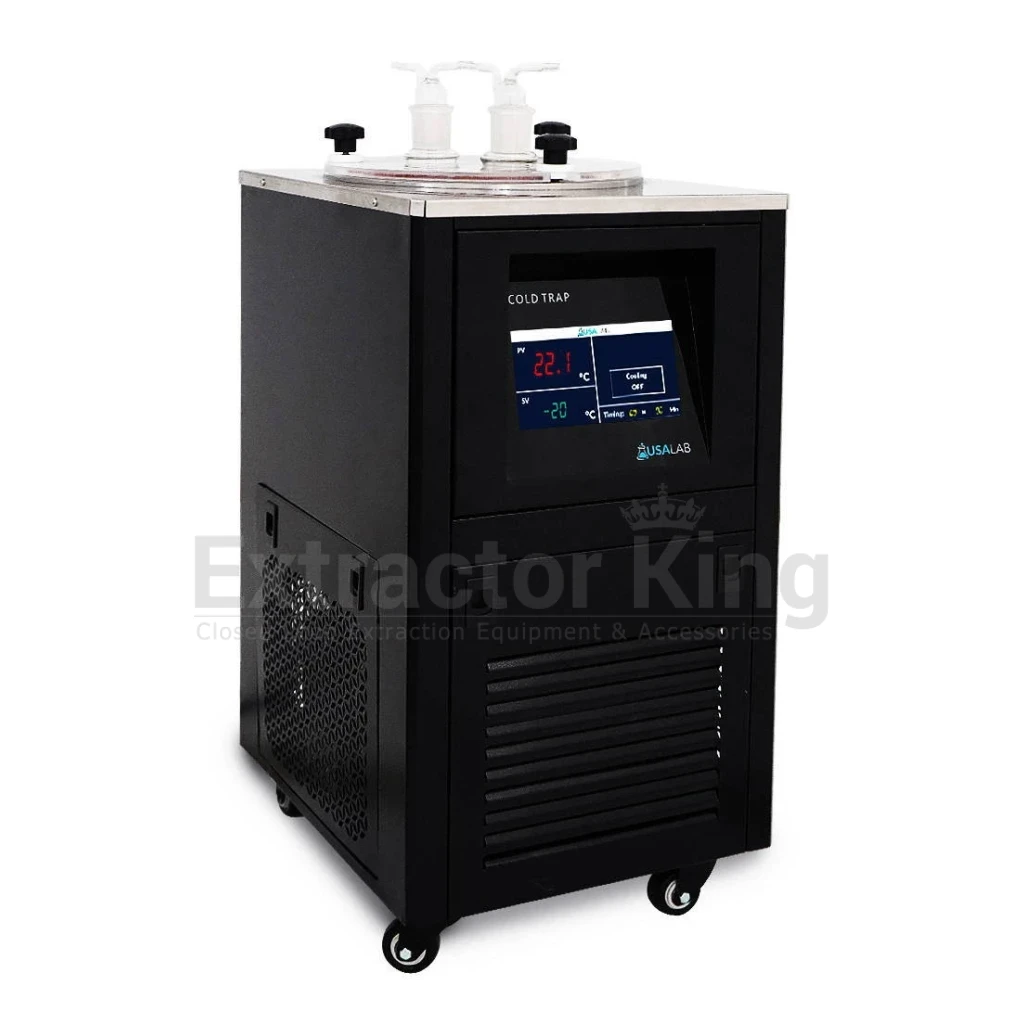

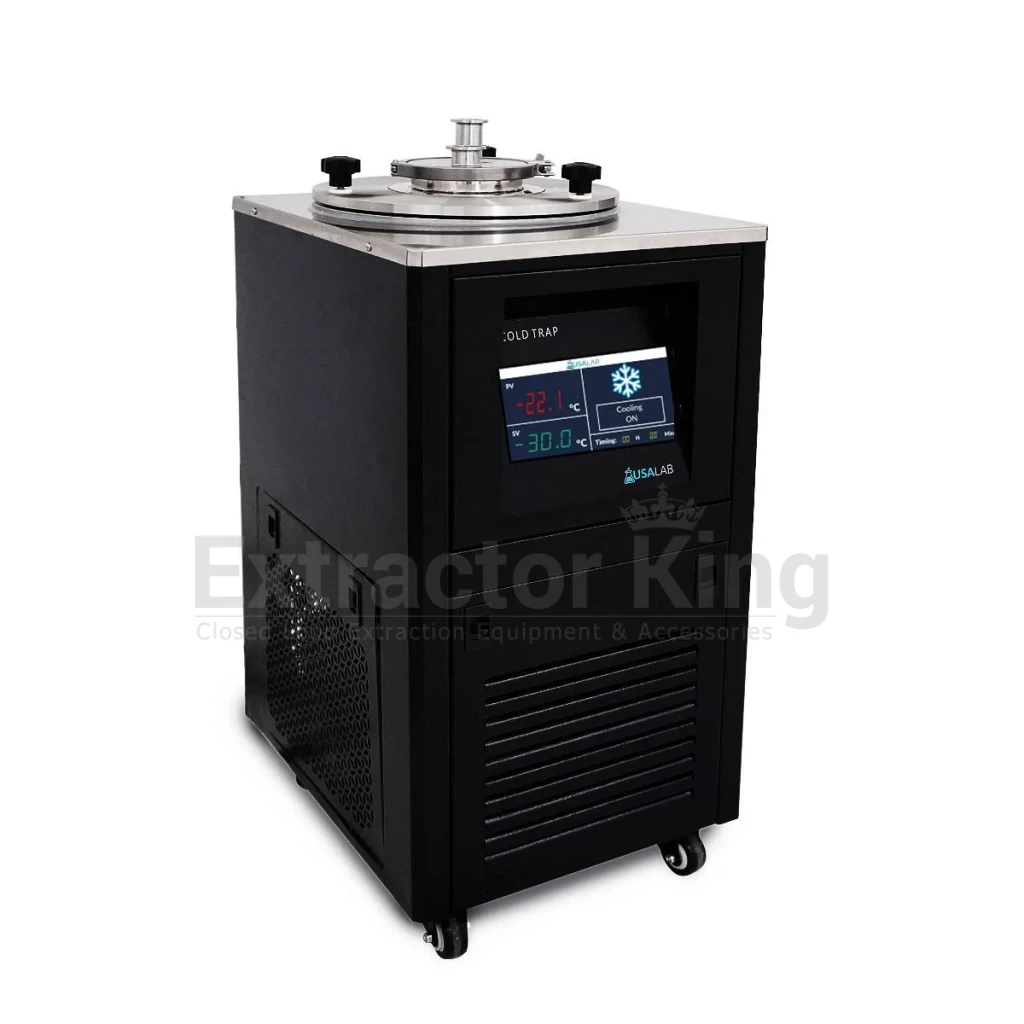

| Model | USA Lab ChillTrap™ Mechanical Cold Trap (USA-MCT-40) |
|---|---|
| Temperature Controller | LCD Touch Screen |
| Temperature Range | Ambient to −30°C (−22°F) |
| Dimensions (L×W×H) | 18.18″ × 22.04″ × 27.95″ (465×560×710 mm) |
| Weight | 106 lb (48 kg) |
| Internal Material | Stainless Steel |
| External Material | Steel Plate, Powder-Coated |

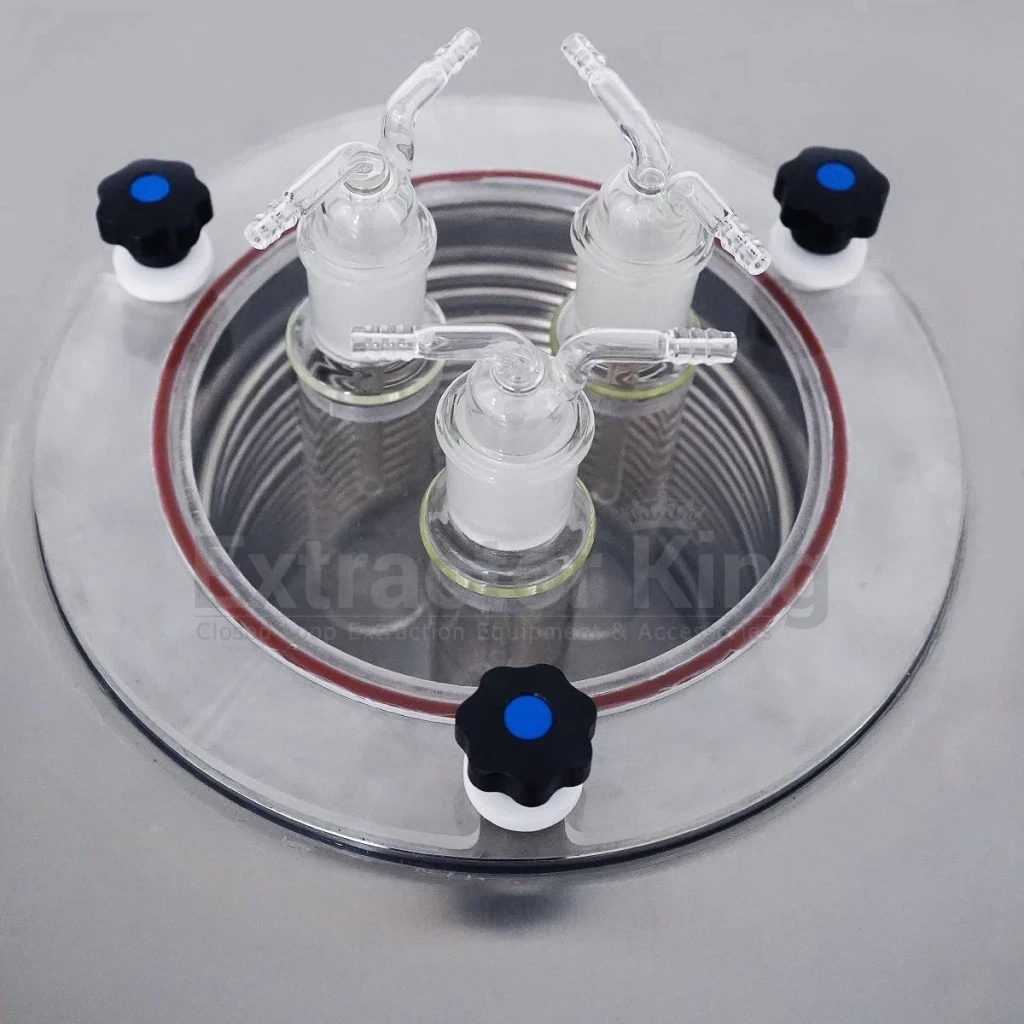

| Glass Trap Option | 3 × Openable Glass Traps (3/8″ barbs) |

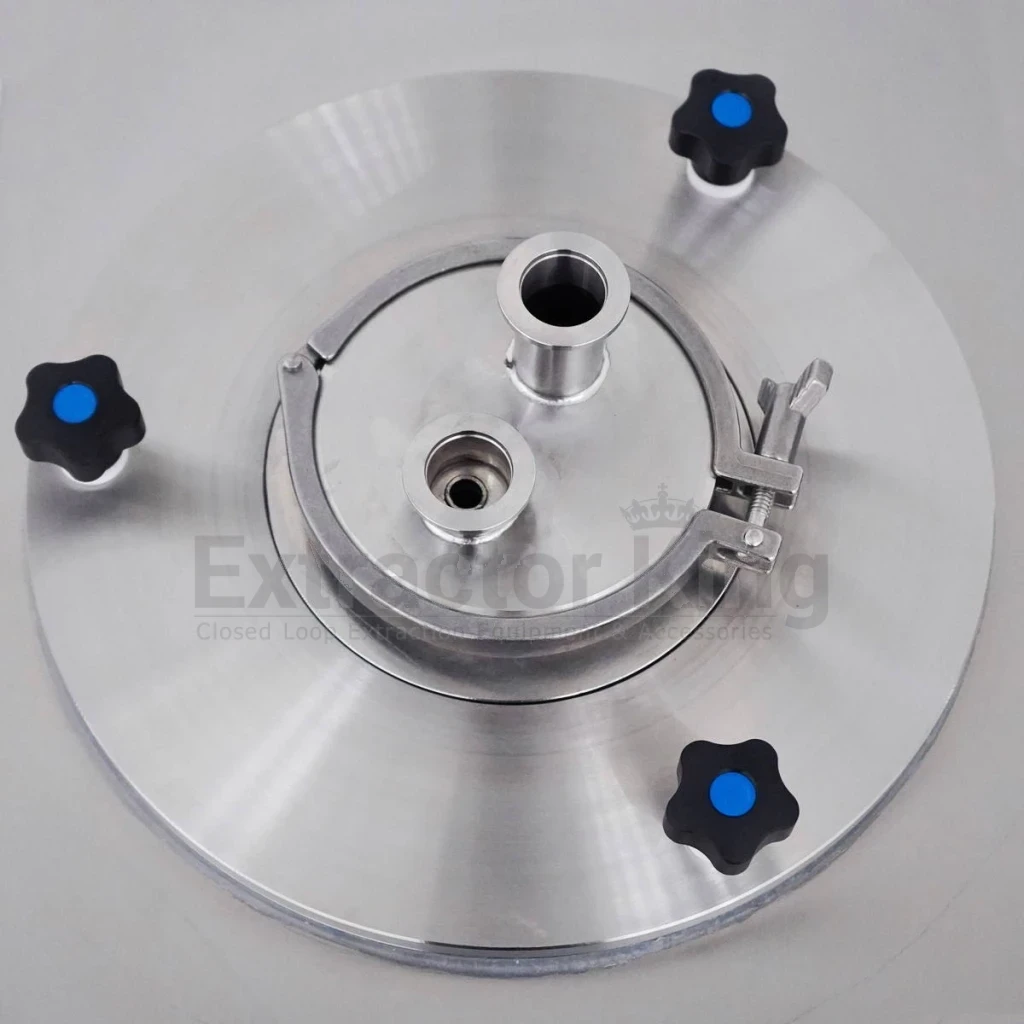

| Steel Trap Option | Sealed Stainless Insert with 2 × KF25 Ports |
| Power | 110 V, 60 Hz |
| SKU / Model | USA-MCT-40 |
| Display & Alarms | LCD status display; basic alerts |
| Cooling Method | Mechanical Refrigeration |
| Operating Mode | Continuous Duty |
FAQ
How does ChillTrap™ protect my vacuum pump?By condensing and capturing vapors at −30°C before they reach the pump, ChillTrap™ reduces contamination, extends oil life, and stabilizes vacuum levels.
Use 3 openable glass traps with 3/8″ barbs for quick visual checks, or switch to the sealed stainless insert with dual KF25 ports for high-integrity, high-vacuum connections.
ChillTrap™ operates on 110 V, 60 Hz. Verify that your circuit can support the load and provide proper grounding.
Routine upkeep includes defrosting, cleaning the trap inserts, and inspecting gaskets and barb/KF connections. The stainless interior simplifies wipe-downs and sanitation.
All items are carefully packaged to ensure safe delivery. In the rare event that your item arrives damaged, please notify us within 3 days of receipt. We will promptly provide a replacement or issue a refund.
Please note that any damage occurring after delivery is not covered under warranty. We appreciate your understanding and your trust in our products.
Specifications
| Brand | USA Lab |
| Power Requirements | 110-120V, 50/60Hz, 15A |
| Temperature Limit | -40°C | -40°F |
| Warranty Term | 1 Year |
