3/8"x3/8" FNPTx2  Swagelock Style Ball Valve View larger

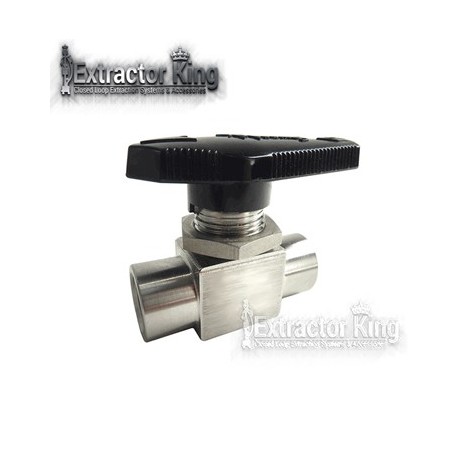

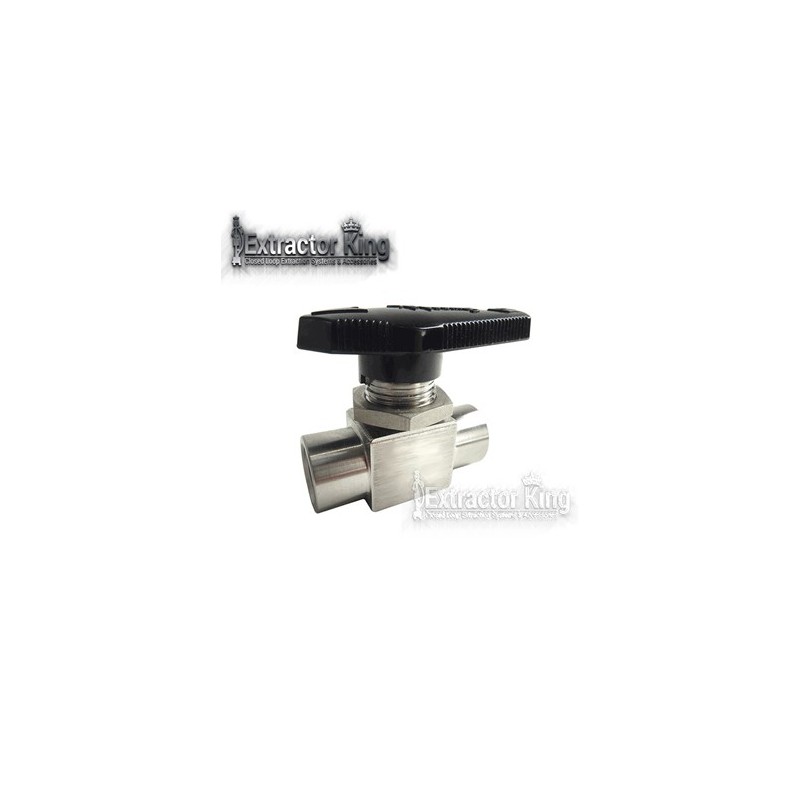

3/8"x3/8" FNPTx2 Swagelock Style Ball Valve

New

316 stainless steel 3/8"FNPTx3/8"FNPT Swagelock Style Ball Valve

More details

$139.26

Payment Providers
Payment Providers

Add to my wishlist

More info

Specifications:

  • Actuator Type - Manual
  • Ball/Stem Material - Stainless Steel
  • Body Material - 316 Stainless Steel
  • Cleaning Process - Standard Cleaning and Packaging (SC-10)
  • Connection 1 Size - 3/8"
  • Connection 1 Type - Female NPT
  • Connection 2 Size - 3/8"
  • Connection 2 Type - Female NPT
  • Flow Path - Standard (2-way)
  • Flow Pattern - 2-way, shutoff, straight
  • Handle Color - Black
  • Handle Style - Lever
  • Lubricant - Dow M11
  • Max Temperature Pressure Rating - 300°F @ 2500 PSIG /148°C @ 172 BAR
  • Orifice - 0.187 in /4.7 mm
  • Packing - Modified PTFE
  • Ring/Disc Material - Stainless Steel
  • room Temperature Pressure Rating - 3000 PSIG @ 100°F /206 BAR @ 37°C
