SZ Series Jacketed Extraction Centrifuge (13LBS to 130LBS) - Science King
Reference:
Manufacturer: Science King
- Bright finished 304 stainless steel internal surface
- Flat type large clamshell closed structure, thickened plate
- PLC control, explosion proof motor
- Jacketed with thermal insulation layer
- Six sizes, about 13 to 130 lbs per batch (30 L to 300 L)
In stock
Customize your product
Payment Providers

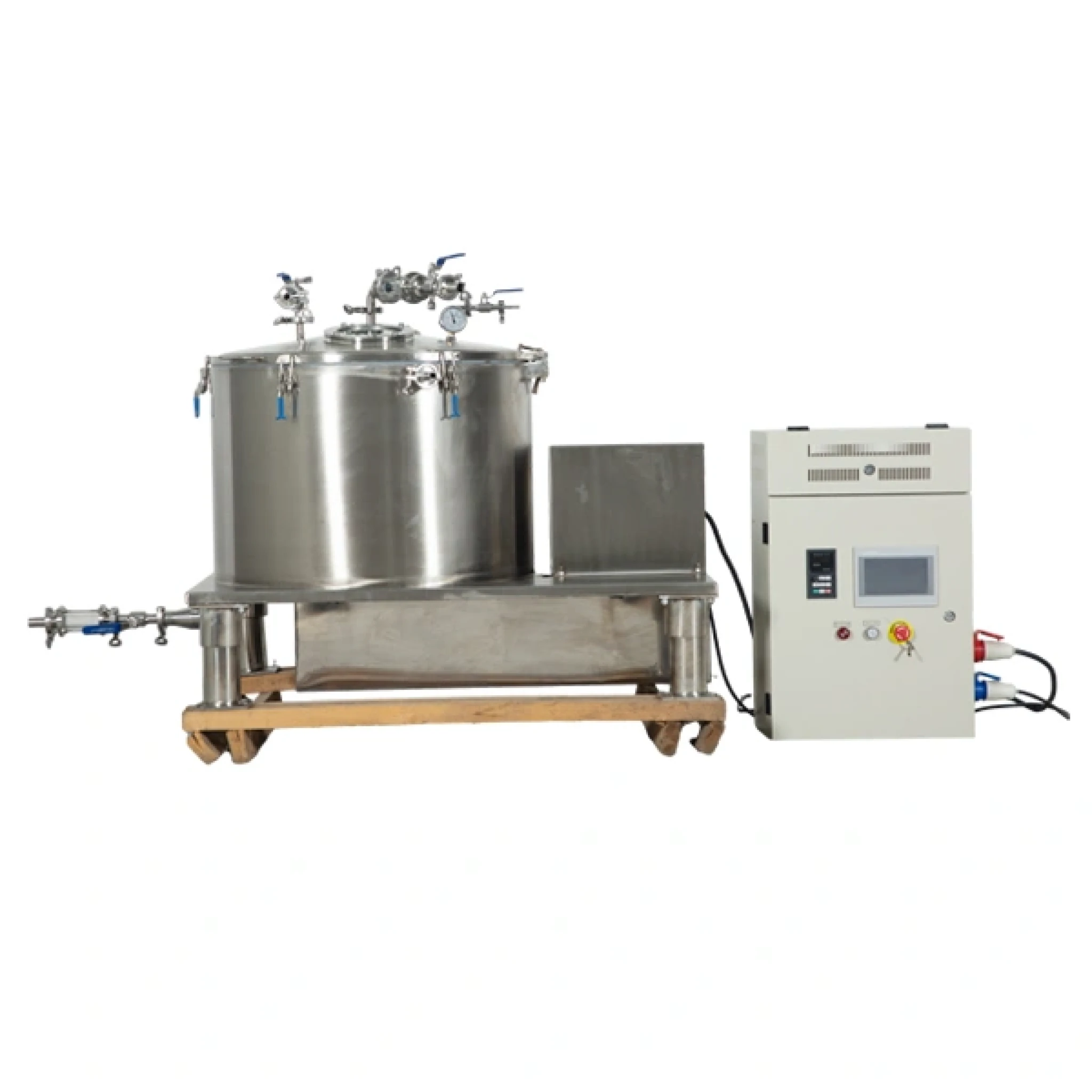

An extraction centrifuge for ethanol extraction: it completes washing and solid-liquid separation in about 12 minutes. The bowl is jacketed with a foamed insulation layer to hold the pre-chilled temperature. Six models for about 13 to 130 lbs of dry, milled biomass per batch (30 L to 300 L drum capacity).
- PLC system with aviation plugs, for easy control and connection

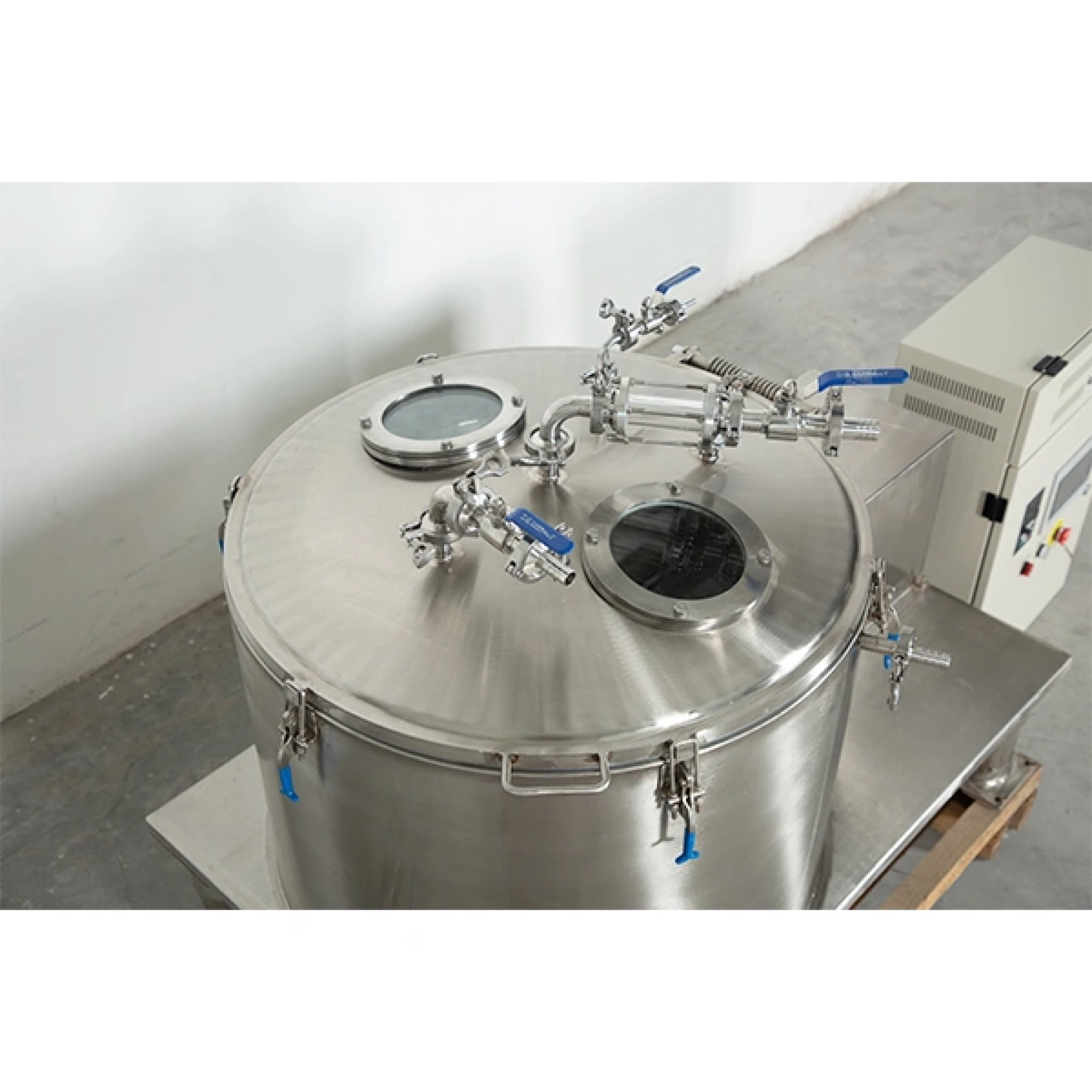

- Large sightglasses with multiple ports on the lid, for observing and liquid injection

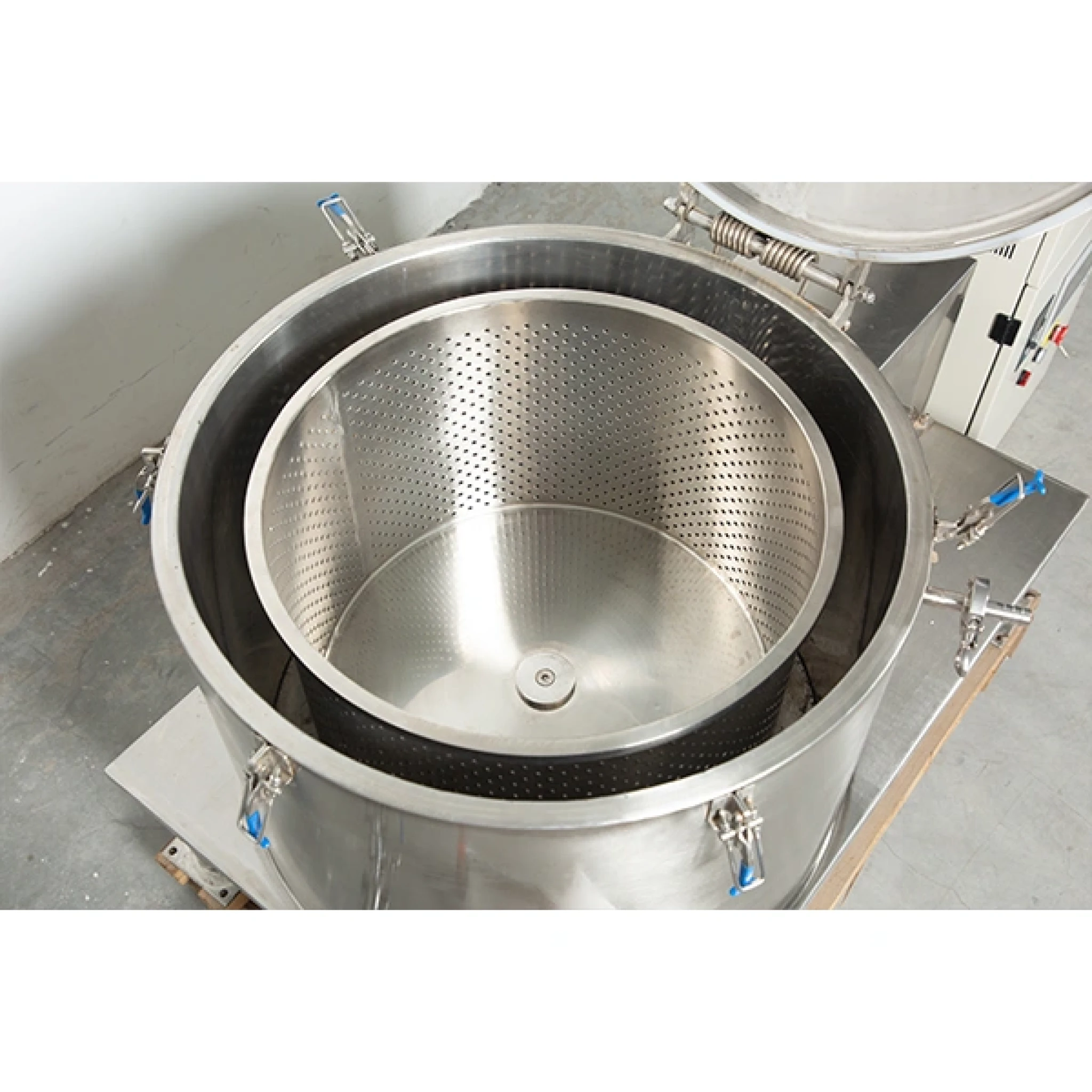

- Large opening design, easy operation
- Explosion proof motor, safe for extraction with ethanol
| Model | SZ-350 | SZ-450 | SZ-500 | SZ-600 | SZ-850 | SZ-1000 |
|---|---|---|---|---|---|---|
| Loading capacity (L) | 30 | 60 | 85 | 110 | 200 | 300 |
| Biomass per batch (approx. lbs) | 13 | 26 | 37 | 48 | 88 | 130 |
| Motor power (kW) | 1.5 | 2.2 | 3 | 3 | 7.5 | 11 |
| Converter power (kW) | 2.2 | 3.7 | 3.7 | 3.7 | 11 | 15 |
| Voltage | 220V | |||||
| Frequency | 50/60 Hz | |||||
| Max. RPM | 1200 | 1000 | 950 | 1500 (motor speed) | 780 | 700 |
| Separation factor (ω²r/g) | 280 | 250 | 250 | 270 | 270 | 270 |
| Contact material | Bright finished SUS 304 | |||||
| Control mode | PLC | |||||
| Motor type | Explosion proof | |||||
| Thermal insulation | Jacketed with foamed layer | |||||
| Max. vacuum | -0.098 MPa | |||||
| Packing dimensions (mm) | 980×660×860 | 1120×690×960 | 1120×690×960 | 1450×950×900 | 1590×1120×1000 | 1930×1400×1000 |
| Weight (kg) | 320 | 420 | 450 | 880 | 820 | 1300 |
| Power supply | 220V single phase (3 phase available on request); SZ-600: 220V 60 Hz 3 phase, rated current 10.95 A, Siemens PLC touch-screen control | |||||
Contact us to choose the size for your batch.
