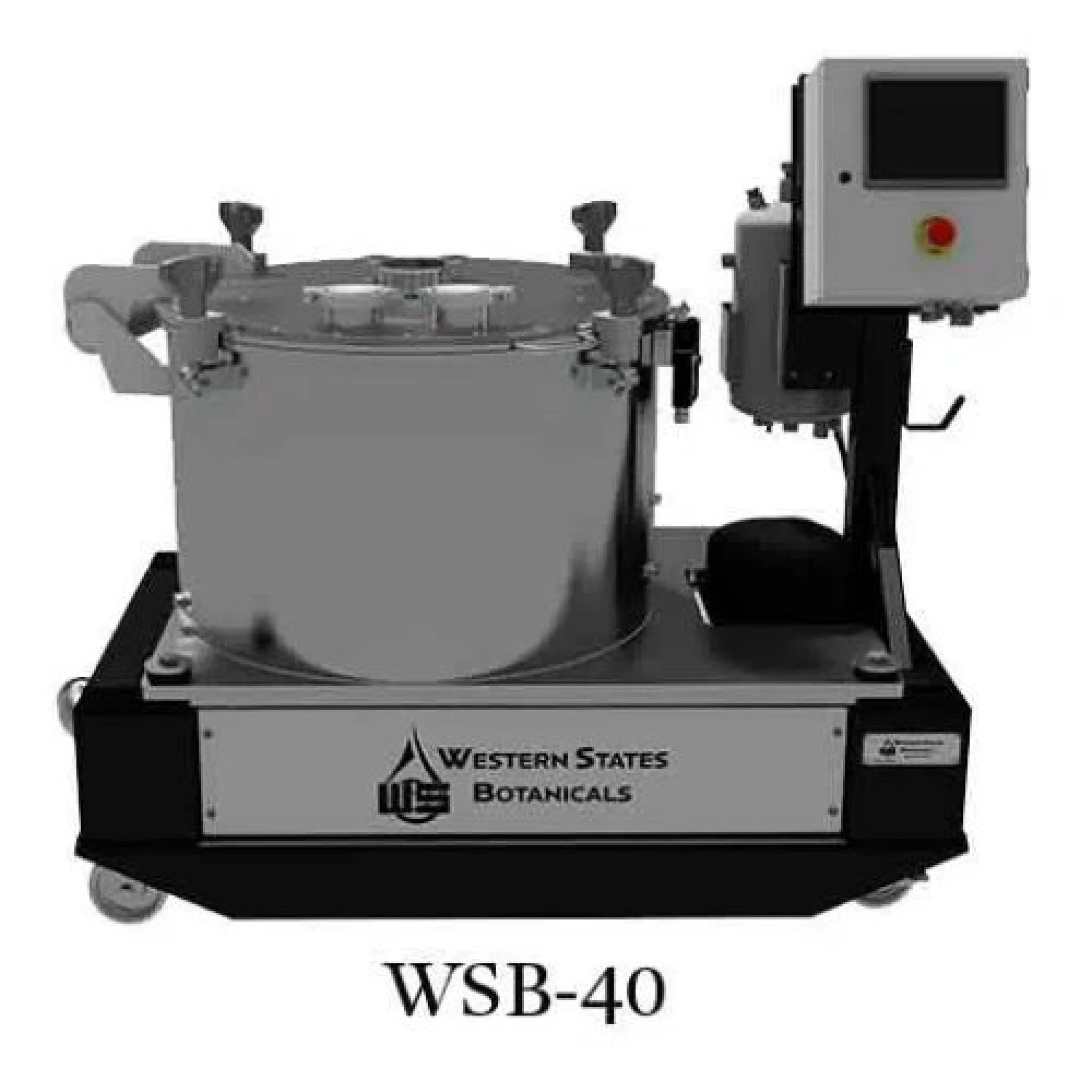

WSB-40 Centrifuge for Cannabinoid Extraction
Reference:
Manufacturer: Across International
The WSB-40 is designed for the maximum extraction of cannabinoids and is suitable for mid to large scale production volumes. This machine can handle up to 40 pounds per 10-to-20-minute cycle and boasts 98% cannabinoid removal.
In stock
Customize your product
Payment Providers
General
- 1561 RPM
- 900 Gs
- 133 liter volumetric capacity
- 40 lb maximum biomass load
- 7.2 ft 3 flood volume
- -40°F Minimum operating temperature, 104°F Maximum operating temperature. (32°F to 104°F Ambient)
Curb
- 304L stainless steel construction with internal vacuum/fluid jacket that covers the entire height of the curb
- Vacuum/fluid jacket supplied with (2) 1/2” NPT connections
- 1-1/4” inertia pad curb floor includes a 3” sanitary fitting for effluent outlet
- Jacket pressure limits are 0-15 PSI
PLC
- Allen-Bradley CompactLogix, 24 VDC, Ethernet, located in tethered drive enclosure
HMI
- 7” Panelview Plus 7, 24 VDC, ethernet, mounted in NEMA 4X enclosure on machine frame
- CL.1 DIV.2
External Finish
- External stainless steel surfaces 39 Ra or better
- Carbon steel surfaces powder coated per RAL 9005 satin
Internal Finish
- All internal surfaces stainless steel with 32 Ra finish or better
Curb Top304L stainless steel construction with heavy duty spring assisted hinge. Three sanitary connections provided; 4” feed connection, 1” venting connection, 1” additional connection. Borosilicate sight glass for viewing curb interior. Top secured with (4) spring loaded thumb nut clamps, solenoid interlock for safe opening
Basket
Ø26” x 15.38”, 304L stainless steel construction with 2205 duplex stainless steel basket bottom hub. Keyless friction lock bushing. Manually loaded / unloaded by filter bag, zippered opening top (filter bag sold as separate item)
Bearing Housing
1018 hot rolled steel construction with RAL 9005 satin powder coat finish, Fixed distance synchronous belt drive, (2) sealed deep groove ball bearings mounted on 316 stainless steel spindle, Spindle mounted mechanical double seal with barrier tank buffer support system
Frame
1018 hot rolled steel construction with RAL 9005 satin powder coat finish, Casters are Ø5” x 2” wide urethane wheels with integral side locking brakes, (2) rigid, (2) swivel
Motor
5 HP, 208VAC, 3PH, 60HZ, 1800 RPM, TEFC, CL. 1 Div. 1, continuous duty, 60:1 constant torque
Variable Frequency Drive
5 HP, 208-240 VAC, 17.5A, mounted in tethered NEMA 4X enclosure, located out of classified area
Curb Isolation System
(4) Neoprene elastomer vibration / shock mounts isolating the curb inertia pad from machine frame
Gaskets & Seals
Expanded Teflon – curb top window, basket screw, basket to spindle, mechanical seal mounting face
Neoprene – curb to curb top
Kalrez 0040 – mechanical seal o-rings
Huber 1.5 meter tubing & fittings +$4,515.60
P/N 6386 x 2 1.5 meter -100C to +350C hose with insulation, MT-350-1,5-M30x1,5 $3,000.00
P/N 6448 x 2 M30x1,5 male thread to M30x1,5 male thread adapter $350.00
P/N 6461 x 2 90 M30x1,5 female thread to M30x1,5 male adapter $450.00
P/N 6456 x 2 M30x1,5 male thread to 3/4" NPT male thread adapter $560.00
Tri-15-05NPT # 15167 x 2 Ai 1.5" One-Piece 316L SST Tri-Clamp to 1/2" Female NPT Adapter
Tri-15-ring-viton # 15507 x 2 Ai 1.5" Viton Sanitary Clamp Centering Ring (OD: 1.98” ID: 1.20”)
Tri-15-clamp # 14862 x 2 Ai 304 SST 1.5" Single Pin Standard Pressure Sanitary Tri-Clamp
Huber 3 meter tubing & fittings +$5,915.60
P/N 6428 x 2 3 meter -100C to +350C hose with insulation, MT-350-3-M30x1,5 $4,400.00
P/N 6448 x 2 M30x1,5 male thread to M30x1,5 male thread adapter $350.00
P/N 6461 x 2 90 M30x1,5 female thread to M30x1,5 male adapter $450.00
P/N 6456 x 2 M30x1,5 male thread to 3/4" NPT male thread adapter $560.00
Tri-15-05NPT # 15167 x 2 Ai 1.5" One-Piece 316L SST Tri-Clamp to 1/2" Female NPT Adapter
Tri-15-ring-viton # 15507 x 2 Ai 1.5" Viton Sanitary Clamp Centering Ring (OD: 1.98” ID: 1.20”)
Tri-15-clamp # 14862 x 2 Ai 304 SST 1.5" Single Pin Standard Pressure Sanitary Tri-Clamp
Huber 1.5 meter tubing, fittings & fluid +$10,395.60
P/N 6386 x 2 1.5 meter -100C to +350C hose with insulation, MT-350-1,5-M30x1,5 $3,000.00
P/N 6448 x 2 M30x1,5 male thread to M30x1,5 male thread adapter $350.00
P/N 6461 x 2 90 M30x1,5 female thread to M30x1,5 male adapter $450.00
P/N 6456 x 2 M30x1,5 male thread to 3/4" NPT male thread adapter $560.00
P/N 6479 x 3 DW-Therm heat transfer fluid M90.200.02 $5,880.00
Tri-15-05NPT # 15167 x 2 Ai 1.5" One-Piece 316L SST Tri-Clamp to 1/2" Female NPT Adapter
Tri-15-ring-viton # 15507 x 2 Ai 1.5" Viton Sanitary Clamp Centering Ring (OD: 1.98” ID: 1.20”)
Tri-15-clamp # 14862 x 2 Ai 304 SST 1.5" Single Pin Standard Pressure Sanitary Tri-Clamp
Huber 3 meter tubing, fittings & fluid +$11,795.60
P/N 6428 x 2 3 meter -100C to +350C hose with insulation, MT-350-3-M30x1,5 $4,400.00
P/N 6448 x 2 M30x1,5 male thread to M30x1,5 male thread adapter $350.00
P/N 6461 x 2 90 M30x1,5 female thread to M30x1,5 male adapter $450.00
P/N 6456 x 2 M30x1,5 male thread to 3/4" NPT male thread adapter $560.00
P/N 6479 x 3 DW-Therm heat transfer fluid M90.200.02 $5,880.00
Tri-15-05NPT # 15167 x 2 Ai 1.5" One-Piece 316L SST Tri-Clamp to 1/2" Female NPT Adapter
Tri-15-ring-viton # 15507 x 2 Ai 1.5" Viton Sanitary Clamp Centering Ring (OD: 1.98” ID: 1.20”)
Tri-15-clamp # 14862 x 2 Ai 304 SST 1.5" Single Pin Standard Pressure Sanitary Tri-Clamp
| Model | WSB-40 |
| Speed | 1561 RPM |
| G-Force | 900 G |
| Volumetric Capacity | 133 L |
| Maximum Biomass Load | 40 lb |
| Flood Volume | 7.2 ft³ |
| Operating Temperature | -40°F to 104°F (32°F to 104°F ambient) |
| Curb | 304L stainless steel, vacuum/fluid jacket full height, (2) 1/2" NPT jacket connections, 3" sanitary effluent outlet, 0-15 PSI jacket |
| Curb Top Connections | 4" feed, 1" vent, 1" additional (sanitary); borosilicate sight glass; solenoid interlock |
| Basket | Ø26" x 15.38", 304L stainless steel, 2205 duplex stainless hub |
| Motor | 5 HP, 208 VAC, 3 phase, 60 Hz, 1800 RPM, TEFC, CL. 1 Div. 1, continuous duty |
| Variable Frequency Drive | 5 HP, 208-240 VAC, 17.5 A, tethered NEMA 4X enclosure |
| PLC / HMI | Allen-Bradley CompactLogix 24 VDC Ethernet; 7" PanelView Plus 7, NEMA 4X, CL.1 DIV.2 |
| Frame | 1018 hot rolled steel, RAL 9005 satin powder coat; Ø5" x 2" urethane casters with brakes (2 rigid, 2 swivel) |
| Seals | Expanded PTFE, neoprene, Kalrez 0040 mechanical seal o-rings |
