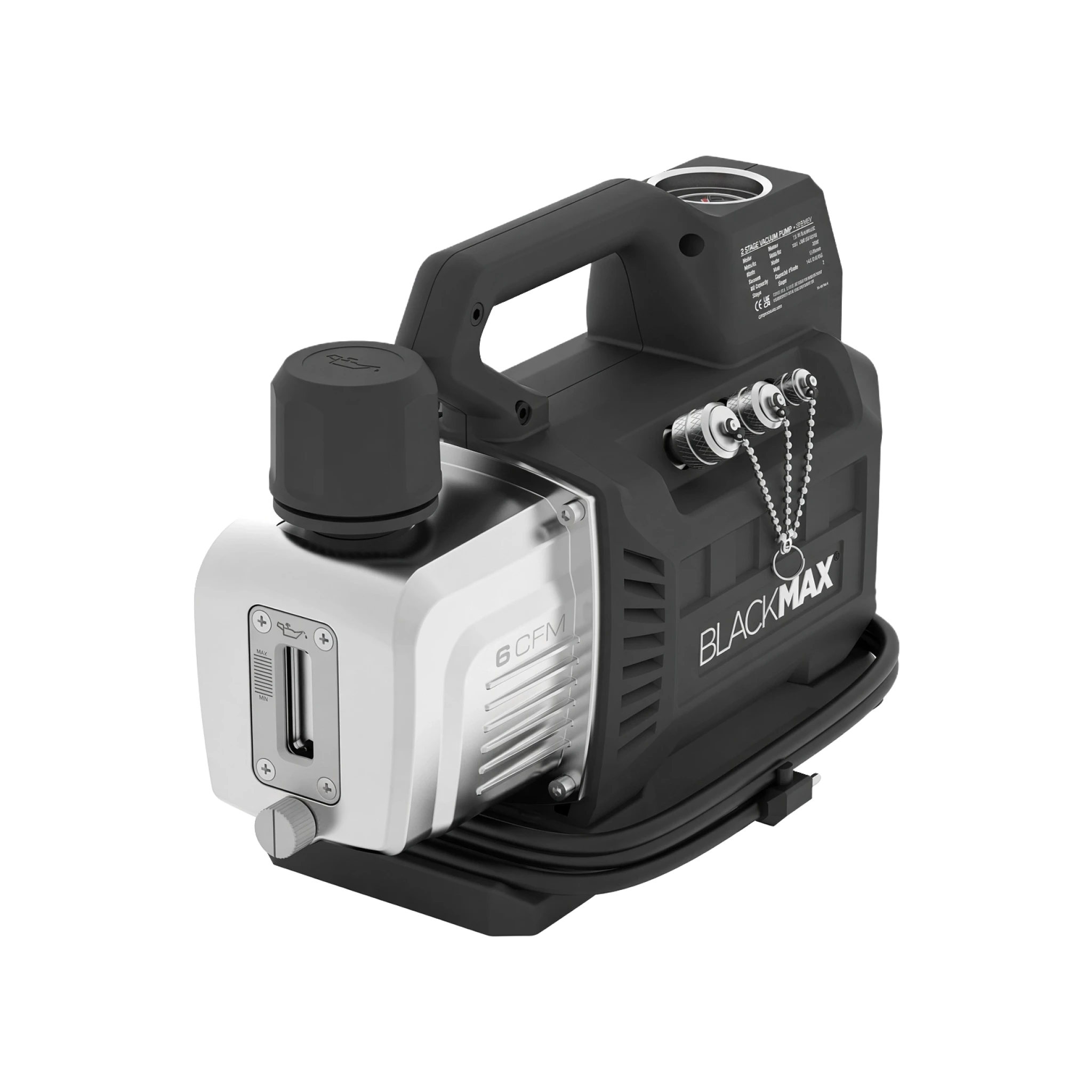

BlackMax 6 CFM Ignition Proof Vacuum Pump

The CPS BlackMax 6 CFM Vacuum Pump (model VPBM6V) is a two-stage, sparkless HVACR vacuum pump driven by a 1/2 HP variable-speed brushless DC motor.

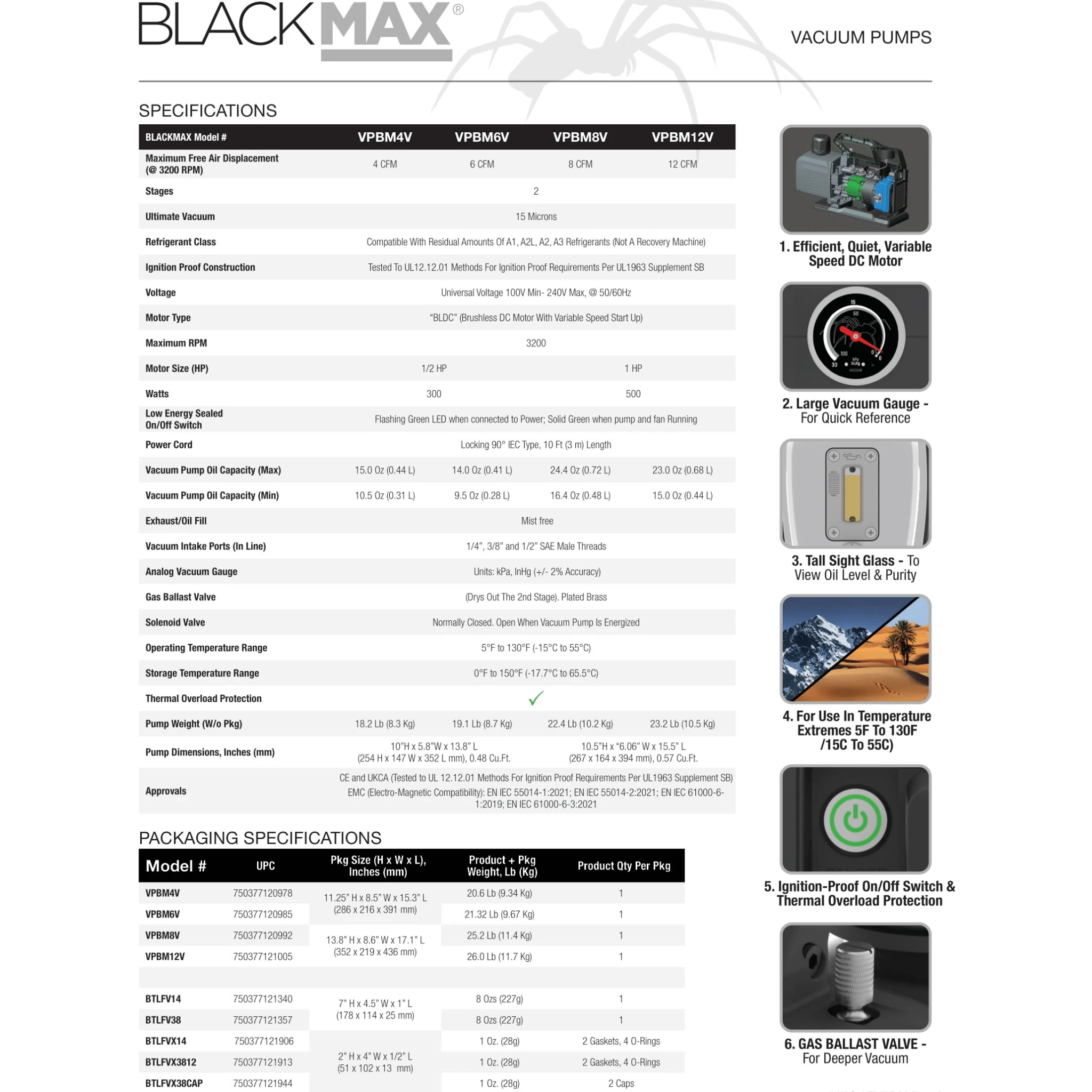

Performance Specifications

• Free air displacement: 6 CFM

• Number of stages: 2-stage

• Ultimate vacuum: 15 microns

• Motor power: 1/2 HP variable-speed brushless DC (max 3200 RPM, 300 W)

• Refrigerant compatibility: residual A1, A2L, A2 and A3 refrigerants

Electrical and Power

• Input voltage: universal 100 V to 240 V, 50/60 Hz AC

• Switch: ignition-proof, sparkless components safe for flammable A2L and A3 refrigerants

Physical and Maintenance

• Oil capacity: 14.0 oz (0.41 L)

• Hose connections: in-line 1/4", 3/8" and 1/2" SAE

• Valves: built-in auto shut-off solenoid valve, preventing oil and air backflow, plus a plated brass gas ballast valve to dry out the second stage

• Monitoring: integrated analog vacuum gauge (kPa, inHg, ±2% accuracy) and a tall oil sight glass

• Operating temperature: 5°F to 130°F (-15°C to 55°C)

• Weight: 19.1 lbs (8.66 kg)

• Dimensions: 10.0" H x 5.8" W x 13.8" L (254 x 147 x 352 mm)

Fast-Vac Connection Fittings

• For all vacuum pumps with 1/4" M and 3/8" M ports

• Stainless steel construction

• Reduces evacuation time
