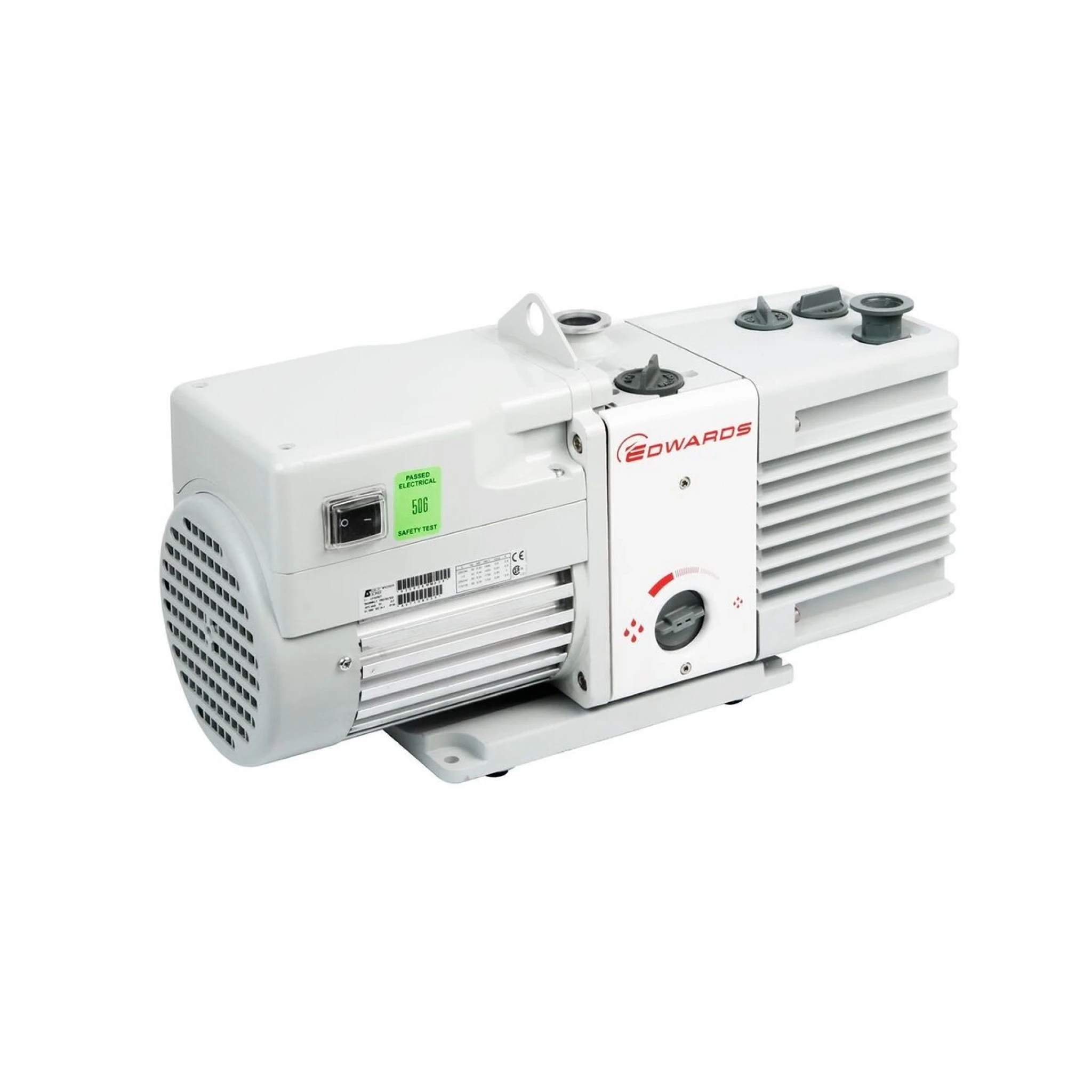

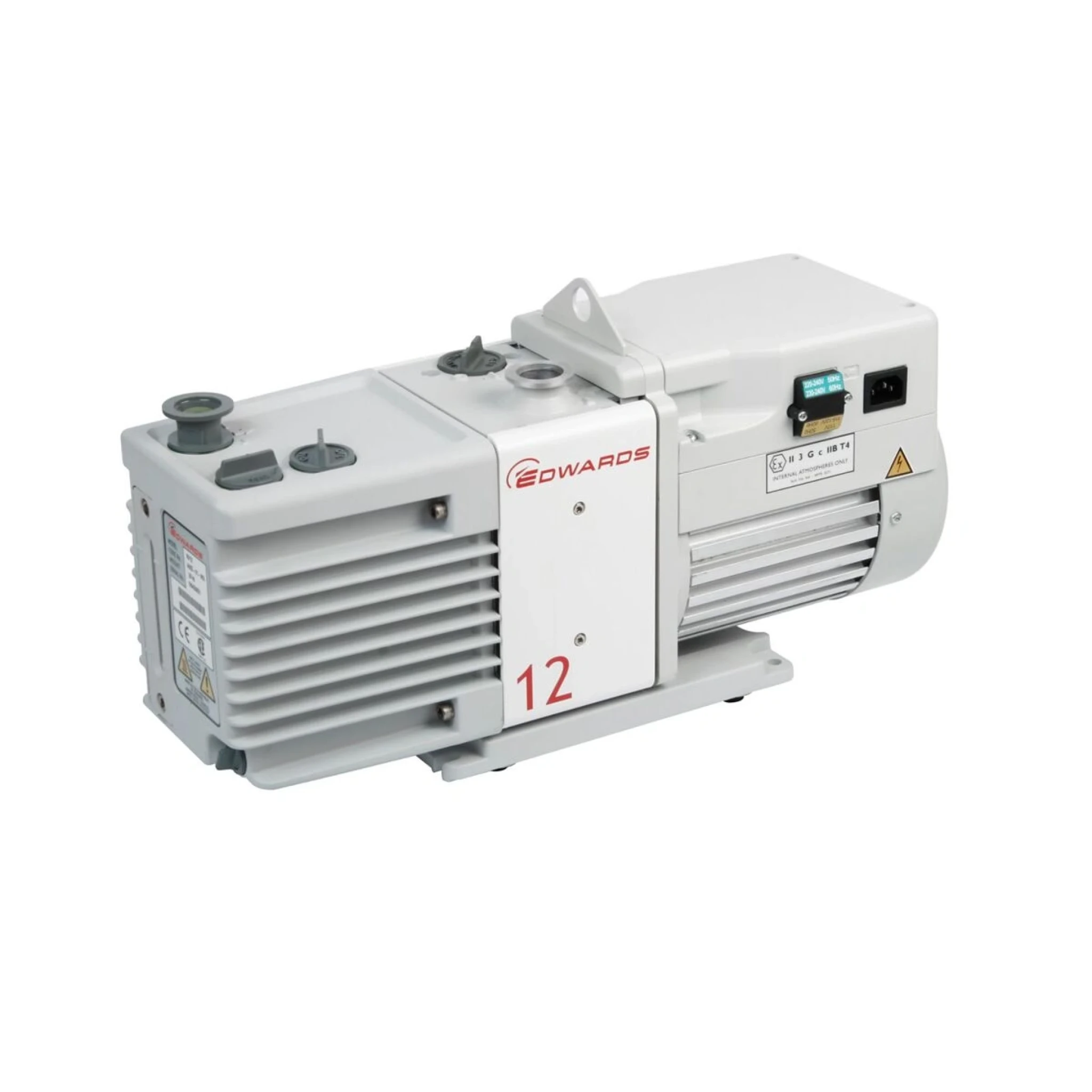

Edwards RV12 Dual-Stage 8.4 CFM Vacuum Pump with Bellow & Fitting
Reference:
Manufacturer: Edwards
- High vapour handling - high gas ballast flow rate for up to 220 gh-1 water vapour pumping capacity.
- Superior particulate handling - High reliability
- Fast acting, automatic inlet valve for best in class anti-suck back protection - Safe process and systems
- Mode selector and two position gas ballast - Configured to meet your vacuum needs
In stock
Optional Must Have Accessories
|

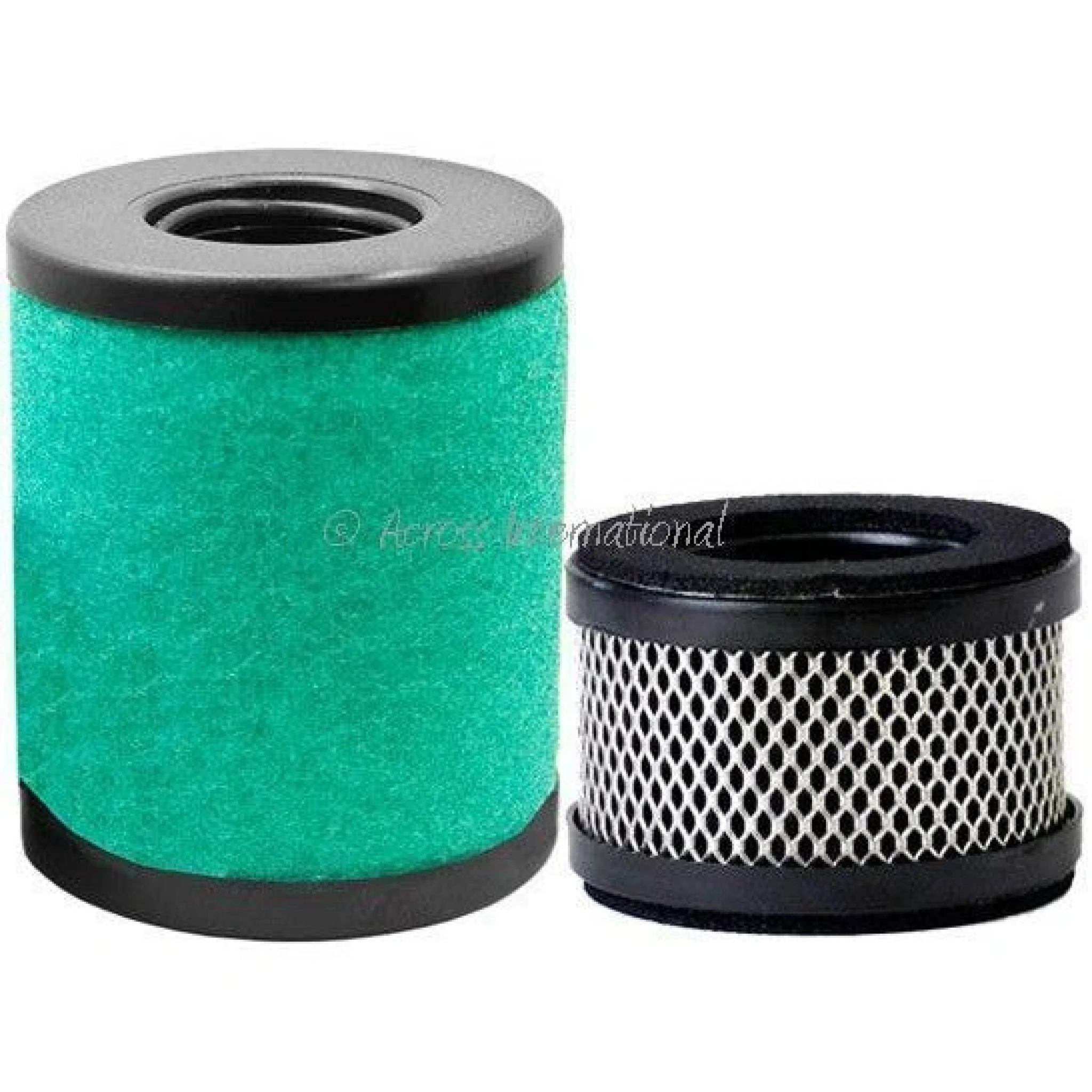

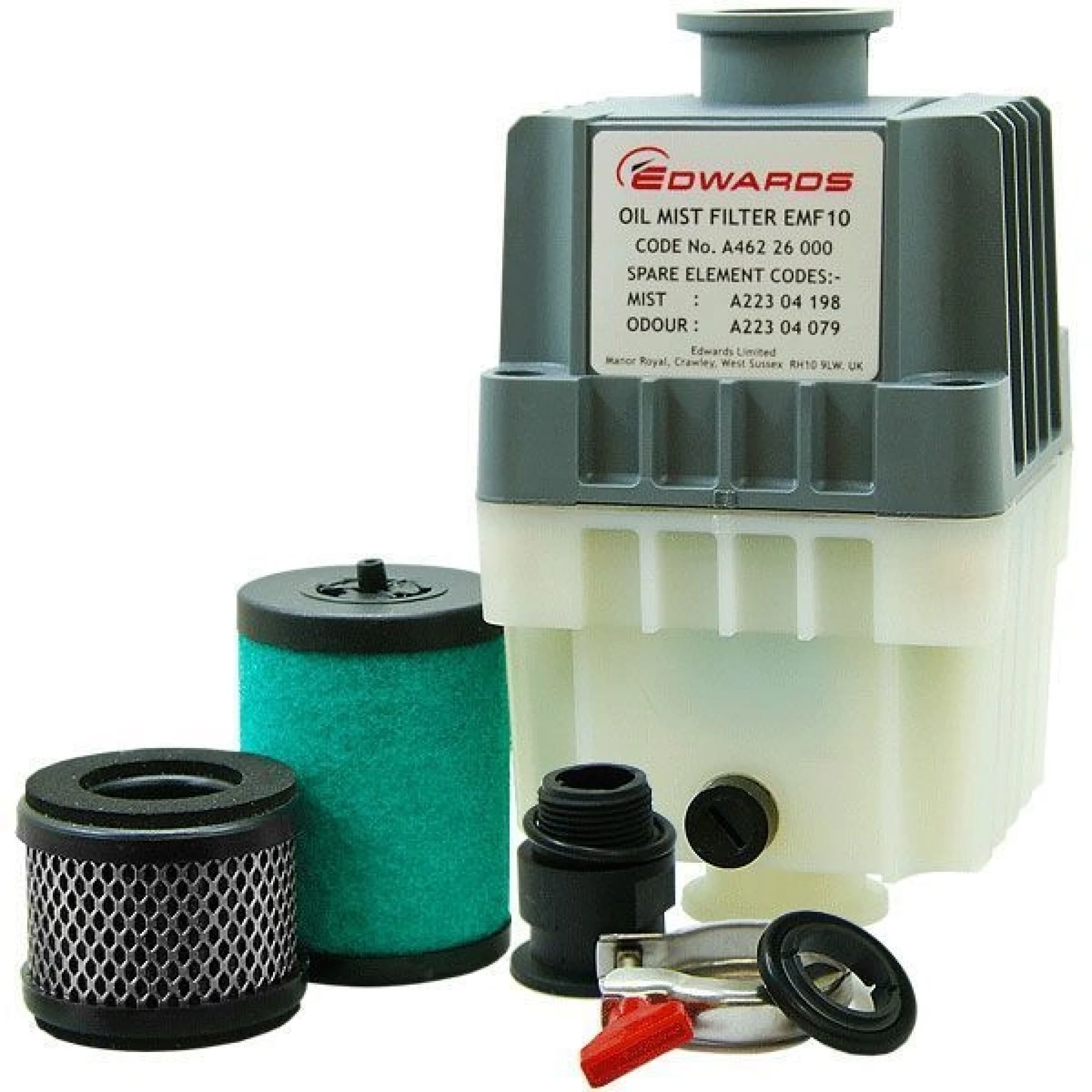

Edwards EMF20 Dual-Stage Exhaust Mist/Odour Filter | +CAD $1,313.94 |
Customize your product
Payment Providers
Oil Rotary Vane Pumps Two-Stage
Rotary vane pumps are considered wet, positive displacement pumps, with the term “wet” denoting that the gases being pumped are exposed to oil. The significant characteristic of oil sealed rotary vane (OSRV) pumps is the use of oil as a sealant and coolant.
Two-stage rotary vane vacuum pumps use a two stage compression offering high pumping speeds combined with low ultimate pressure. They are widely used in industrial, chemical, pharmaceutical, and food industries.
RV Two Stage RVP
RV oil sealed pumps have been the industry standard rotary vane pump for laboratory applications for many years thanks to design features that make them low-cost to operate and maintain versus other rotary pumps.
With their unique mode selector, one pump can be used for both high throughput and high vacuum applications; self-centring mechanism, no dowels to set and can replace any component; high vapour pumping capability and broad range of accessories makes RV pumps the best long-term proposition for laboratory applications.
RV pumps are available with speeds ranging from 3 to 12 m3/hr. With 400,000 units produced, these pumps offer proven performance that sets the industry standard for R&D and scientific pumping applications.
Features and Benefits
- High vapour handling - high gas ballast flow rate for up to 220 gh-1 water vapour pumping capacity.
- Superior particulate handling - High reliability
- Fast acting, automatic inlet valve for best in class anti-suck back protection - Safe process and systems
- Mode selector and two position gas ballast - Configured to meet your vacuum needs
- Designed for easy maintenance - No unplanned downtime
- Quiet running - Better work environment
| Connection Vacuum Inlet Flange | DN 25 ISO-KF (NW25) |
| Weight | 26.30 kg |
| Connection vacuum outlet flange | DN 25 ISO-KF (NW25) |
| Power Supply Phase | 1-Ph |
| Supply Voltage | 1Ph 115/230V 50/60Hz |
| Dimension Length | 0.490 m |
| IP Rating | IP44 |
| Supply Frequency | 50 Hz 60 Hz |
| Dimension Height | 0.261 m |
| Dimension Width | 0.158 m |
| Dimensions Combined Length Width Height | 0.490 m 0.490 m 0.490 m |
| Connection Power | IEC EN60320 C14 - Male (for C13 plug on mains cable) |
| Noise Level | 48.00 db(A) |
| Cooling Method | Air Cooling (forced - fan) |
| connectionVacuumFlangeCombined | DN 25 ISO-KF (NW25) / DN 25 ISO-KF (NW25) |
| Accessories Scope Of Supply | This product does not include the required mains power cable for each specific region. This cable has to be additionally selected from the list of suitable accessories. Some variants of this RV12 need to be hard-wired directly. Check out the gas ballast and filter accessories to operate your product reliably under all application conditions. |
| dimensionComments | The dimensions length, width and height try to describe the outer shape of this particular product in its typical orientation when standing on the ground. We always recommend checking the detailed dimensions given in 2D drawings in the instruction manual or the 3D shapes given in 3D models. |
| Power Total Rated @60Hz | 500.00 W |
| Power Total Rated @50Hz | 450.00 W |
| Pumping Speed @60Hz Nominal | 3.944 × 10⁻³ m^3/s |
| Pumping Speed @50Hz Nominal | 3.333 × 10⁻³ m^3/s |
| Pressure Water Vapour Max. | 3200.00 Pa |
| Rotational Speed @50Hz Nominal | 25.00 Hz |
| Capacity Water Vapour | 1.667 × 10⁻⁵ kg/s |
| maximumDisplacement50Hz | 3.944 × 10⁻³ m^3/s |
| pressureUltimateWithGasBallast | 3.00 Pa |
| Pressure Ultimate | 0.200 Pa |
| Rotational Speed @60Hz Nominal | 30.00 Hz |
| maximumDisplacement60Hz | 4.722 × 10⁻³ m^3/s |
| Temperature Ambient Operation Max | 313.15 K |
| Temperature Ambient Operation Min | 285.15 K |
| Temperature Ambient Storage Min. | 243.15 K |
| Temperature Ambient Storage Max | 343.15 K |
| Product Pressure Range | Medium Vacuum: 1 mbar - 1·10⁻³ mbar |
| High / Medium / Rough Vacuum Classification | Rough Vacuum Pump |
| Dry or Wet Pump | Wet |
| Vacuum Pump Technology | Oil Rotary Vane Pumps Two-Stage |
| Region | EU |
| lubricantProductDefault | ULTRAGRADE™ Performance 19 |
| Oil Capacity Min. | 6.500 × 10⁻⁴ m^3 |
| Oil Capacity Max. | 1.000 × 10⁻³ m^3 |
| pressureOutletMaxContinous | 1.200 × 10⁵ Pa |
| Connection Vacuum Inlet Flange | DN 25 ISO-KF (NW25) |
| Connection vacuum outlet flange | DN 25 ISO-KF (NW25) |
| Cooling Method | Air Cooling (forced - fan) |
| Pressure Ultimate | 0.200 Pa |
| Supply Voltage | 1Ph 115/230V 50/60Hz |
Standard Package
| Edwards RV12 dual stage vacuum pump | 1 pc |

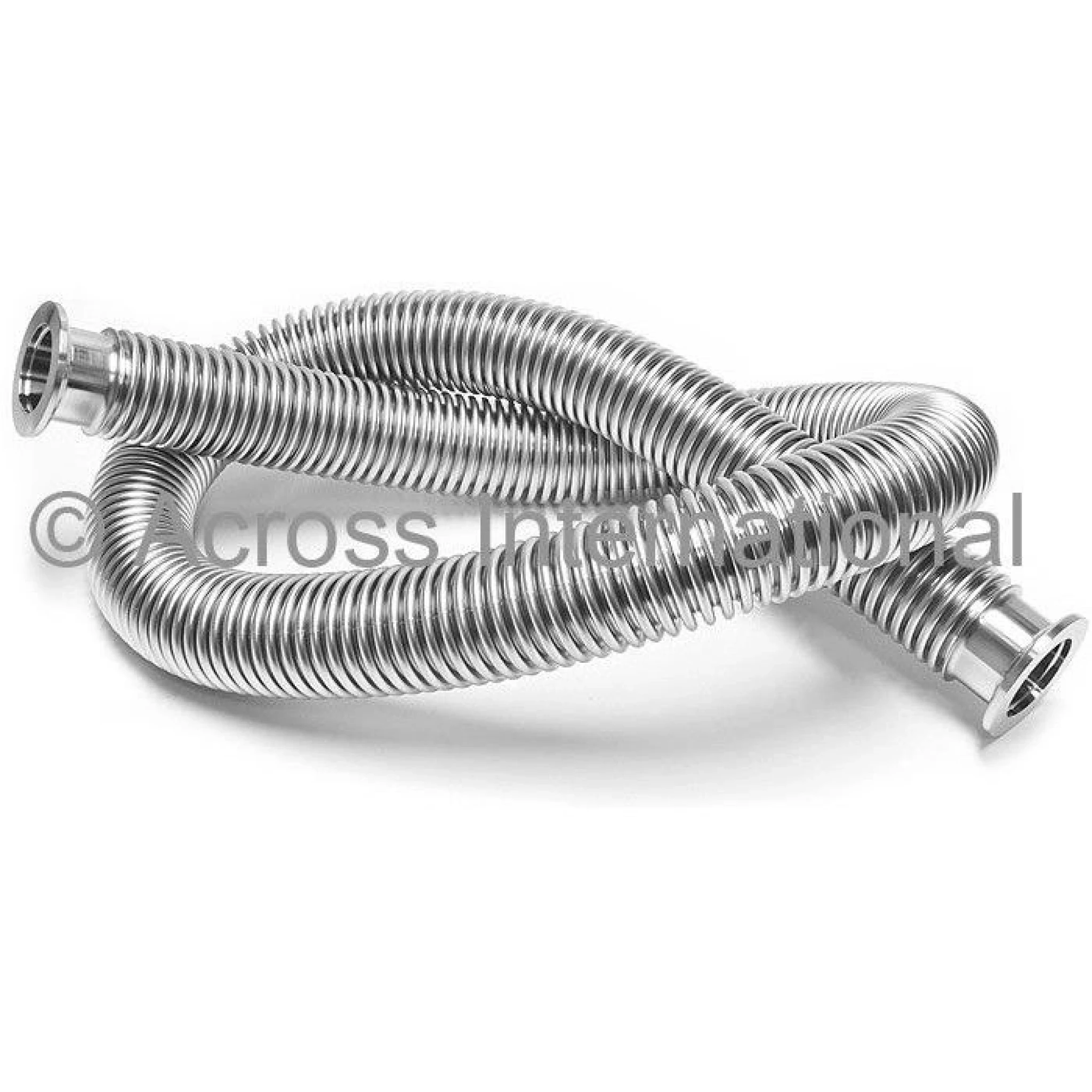

| KF25 stainless steel vacuum bellow (3 ft) | 1 pc |

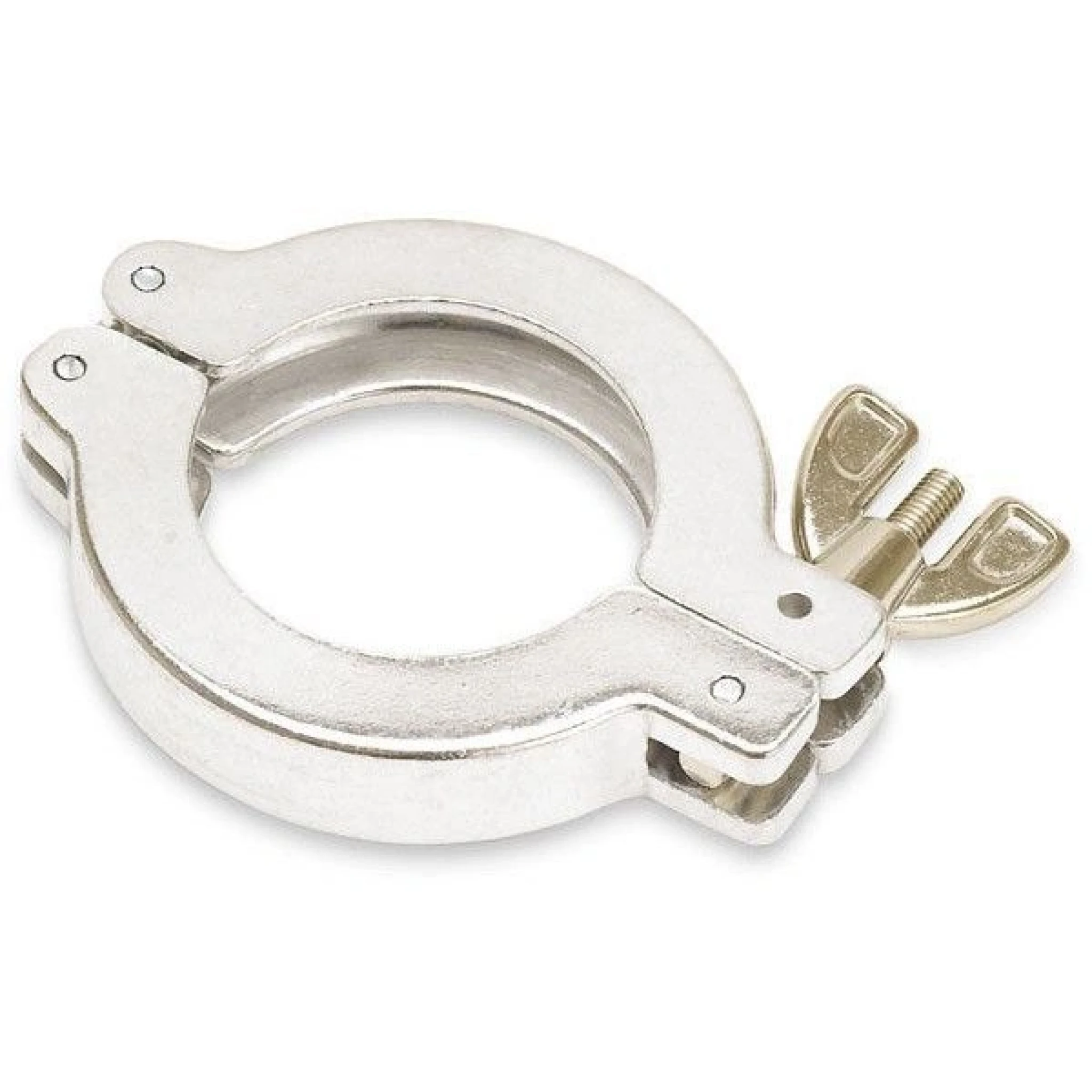

| KF25 wing nut flange quick clamp | 2 pcs |
| KF25 flange centering ring | 2 pcs |
| 110V standard 3-prong US power cord | 1 pc |

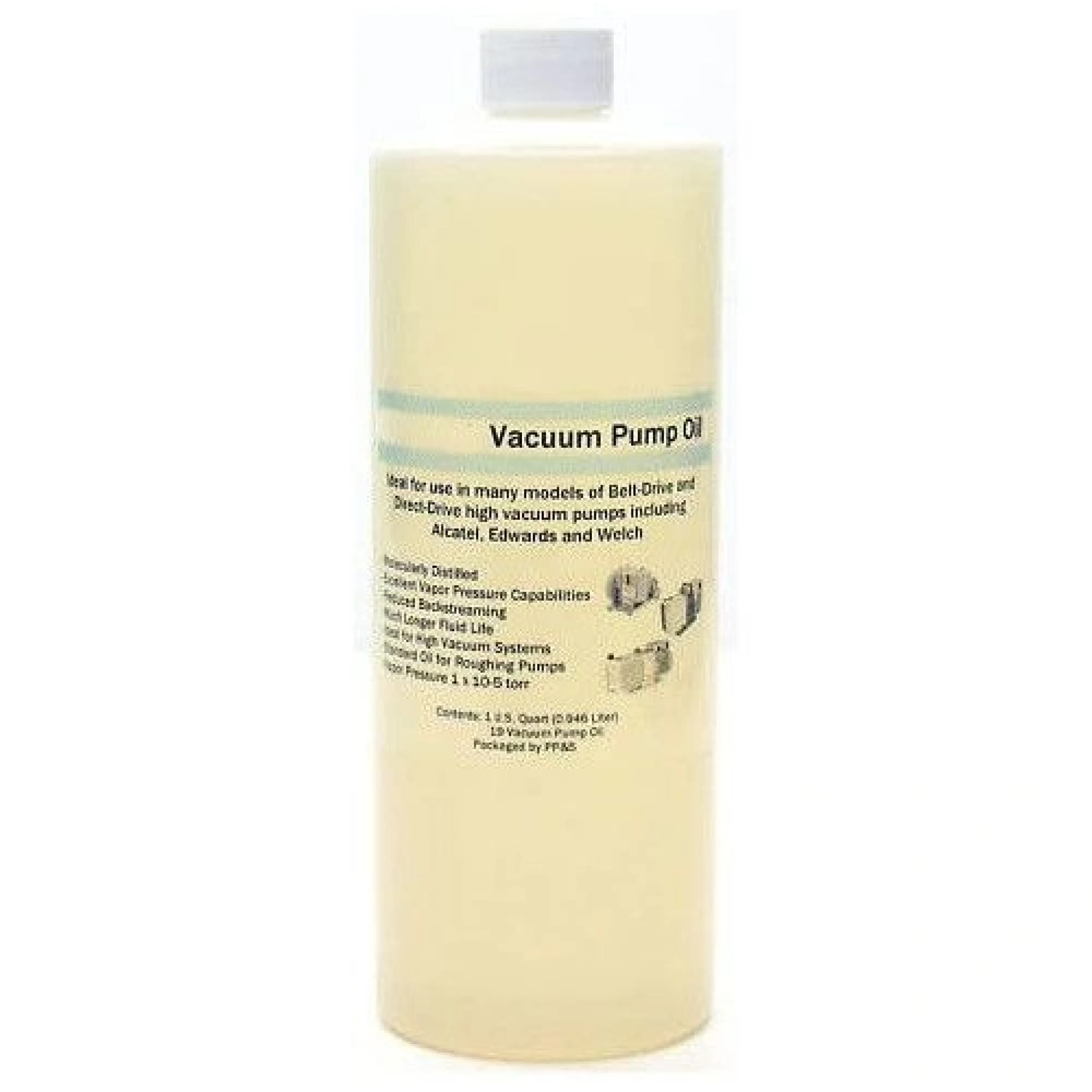

| Edwards ultra grade 19 vacuum pump oil | 1 pc |
| User's manual in a CD | 1 pc |
