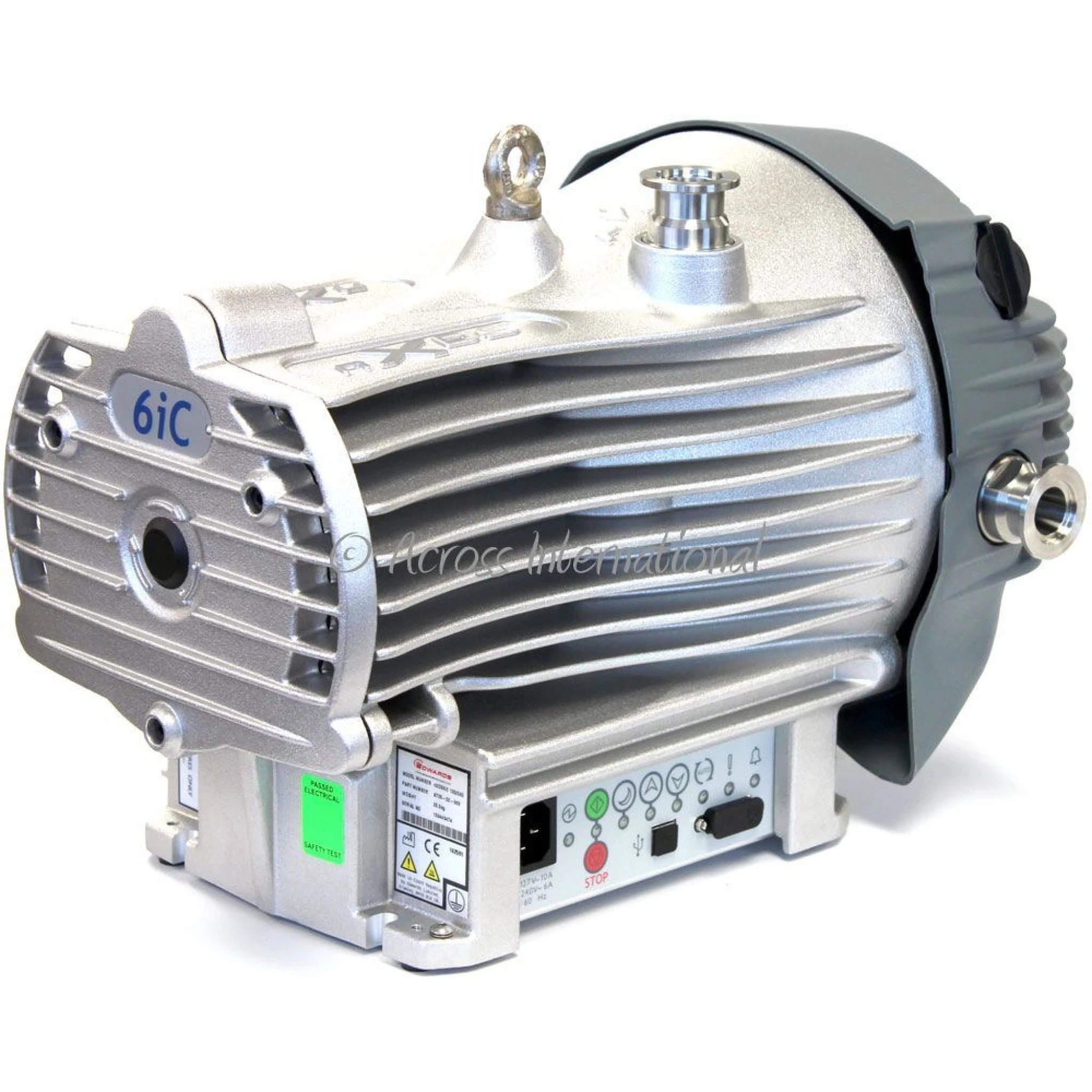

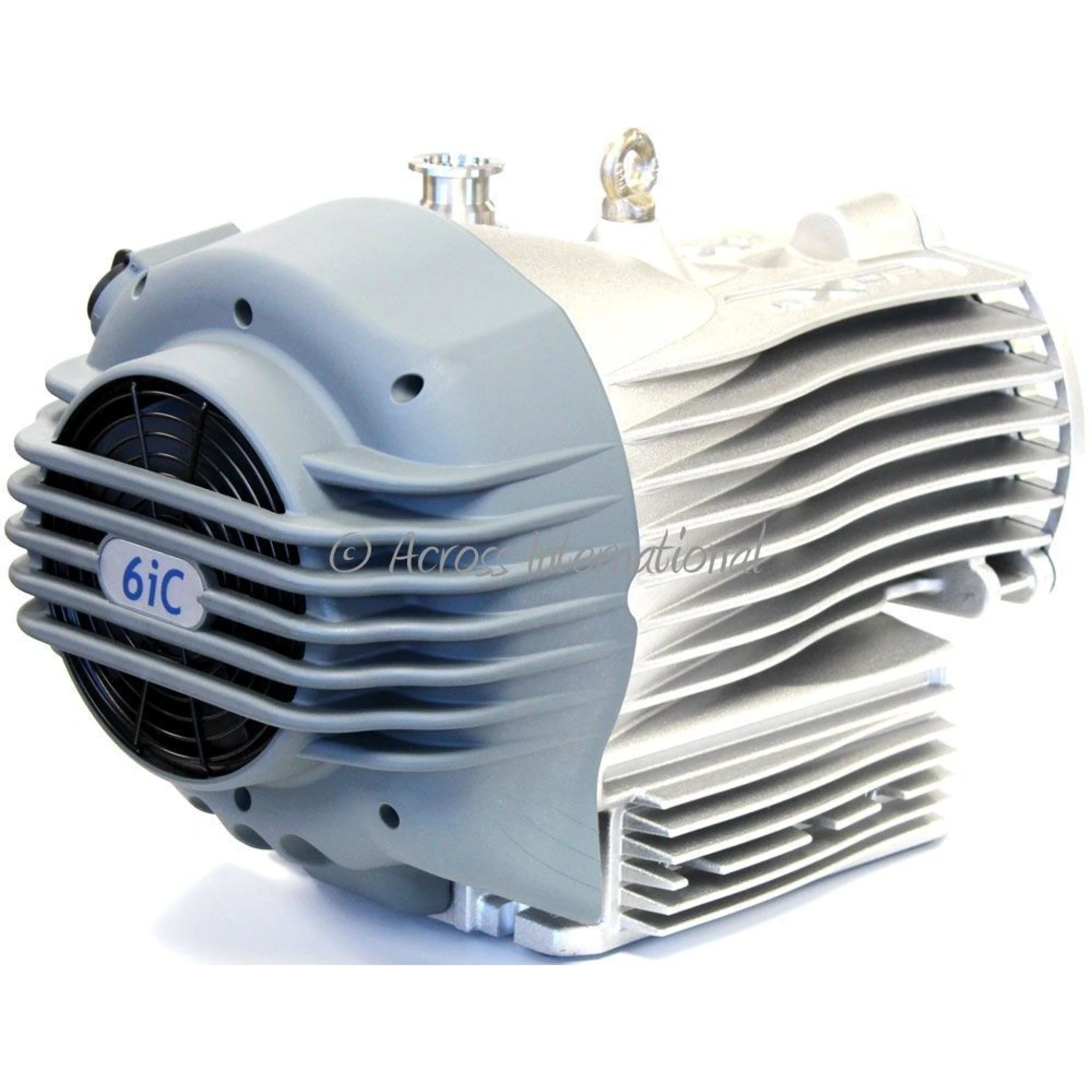

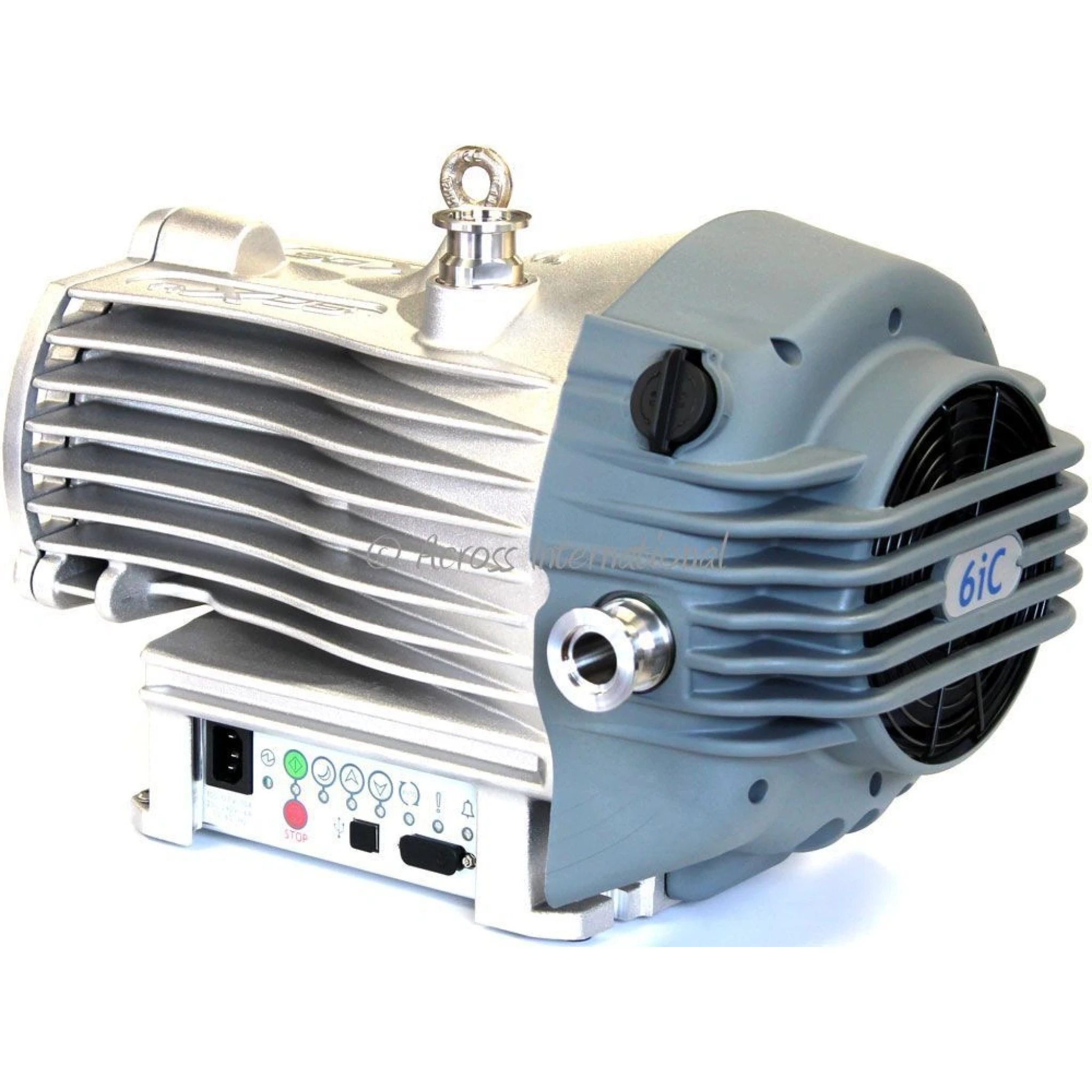

Edwards nXDS6iC 4.0 cfm Chemical-Resistant Dry Scroll Pump

The new nXDS-C pump is a modified version of the nXDS that is suitable for use on vapor handling processes, and may be used for some pumping applications involving corrosive substances. The nXDS-C variants have Chemraz internal valves and stainless steel fittings for extra protection from the pumped media. Together with exceptional pumping capability, ultimate vacuum performance and state-of-the-art design features, the nXDS-C dry scroll pump is the best performing pump in its class.

The nXDS6iC is up to 20 times quieter than other pumps. Its intelligent control functions and up to five year service interval offer low cost of ownership, making it the small dry pump of choice for todays most advanced technologies.

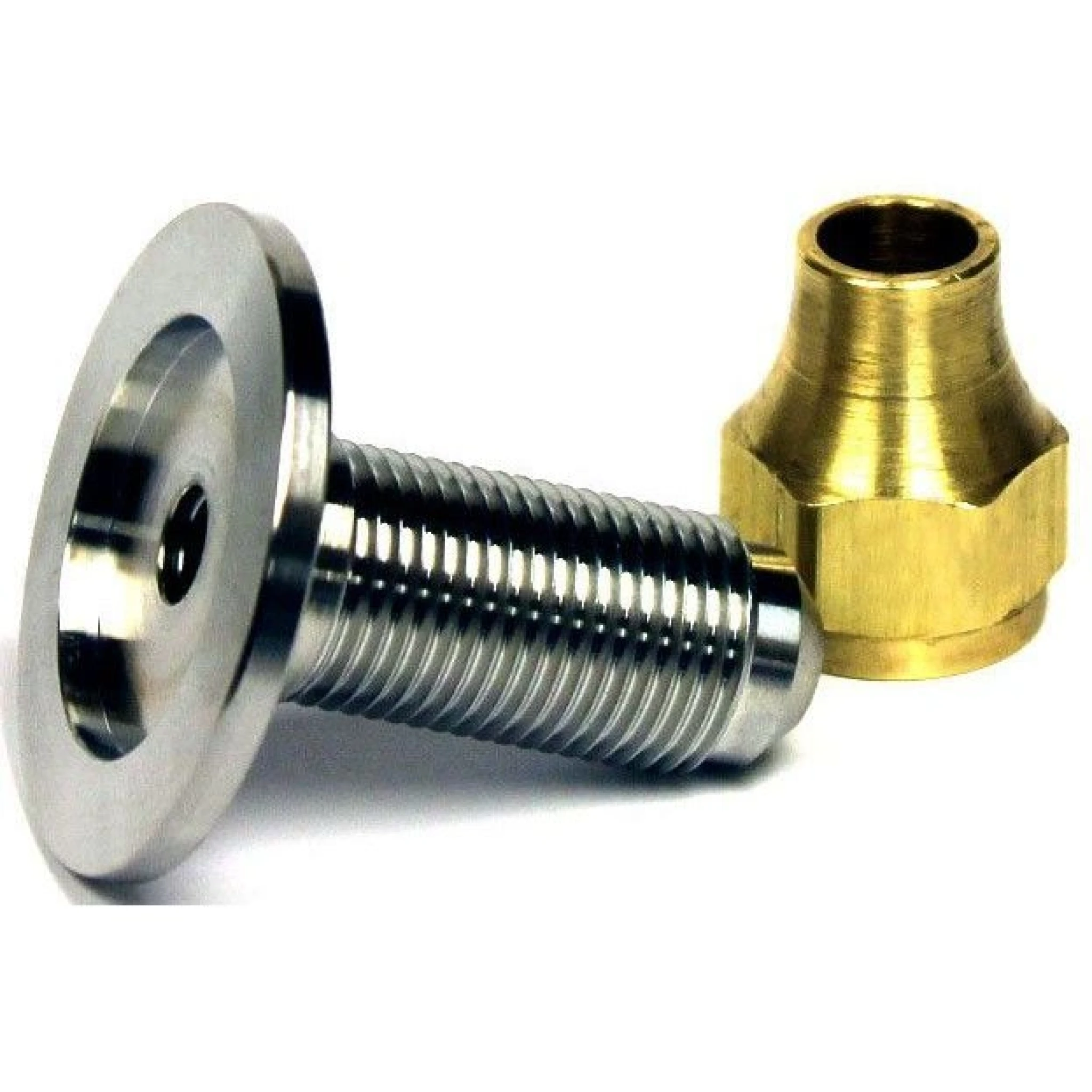

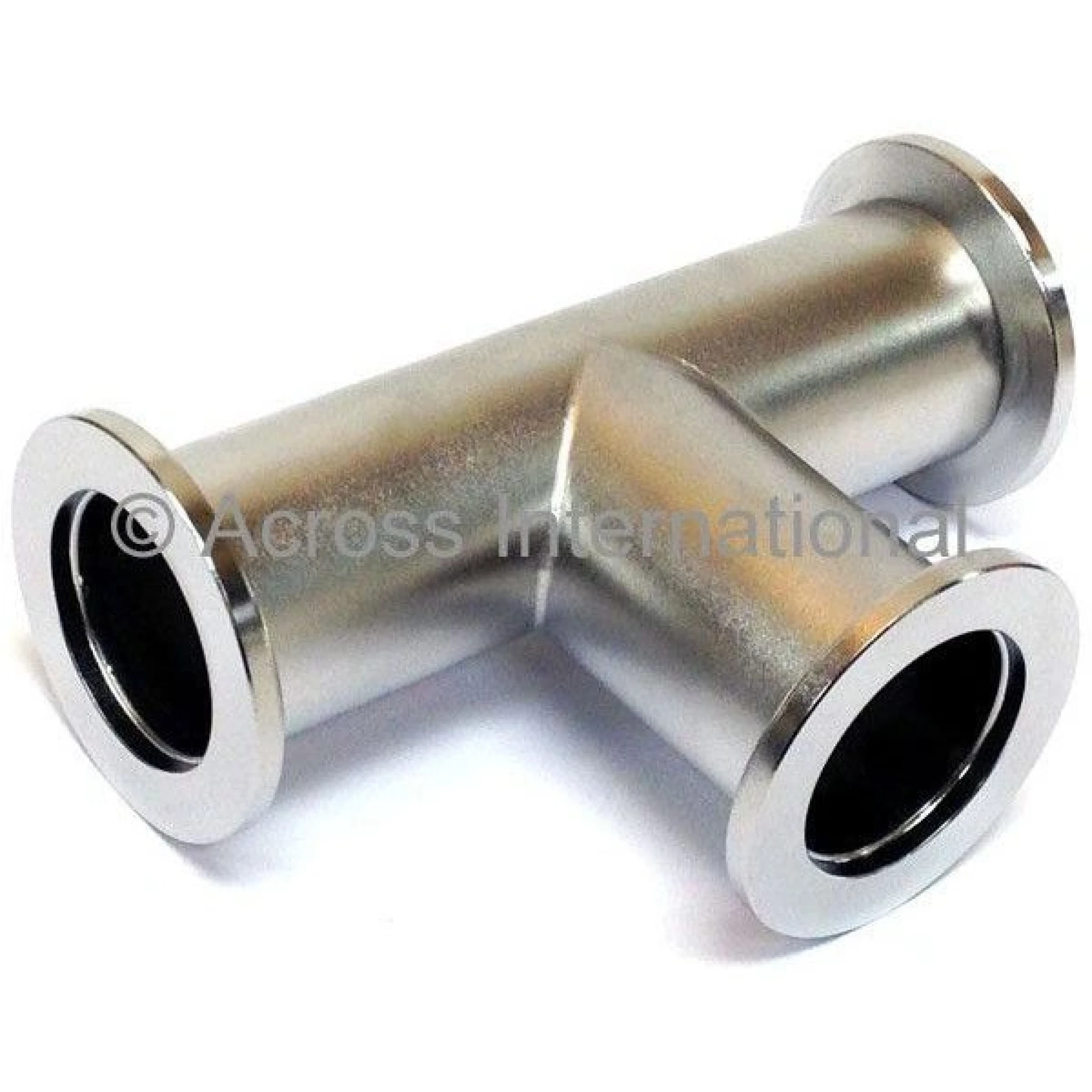

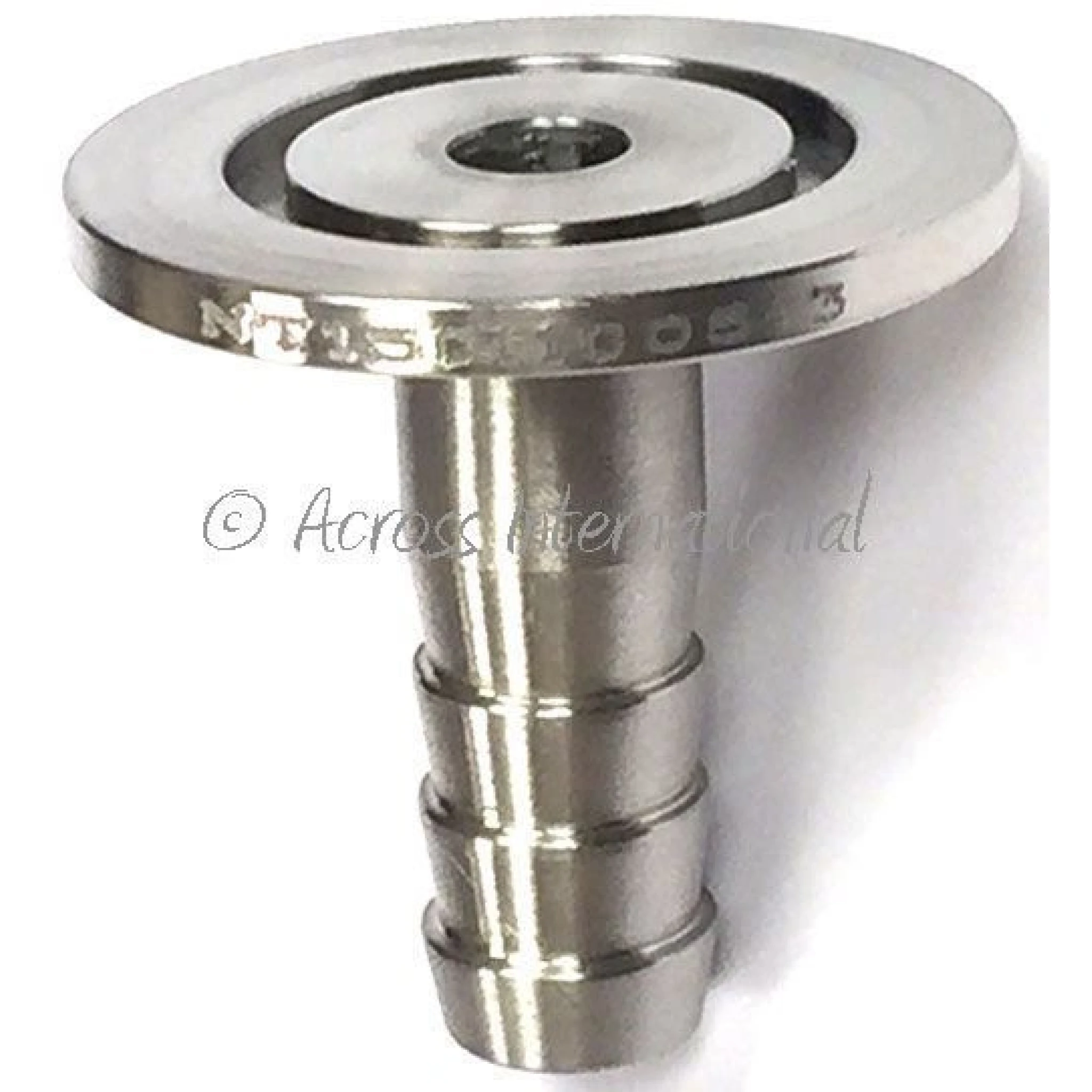

Free KF25 flexible stainless steel bellow (3.3 ft), clamps and centering rings ($219 value) included. Technical support and one year warranty covered by Edwards.

History

Edwards nXDS6i replaces the discontinued XDS6. Edwards made many big improvements, including chemical-resistant (C model), much longer service life, easier maintenance and better efficiency, to name just a few.

Overview

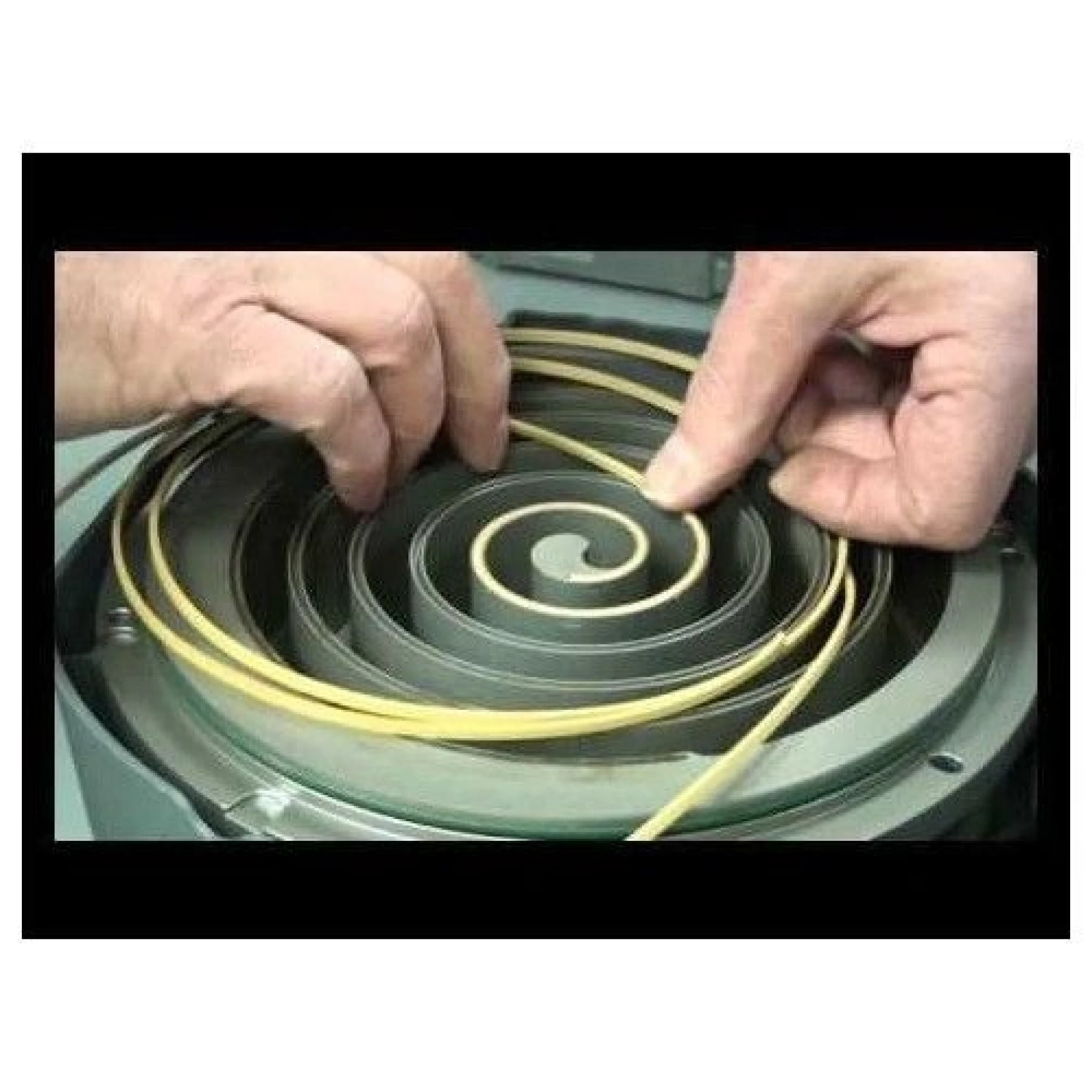

The Edwards nXDS6i and nXDS6iC pumps are truly dry vacuum pumps as all the bearings, with their hydrocarbon lubricant, are isolated from the vacuum space. The nXDS20i is the next generation in completely oil free, dry scroll pumps and replaces the XDS10. nXDS improves on legacy XDS pumps by offering increased pumping speeds, combined with lower ultimate pressures, lower power consumption and lower noise. Gas ballast allows for pumping of condensable vapors including, water, solvents, dilute acids and bases. nXDS pumps also feature the latest in tip seal technology giving significantly longer life between tip seal changes. Integrated inverter drive with auto sensing voltage input delivers optimized pumping performance globally. nXDS pumps are designed to be completely field serviceable.

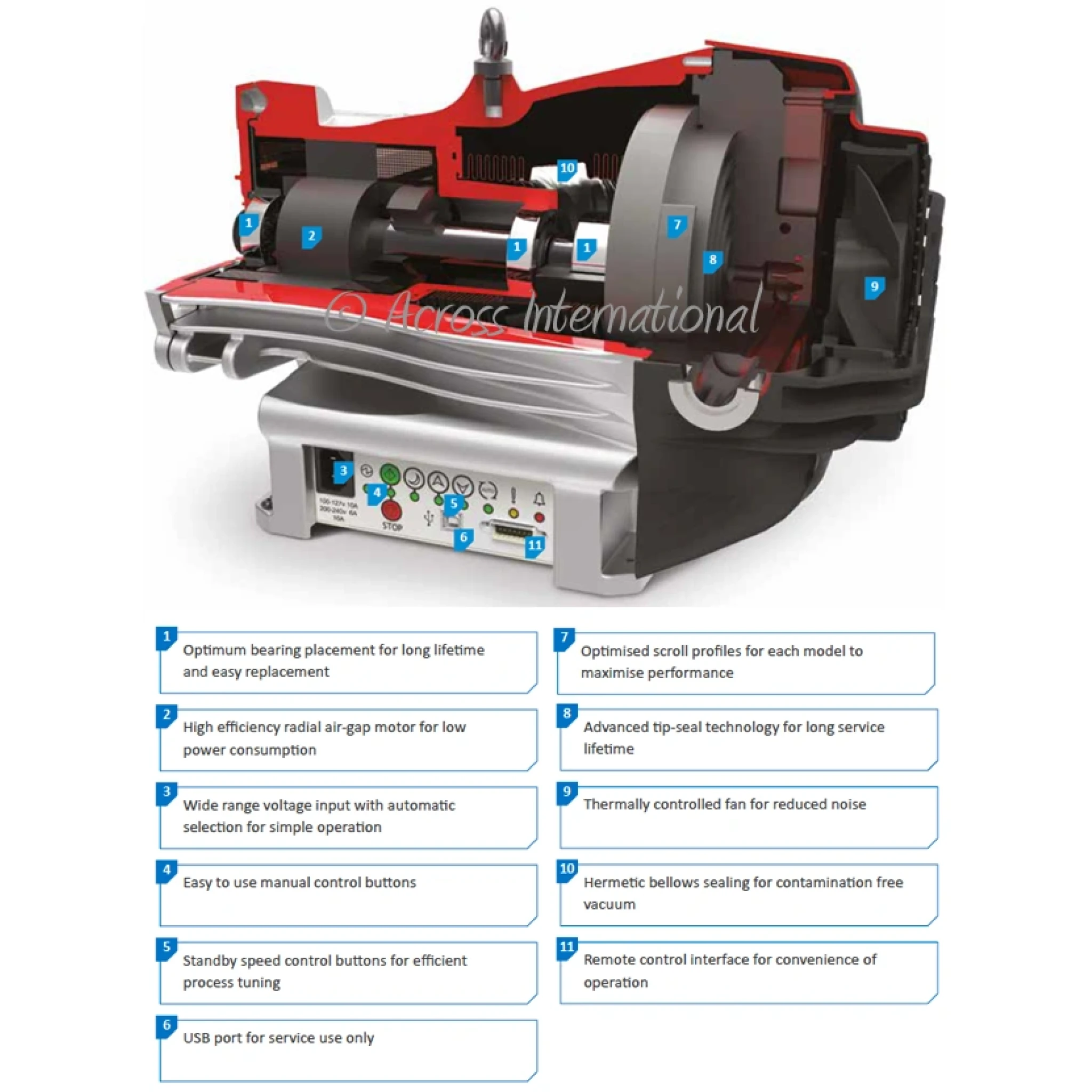

Features and Benefits

• Chemical and corrosion resistant with Chemraz internal valves and stainless steel fittings for extra protection from the pumped media
• Lubricant-free within the vacuum envelope and hermetically sealed means totally clean and dry vacuum to prevent cross contamination
• No atmosphere to vacuum shaft seals means bearings are completely isolated, which prevents process attack and means the bearings run cooler and last longer
• Simple single sided scroll arrangement combined with an innovative motor and bearing design allows for easy field service with a minimum of special tooling for low cost of ownership and maximum up-time
• Improved motor and drive efficiencies for reduced power and cost of ownership
• Advanced interface provides a variety of traditional, analogue and digital control methods enabling remote control/monitoring via USB, RS232 or RS485
• One year warranty, as well as technical support from Edwards

Applications

• General clean pumping applications
• Scanning Electron Microscopes - SEM
• Beam lines and high energy physics
• Backing turbo pumps
• Centrifuges, ultra-high speed
• Coating
• Cryogenics
• Degassing/curing - oil, epoxy resin
• Distillation/extraction/filtration
• Freeze drying
• Furnaces
• Gel drying
• Laboratory bench top vacuum
• Lasers, gas recovery and recirculation
• Leak detectors, Helium
• Load locks and transfer chambers
• Rare gas recirculation
• Rare gas recovery
• Refrigeration manufacture
• Research and development
• Rotary, centrifugal evaporators
• SEM/FIB (ion beam repair)
• Solvent recovery
• Surface science instruments

Standard Package
