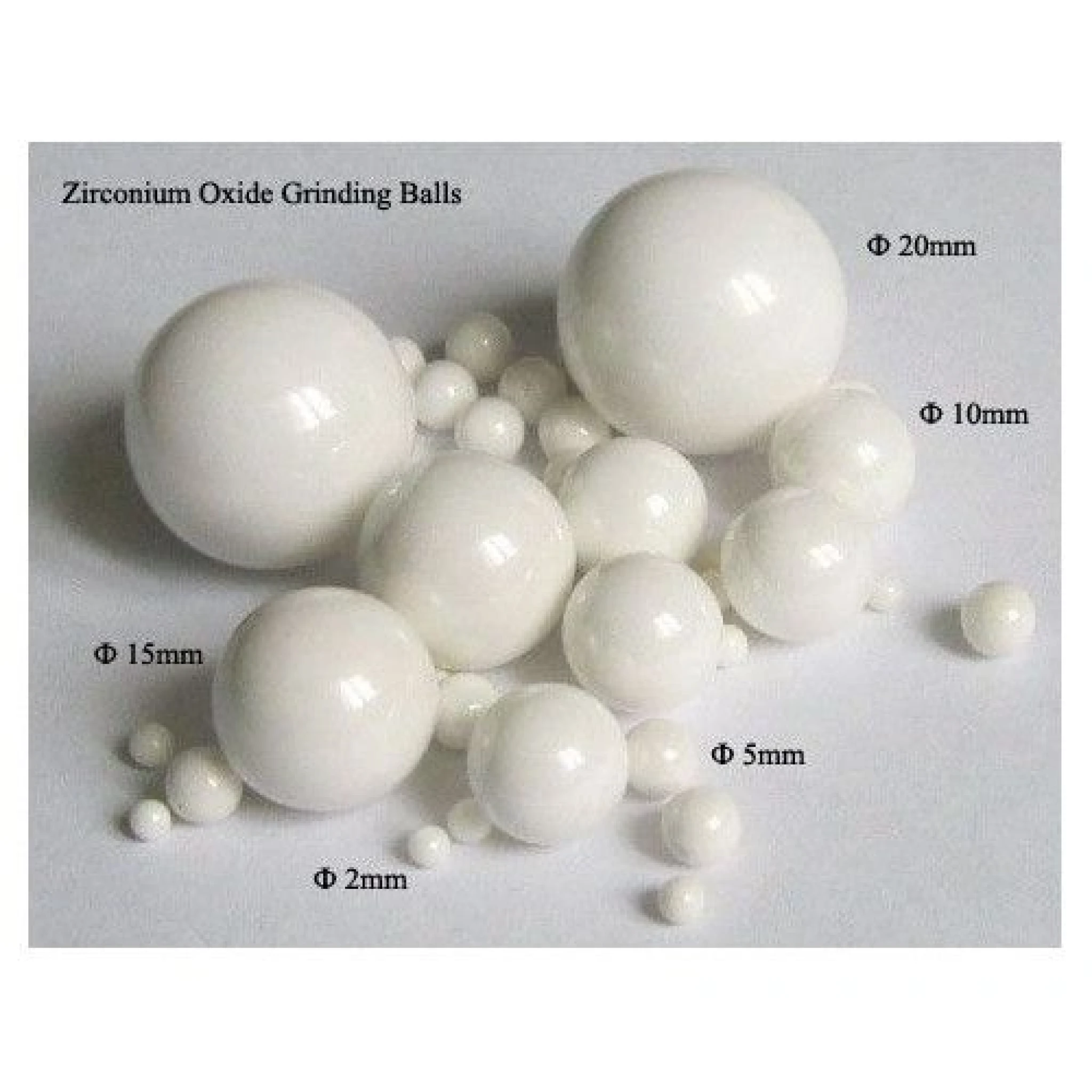

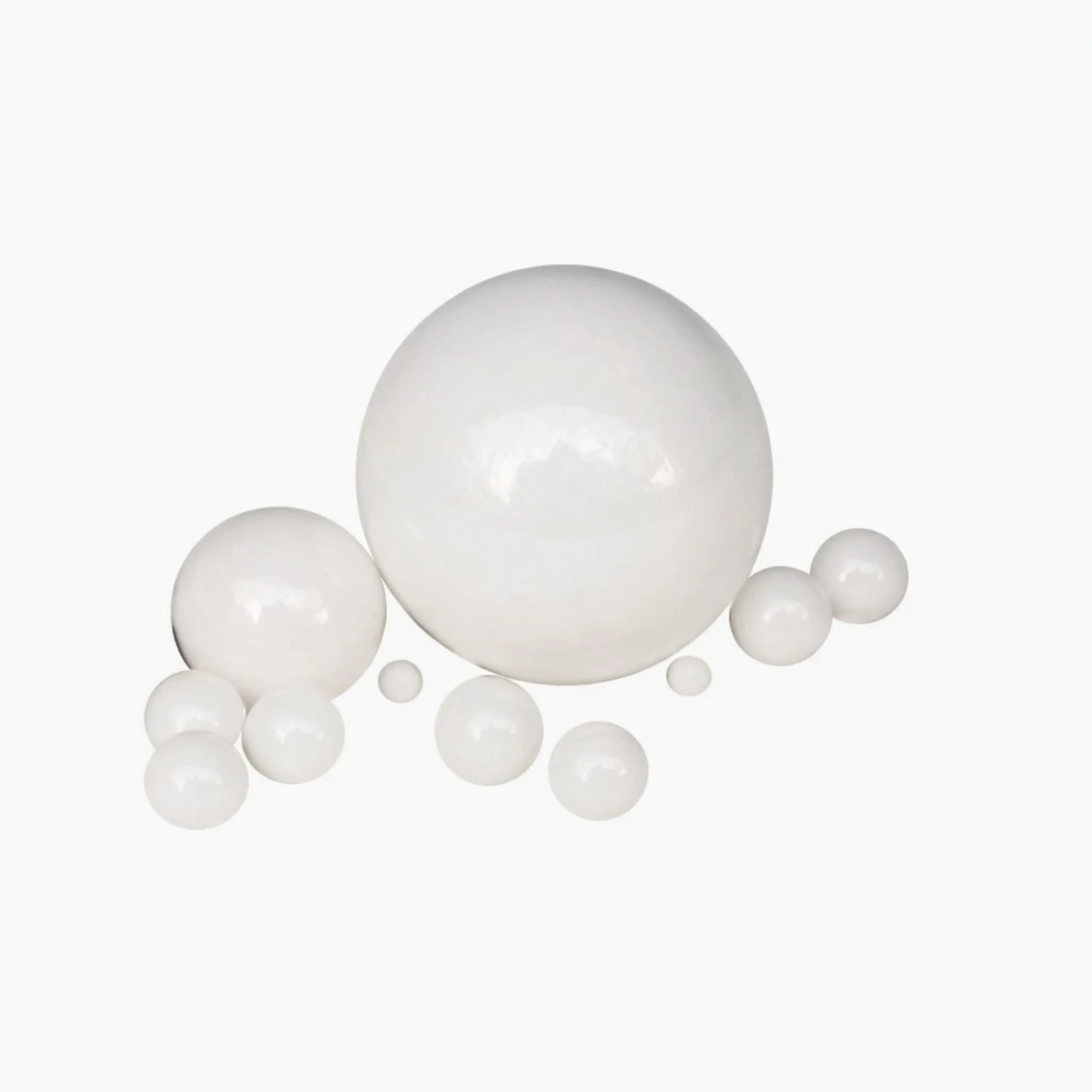

Yttrium Stabilized Zirconia Grinding Balls, white ceramic balls in several sizes, white background

Yttrium Stabilized Zirconium Oxide Grinding Balls

Reference:

Manufacturer:

  • The industry standard for highly cost-effective, low wear and long lifetime: YSZ is among the most durable, chemically resistant and efficient media for use as a milling/grinding material for ceramic materials, wet grinding, and applications that seek to minimize contamination. Due to its ultra-low wear loss, its operational cost can be lower.
  • High specific gravity, and thus high efficiency, saving processing time.
  • Highly resistant to acids, solvents, mild and moderate bases.
  • Highly polished, smooth, easy to clean, low abrasion to the equipment.

CAD $0.32

Customize your product

Payment Providers
Payment Providers
Add to wishlist
Bulk density 5.95 g/cm3
Zr(Hf)O2 94.48%
Y2O3 5.15%
TiO2 0.0018%
P <0.035%
SiO2 0.007%
Fe2O3 0.0009%
S <0.03%
N <0.25%
L.O.I (1000°C) 2.78%
Rockwell hardness >89 HRA

Highly polished YSZ (Yttrium stabilized ZrO2) zirconium oxide balls for planetary, high energy and other models of grinding ball mills, as well as other media applications, including bearings, catalyst support, packing media, mixing, calibration, precision valve and pump components.

Grinding jar ball configuration

50ml

100ml

250ml

500ml

1000ml

Ball size/qty
(pcs)

5mm

50

100

280

500

1000

10mm

8

16

40

100

200

20mm

2

3

Across International Highly Polished Spherical Yttria Stabilized Zirconia Milling Media Features:

  • The industry standard for highly cost-effective, low wear and long lifetime: YSZ is among the most durable, chemically resistant and efficient media for use as a milling/grinding material for ceramic materials, wet grinding, and applications that seek to minimize contamination. Due to its ultra-low wear loss, its operational cost can be lower.
  • High specific gravity, and thus high efficiency, saving processing time.
  • Highly resistant to acids, solvents, mild and moderate bases.
  • Highly polished, smooth, easy to clean, low abrasion to the equipment.
  • High mechanical strength, good toughness, impact resistance, minimizing broken beads
  • Virtually contamination-free character, making it an ideal solution for a variety of applications that demand minimal contamination, including, but not limited to, nano materials, pharmaceutical, food, chemical, battery, ink, toner, dielectric, solar cell, semiconductor, oil & gas, electronics, advanced materials etc.

Media Specifications:

Property

Unit

Specification

Composition

wt%

94.48% ZrO2
5.15% Y2O3

Bulk Density

g/cm

5.95

Rockwell Hardness

HRS

>89

Media Composition:

Chemistry

Composition

ZrO2 (+ HfO2) , wt%,

94.48

Y2O3, wt%,

5.15

TiO2, wt%,

0.25

P, wt%,

<0.035

SiO2, wt%,

0.007

Fe2O3, wt%,

0.0009
