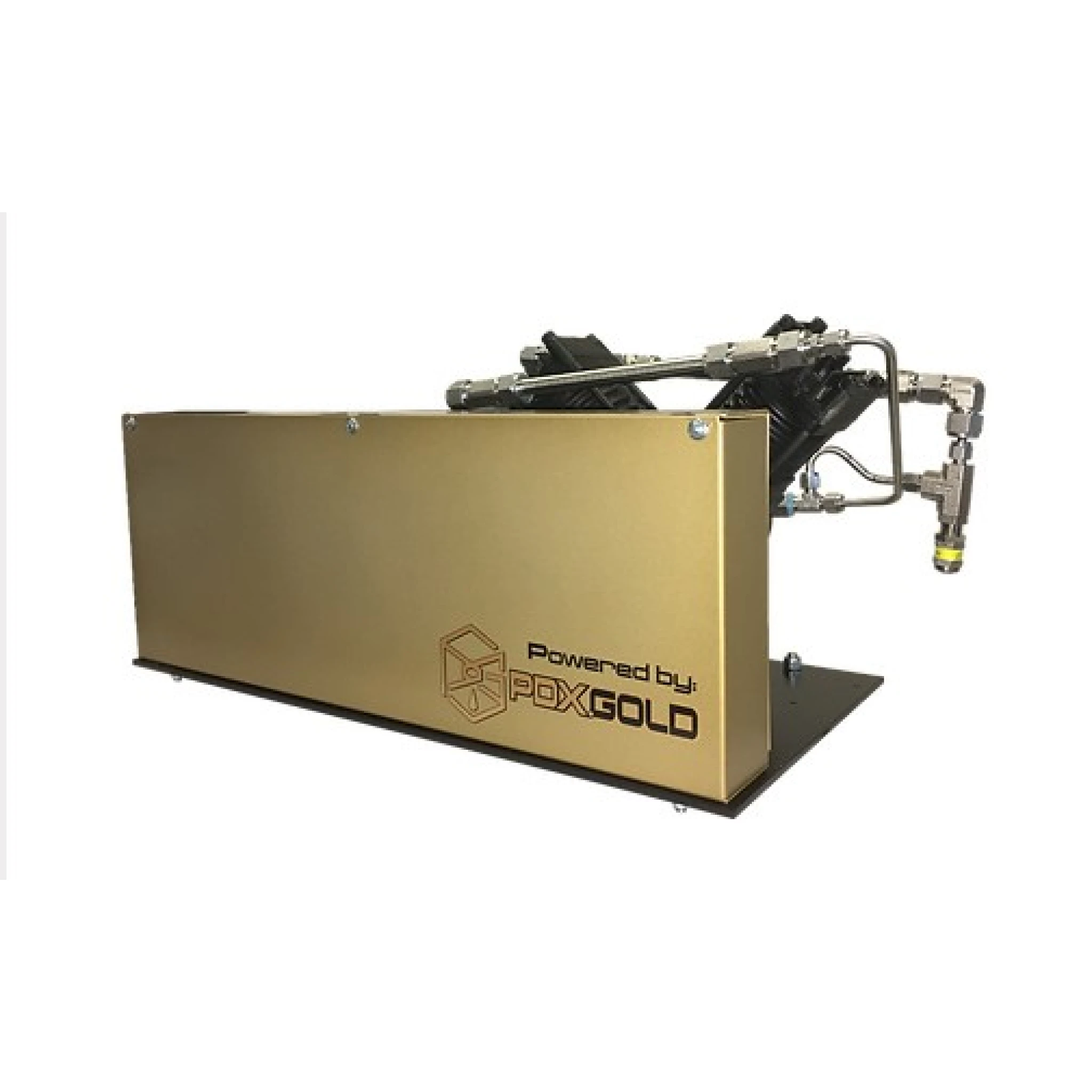

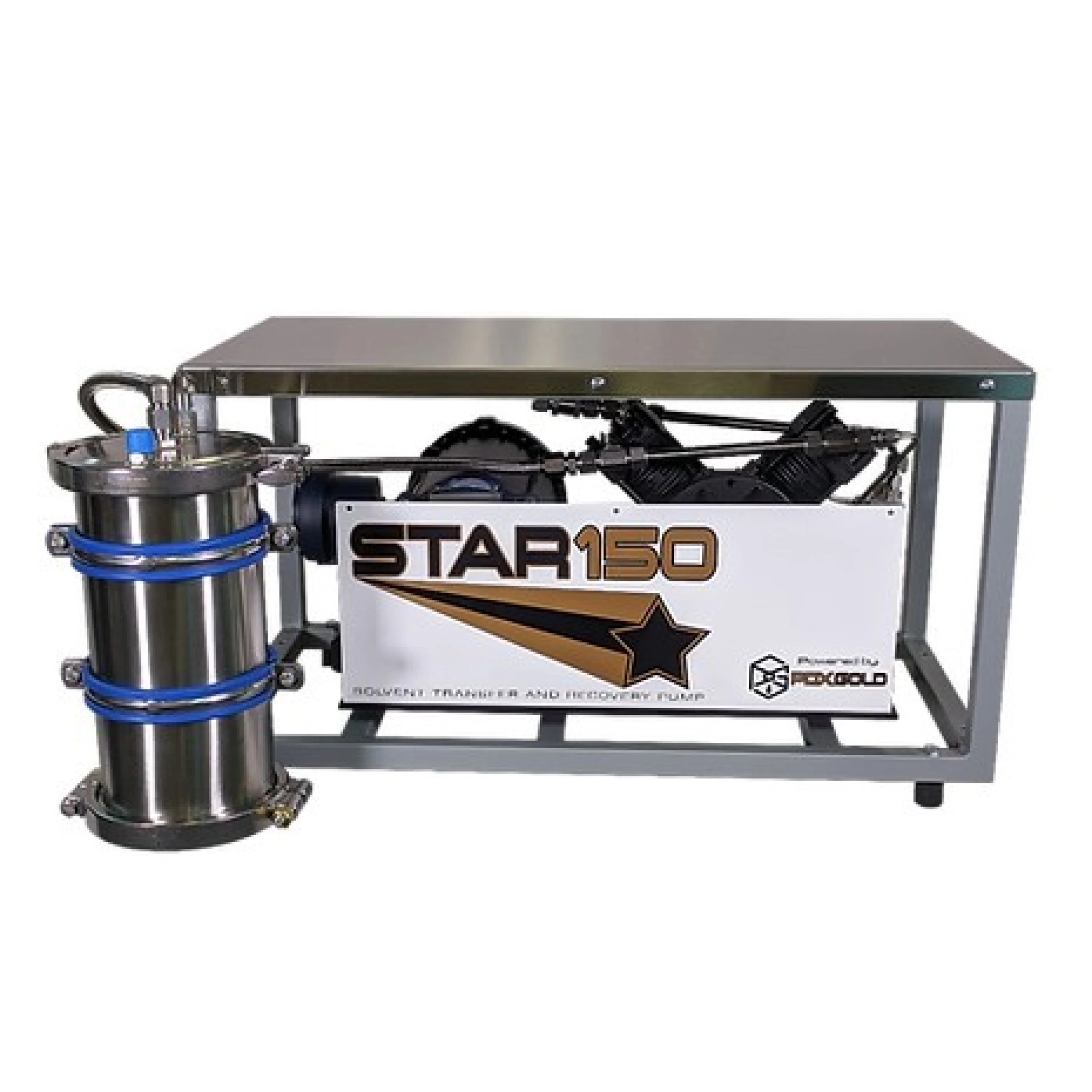

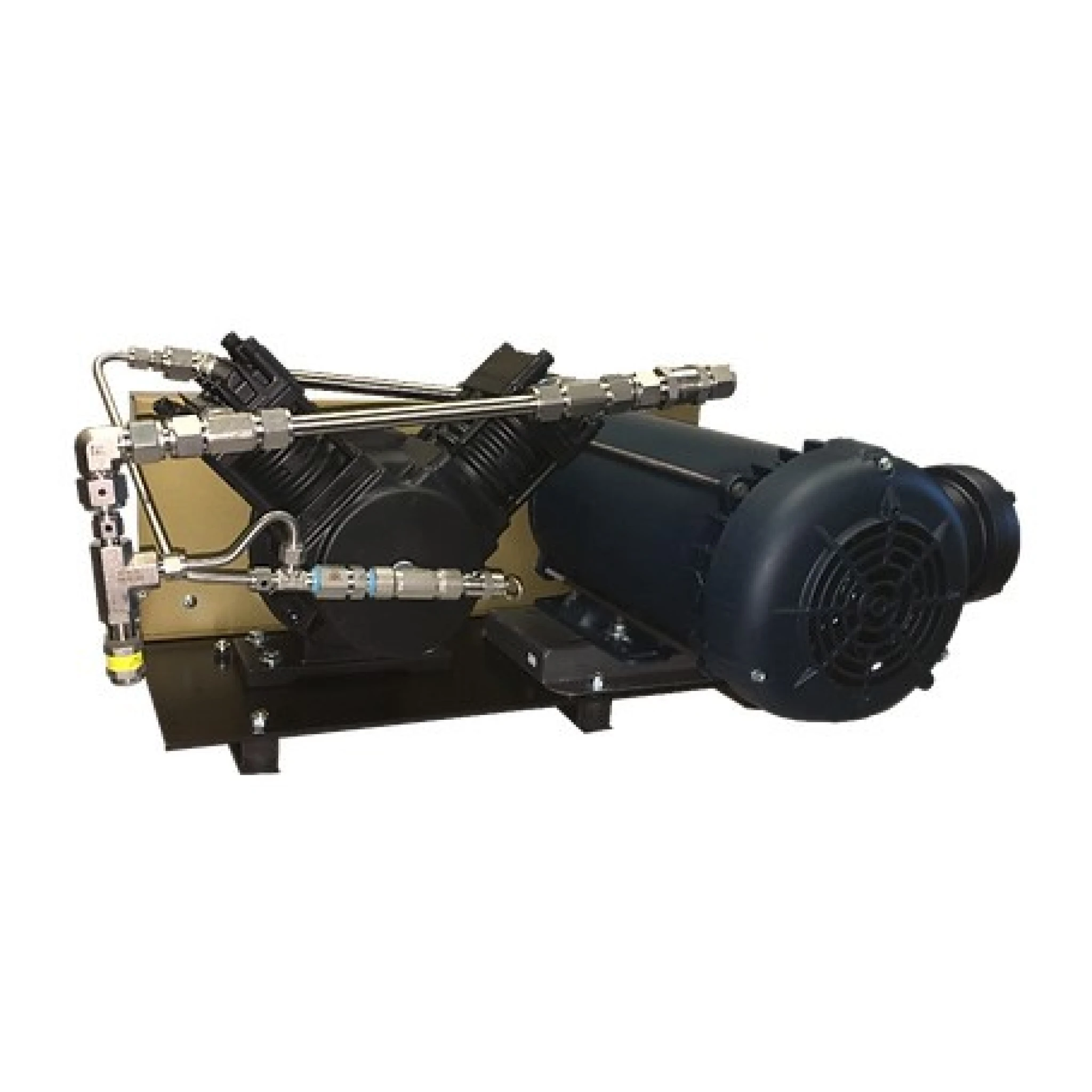

STAR 150 In a Frame PDXGold

PdxGold Star 150G

This powerful system pairs perfectly with the industry’s leading

hydrocarbon extraction systems by decreasing your recovery times and increasing your profits instantly.

Features:

- Hydrocarbon solvent recovery

- Approved for: butane, propane, & blends

- Certified by 3PCertz, licensed professional engineers

- Recovers solvent at pressures up to 150 PSI

- Certified to pressure of 250 PSI

- Displacement: 6.5 CFM free air flow

- Oilless compressor prevents lubricant contamination

- Durable and maintanance free with proper operation

- Recovers 2+ lbs / minute*

- Belt drive - reliable & quiet

- Piston driven compressor

- Input / Output Gauges

- Manufactured & Assembled In the USA

Technical Specs:

- UL & CSA listed, NEMA 7, 2 hp C1D1 explosion proof motor

- Single phase & 3 phase drive available

Voltage:

- 1-Phase 115/208-230v
- 3-Phase 208/230/460v

Free Load Amperage:

- 13.4A (115v) / 6.7A (230v)
- 3.8A (230v) / 1.9A (460v)

- 1750 RPM
- Noise data: quiet at ~78 dBa
- 100% food grade materials
- Inlet / Outlet - 1/2” tube fitting
