3 x STAR-150 + Hardware Kit PDXGold

3x Star 150

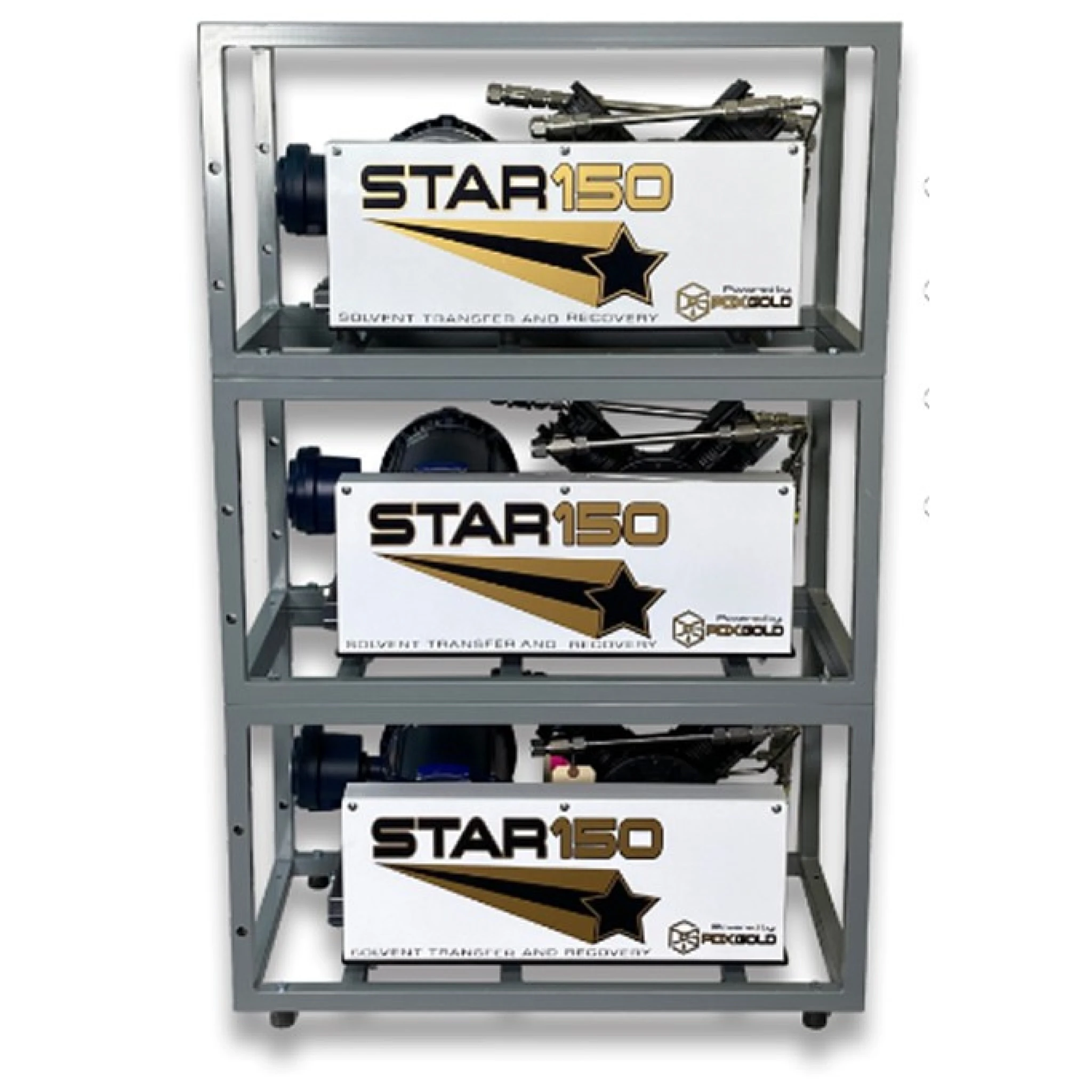

The 3x STAR1050's in a frame Solvent Transfer And Recovery pump is the latest technology from PD Gold, is scalable and selectable. You have the option to run one, two or all three systems simultaneously depending on your changing needs.This powerful system pairs perfectly with the industry’s leading hydrocarbon extraction systems by decreasing your recovery times and increasing your profits instantly.

Features:

- Hydrocarbon solvent recovery

- Approved for: butane, propane, & blends

- Certified by 3PCertz, licensed professional engineers

- Recovers solvent at pressures up to 150 PSI

- Certified to pressure of 250 PSI

- Displacement: 6.5 CFM free air flow

- Oilless compressor prevents lubricant contamination

- Durable and maintanance free with proper operation

- Recovers 6+ lbs /minute*

- Belt drive - reliable & quiet

- Piston driven compressor

- Input / Output Gauges

- Manufactured & Assembled In the USA

Technical Specs:

- UL & CSA listed, NEMA 7, 2 hp C1D1 explosion proof motor x3

- Single phase & 3 phase drive available

Voltage:

- 1-Phase 115/208-230v
- 3-Phase 208/230/460v

Free Load Amperage Per Pump:

- 13.4A (115v) / 6.7A (230v)
- 3.8A (230v) / 1.9A (460v)

- 1750 RPM
- Noise data: quiet at ~78 dBa
- 100% food grade materials
- Inlet / Outlet - 1/2” tube fitting
