150L Dual Jacketed Stainless Steel Solvent Tank (DJT-150) - Science King
Reference:
Manufacturer: Science King
- Capacity: 150 L
- Material: SUS304 (4 mm, 3 mm, 1.5 mm)
- Dual jacketed with foamed layer
- For storage, pre-chilling and winterization
In stock
Customize your product
Payment Providers
A dual jacketed stainless steel solvent tank with a foamed insulation layer, for solvent storage, pre-chilling and winterization. Available in SUS304 and SUS316.

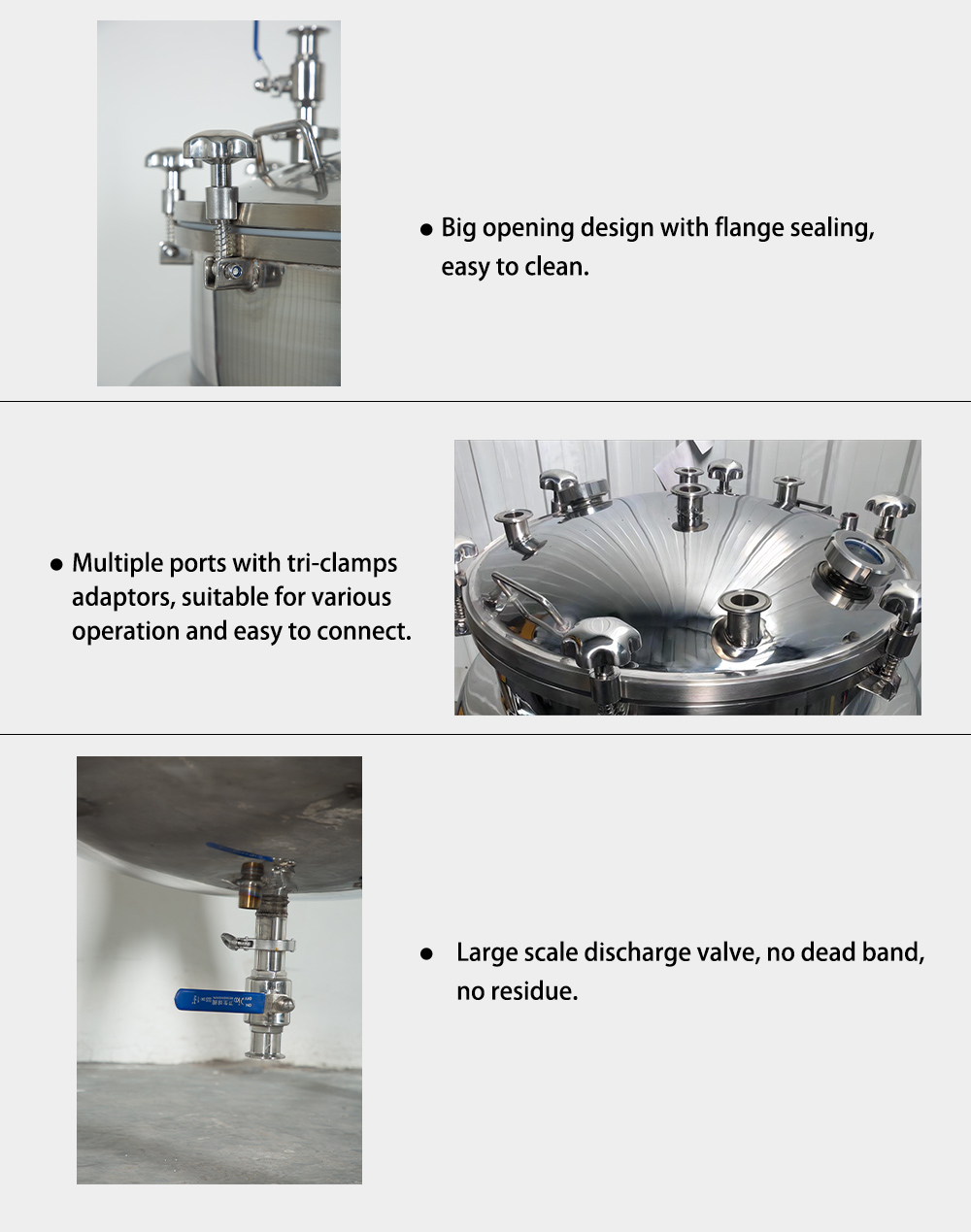

- Big opening design with flange sealing, easy to clean

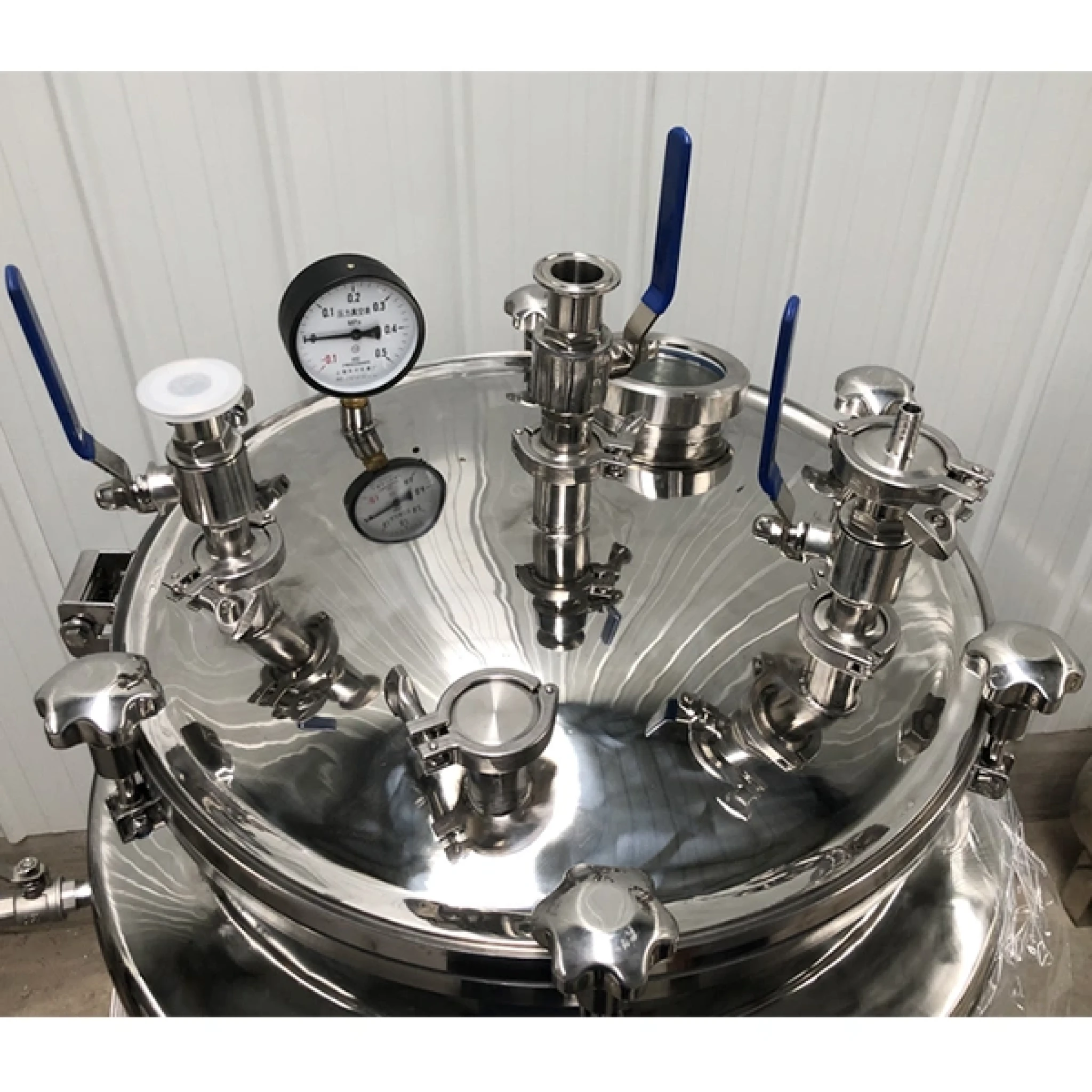

- Multiple ports with tri-clamp adaptors, suitable for various operations and easy to connect
- Large scale discharge valve, no dead band, no residue
The DJT-150 is a 150 L stainless steel tank with two layers around the vessel: a jacket that coolant can flow through, and a foamed insulation layer outside it. Connect a chiller to the jacket and the tank pulls solvent down to temperature, then the insulation helps hold it there.
That makes it useful as a staging tank in an extraction workflow. Solvent can be pre-chilled before it goes into the extractor, or an extract solution can be held cold for winterization so fats and waxes drop out before filtering.
The tri-clamp ports let you plumb it straight into existing lines, filters and pumps, and the wide flanged opening makes it simple to reach inside for cleaning between batches.
| Model | DJT-150L |
| Capacity | 150 L |
| Thickness of inner layer | 4 mm |
| Thickness of middle layer | 3 mm |
| Thickness of outer layer | 1.5 mm |
| Thickness of jacket | 2.5 mm |
| Thickness of foam layer | 5 mm |
| Vacuum port | 1/4" barb valve |
| Discharge valve | 1" |
| Inlet and outlet valve | DN20 |
| Material | SS304 |
Also available in 250 L, 300 L, 500 L and 1000 L. Contact us for a quote.
