300L Dual Jacketed Stainless Steel Solvent Tank with Stirrer (DJT-300) - Science King
Reference:
Manufacturer: Science King
- Capacity: 300 L
- Material: SUS304 (4 mm, 3 mm, 1.5 mm)
- Stirring speed 100 RPM, 750 W motor
- Dual jacketed with foamed layer
In stock
Customize your product
Payment Providers
A dual jacketed stainless steel solvent tank with a foamed insulation layer, for solvent storage, pre-chilling and winterization. Available in SUS304 and SUS316.
- Big opening design with flange sealing, easy to clean

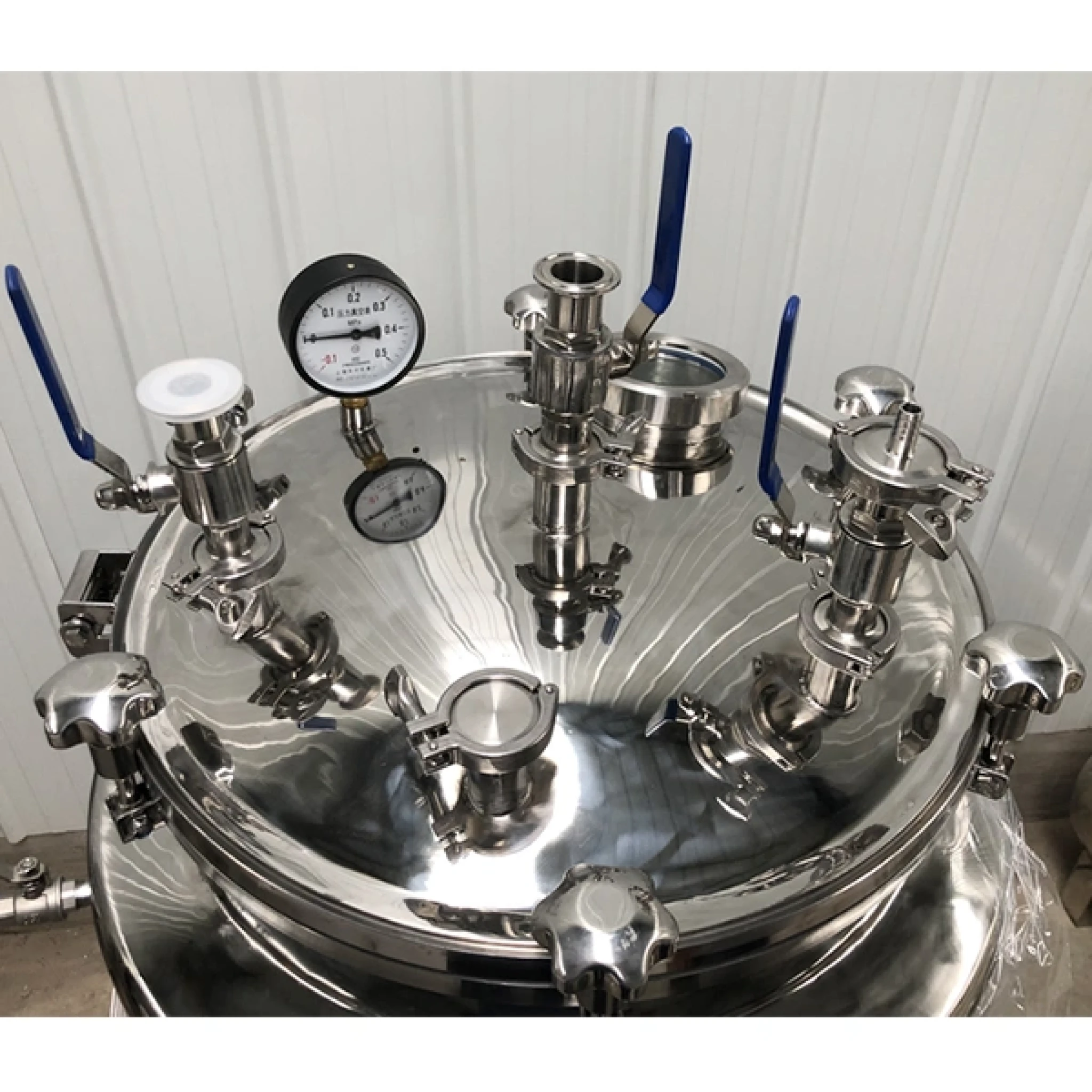

- Multiple ports with tri-clamp adaptors, suitable for various operations and easy to connect
- Large scale discharge valve, no dead band, no residue

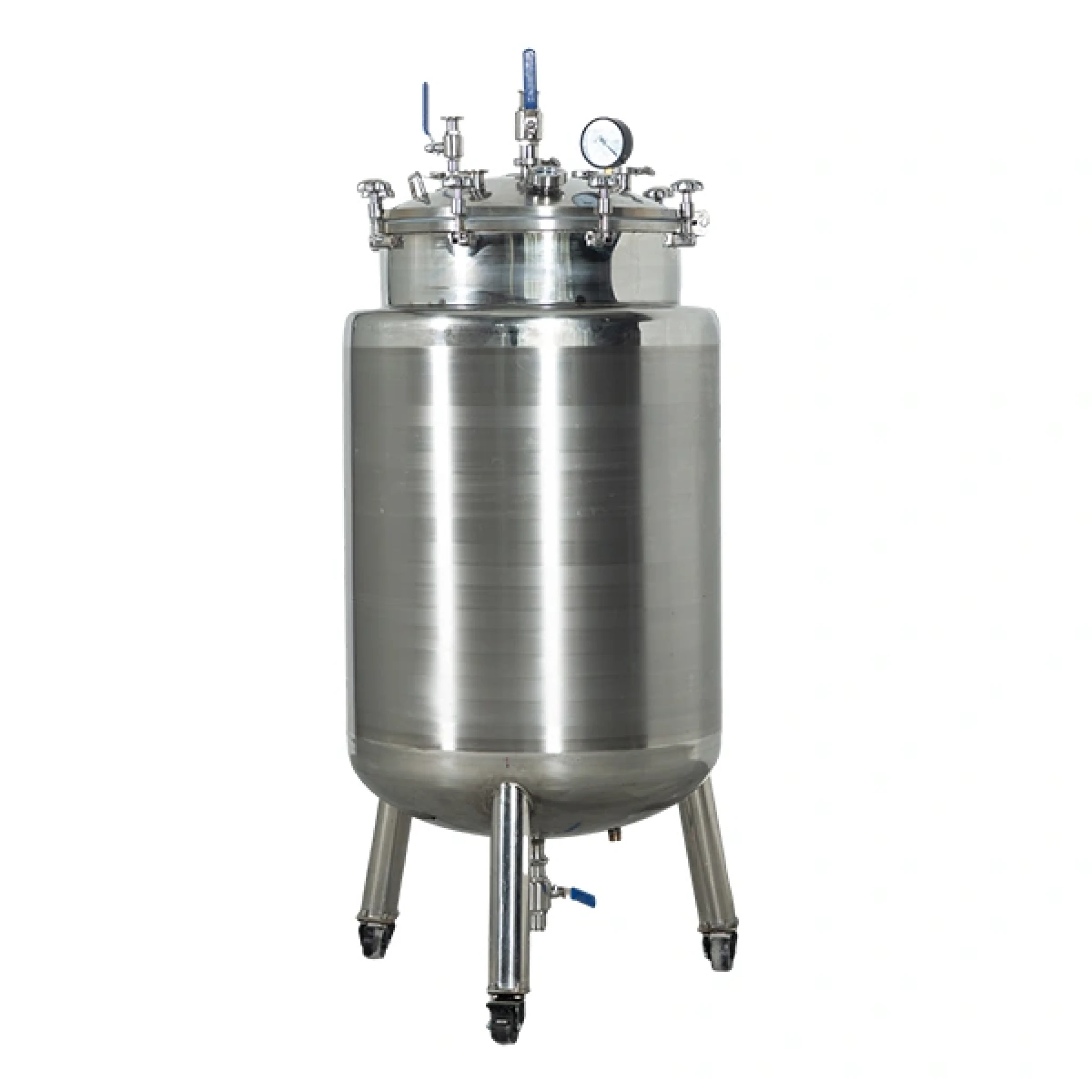

The DJT-300 is a 300 L stainless steel solvent tank with a built-in stirrer. Coolant from a chiller flows through its jacket, and a foamed insulation layer outside the jacket holds the cold, so a large volume of solvent or solution can be chilled and kept cold.
The stirrer is what sets it apart from a plain tank. Driven by a 750 W motor at 100 RPM, it keeps the liquid moving against the chilled wall, so the whole batch cools evenly instead of only at the edges. That helps with pre-chilling solvent and with winterization, where an extract solution is held cold so fats and waxes can separate out before filtering.
It runs on 220V single phase, with 3 phase available on request.
| Model | DJT-300L |
| Capacity | 300 L |
| Stirring speed | 100 RPM |
| Motor power | 750 W |
| Voltage | 220 V single phase |
| Thickness of inner layer | 4 mm |
| Thickness of middle layer | 3 mm |
| Thickness of outer layer | 1.5 mm |
| Thickness of jacket | 2.5 mm |
| Thickness of foam layer | 5 mm |
| Vacuum port | 1/4" barb valve |
| Discharge valve | 1" |
| Inlet and outlet valve | DN20 |
| Material | SS304 |
| Power supply | 220V single phase (3 phase available on request) |

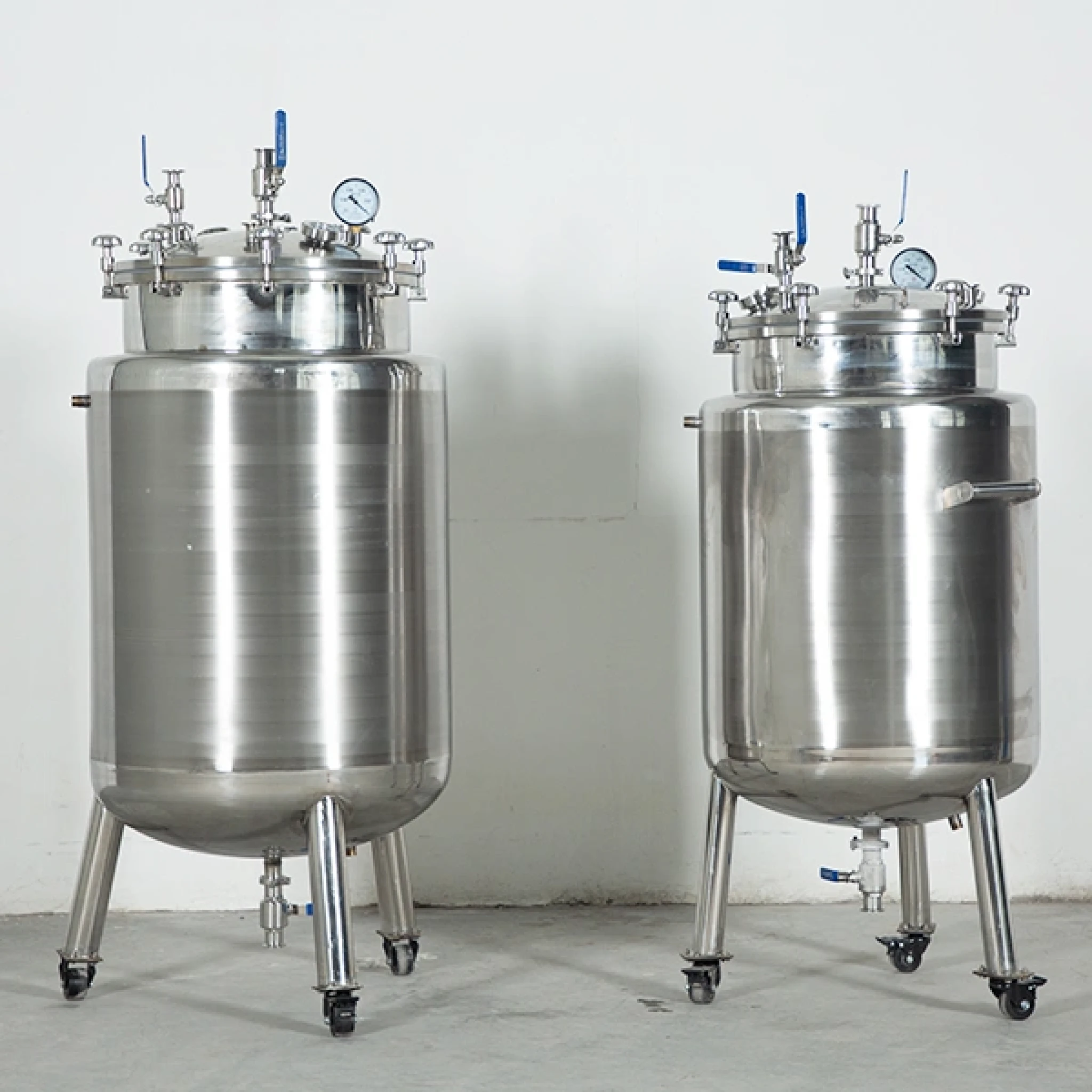

Also available in 150 L, 250 L, 500 L and 1000 L. Contact us for a quote.
