Binder LIT MK 720 Battery Testing Chamber
Reference:
Manufacturer: Binder
The BINDER MK series chamber is suitable for all heat and cold tests between -40 °C and 110 °C. The MK is a clever alternative to complex individual solutions for cyclical temperature tests.
Power: European 400 V / 50 Hz three-phase supply. Contact us for North American power options.
In stock
Benefits

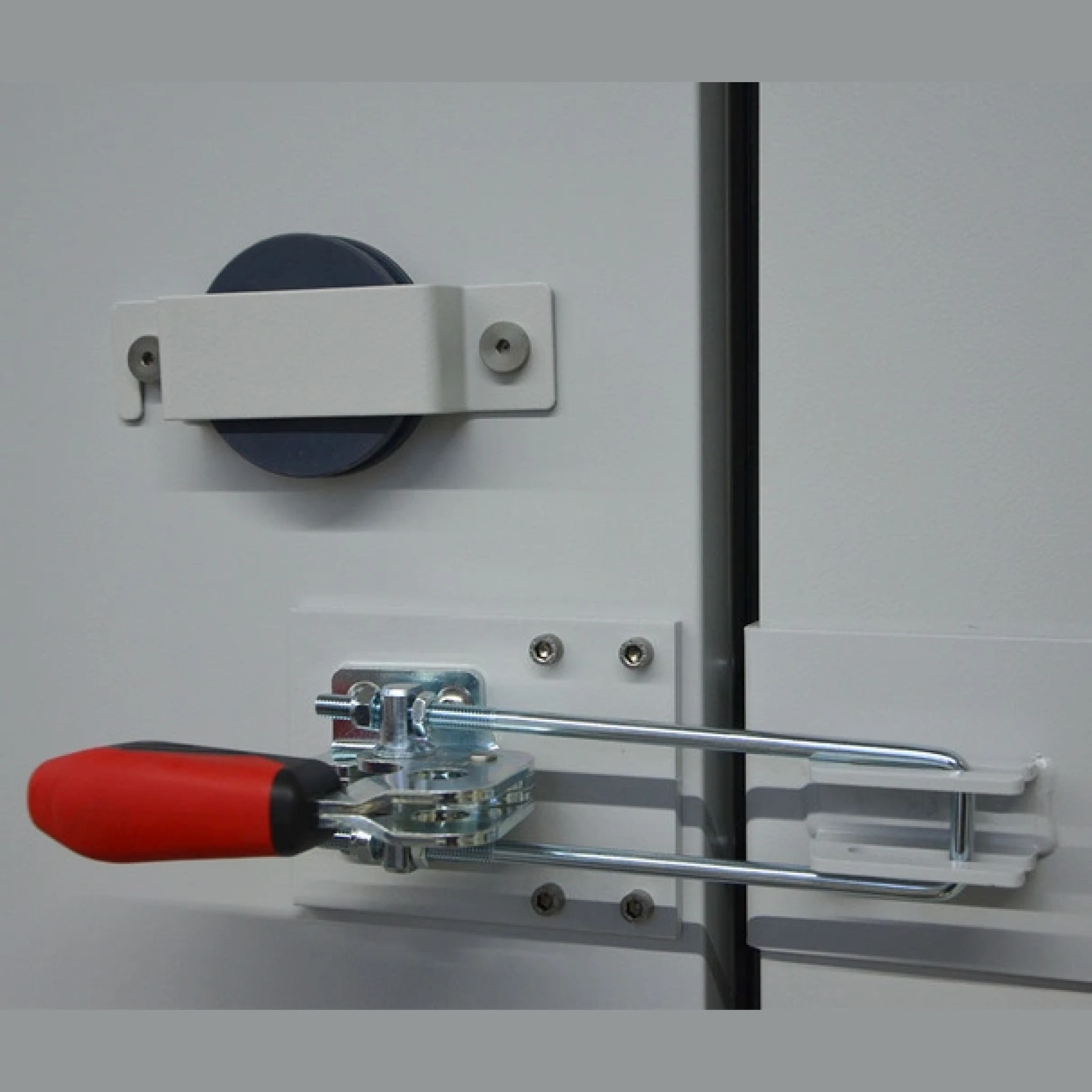

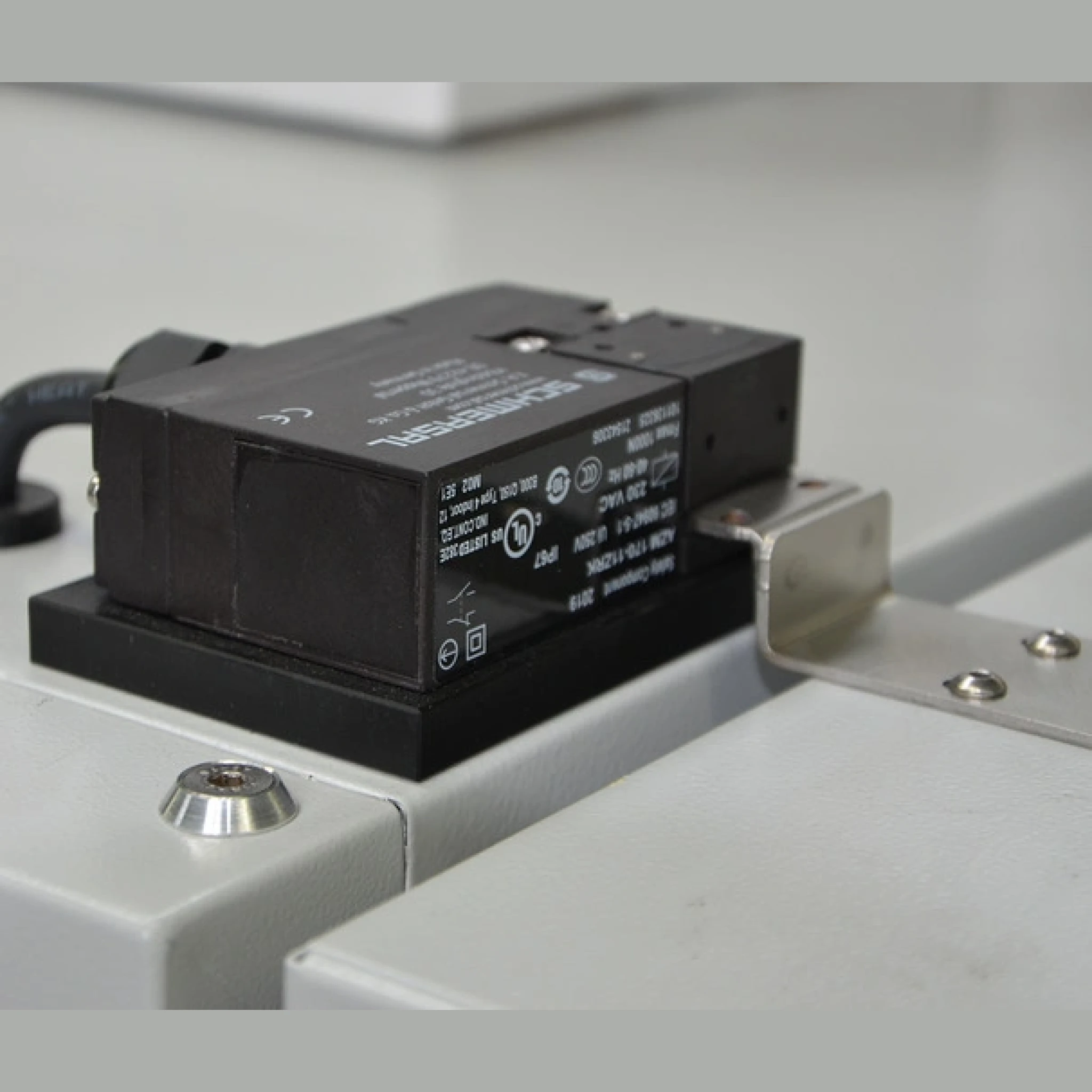

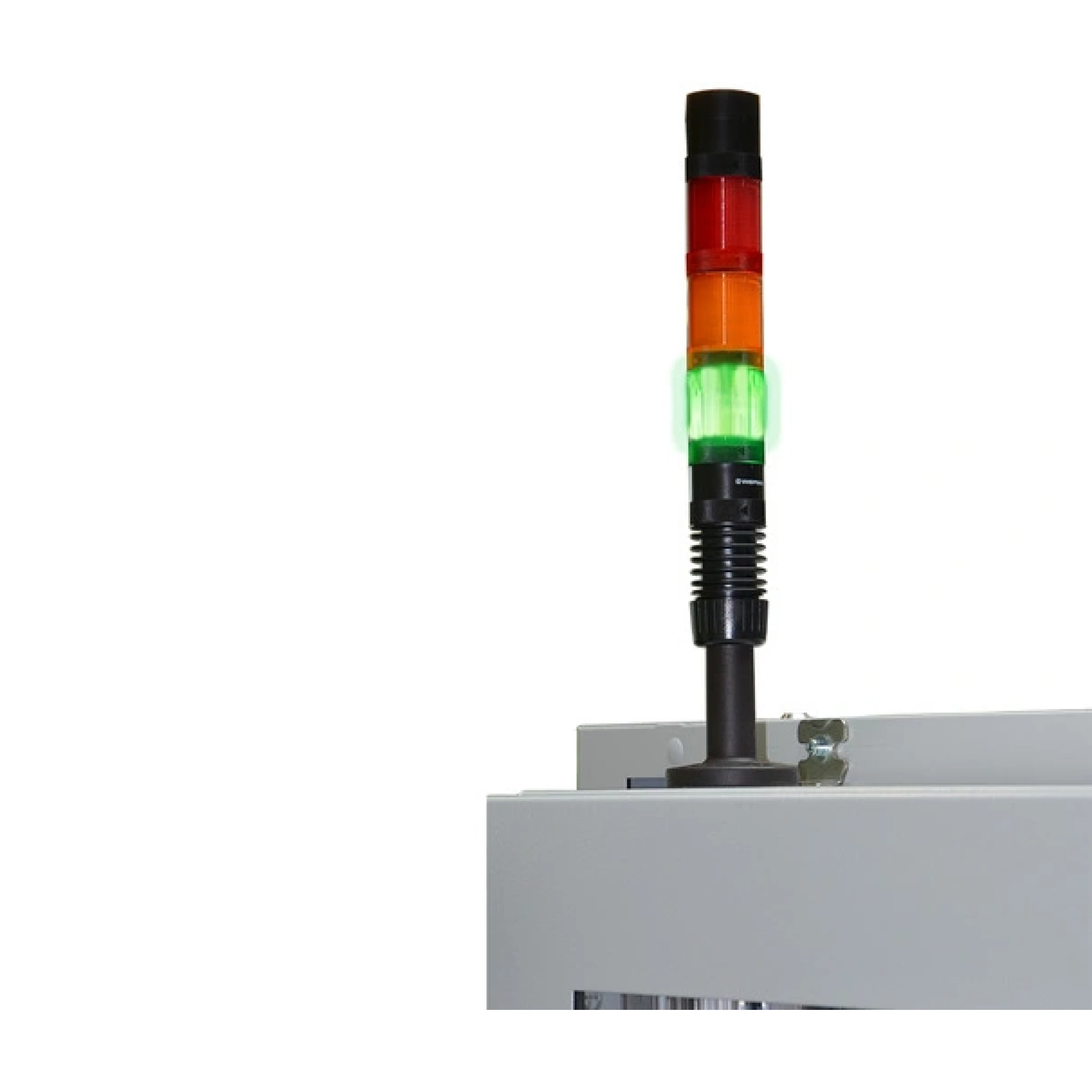

- Safety thanks to extensive protective measures
- Homogeneous climate conditions thanks to APT.Line tm preheating chamber
- Extensive programming and data collection

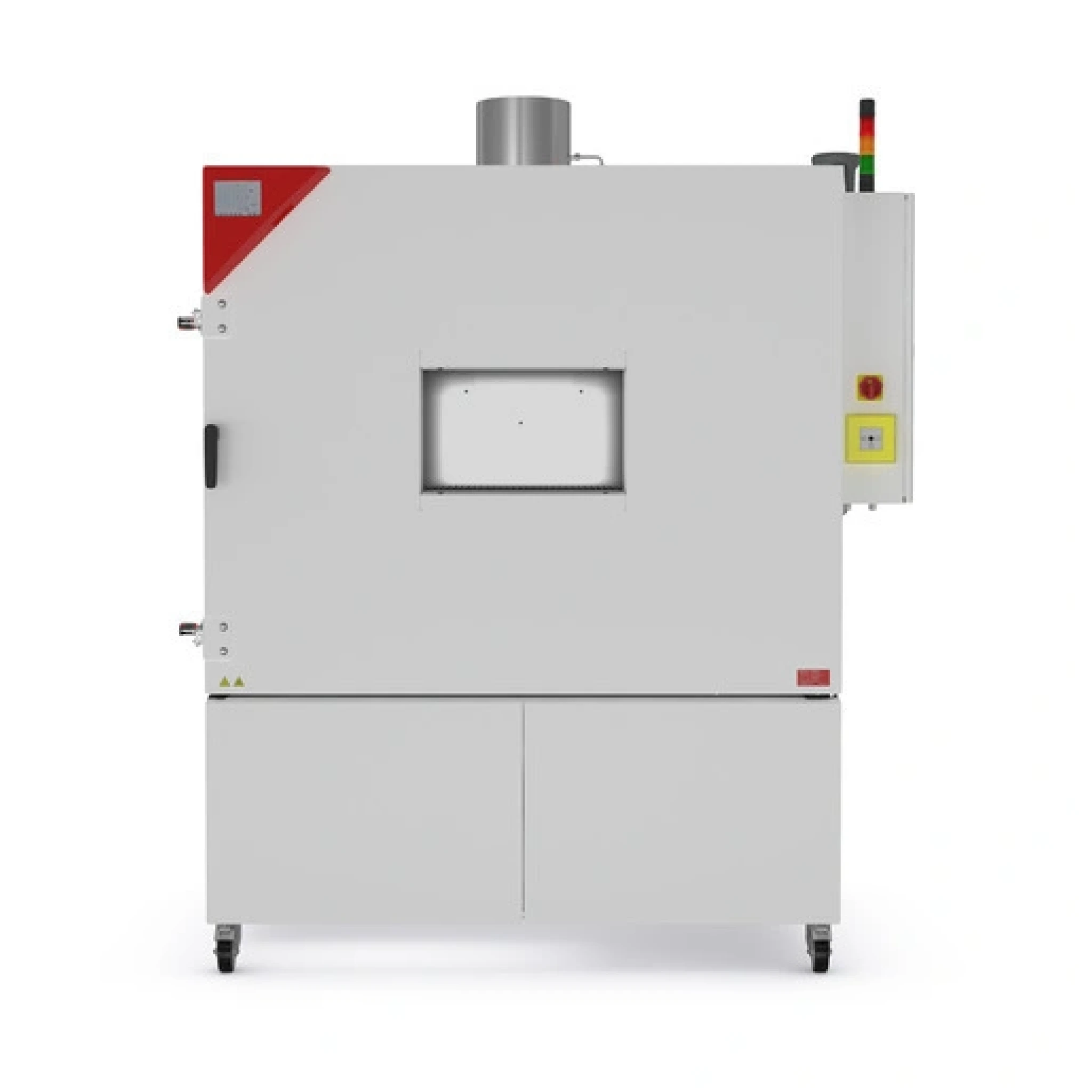

- Excellent overview of the test object thanks to a large heated viewing window

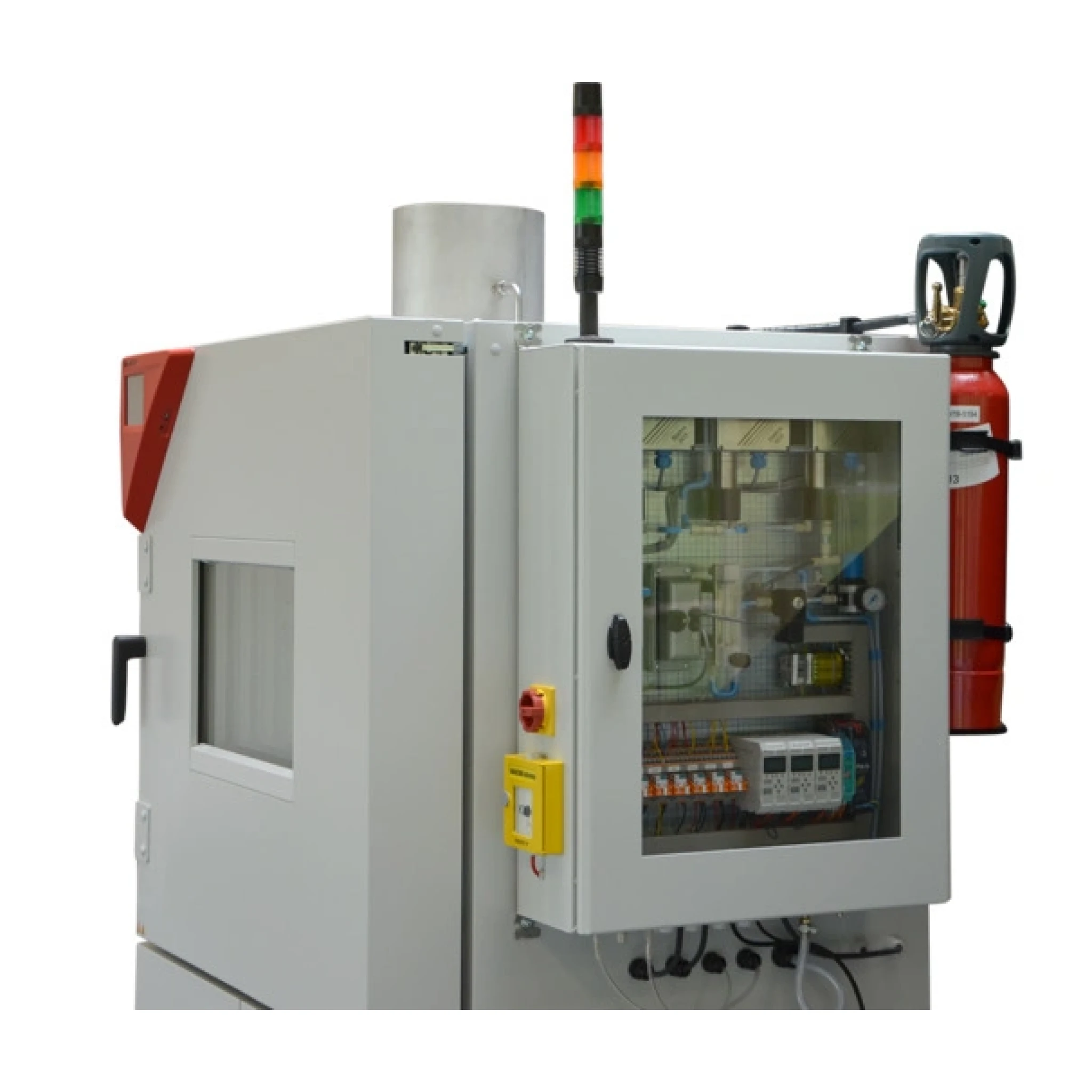

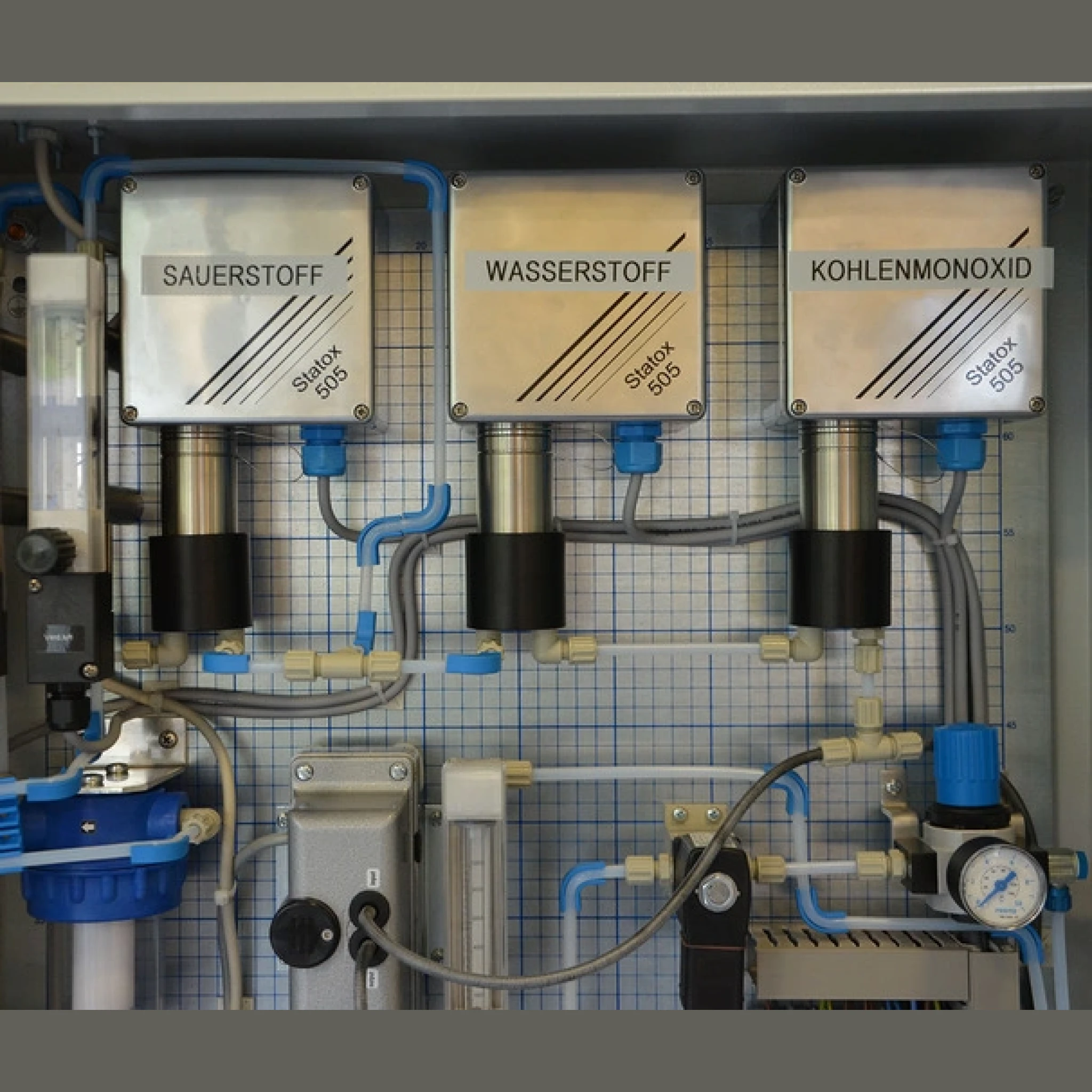

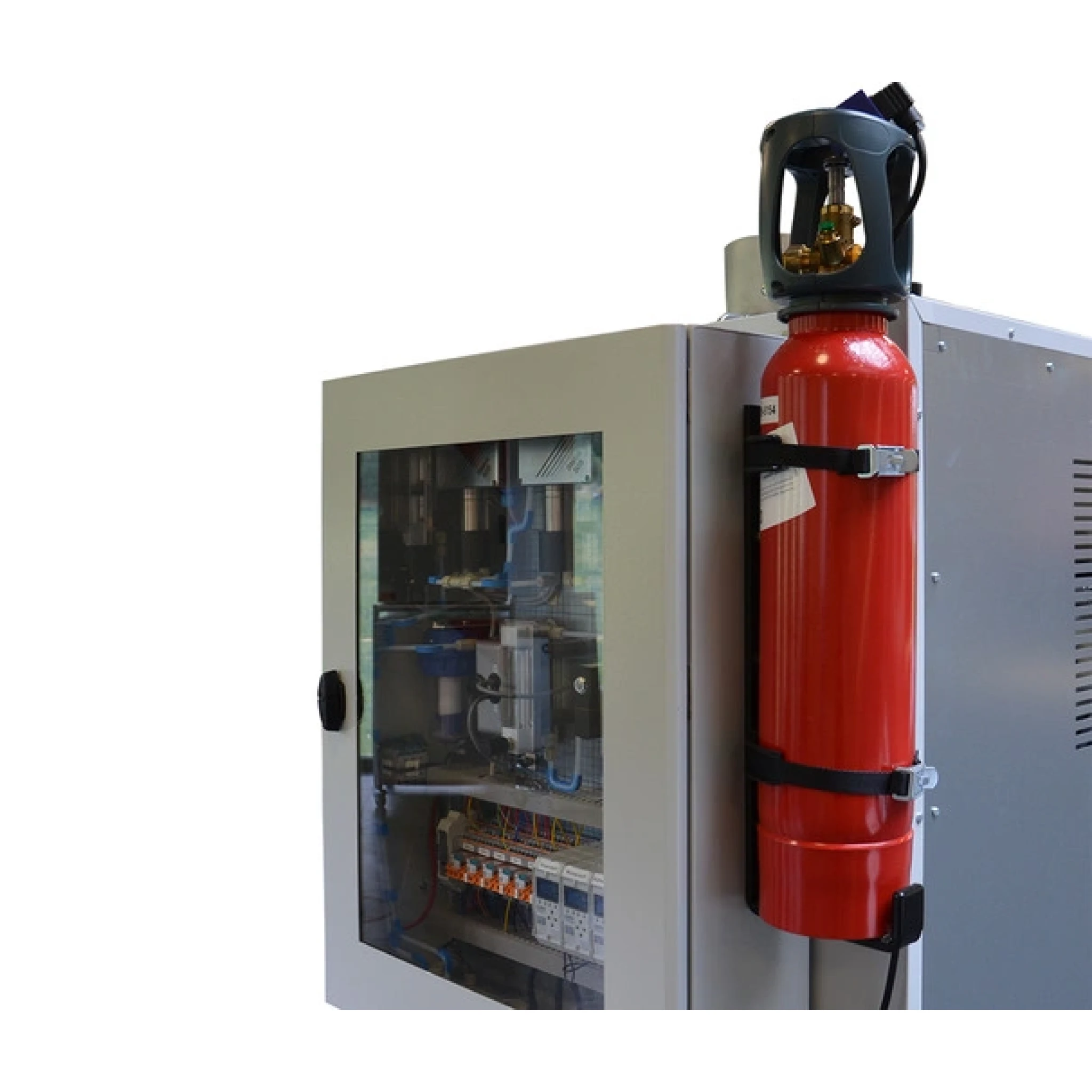

The LIT MK 720 is the larger chamber in the LIT MK battery test series, for lithium-ion cells and modules that need aging, performance and stress tests. Like the rest of the series it comes with detection and fire suppression equipment as standard, and it is confirmed suitable for EUCAR level 6.

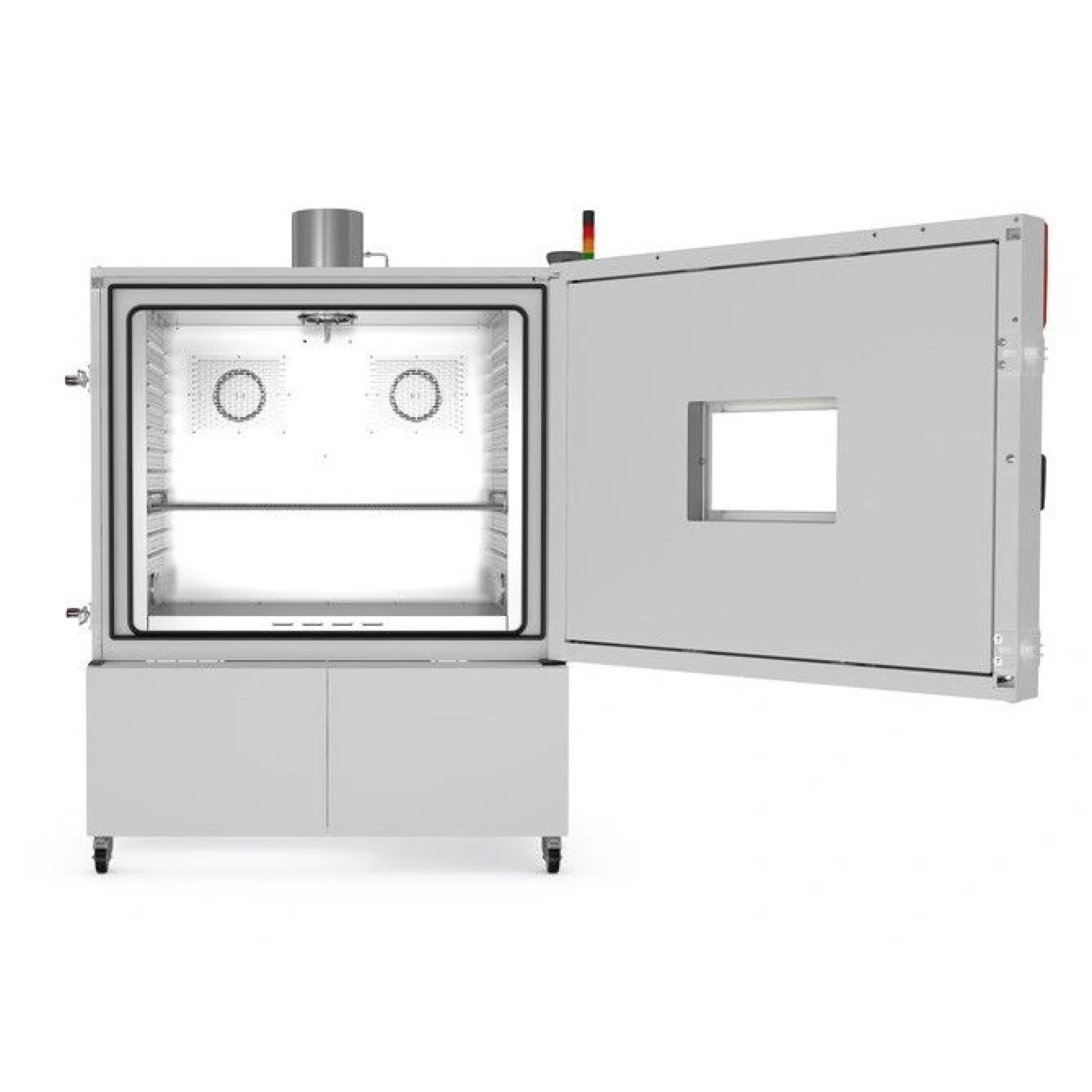

Its 25.92 cu.ft interior takes up to 352.74 lbs of test items. It runs from -40 to 110 °C, cools from 110°C to -40°C in 100 min and heats at an average of 4 K/min. Plan for a 400 V three-phase, 50 Hz supply with a 16 A fuse, and floor space for a unit that weighs 1287.50 lbs empty.
Power: European 400 V / 50 Hz three-phase supply. Contact us for North American power options.
| Designation | LITMK720-400V |
| Temperature range | -40...110 °C |
| Temperature uniformity dependent on set value | 0.3...2 ± K |
| Temperature fluctuation dependent on set value | 0.1...0.5 ± K |
| Average heating-up rate according to IEC 60068-3-5 | 4 K/min |
| Cooling down time from 110°C to -40°C | 100 min |
| Average cooling down time according to IEC 60068-3-5 | 3.4 K/min |
| Designation | LITMK720-400V |
| Rated Voltage | 400 V |
| Power frequency | 50 Hz |
| Nominal power | 8,7 kW |
| Unit fuse | 16 A |
| Phase (Nominal voltage) | 3~ |
| Designation | LITMK720-400V |
| Interior volume | 25.92 cu.ft |
| Net weight of the unit (empty) | 1287.50 lbs |
| Load per rack | 88.18 lbs |
| Permitted load | 352.74 lbs |
| Viewing window width | 20.00 inch |
| Viewing window height | 11.81 inch |
| Wall clearance back | 11.81 inch |
| Wall clearance sidewise | 7.87 inch |

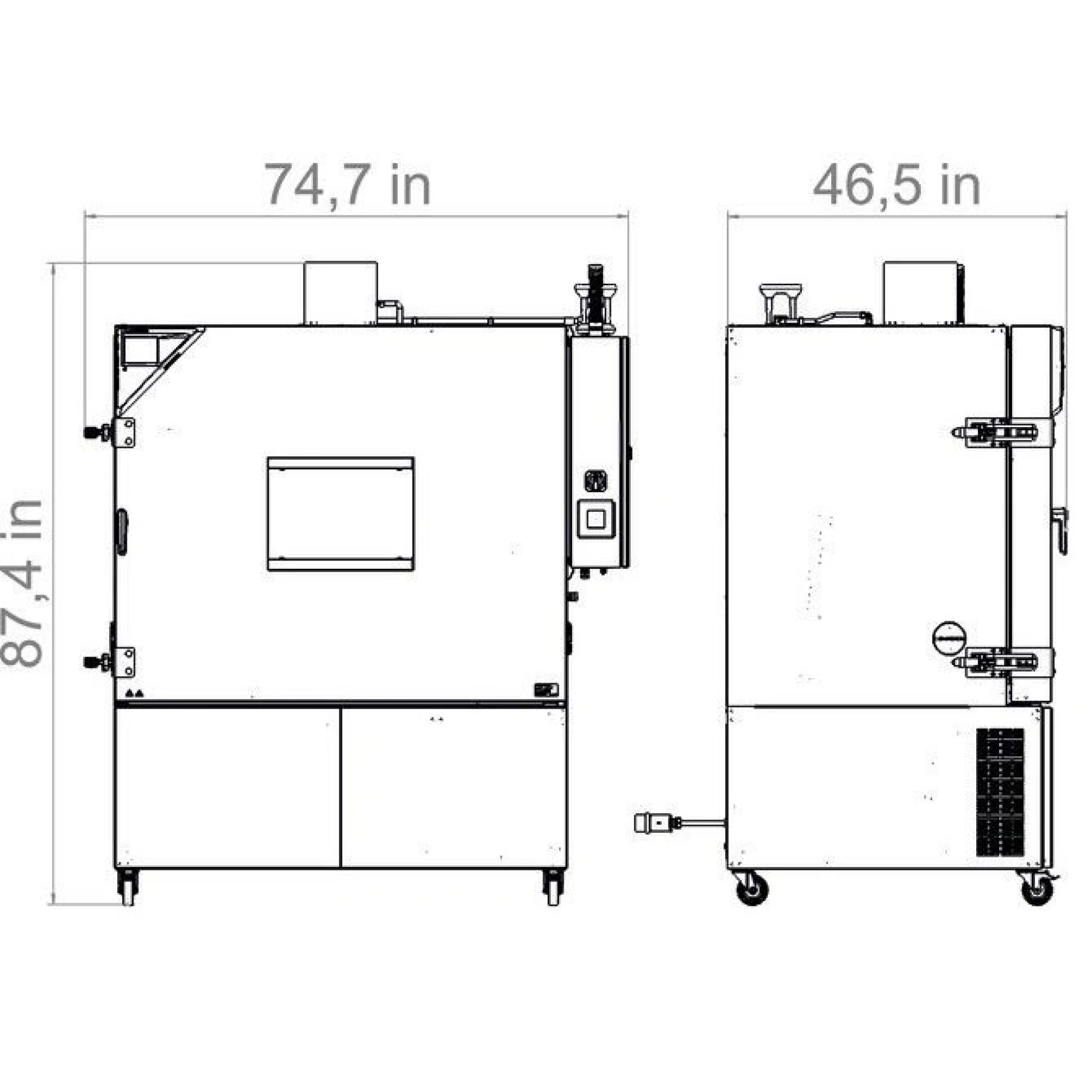

| Designation | LITMK720-400V |
| Width net | 70.63 inch |
| Height net | 78.94 inch |
| Depth net | 46.69 inch |
| Designation | LITMK720-400V |
| Interior width | 47.24 inch |
| Interior height | 40.16 inch |
| Interior depth | 23.62 inch |
| Unit doors | 1 |
| Designation | LITMK720-400V |
| Sound-pressure level | 65 dB(A) |
| Energy consumption at 20°C | 1900 Wh/h |
