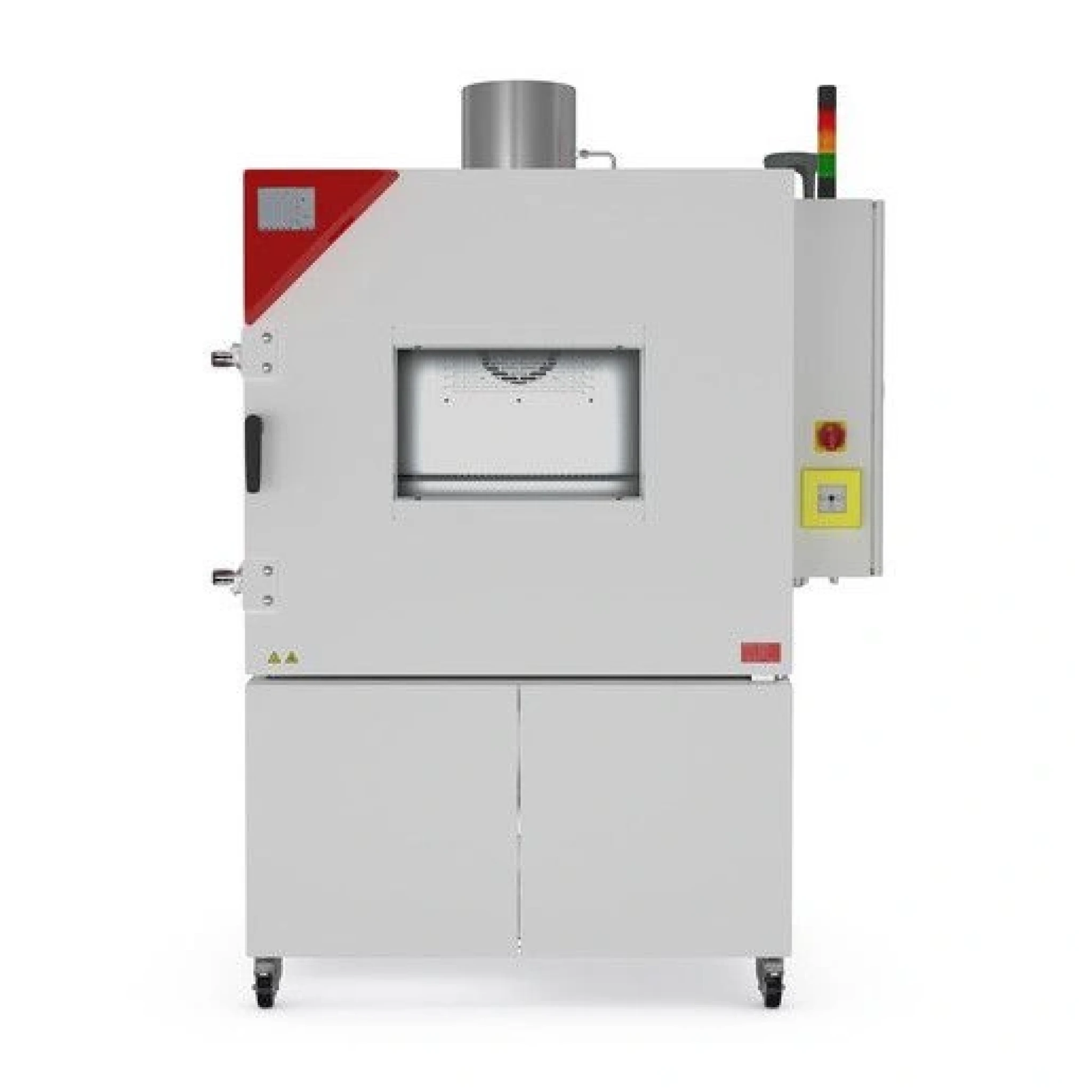

Binder LIT MK 240 Battery Testing Chamber
Reference:
Manufacturer: Binder

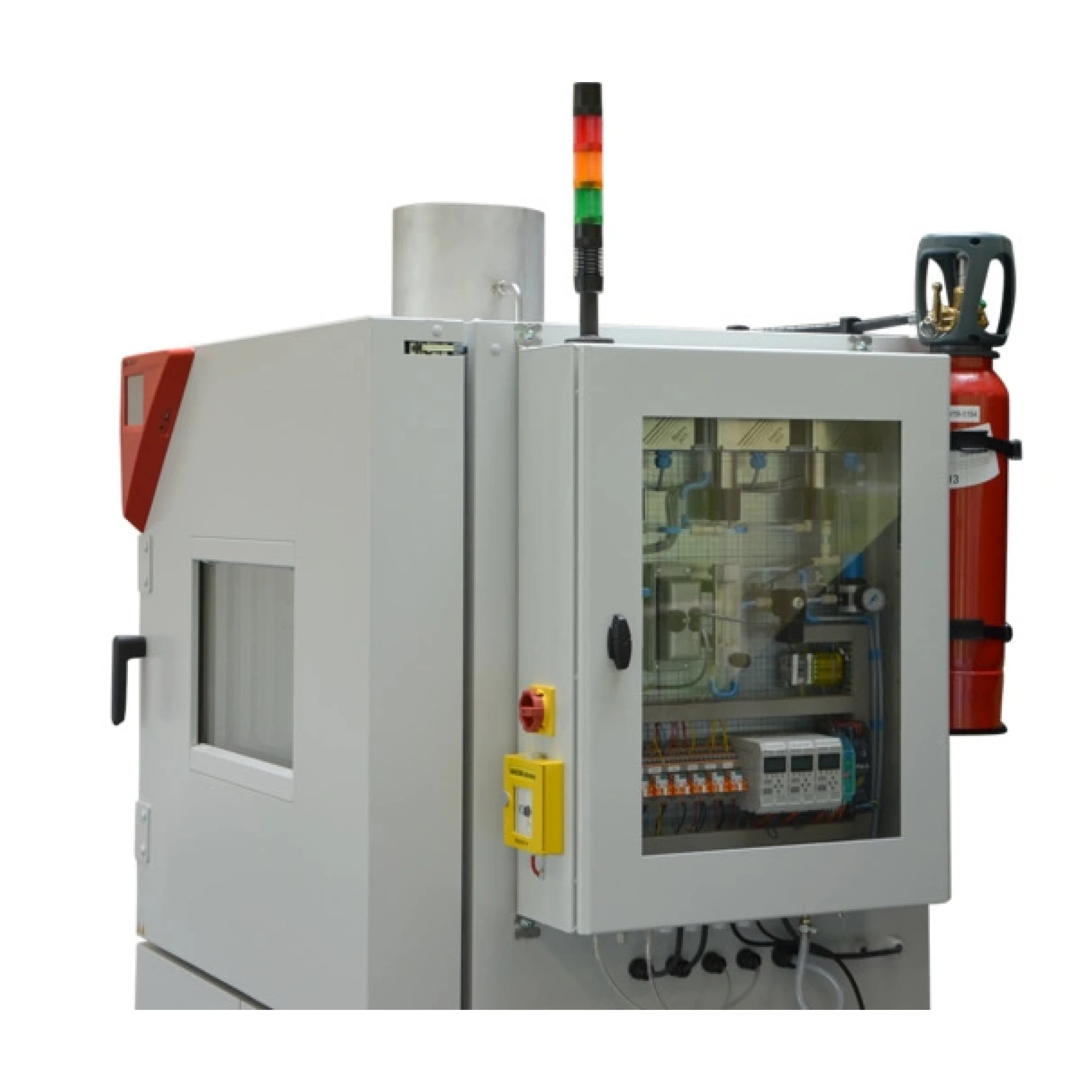

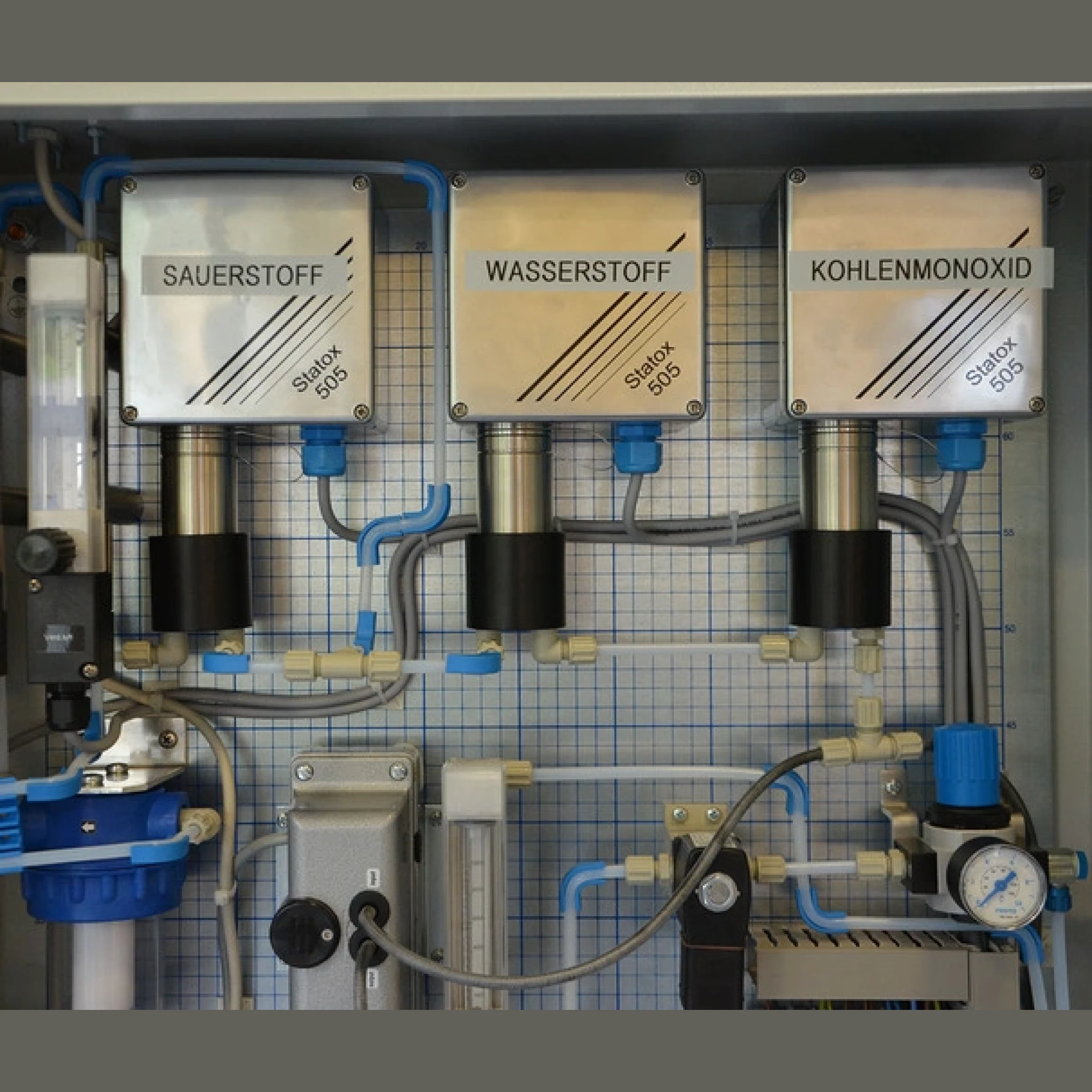

Battery test chambers from BINDER are ideal for aging, performance, and stress testing in quality assurance and battery production. To ensure maximum safety, all the chambers in the LIT MK series are fitted with detection and fire suppression equipment as standard. TÜV SÜD AG has recently confirmed that the LIT MK 240 and LIT MK 720 battery test chambers are suitable for EUCAR LEVEL 6.
Power: European 400 V / 50 Hz three-phase supply. Contact us for North American power options.
In stock
Benefits
- Safety thanks to extensive protective measures
- Homogeneous climate conditions thanks to APT.Line tm preheating chamber
- Extensive programming and data collection
- Excellent over view of the test object thanks to large heated viewing window
The LIT MK 240 is a temperature test chamber built for lithium-ion cells and small modules. It cycles them between -40 and 110 °C to check how they age, perform and hold up under stress, with the detection and fire suppression equipment needed for this kind of testing fitted as standard.

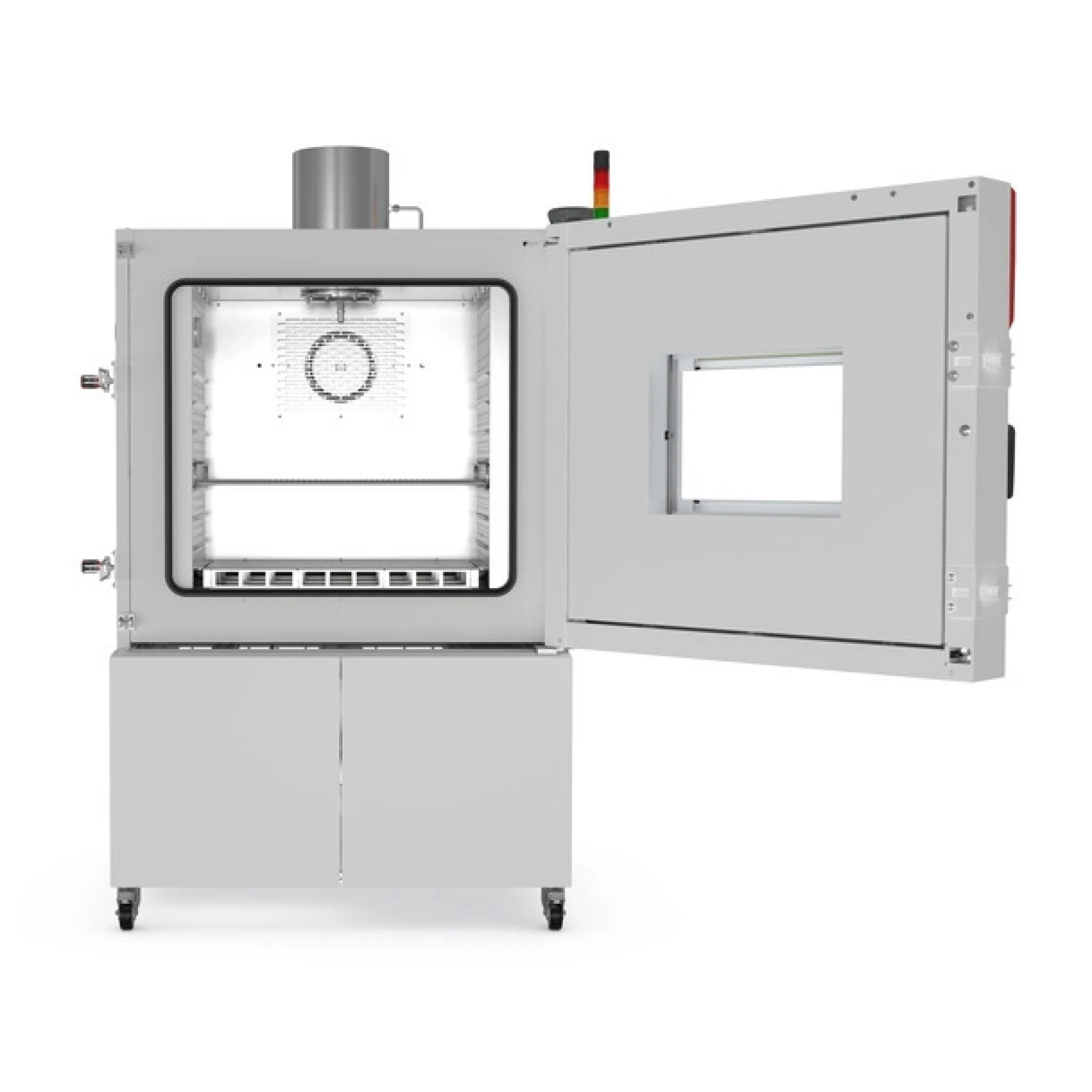

The 228 L interior takes up to 70 kg of test items, 30 kg per rack. It heats at an average of 5 K/min and cools from 110°C to -40°C in 160 min, so long cycling programs run in reasonable time. It needs a 400 V three-phase, 50 Hz supply with a 16 A fuse; check your building power before ordering.
Power: European 400 V / 50 Hz three-phase supply. Contact us for North American power options.
| Designation | LITMK240-400V |
| Temperature range | -40...110 °C |
| Temperature uniformity dependent on set value | 0.1...0.5 ± K |
| Temperature fluctuation dependent on set value | 0.1...0.5 ± K |
| Average heating-up rate according to IEC 60068-3-5 | 5 K/min |
| Cooling down time from 110°C to -40°C | 160 min |
| Average cooling down time according to IEC 60068-3-5 | 3.5 K/min |
| Designation | LITMK240-400V |
| Rated Voltage | 400 V |
| Power frequency | 50 Hz |
| Nominal power | 5.6 kW |
| Unit fuse | 16 A |
| Phase (Nominal voltage) | 3~ |
| Designation | LITMK240-400V |
| Interior volume | 228 L |
| Net weight of the unit (empty) | 375 kg |
| Load per rack | 30 kg |
| Permitted load | 70 kg |
| Viewing window width | 508 mm |
| Viewing window height | 300 mm |
| Wall clearance back | 300 mm |
| Wall clearance sidewise | 200 mm |
| Designation | LITMK240-400V |

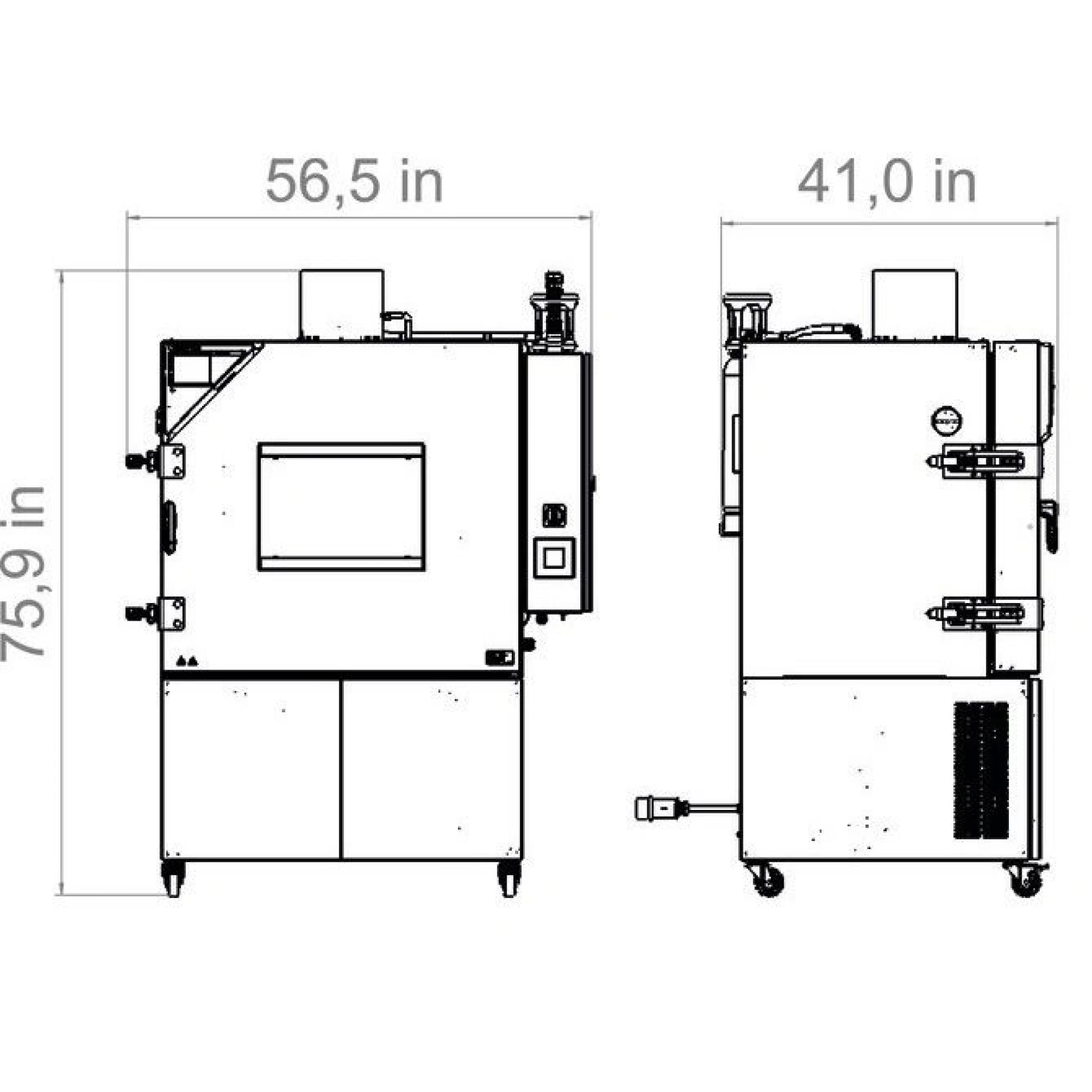

| Width net | 1335 mm |
| Height net | 1929 mm |
| Depth net | 925 mm |
| Designation | LITMK240-400V |
| Interior width | 735 mm |
| Interior height | 700 mm |
| Interior depth | 443 mm |
| Unit doors | 1 |
| Designation | LITMK240-400V |
| Sound-pressure level | 62 dB(A) |
| Energy consumption at 20°C | 1300 Wh/h |
