  4. 4" High Pressure Tri-Clamp Clamp
Sale!

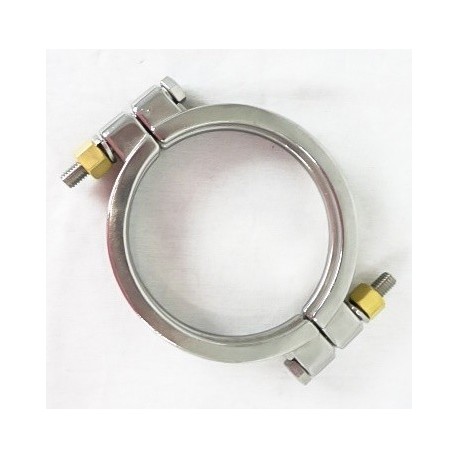

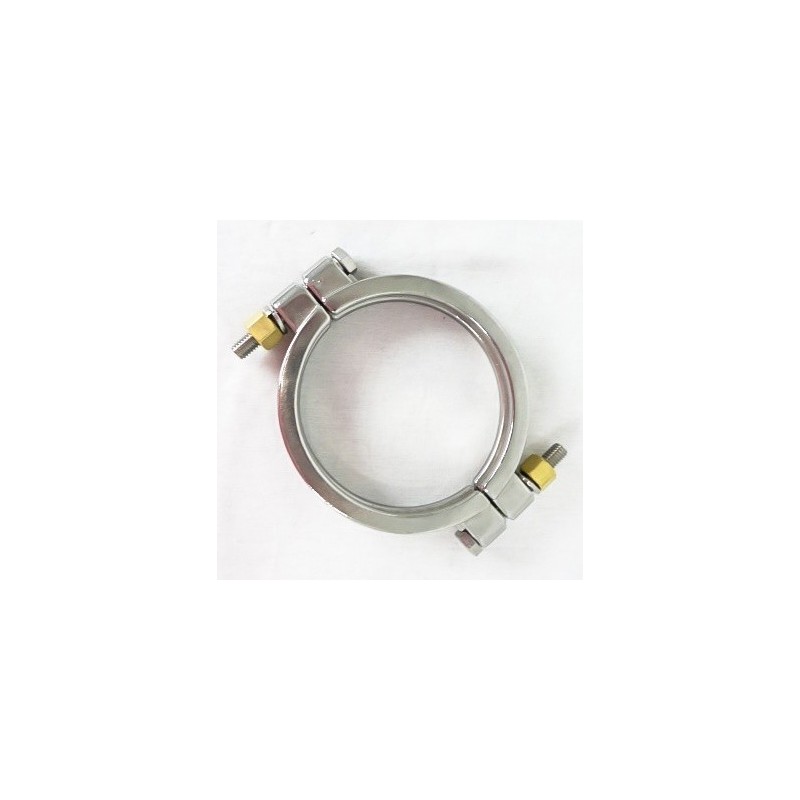

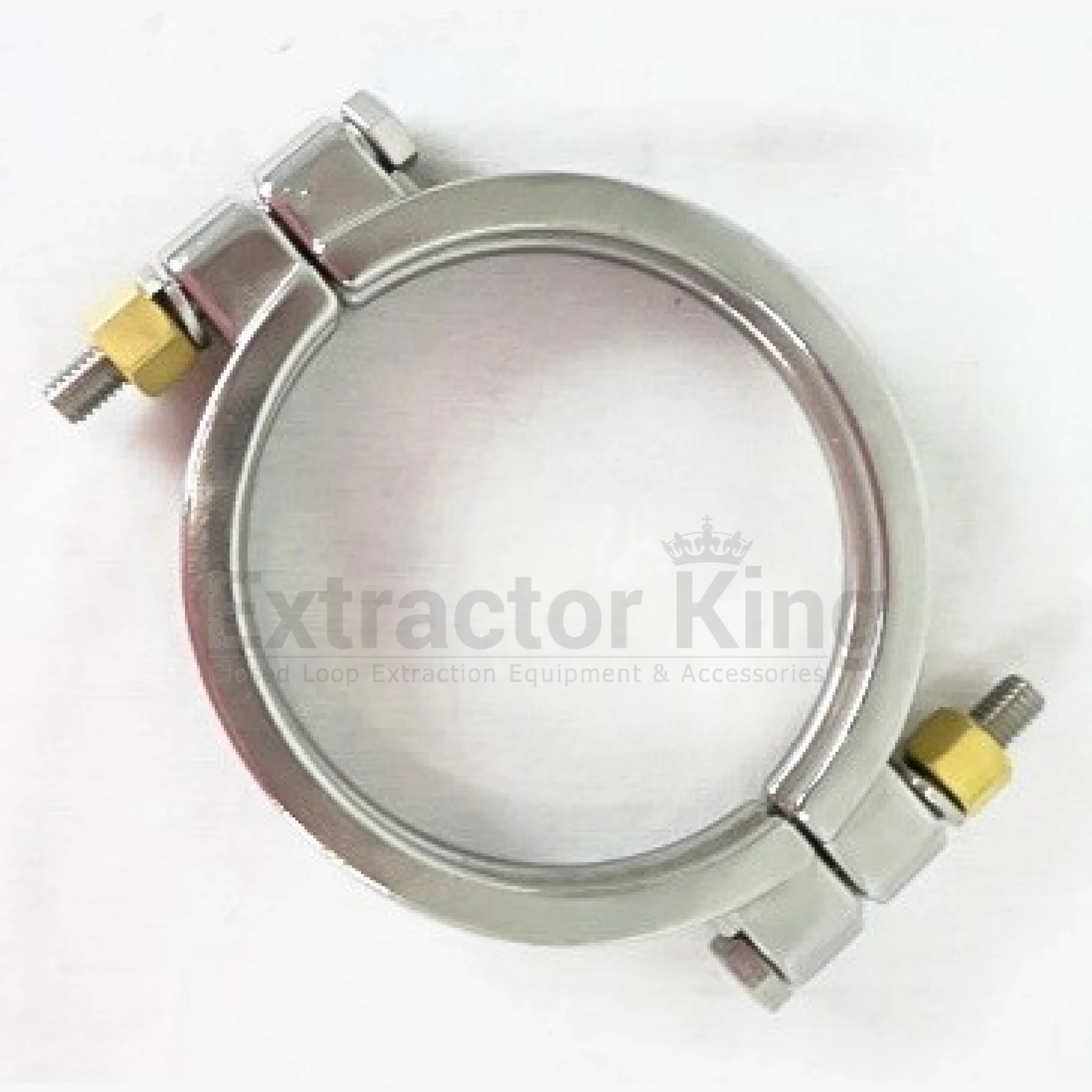

4" High Pressure Tri-Clamp Clamp, polished stainless ring clamp with bolts and brass nuts

4" High Pressure Tri-Clamp Clamp

Reference: TC4-CLMP-HP

Manufacturer:

4" High Pressure Triclamp Clamp ss304 Grade Stainless Steel

In stock

CAD $38.85

Optional Must Have Accessories
  4" Tri-Clamp Gasket, Viton or Buna-N, black rubber ring gasket, top view on white background  4" Tri-Clamp Viton or BUNA-N Gasket +CAD $16.87
Payment Providers
Payment Providers
Add to wishlist

More info

Extractor King recommends that you tighten all High Pressure Clamps to 20-30LBS of torque. Do do not tighten high pressure bolts with an impact gun as  this may cause threads to jump or be stripped which can cause failure of the nuts or gasket.

Specifications:

  • Tri-Clamp Size: 4"
  • Material: Stainless Steel 304 Grade
  • Maximum Pressure @ 70F 1500 PSI
  • Maximum Pressure @ 250F 1200 PSI
  • Weight: .70LB
