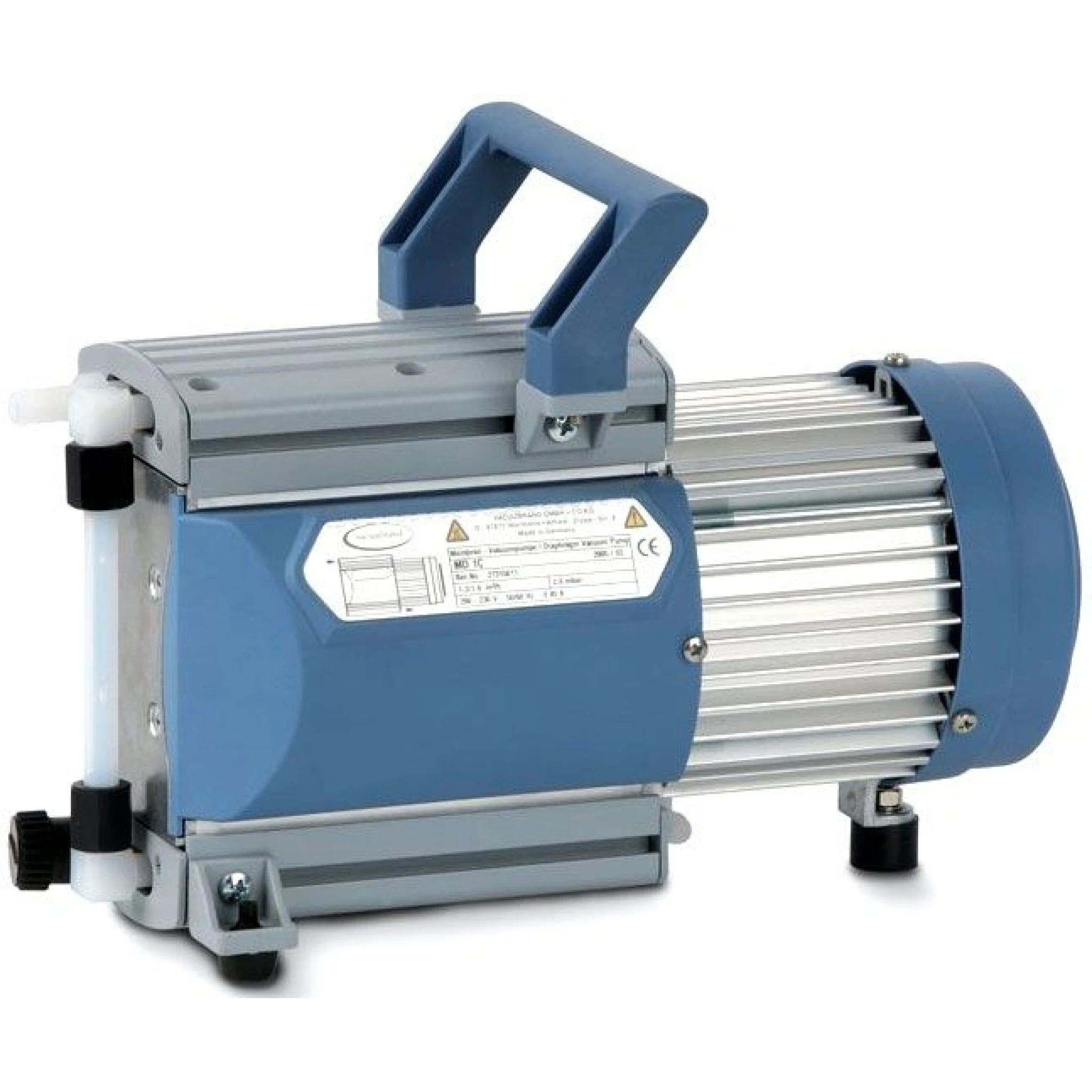

Vacuubrand MD 1C 0.9 CFM Oil-Free Chemistry Diaphragm Pump
Reference:
Manufacturer: Vacuubrand
Vacuubrand MD series diaphragm pumps are totally oil free, mechanical vacuum pumps. They can be used for a wide range of vacuum applications or for the transfer of gases in chemical and physical laboratories. The MD 1C diaphragm pump is a Three Stage chemistry design pump, which is an excellent solution for continuous dry oil free vacuum pumping of harsh and corrosive vapors and gases with high requirements regarding ultimate vacuum pressure. MD 1C has well-proven PTFE sandwich diaphragms increase reliability and extend operating life. MD 1C with gas ballast valve is optimally prepared for pumping easily condensable vapors (high boiling solvents).
The MD 1C three-stage construction provides the advantageous combination of high pumping speed and deep ultimate vacuum in a pump with a very small footprint. All parts in contact with pumped media are made of chemically resistant fluoroplastics.
Three-stage chemistry-design diaphragm pumps are an excellent solution for continuous, oil-free pumping of corrosive gases and vapors and meet high requirements regarding ultimate vacuum. The three-stage construction provides the advantageous combination of high pumping speed and deep ultimate vacuum in a pump with a very small footprint. All parts in contact with pumped media are made of chemically resistant fluoroplastics. Well-proven PTFE sandwich diaphragms increase reliability and extend operating life. The MD 1C with gas ballast valve is optimally prepared for pumping easily condensable vapors (high boiling solvents).
In stock
Customize your product
Payment Providers
Click here for MD 1C user's manual
Click here for vacuum pump selection guide
Features:
- Outstanding chemical resistance and superior vapor tolerance
- Superior chemical and corrosion resistance, outstanding vapor tolerance
- Exceptionally high performance even at low vacuum
- Excellent ultimate vacuum even with gas ballast
- Whisper quiet and ultra low vibration
- Proven long diaphragm life, maintenance-free drive system
- With an integrated gas ballast to provide consistent pump performance with condensed vapors
- Suitable for benchtop rotary evaporators, and powerful enough for excellent results with high-boiling point solvents
- Register your pump for 2+1 year warranty
| Article Number | 20696603 (US plug) |
| Voltage | 100-115 V 50-60 Hz / 120 V 60 Hz |
| Max Pumping Speed 50 Hz | 1.3 m3/h |
| Max Pumping Speed 60 Hz | 0.88 cfm |
| Ultimate Vacuum | 2 mbar / 1.5 torr |
| Ultimate Vacuum with Gas Ballast | 4 mbar / 3 torr |
| Heads / Stages | 4 heads / 3 stages |
| Inlet Connection | Hose nozzle DN 8-10 mm |
| Outlet Connection | Hose nozzle DN 8 mm |
| Max Back Pressure (abs.) | 1.1 bar |
| Rated Motor Power | 0.08 kW |
| Rated Speed 50/60 Hz | 1500/1800 min-1 |
| Protection Class | IP 40 |
| Dimensions (L x W x H) | 338 x 142 x 223 mm |
| Weight | 7.9 kg |
| Noise | 41 dBA |
| Operating Temperature | 10 - 40 °C |
| Storage Temperature | -10 - 60 °C |
| ATEX | II 3/- G Ex h IIC T3 Gc X Internal Atm. only |
| NRTL Certification | Yes |
