Vacuubrand VARIO PC 3001 SELECT 1.2 CFM Self-Adjust Pump 110V
Reference: VARIO-PC-3001
Manufacturer: Vacuubrand

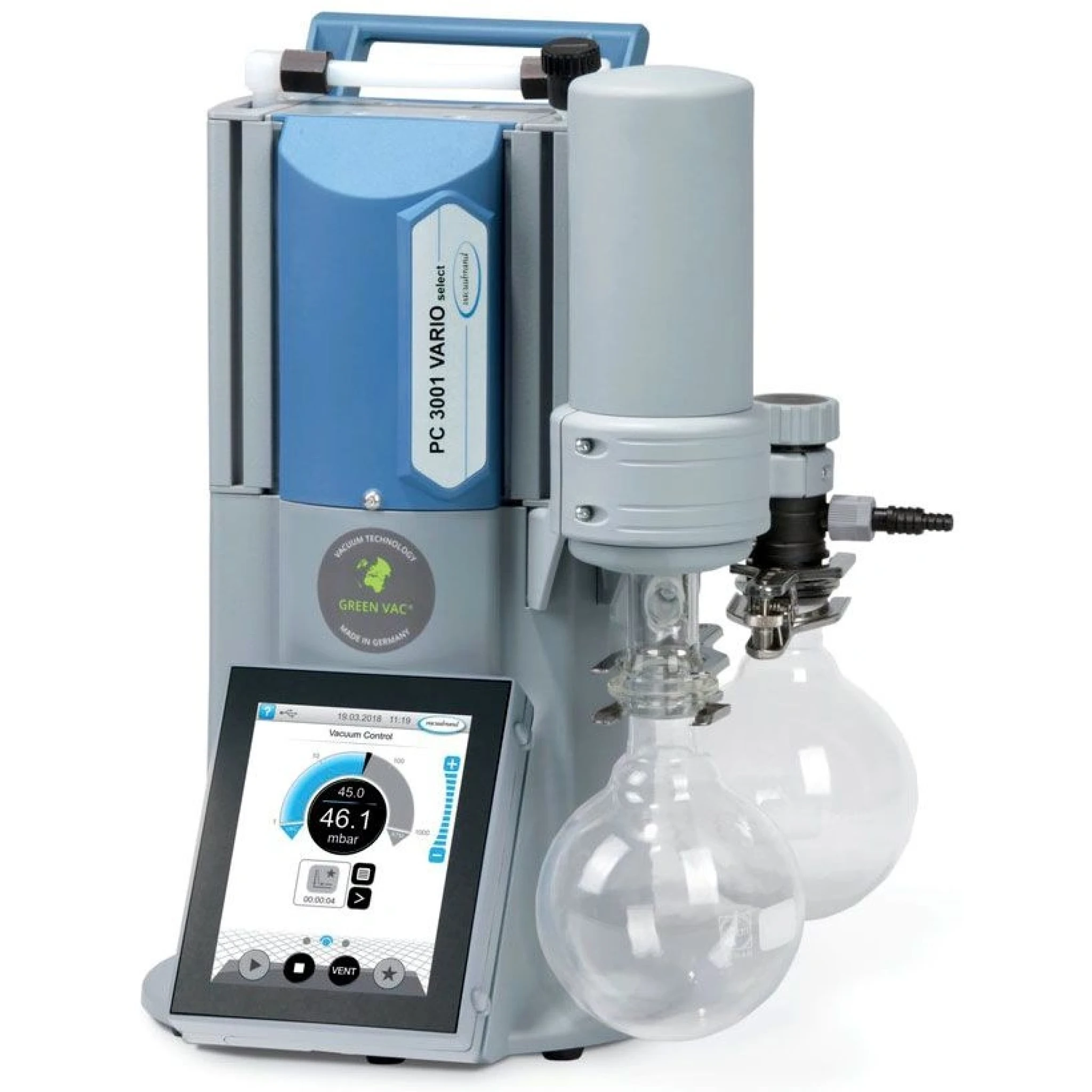

The PC 3001 VARIO select pumping unit precisely controls the vacuum level in order to achieve unparalleled process control. This pump is suitable for even high boiling point solvents. The integrated VACUUSELECT controller provides an easy-to-use, application based interface that covers all common lab applications. The VACUUSELECT controller has you covered. Use manual set-point-control for simple processes, run fully automated distillations, or create your own application with simple drag-and-drop editing. For solvent evaporation, the VACUUSELECT controller detects solvent boiling and automatically adjusts the pump's motor speed to maintain process control. The VARIO motor speed control also makes the pump whisper quiet and provides for exceptionally long maintenance intervals.Self-adjusting vacuum pump system features a 1.2 cfm (34 L/min) free air capacity making it ideal for coupling with benchtop rotary evaporators. As the system continually adjusts to changing vapor conditions, it minimizes bumping and foaming, making it safer for your samples. Complete pump system is composed of a Vacuubrand oil-free pump and digital vacuum controller with integral solvent recovery system.
VARIO PRO operates quietly, has a corrosion-resistant flow path, integrated gas ballast, and can operate for 10,000 to 15,000 hours between servicing! This oil-free pump can apply vacuum pressures down to 2 mbar (1.5 Torr), convenient for all types of reagents, even high-boiling point solvents.
Incorporated controller features a graphic interface and "turn-and-push" jog wheel for quick manual vacuum adjustments. It automatically changes the pump speed without external solenoid valves and pump switches, and can find and follow boiling point curves using the built-in automatic evaporation control softwareproviding evaporation up to 30% faster than conventional vacuum pumps and controllers! Hysteresis-free, single set point control is available with this cutting-edge system, but it can also save up to ten user-defined multistep programs for applications that require a Standard Operating Procedure (SOP). Additionally, the bi-directional RS-232 port allows for computerized control of pump programs, settings, and process validation.
Integral solvent recovery system captures exhaust vapors without needing cold traps or chillerssaving you from having to purchase additional equipment and dry ice. On-board vapor capture not only saves time and expenses of coolant and energy, but reduces lab exposure to hazardous vapors.
The inlet separator, made of glass with a robust protective coating, prevents particles and liquid droplets from entering the pump, preventing damage and extending pump life. And the exhaust vapor condenser allows for nearly complete recovery of solvents when used with a chilled water line or recirculating chiller for economical recycling and environmental protection.
Click here for VARIO PRO PC 3001 user's manual
Click here for vacuum pump selection guide
In stock
Payment Providers
Features:
- Simplify lab work with the VACUUSELECT vacuum controller with graphic user interface and predefined applications
- Automatic boiling point detection and continuous optimization of vacuum levels for quick process times
- Process-oriented motor control, no need to enter any parameter
- Compact and powerful; superior performance even with continuous condensate purge
- Whisper quiet and ultra low vibration
- Eco-friendly: extremely low power consumption and efficient solvent recovery. Oil-free!
- Certifications: C/US marked. 230V model is CE marked.
- Ordering information: Pump systems are supplied complete with VACUU·SELECT controller, integral solvent recovery system, operating manual, and one-year manufacturer's warranty. The 230V model is supplied with a European-style plug
- Register your pump for 2+1 year warranty
| Article Number | 20700203 (US plug) |
| Voltage | 100-120 V / 200-230 V, 50-60 Hz |
| Vacuum Controller | VACUU·SELECT |
| Max Pumping Speed 50 Hz | 2 m3/h |
| Max Pumping Speed 60 Hz | 1.18 cfm |
| Ultimate Vacuum | 2.0 mbar / 1.5 torr |
| Ultimate Vacuum with Gas Ballast | 4 mbar / 3 torr |
| Heads / Stages | 4 heads / 3 stages |
| Inlet Connection | Hose nozzle DN 6-10 mm |
| Outlet Connection | Hose nozzle DN 8-10 mm |
| Coolant Connection | 2 x hose nozzle DN 6-8 mm |
| Max Back Pressure (abs.) | 1.1 bar |
| Rated Motor Power | 0.16 kW |
| Protection Class | IP 20 |
| Dimensions (L x W x H) | 303 x 306 x 400 mm |
| Weight | 8.2 kg |
| Noise | 42 dBA |
| Interface | Ethernet (RJ45): Modbus TCP / USB (Type A) / RS-232 (additional adapter required) |
| ATEX | II 3/- G Ex h IIC T3 Gc X Internal Atm. only |
| NRTL Certification | Yes |
