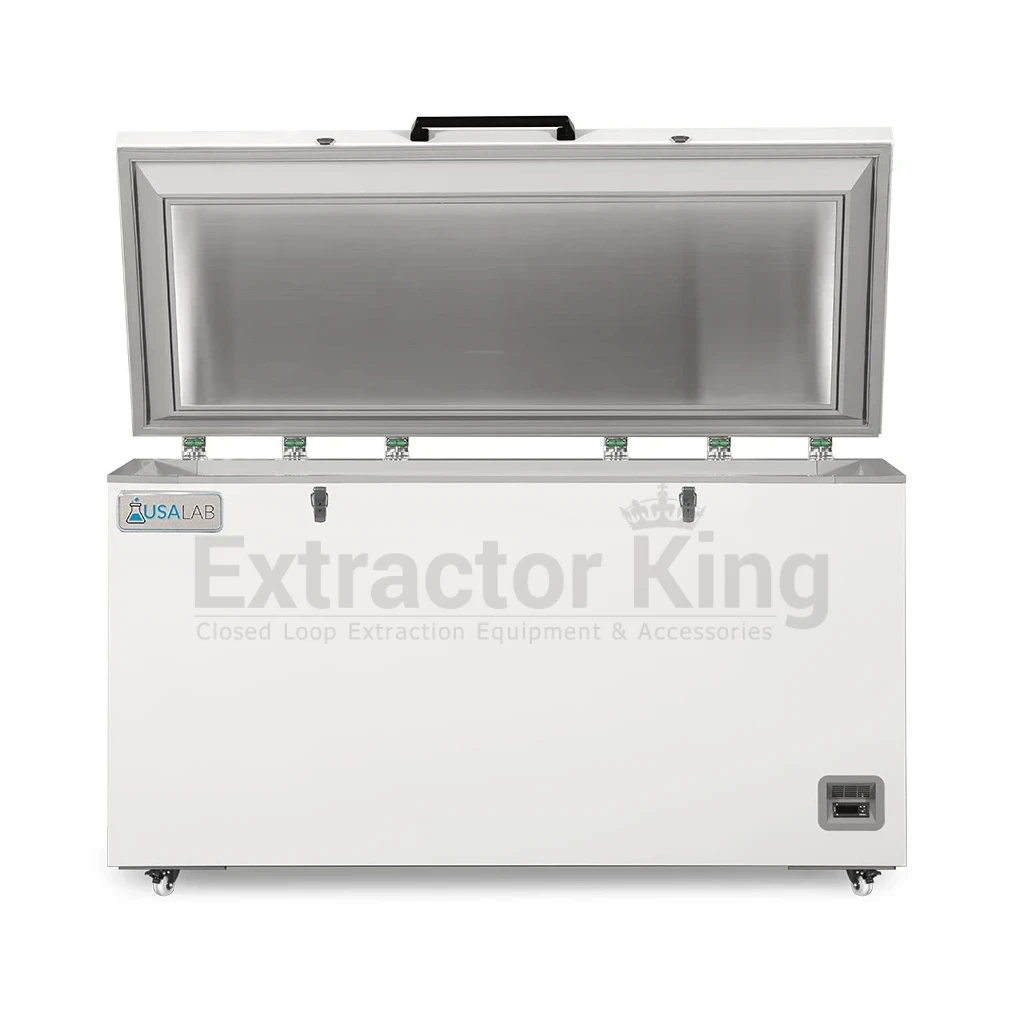

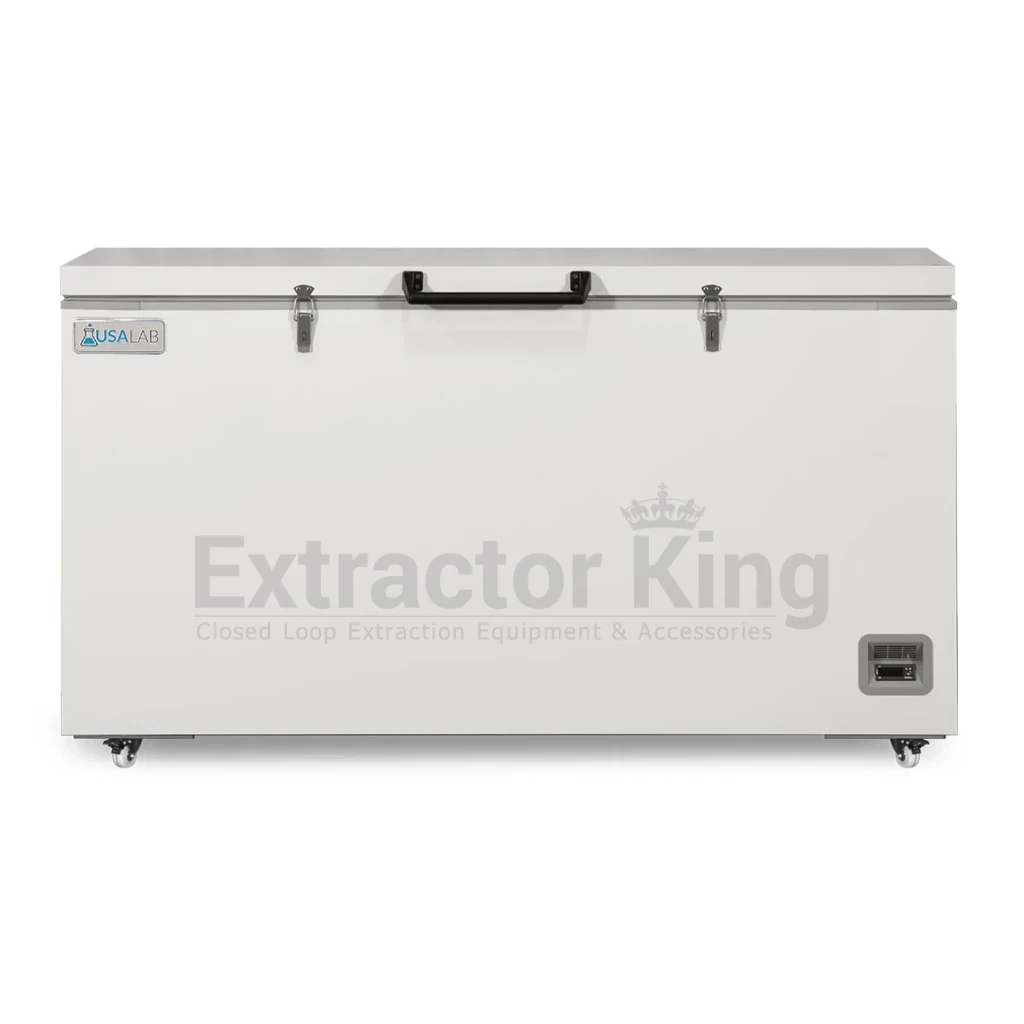

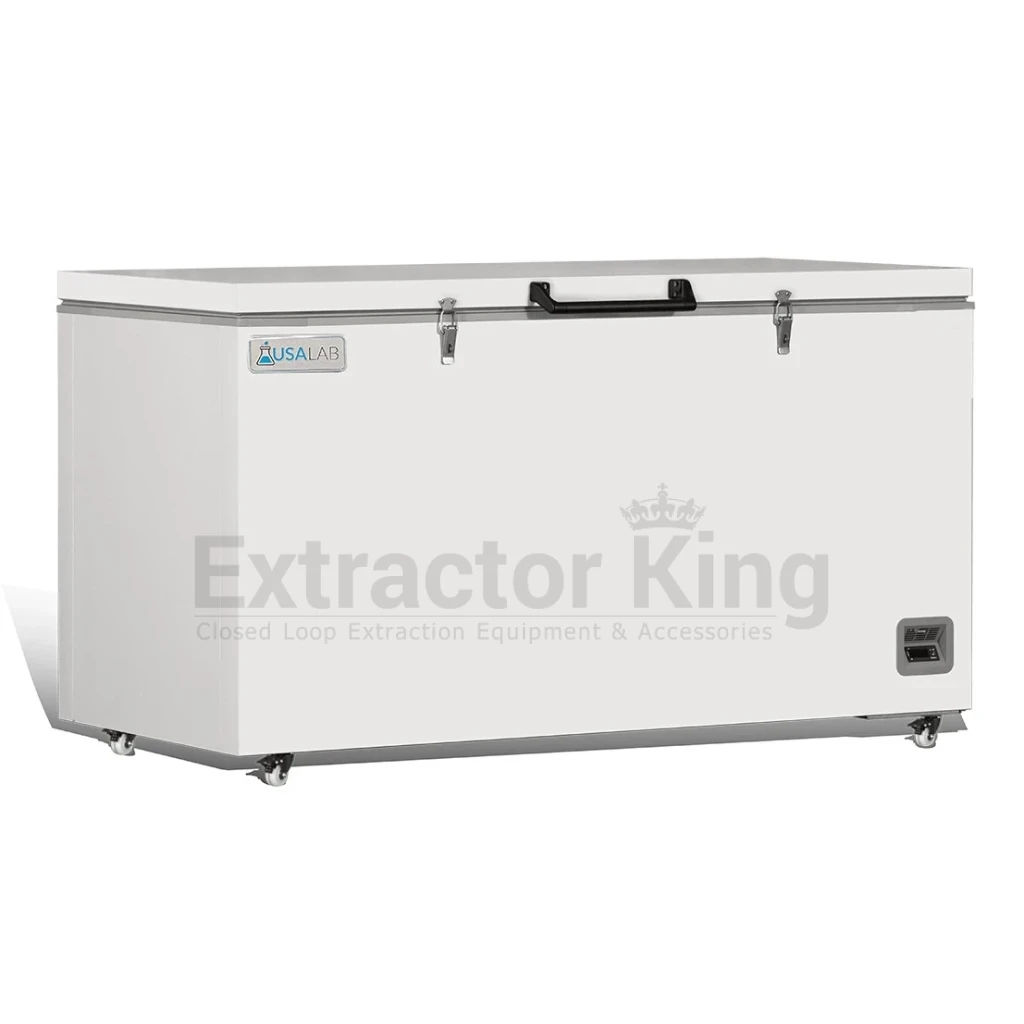

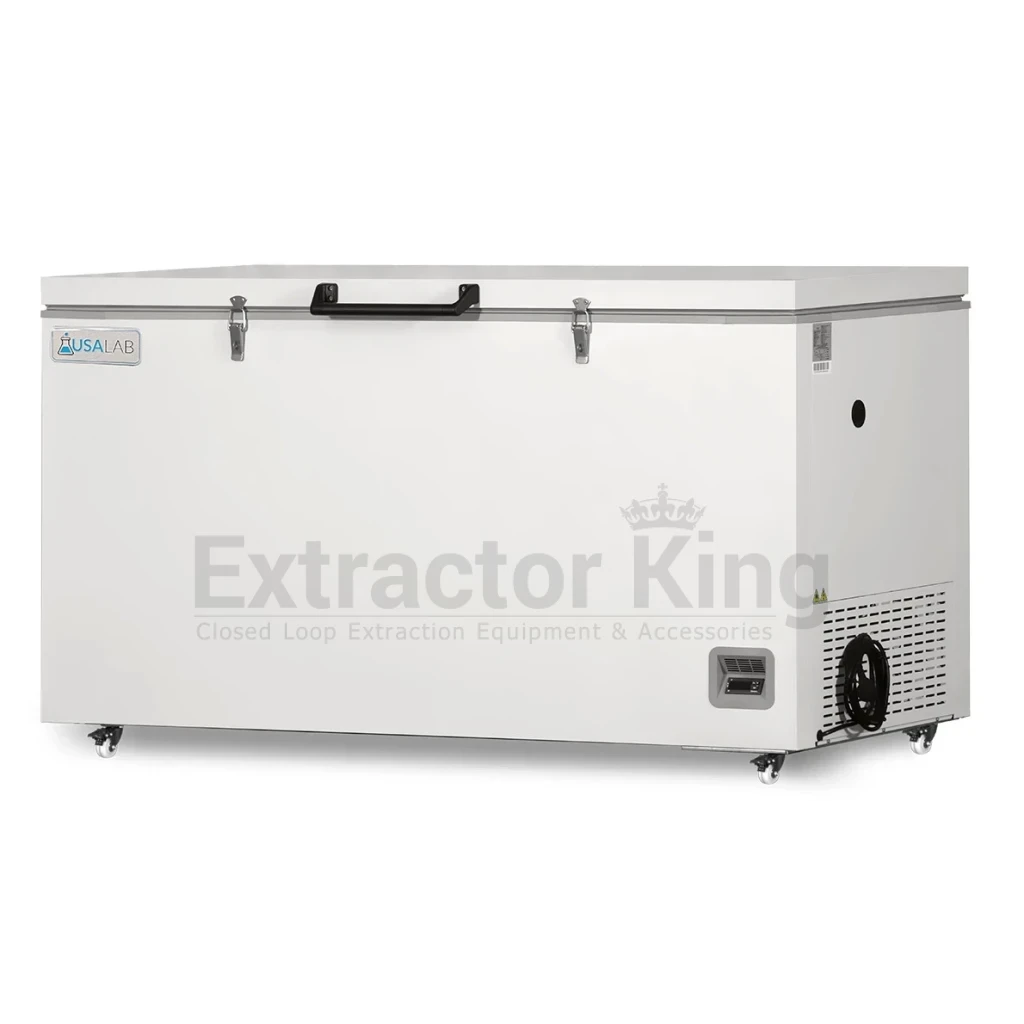

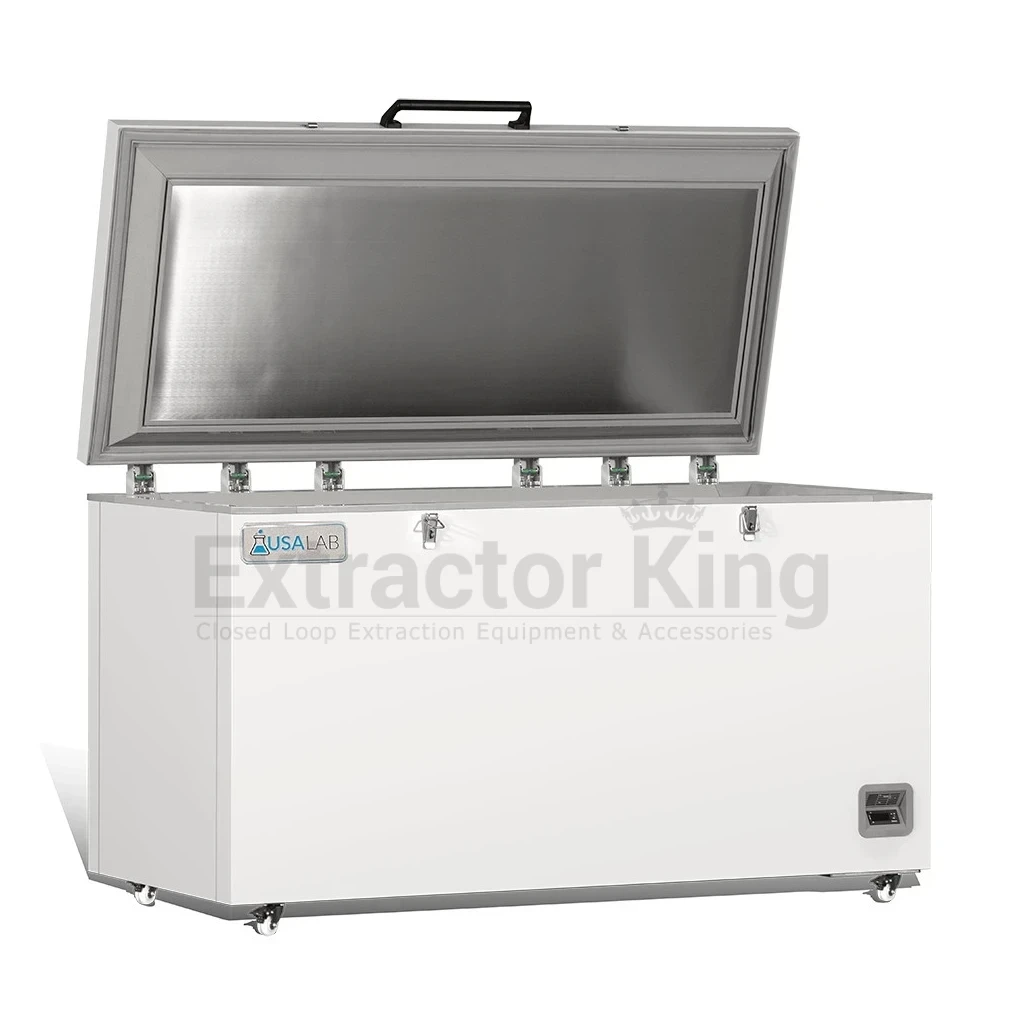

USA Lab UltraChill 17.12 Cu Ft -86°C Ultra-Low Chest Freezer - Digital Display -80°C ULT
Reference: UCF-17.12-86
Manufacturer: USA Lab
-86°C Ultra Chill Series 17.12 cu ft Chest Freezer | USA Lab Introducing our -86°C Ultra Chill Series Chest Freezers — ultra-low temperature storage engineered for research, clinical, and biobanking environments. With a working range of -40°C to -86°C, these…
In stock
Payment Providers
More info
-86°C Ultra Chill Series 17.12 cu ft Chest Freezer | USA Lab
Introducing our -86°C Ultra Chill Series Chest Freezers — ultra-low temperature storage engineered for research, clinical, and biobanking environments. With a working range of -40°C to -86°C, these freezers safeguard enzymes, vaccines, cell lines, and temperature-sensitive materials with exceptional uniformity and long-term stability.
Advanced auto-cascade refrigeration, microprocessor control, and robust insulation deliver precise setpoint accuracy and energy-efficient performance. Built with a SUS304 stainless steel interior, color-sprayed steel exterior, and integrated safety alarms, the Ultra Chill Series provides dependable cold storage for mission-critical samples.
Freight delivery required; inspect on arrival and note any damage with the carrier.
Cold chain products are non-returnable once shipped.
Why this Ultra Chill Series?
- True ULT storage — −40°C to −86°C range for enzymes, vaccines, cell lines, and biobank materials.
- Precision control — microprocessor controller with LED digital readout and PTC-100 sensing.

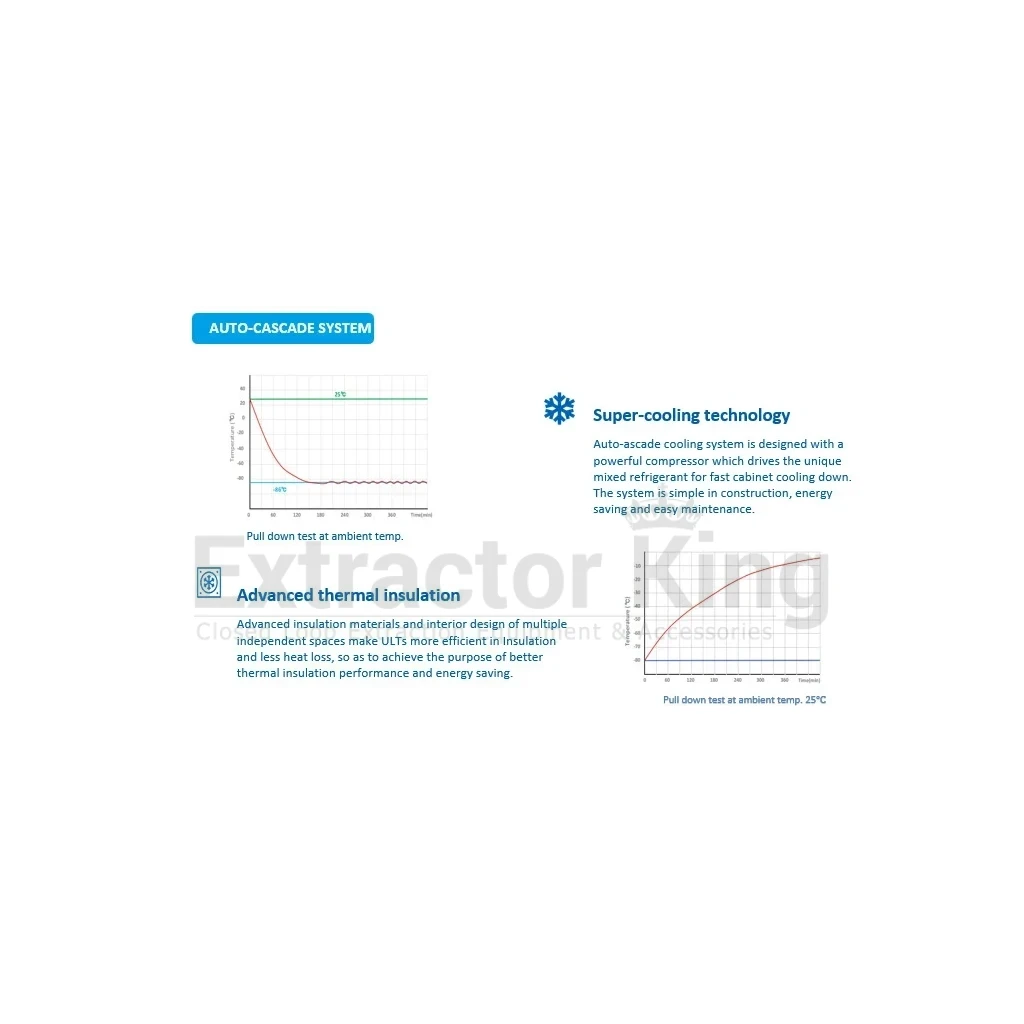

- Efficient refrigeration — auto-cascade system with SECOP compressor and direct-cooling design.

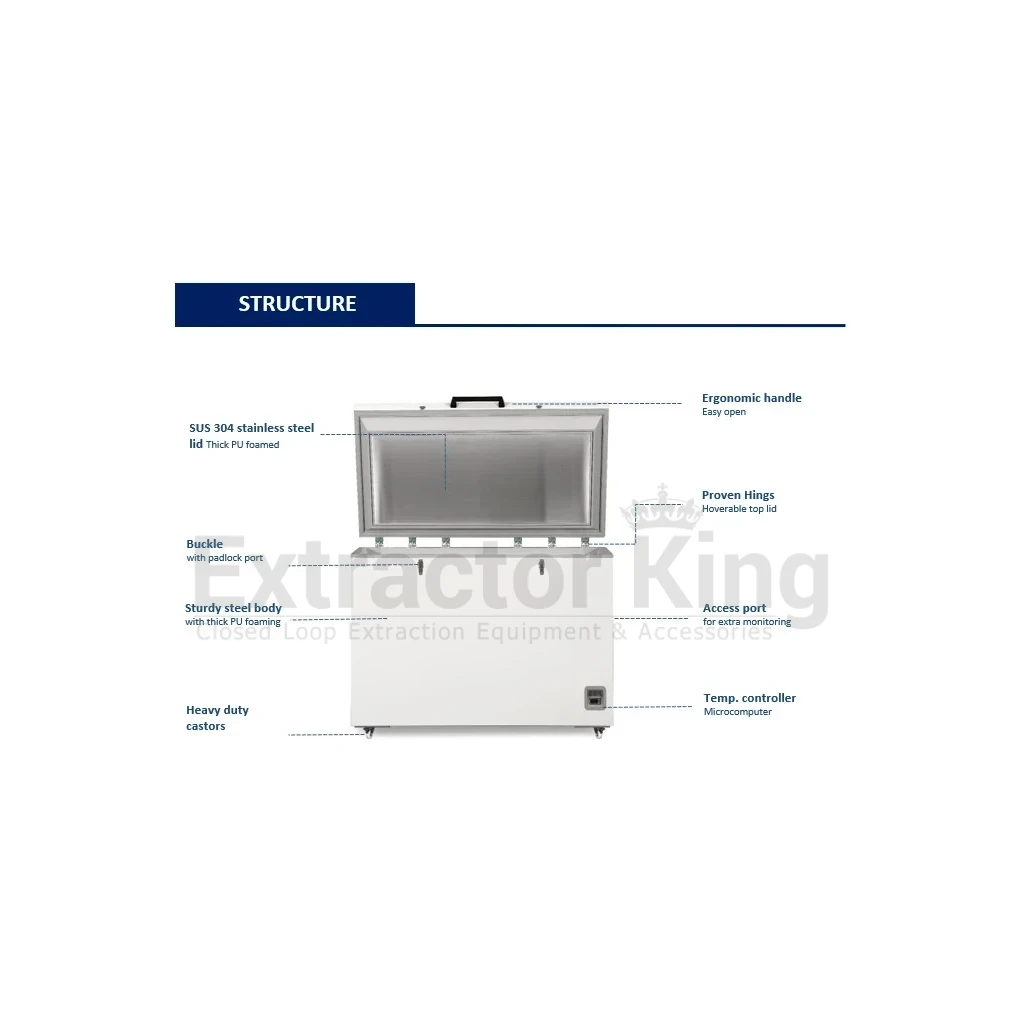

- Laboratory-ready build — SUS304 interior, color-sprayed steel exterior, PURF insulation.
- Safety & uptime — alarms for high/low temp, power failure, sensor error, and thermostat fault.
Technical Specifications
| Model | -86°C Ultra Chill Series Chest Freezer |
|---|---|
| Temperature Range | −40℃ ~ −86℃ |
| Cooling Method | Direct Cooling |
| System | Auto-cascade |
| Refrigerant | R4001 (mixed gas) |
| Defrost | Manual |
| Temp. Controller | Microprocessor |
| Display | LED digital |
| Sensor | PTC 100 |
| Ambient Temperature | 10℃ ~ 32℃ |
| Compressor Brand / Qty | SECOP / 1 |

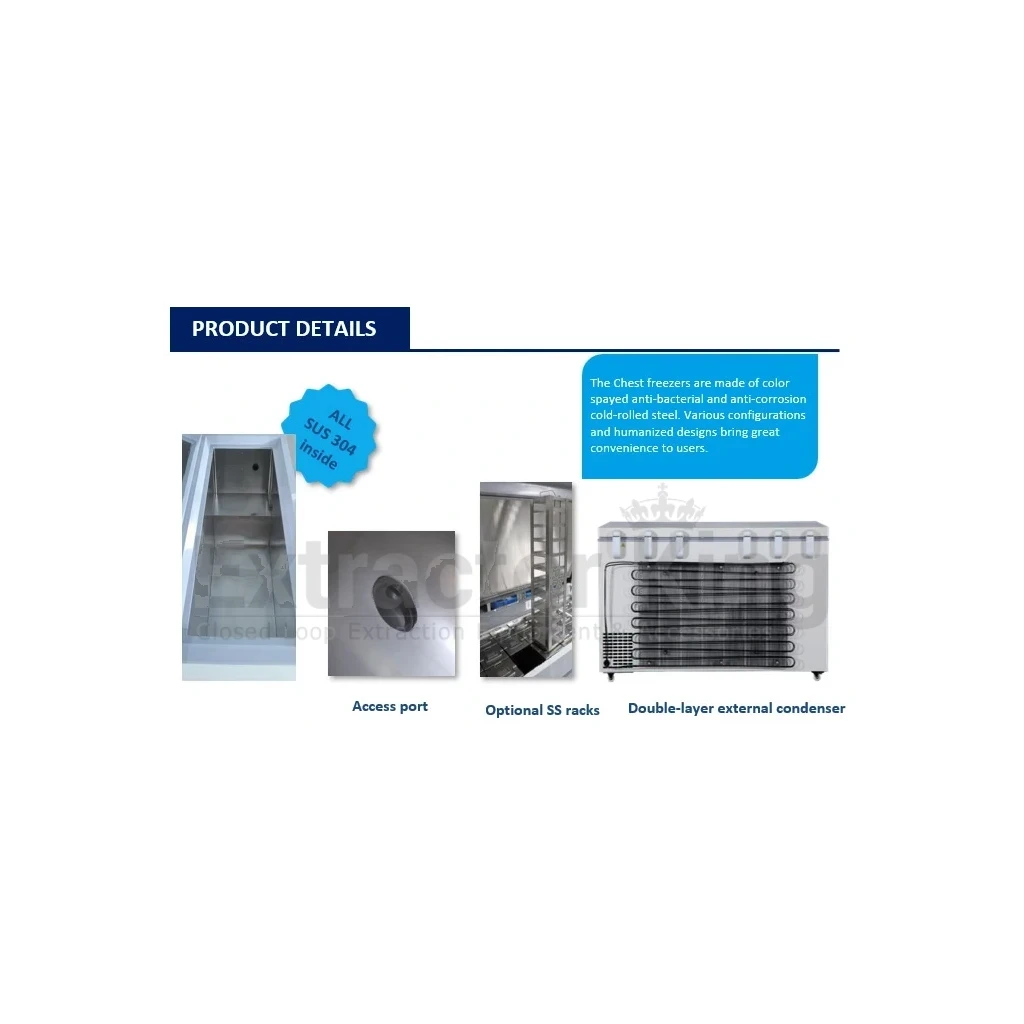

| Access Port QTY / Dia. | 1 / 25 mm |
| Capacity (L / cu.ft) | 485 L / 17.12 cu ft |
| Insulation | PURF |
| Inside Material | SUS304 |
| Outside Material | Color sprayed steel |
| Racks | 24 (11×1) + 6 (6×1) |
| Boxes (2") | 300 |
| Samples (2 ml) | 30,000 |
| USB Interface | No |
| Remote Alarm Access | No |
| Alarms | High/Low Temp (Y), Power Failure (Y), Sensor Error (Y), Door Ajar (N/A), Abnormal Voltage (N/A), Low Battery (N/A), Filter Screen Check (N/A), Condenser Clean (N/A), High Ambient Temp (N/A), Thermostat Failure (Y) |
| Voltage / Frequency | 110V/120V 60 Hz |
| Power | 670 W |
| Current | 3.16 A |
| Power Consumption | 13.5 Wh / 24 h |
| Noise | 50 dB |
| Exterior Size (W×D×H) | 67" × 33" × 38" |
| Interior Size (W×D×H) | 57.2" × 20.7" × 26.5" |
| Package Size (W×D×H) | 69.5" × 35.5" × 42" |
| Weight (Net) | 290 lb |
| Shipping Weight | 340 lb |
| Accessories | Chart Recorder (Optional), Data Logger (Optional), CO₂ Backup (Optional), LN₂ Backup (Optional), Gloves (Optional) |
FAQ
What does “−86°C ultra-low” mean?ULT freezers maintain temperatures down to −86°C for long-term storage of sensitive biological materials, minimizing degradation and freeze-thaw risk.
The microprocessor controller with PTC-100 sensing and direct-cooling design delivers tight uniformity and rapid recovery after door openings.
Yes. CO₂ and LN₂ backup systems are optional to extend holdover time during power interruptions.
Standard rack configuration supports up to 300 two-inch boxes (≈30,000 × 2 ml samples). See specs for full rack map.
All items are carefully packaged to ensure safe delivery. In the rare event that your item arrives damaged, please notify us within 3 days of receipt. We will promptly provide a replacement or issue a refund.
Please note that any damage occurring after delivery is not covered under warranty. We appreciate your understanding and your trust in our products.
Specifications
| Power | 110V/120V 60Hz |
| Noise | 50 dba |
| Temp Range | -40℃～-86℃ |
| Capacity(L/cu.ft) | 485/17.12 |
| Weight | 290 lbs |
| Internal Dimensions (WxDxH) | 57.2" x 20.7" x 26.5" |
| External Dimensions (WxDxH) | 67" x 33" x 38" |
| Certification | CE |
| Warranty Term | 1 Year |
