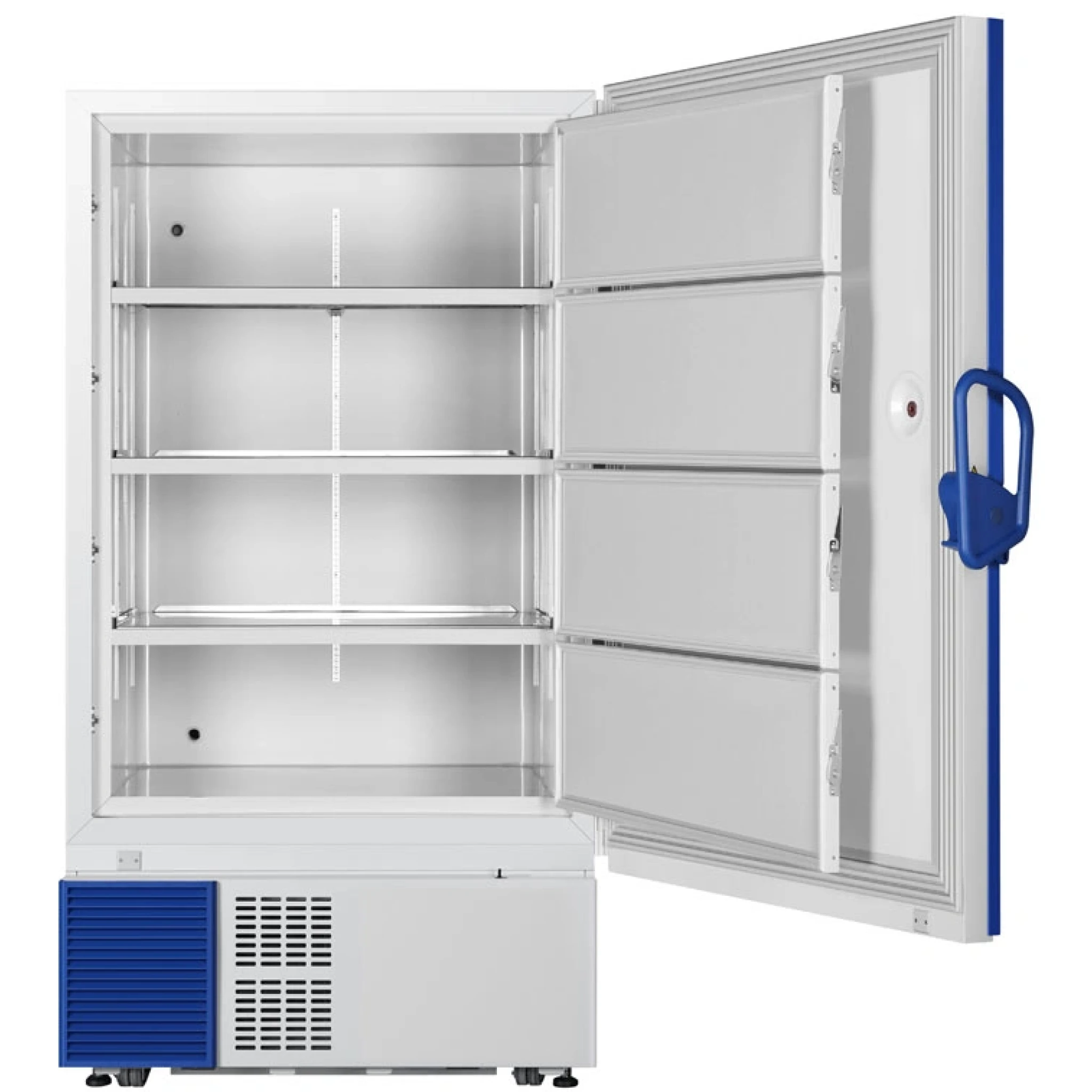

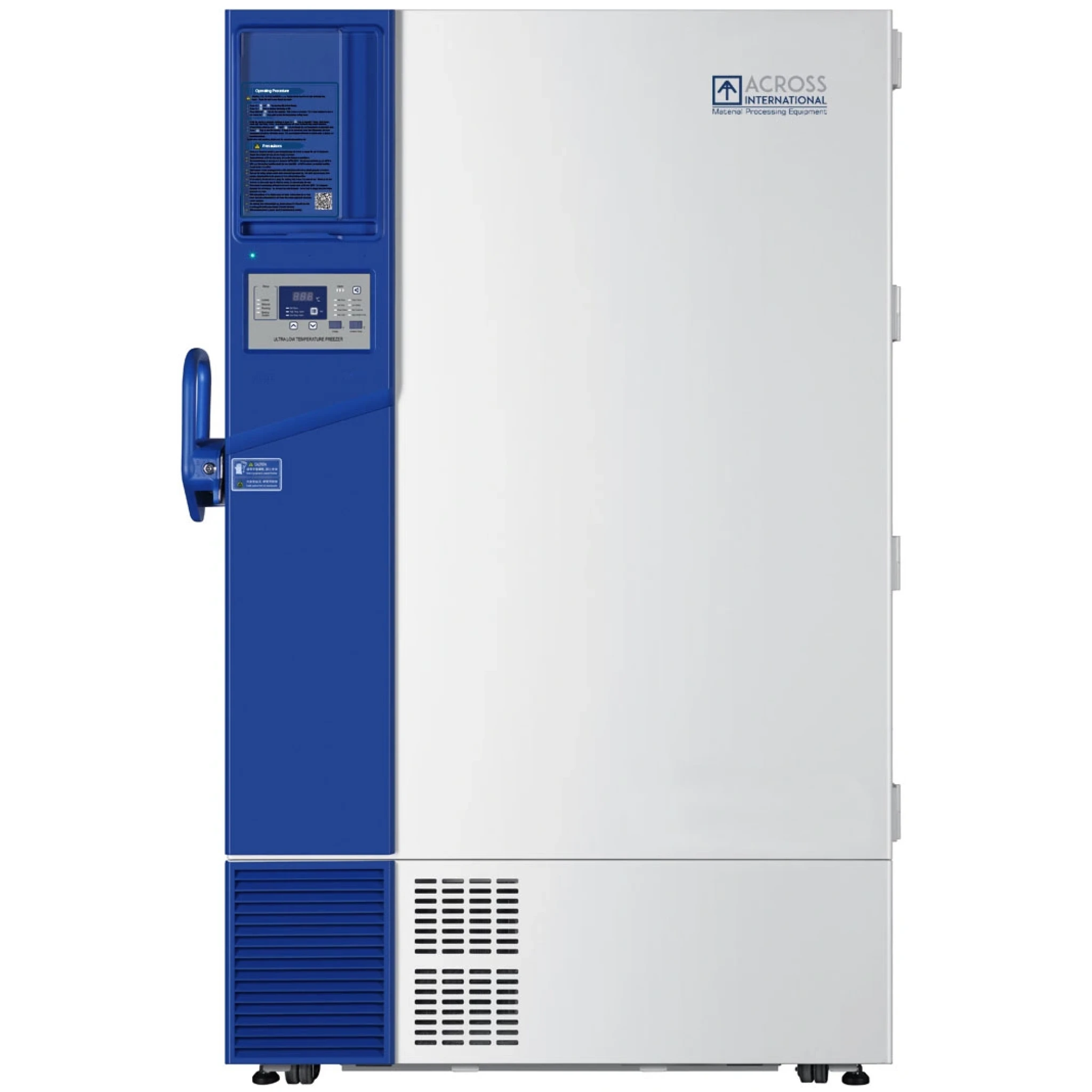

Ai RapidChill 34 CF -86°C Ultra-Low Freezer UL 220V 50/60Hz Compatible
Reference:
Manufacturer: Across International
The new Ai 34 Cu Ft series RapidChill series -86C ultra-low freezers are now 50/60Hz compatible, meaning they can be used in US, as well as Asia, Europe and South America. These ultralow's are designed for fast cooling, ultra-low power consumption, very low noise, and ease of maintenance. All RapidChill ultra-low freezers are UL certified.
In stock
Features
- 50/60Hz compatible
- CDC and VFC compliant, great for storage of vaccines, DNA, RNA, virus samples, organs, and serum
- State-of-the-art Vacuum Insulated Panel (VIP, Micro-Cellular Polyurethane) insulated
- Safe, environmentally friendly, energy efficient, and easy-to-acquire HC refrigeration
- Remote alarm, RS-485, and optional 4-20mA transmitter
- Door lock, high or low temperature alarms, power failure alarm, door open alarm, filter clogging alarm, password protection, tons of security features to protect you, your products, and the unit

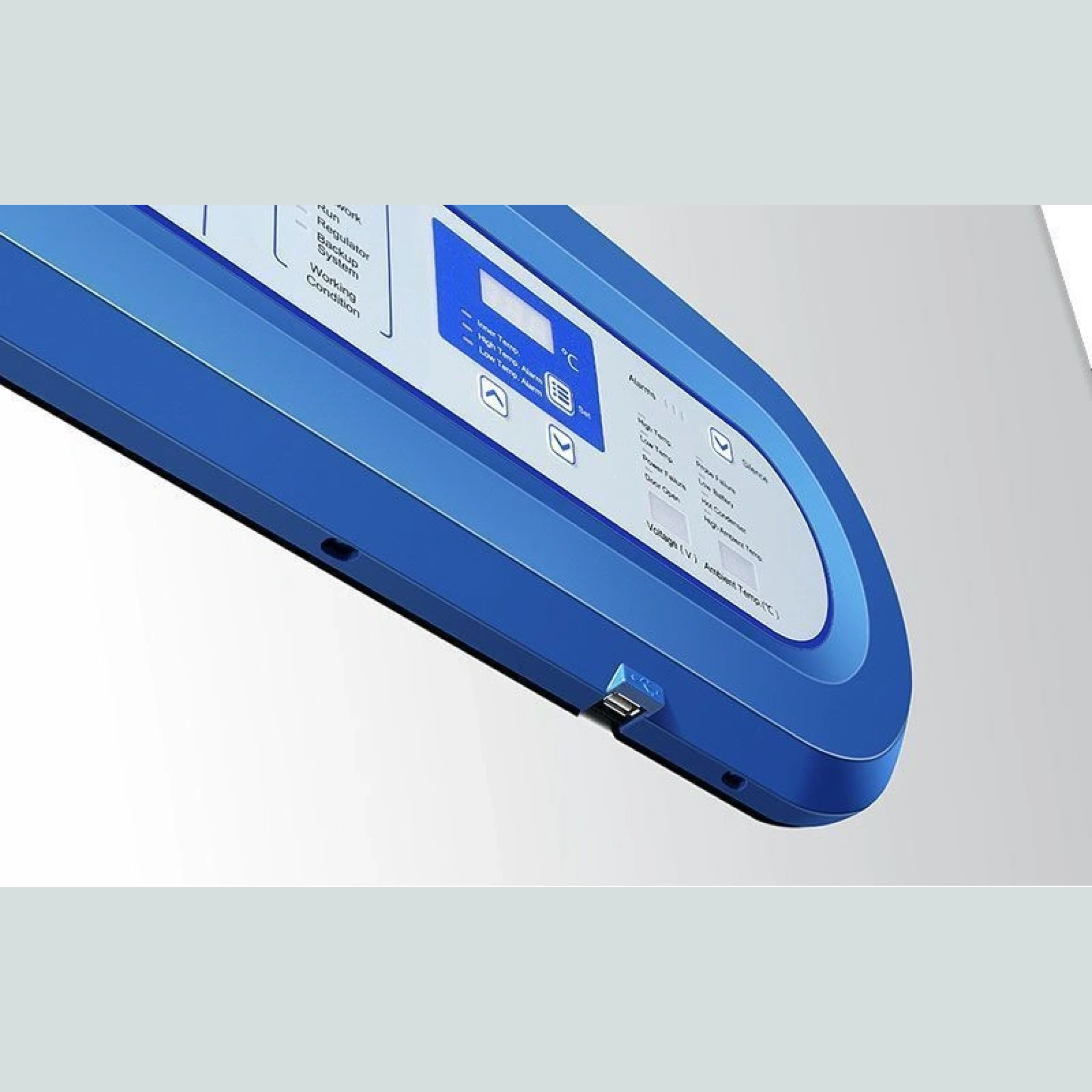

- Digital temperature display with microprocessor-based temperature controller
- Dual silicone sealing gaskets for ultra airtight operation
- 48-hour battery backup for controller and alarms
- Extremely quiet and reliable

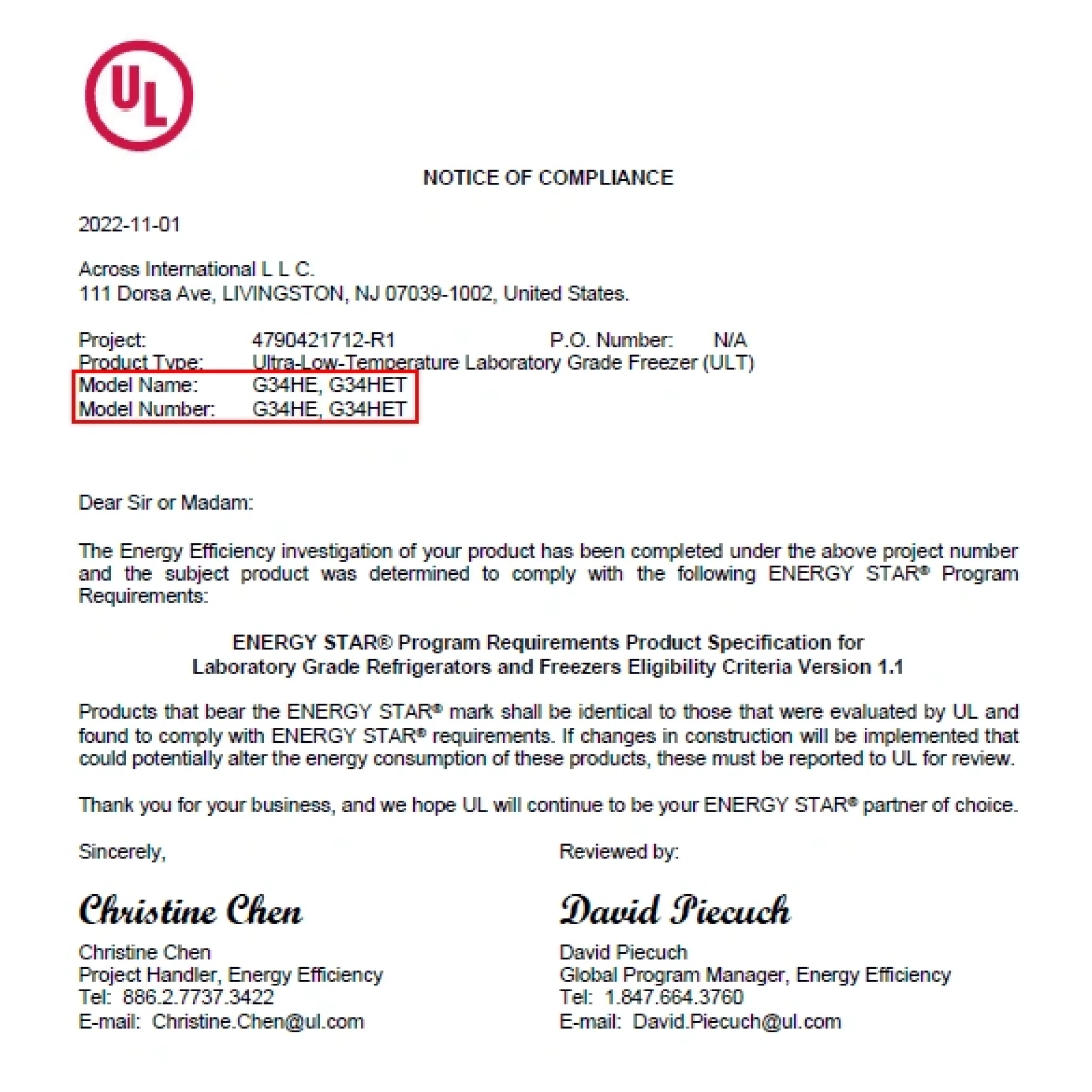

- Compliant to UL 61010-1, CSA C22.2 and Energy Star standards
Important!
- Do not plug in your unit. Leave your Ai refrigerator or freezer for 24 hours before turning the unit on for the first time.
- This unit is NOT designed to be used on a mobile platform.
| Model | G34he |
| Electrical requirements | 220V 50/60Hz. 1300 watts, 7 amps |
| Performance | Temperature range: -40℃ to -86℃ Time from ambient to -86℃: 6 hours Uniformity: ±3 ℃ Time from -86℃ to -50℃ with the door closed (ambient 25℃): 5 hours 1 min door open recovery time (ambient 25℃, running temp -75℃): 40 mins |
| Chamber | Chamber dimensions: 40 x 28 x 51.5 inches Shelf max. weight capacity: 126kg (278lbs) Max. weight capacity of unit: 504kg (1111 lbs) 5x5x2" boxes capacity: 700 boxes |
| Volume | 34 cu ft |
| Certificate | UL, Energy Star, CE |
| Information | Eco-friendly HC refrigerant Low noise 47 dBA USB interface, RS485 port Mobile casters Optimized insulation with VIP technology |
| Communication | Standard: RS-485, USB (stores 15 years of data for compliance purpose) Optional: 4-20mA transmitter |
| Usage | Inverter technology for 0.33kWh/day/cu-ft ultra-low power consumption, comparing to Thermo TSX70086A's 0.36 kWh/day/cu-ft |
| Working environment | - Temperature: 10°C to 32°C (humidity <57% Rh required at 32°C) - Humidity: <80% Rh - Altitude: < 2000 m / 6561 Ft - Stable, well-ventilated platform with no excessive dust - Keep freezer at least 12 inches from any walls or ceiling - Use dedicated power, do not share outlet - Extension power cable should be less than 10 feet is required - Freezer and power outlet should be grounded properly - Avoid direct sunlight, water spill and do NOT use freezer outdoor - Clean condenser fins and remove frost inside chamber at least once a month - Important! Do not plug in your unit. Leave your Ai refrigerator or freezer for 24 hours before turning the unit on for the first time. |
| Unit/shipping weight & dimensions | Unit: 990 Lbs, 51 x 39.5 x 78 inches Shipping: 1070 Lbs, 54 x 43.5 x 84.5 inches |
| Safety |
|
| Warranty | 3-year full service, 5-year compressor |
Standard Package
| Ai G34he -86°C ultra-low upright freezer | 1 pc |
| Ice scraper | 1 pc |
| Door key | 2 pcs |
| Brackets | 1 set |
| User's manual | 1 pc |
