USA Lab Walk In Clean Room - Quick Ship
Reference: SS-CR8-HW-D-2
Manufacturer: USA Lab
Quick Ship Walk-in Modular Cleanroom | USA Lab The Quick Ship Walk-in Modular Cleanroom provides an economical solution for creating a clean air positive-pressure environment that ships in as little as 5 business days. Designed for facilities that need a…
In stock
Payment Providers
More info
Quick Ship Walk-in Modular Cleanroom | USA Lab
The Quick Ship Walk-in Modular Cleanroom provides an economical solution for creating a clean air positive-pressure environment that ships in as little as 5 business days. Designed for facilities that need a fast, enclosed clean workspace, this system helps control airborne particulate while supporting up to Static ISO Class 7 conditions.

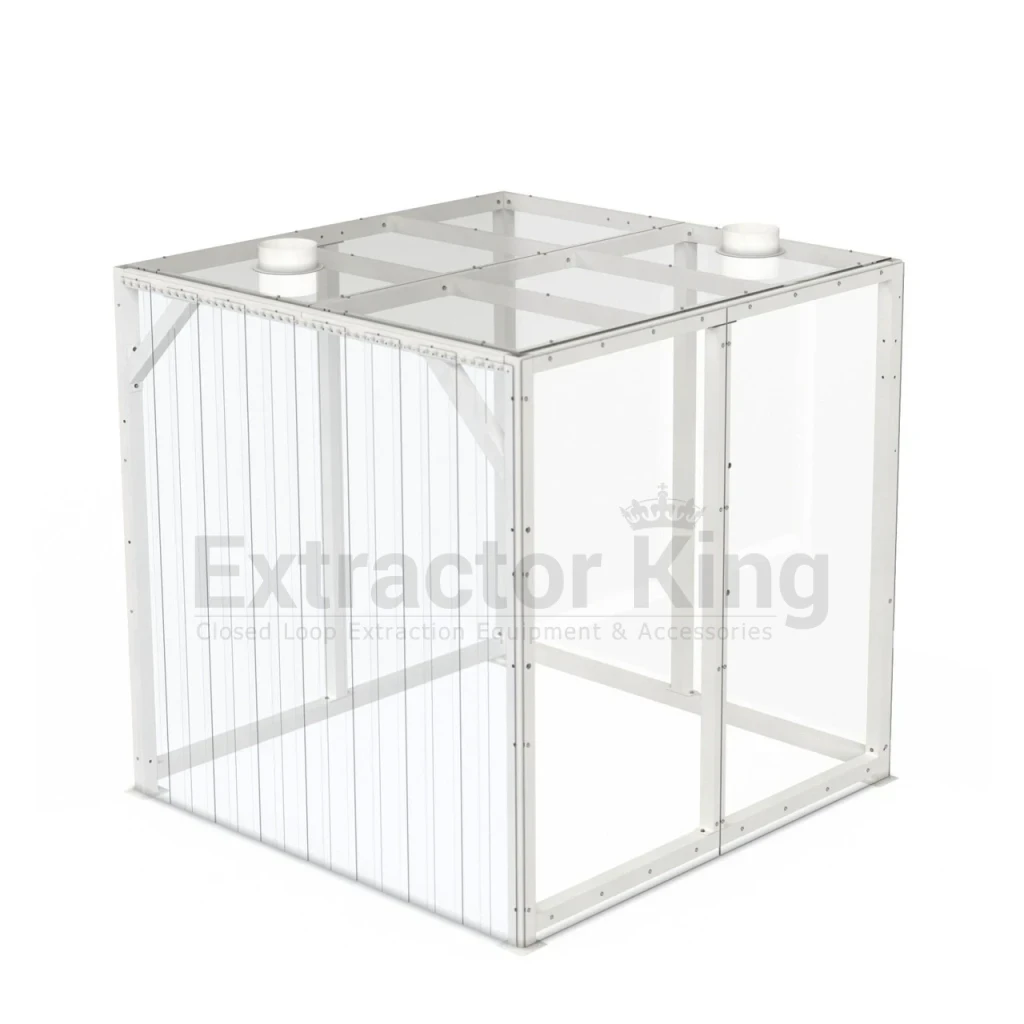

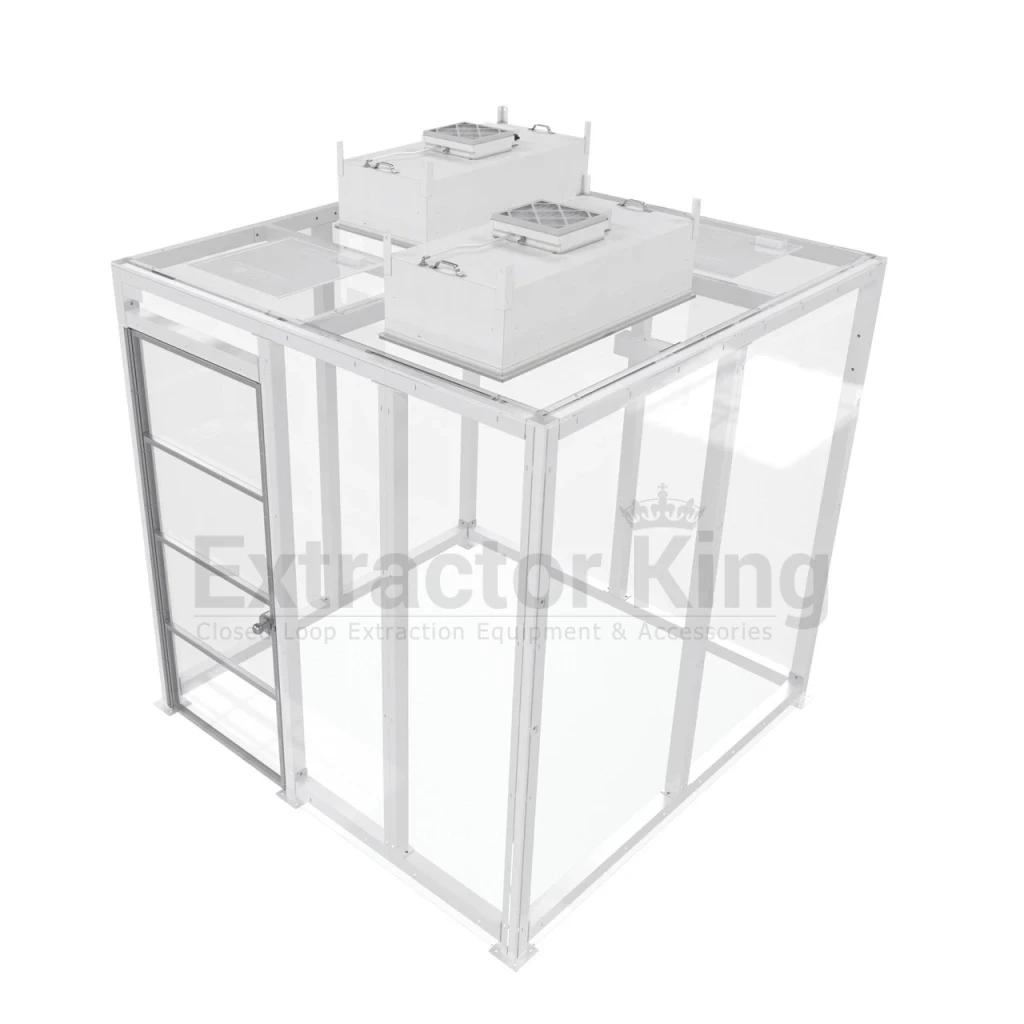

Built with a heavy-duty powder-coated steel frame, 1/4” twin-wall polycarbonate walls, and a door engineered in-house to optimize downward laminar flow, the Sentry Air Systems Quick Ship Walk-in Modular Cleanroom uses 1 or 2 fan filter units to draw in ambient air, remove contaminants, and deliver cleansed air into the enclosed workspace.
Each fan filter unit provides up to 650 CFM at maximum speed and features a HEPA filter rated up to 99.97% efficiency on particles 0.3 microns and larger. With room-side serviceability, optional remote control, integrated LED lighting, and easy relocation, this cleanroom is ideal for pharmaceutical, electronics, medical, food, and inspection applications.
Electrical connection must be hardwired by a qualified electrician.
Custom Walk-in Cleanrooms are also available with an estimated 4–5 week lead time after design approval.
Positive-pressure modular cleanroom with LED lighting, room-side serviceable FFUs, and simple installation.
Why this Quick Ship Walk-in Modular Cleanroom?
- Fast cleanroom deployment — ships in as little as 5 business days for quicker project turnaround.
- Efficient clean air design — positive-pressure enclosure with downward laminar flow for cleaner working conditions.
- High-performance filtration — HEPA-filtered fan filter units capture airborne contaminants down to 0.3 microns.
- Service-friendly system — room-side serviceable FFUs with PAO port for testing and optional remote control.
- Flexible applications — ideal for compounding, electronics, medical devices, food packaging, robotics, and temporary cleanroom use.
Technical Specifications
| Model | Walk-in Modular Cleanroom |
|---|---|
| ISO Rating | Up to Static ISO Class 7 |
| Full Dimensions | 96.5” x 96.5” x 113” |
| Outer Dimensions | 96.5” x 96.5” x 96” |
| Interior Dimensions | 90” x 90” x 93” |
| Door Dimensions | Width: 36.5”; Height: 85” |
| Frame Material | 3” x 3” powder-coated steel structural tubing |
| Wall Material | 1/4” clear twinwall polycarbonate |
| Cleanroom Weight | 800 - 900 lbs |
| LED Lights | 2’ x 2’ LED Even-Glow, 4400 lumens, 40 W, 0.33 A |
| Warranty | Limited one-year warranty from date of shipment on defects due to materials or workmanship |
| Model | Fan Filter Unit |
|---|---|
| FFU Cabinet Material | Powder coated carbon steel |
| FFU Dimensions | 48” L x 24” D x 17” H |
| FFU Weight | 90 lbs |
| FFU Airflow | 650 CFM (max speed) |
| FFU Service Side | Room-side serviceable |
| FFU Motor | EC motor |
| Electrical | Hardwired by an electrician; 120/1/60, 2.2 amps; Max power input: 175 W |
| Filter Type | HEPA [up to 99.97% efficiency on particles 0.3 microns and larger] |
| Sound Level | 65 dba when running at the speed to meet ISO 7 |
FAQ
All items are carefully packaged to ensure safe delivery. In the rare event that your item arrives damaged, please notify us within 3 days of receipt. We will promptly provide a replacement or issue a refund.
Please note that any damage occurring after delivery is not covered under warranty. We appreciate your understanding and your trust in our products.
Specifications
| Warranty Term | 1 Year |
