  5. Julabo MS-1000F Magio Chiller Heater
New

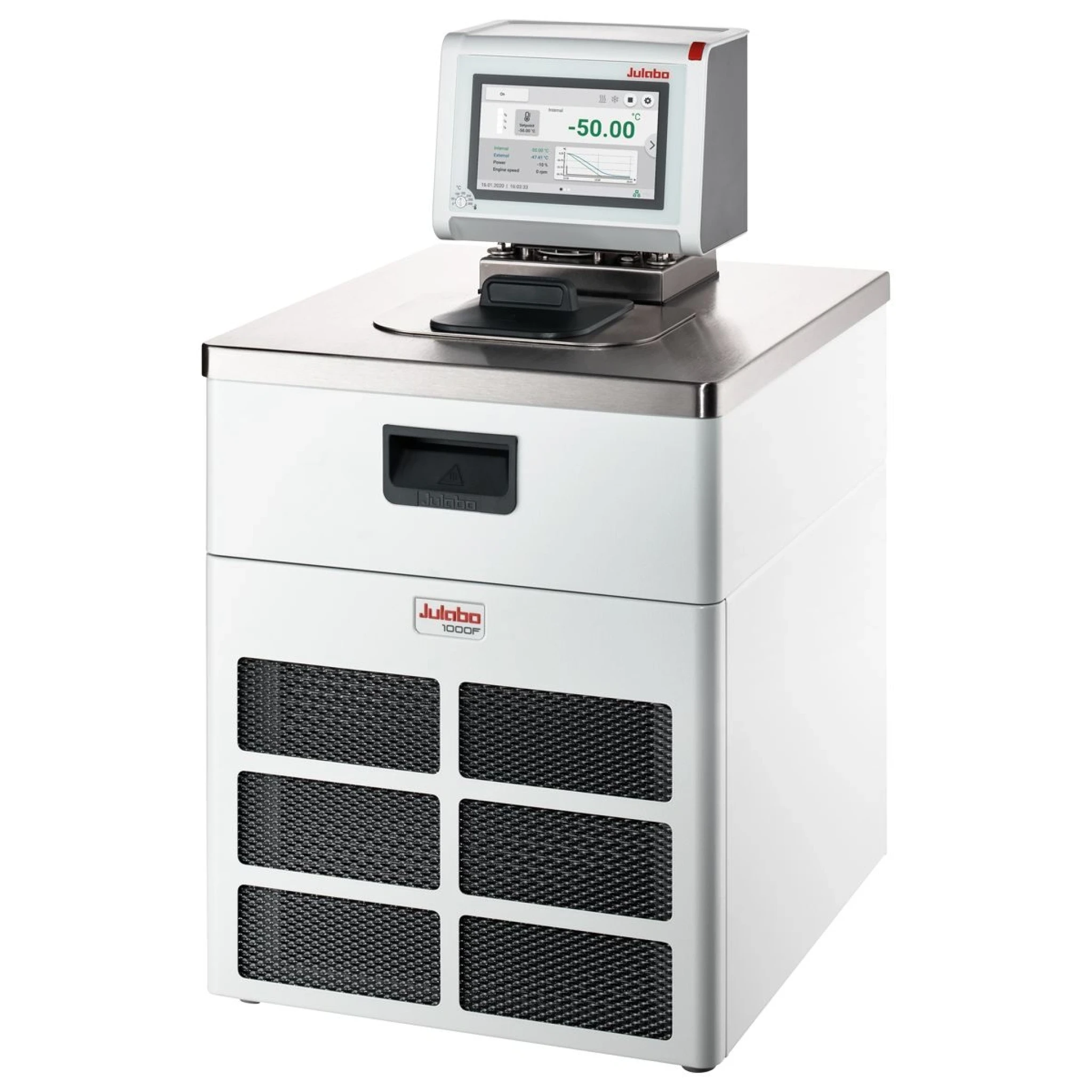

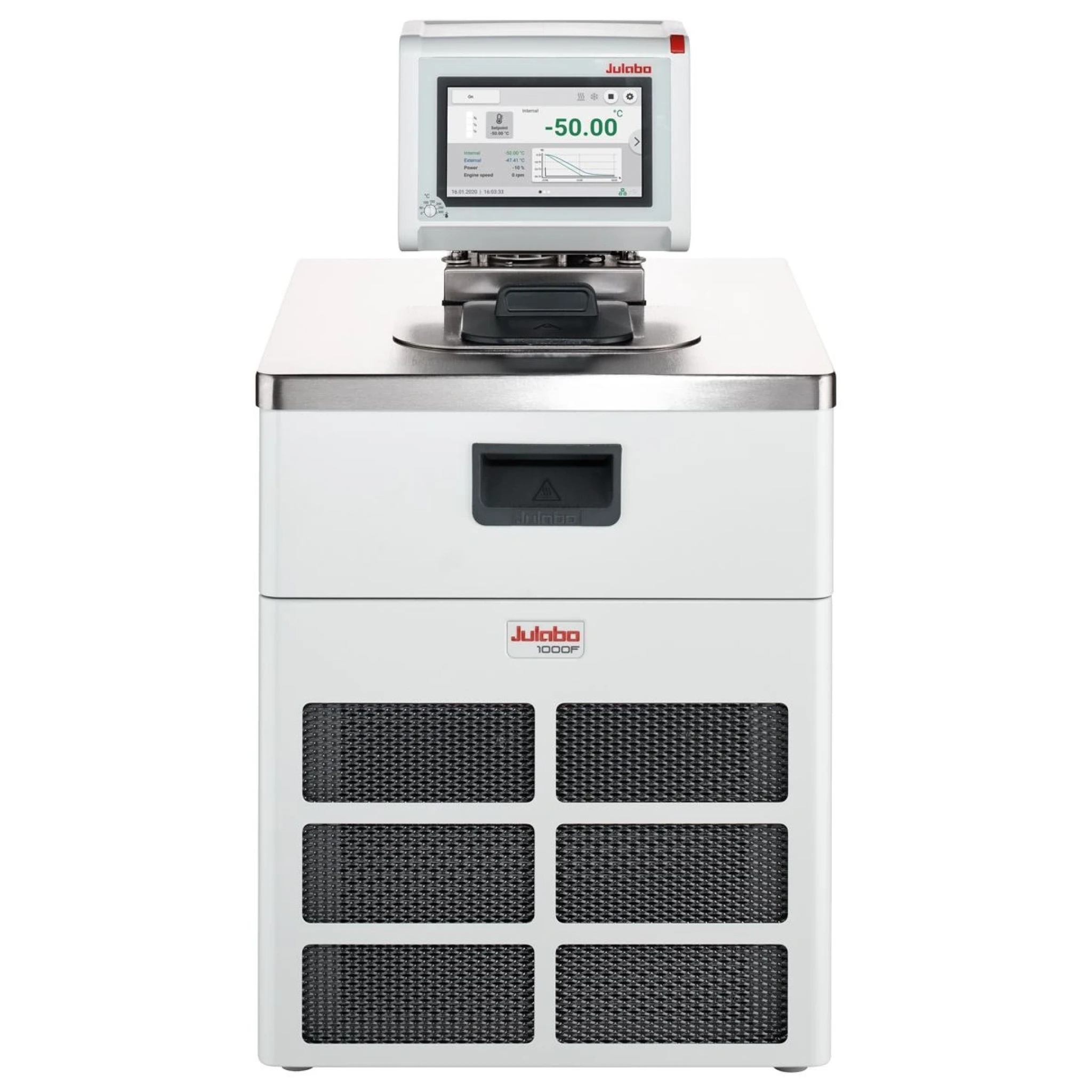

Julabo MAGIO MS-1000F Chiller Heater, white cabinet with touchscreen head, steel top and vented lower panels

Julabo MS-1000F Magio Chiller Heater

Reference:

Manufacturer:

MAGIO™ refrigerated/heating circulators are suitable for temperature applications with circulation to an external apparatus or immersing a device in the bath tank. Refrigeration combinations afford low temperature capabilities from -30 °C to -50 °C with an upper temperature limit of 200 °C. The MAGIO™ MS circulator incorporates easy operation via a large color TFT touchscreen. Unit fittings M16x1 male threaded adapters including a pair of 8 and 12 mm hose barbs. A multi-lingual interface, integrated programmer, Pt100 port for external temperature control, RS232/RS485, USB and Ethernet connections for external PC control and data-logging. Modbus TCP/IP incorporated. Stakei port for external accessory control (solenoid valve, etc.). PID temperature control provides ±0.01 °C stability. Infinitely variable centrifugal pressure/suction pump capacity of 16-31 L/min with pressure to 3.4-13.3 psi. Stainless steel bath tanks with integrated drain port. 115V version with 1 kW heating power; 230V version with 2 kW heating power.

Included with each unit: 2 each barbed fittings for tubing 8 and 12 mm inner dia. (pump connections M16x1 male).

CAD $34,025.63

Customize your product

Payment Providers
Payment Providers
Add to wishlist

More info

(Canadian and US NRTL Certified for both 110v & 220v)

Features:

  • TFT Color Touchscreen
  • Multilingual
  • Input for setpoints, warning/safety values and menu functions
  • ICC (Intelligent Cascade Control), self-optimizing temperature control
  • ATC3 3-Point-Calibration
  • Pt100 External sensor connection for measurement and control
  • Continuously variable pressure/suction pump
  • Early warning system for low liquid level (DBGM 203 06 059.8)
  • Adjustable high temperature cut-out, visible via display
  • RS232/RS485, USB and Ethernet interface for online communication
  • Integrated programmer
  • Built-in drain tap

Julabo MS-1000F Ai glass reactor package with adapters and tubing

  • QTY2. P/N8930222 1.5m single insulated tubing, M16x1 f x 2
  • QTY2. P/N 8891243 M16x1 m/m adapter x 2
  • QTY1. P/N 8890071 Pair, M16x1 f to M24x1.5 m x 1
  • QTY1. P/N 8891661 Pair, M24x1.5 f to NPT 3/4" male x 1

Julabo MS-1000F Ai glass reactor package with adapters, tubing, and fluid

  • QTY2. P/N8930222 1.5m single insulated tubing, M16x1 f x 2
  • QTY2. P/N 8891243 M16x1 m/m adapter x 2
  • QTY1. P/N 8890071 Pair, M16x1 f to M24x1.5 m x 1
  • QTY1. P/N 8891661 Pair, M24x1.5 f to NPT 3/4" male x 1
  • QTY1. P/N 8891402 Julabo Thermal C5 - 10 Liter x 1
  • QTY1. P/N 8891403 Julabo Thermal C5 - 5 Liter x 1

Standard Package

Julabo MS-1000F Magio Chiller Heater1 pc
Power Cord1 pc
Caps and Nuts M16x1 (Item Installed On Pump Head of Unit)4 pc
8 mm Hose Barbs2 pc
12 mm Hose Barbs2 pc
User's Manual1 pc
