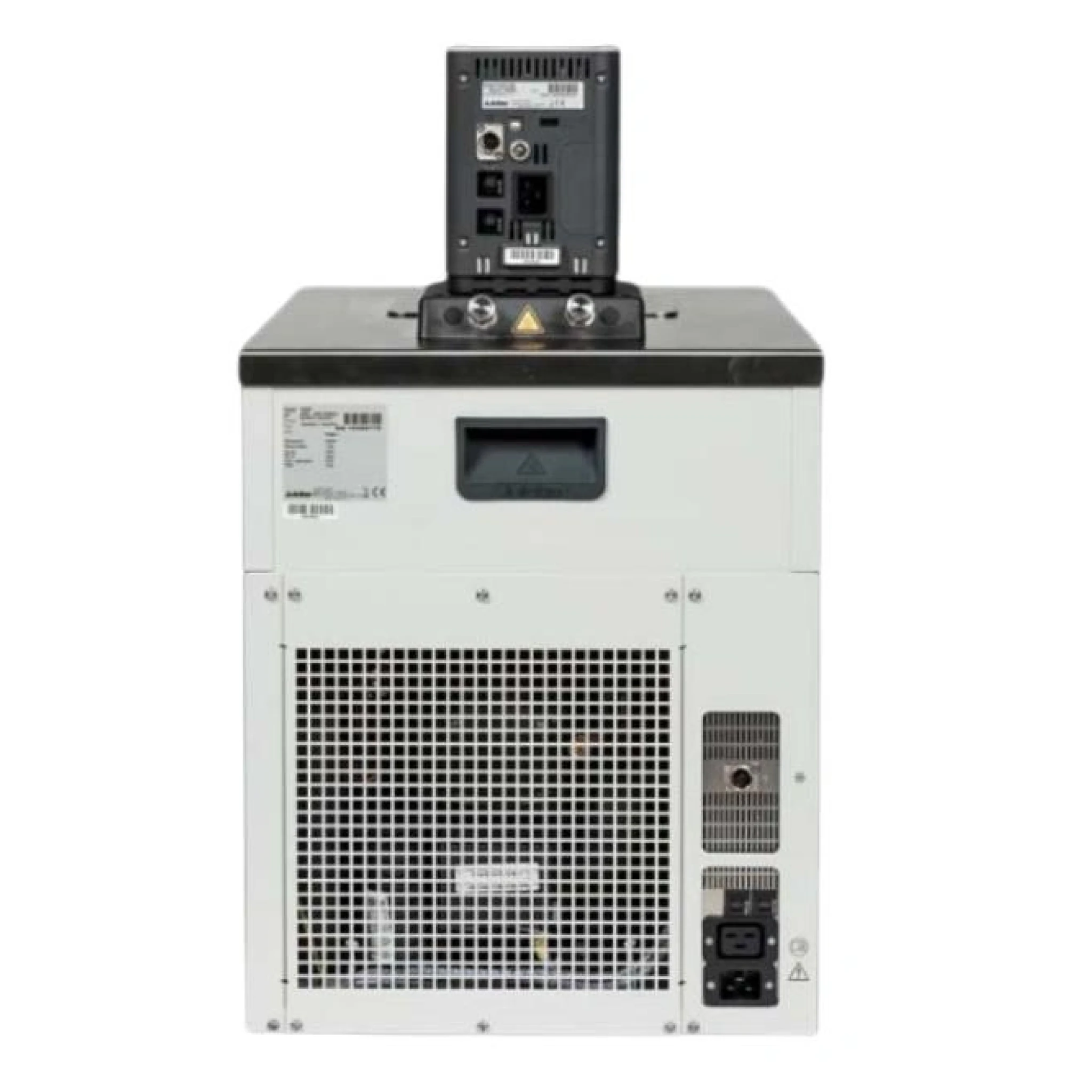

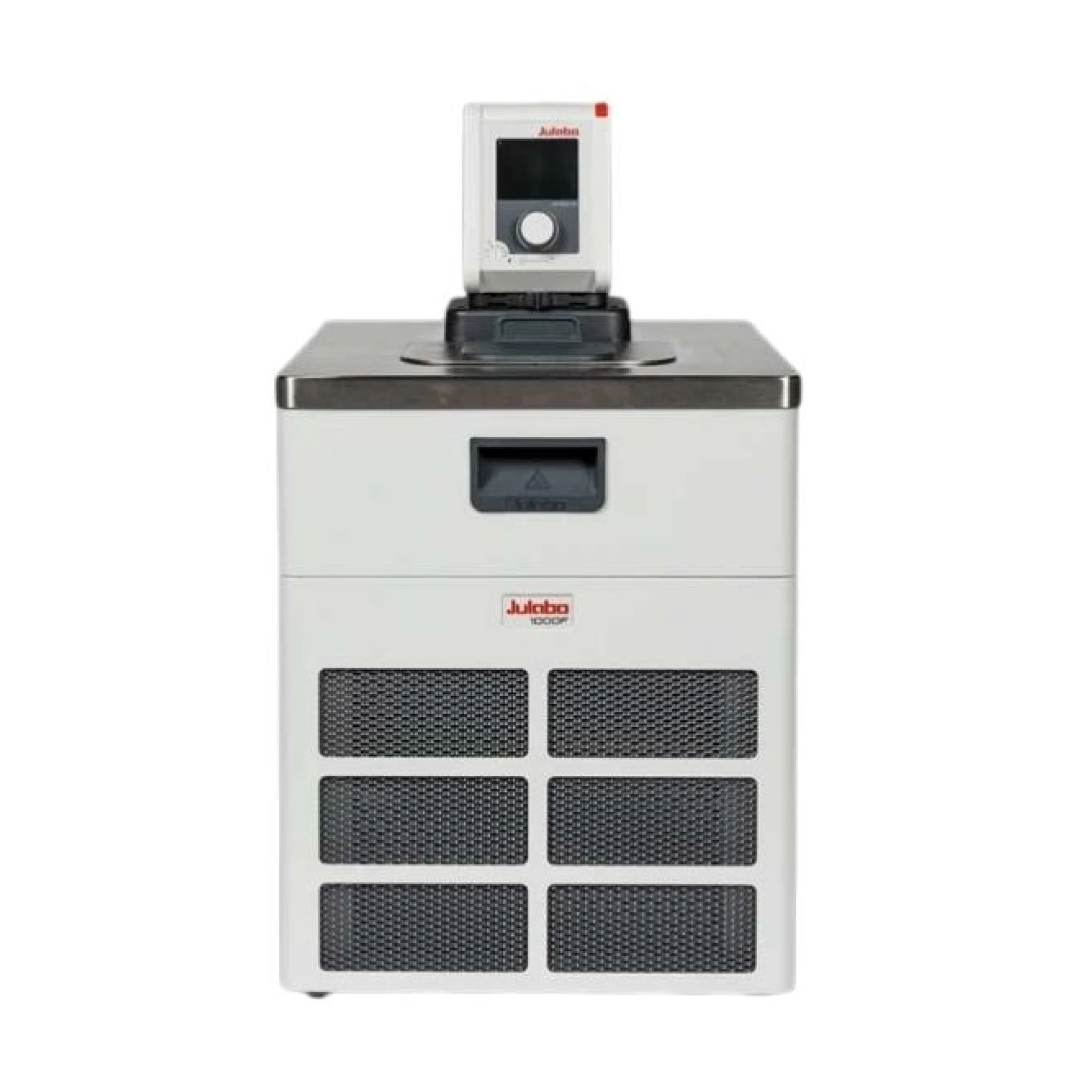

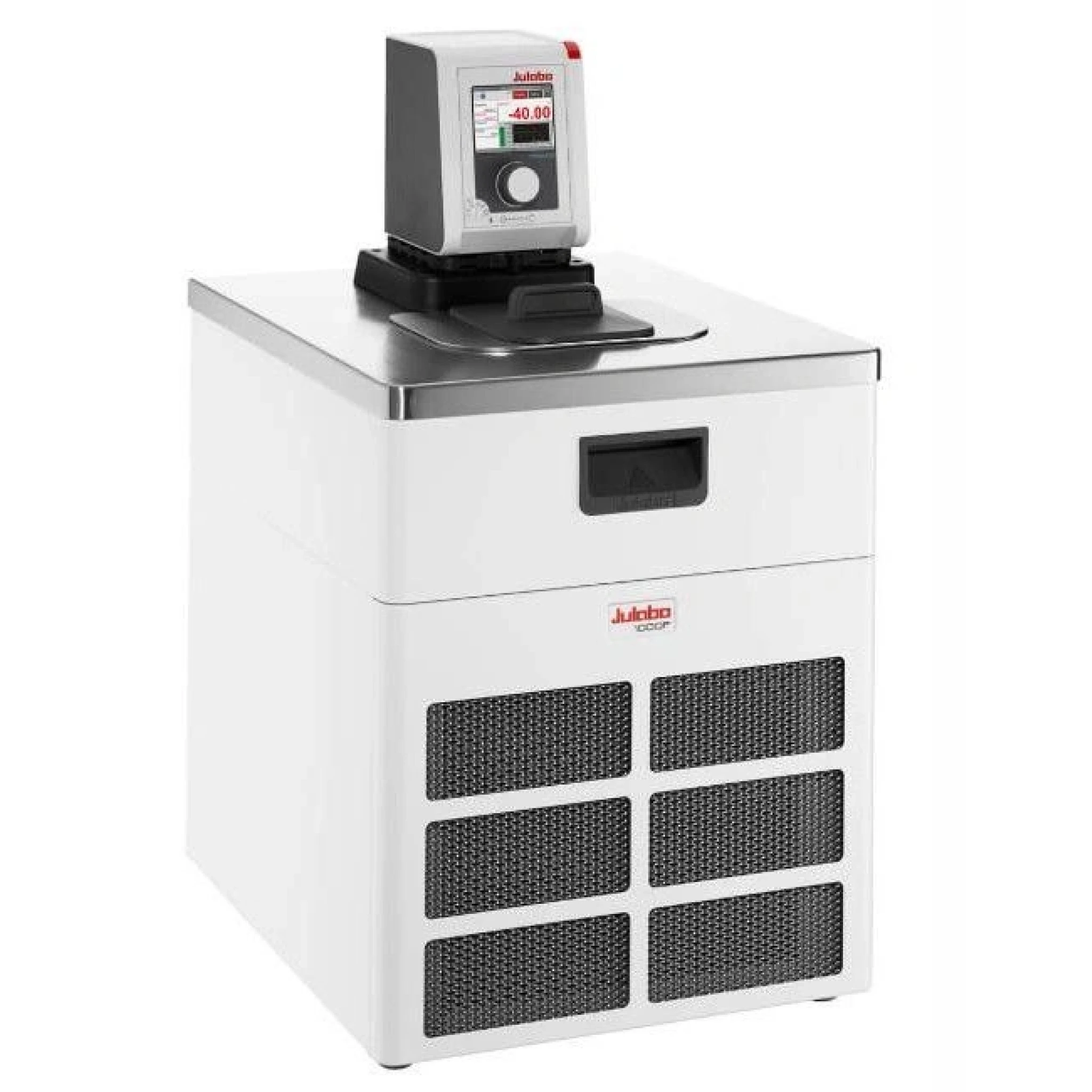

Julabo DYNEO DD-1000F -50C +200C Refrigerated/Heating Circulator

Reference:

Manufacturer:

DYNEO™ refrigerated/heating circulators are suitable for temperature applications with circulation to an external apparatus or immersing a device in the bath tank. Refrigeration combinations afford low-temperature capabilities from -20 °C to -50 °C with an upper-temperature limit of 200 °C. The DYNEO™ DD circulator incorporates easy change-over for control of fluid circulation internally or externally. Unit fittings M16x1 male threaded adapters including a pair of 8 and 12 mm hose barbs. A color TFT display with a central rotary knob controller includes a multi-lingual interface, integrated programmer, Pt100 port for external temperature control, USB connection for external PC control, and data-logging with digital options including RS232 port or an analog module interface for voltage or current control. PID temperature control provides ±0.01 °C stability. Infinitely variable centrifugal pump capacity of 8-27 L/min with pressure to 1.5-10.2 psi. Stainless steel bath tanks with integrated drain port.
Class III (FL) according to DIN 12876-1.

Included with each unit: 2 each barbed fitting for tubing 8 and 12 mm inner dia. (pump connections M16x1 male)

In stock

Operation manual

CAD $28,218.38

Earn CAD $282.18 King's Cash Back (1% on orders of CAD $100.00+, with an account) Details

Optional Must Have Accessories
  Inhibited Ethylene Glycol -50°C, Industrial, white plastic jug with a large printed safety label  Ethylene Glycol Inhibited Industrial Grade -50c
+CAD $272.81
  3/8" Reinforced Vacuum Chilling Tubing, close-up of coiled beige tubing with cut end  3/8" Reinforced Food Grade Vacuum Chilling Tubing -60C to +135C
+CAD $48.63

Customize your product

Payment Providers
Payment Providers
Add to wishlist

(Canadian and US NRTL Certified for both 110v & 220v)

Features:

  • Powerful cooling machines
  • Suitable for internal and external applications
  • Optimized cooling coil design saves space in the bath tank
  • Powerful and infinitely adjustable pressure pump
  • Flow rate 27 l/min, pressure 8.7 psi
  • Easy switching between internal and external circulation
  • Large color TFT display, multilingual interface
  • The central rotary knob (controller) simplifies the operation
  • Integrated programmer for 8 x 60 program steps
  • Integrated external Pt100 connection
  • USB port
  • RS232 interface or analog interfaces (optional)
  • Bath cover included with delivery
  • An integrated drain makes emptying liquid easy and safe.

Julabo DD-1000F Ai glass reactor package with adapters and tubing

  • QTY2. P/N8930222 1.5m single insulated tubing, M16x1 f x 2
  • QTY2. P/N 8891243 M16x1 m/m adapter x 2
  • QTY1. P/N 8890071 Pair, M16x1 f to M24x1.5 m x 1
  • QTY1. P/N 8891661 Pair, M24x1.5 f to NPT 3/4" male x 1

Julabo DD-1000F Ai glass reactor package with adapters, tubing, and fluid

  • QTY2. P/N8930222 1.5m single insulated tubing, M16x1 f x 2
  • QTY2. P/N 8891243 M16x1 m/m adapter x 2
  • QTY1. P/N 8890071 Pair, M16x1 f to M24x1.5 m x 1
  • QTY1. P/N 8891661 Pair, M24x1.5 f to NPT 3/4" male x 1
  • QTY1. P/N 8891402 Julabo Thermal C5 - 10 Liter x 1
  • QTY1. P/N 8891403 Julabo Thermal C5 - 5 Liter x 1
