24-Ton Pellet Press with Hydraulic Pump & Safety Shield
Reference: MP24A
Manufacturer: Across International

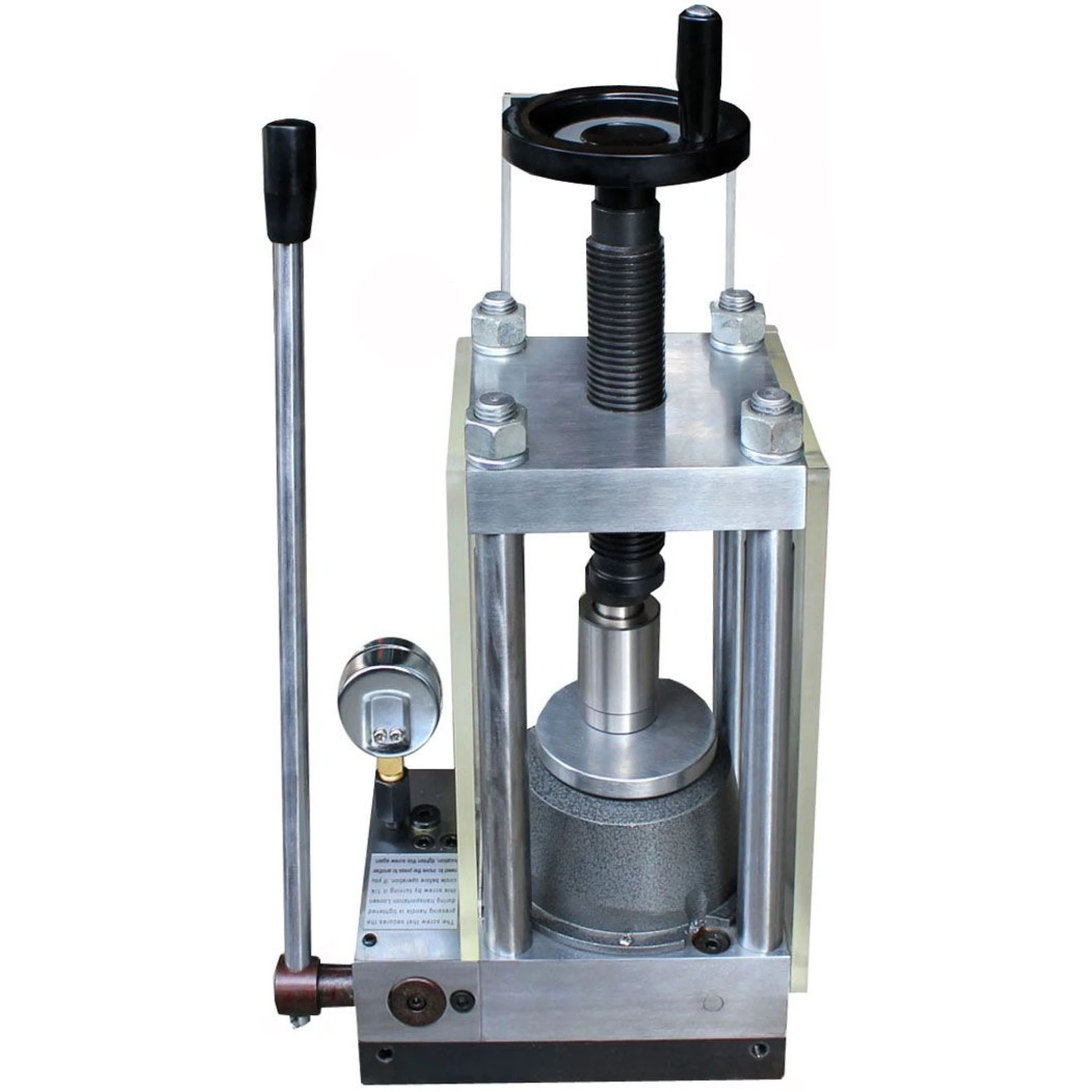

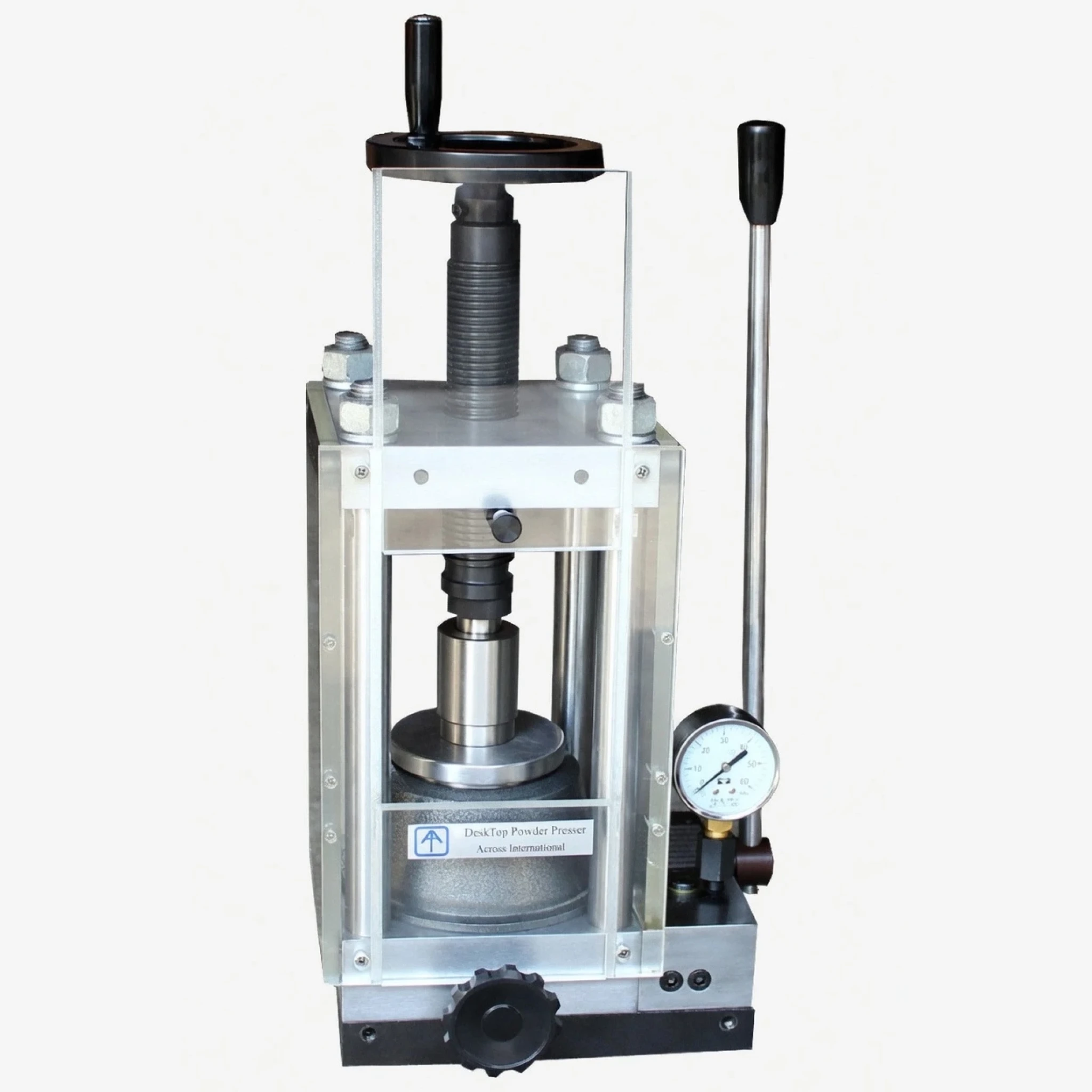

MP24A desktop dry manual pellet presses can press up to 24 metric tons. They are frequently used in materials and chemistry research laboratories to prepare compound samples. These presses have built in hydraulic pump with auto return function and 10mm thick transparent safety shield.
In stock
Optional Must Have Accessories
|
Sealing Gasket Set for Across International's Pellet Presses | +CAD $30.80 |
Payment Providers
Caution: always wear protective goggles during operation!

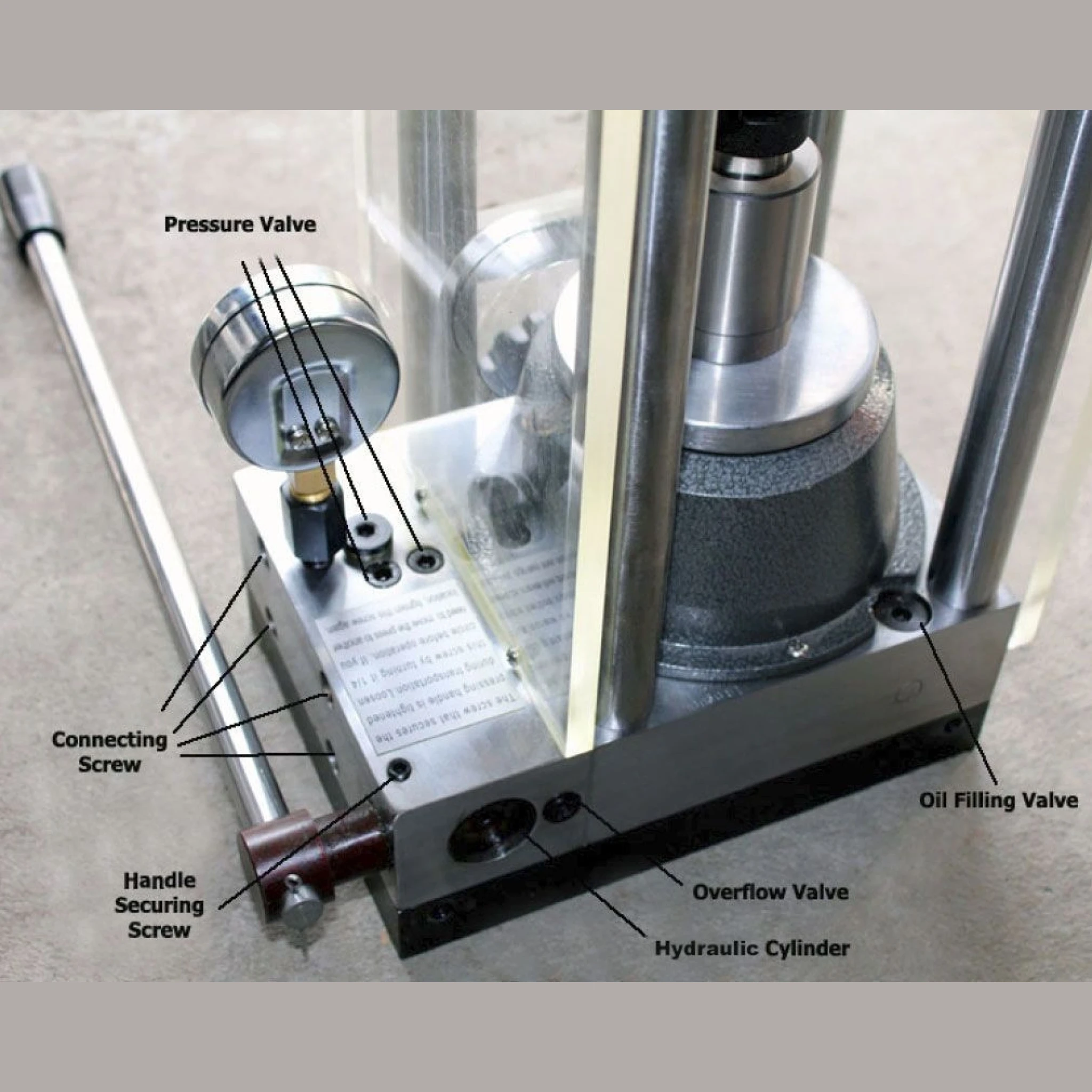

The MP24A compresses powders into dense, even pellets so compound samples are ready for testing and analysis. Force is built with a hand-operated hydraulic pump, so the press needs no power supply.

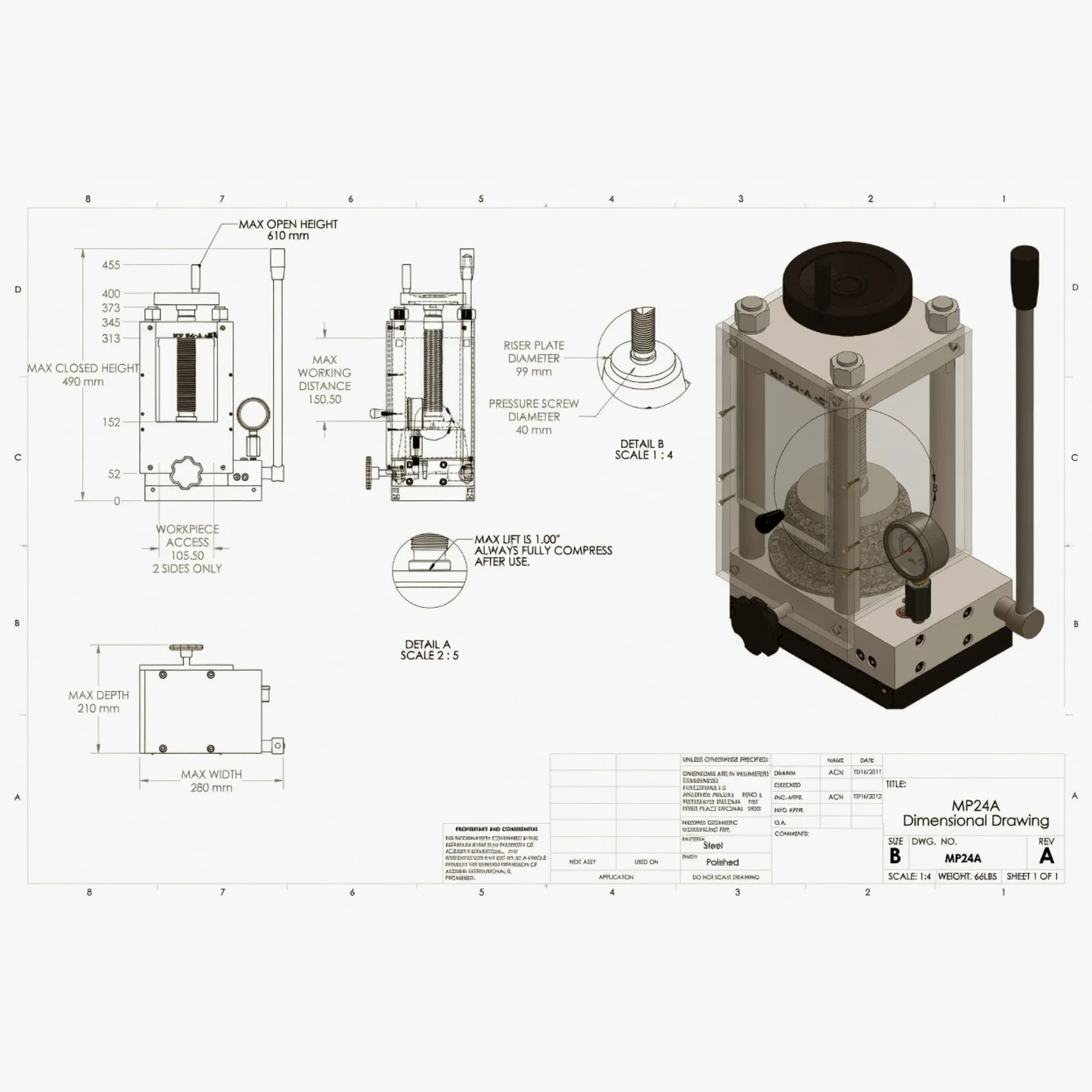

Its 4 x 4 x 5.5 inch working space takes Across International round die sets up to 2 inch ID; 2x2 inch pressing dies will not fit. Dies are sold separately in a range of diameters. For the same tonnage, a smaller die puts more pressure on the sample, so choose the die size to suit the material.
At 10.5 x 8 x 19 inches and 84 Lb, the press fits on a sturdy lab bench, and the transparent shield stays between the operator and the die during pressing.
| Maximum pressure | 24 metric tons (52,910 Lb) |
| Maximum working space | 4x4x5.5" (LxWxH) |
| Largest compatible die set | Across International 2" ID round die sets |
| Hydraulic cylinder travel distance | 1 inch |
| Machine dimension | 10.5x8x19" (LxWxH) |
| Machine weight | 84 Lb |
| Shipping weight | 110 Lb |
| Shipping dimension | 15x15x22" |

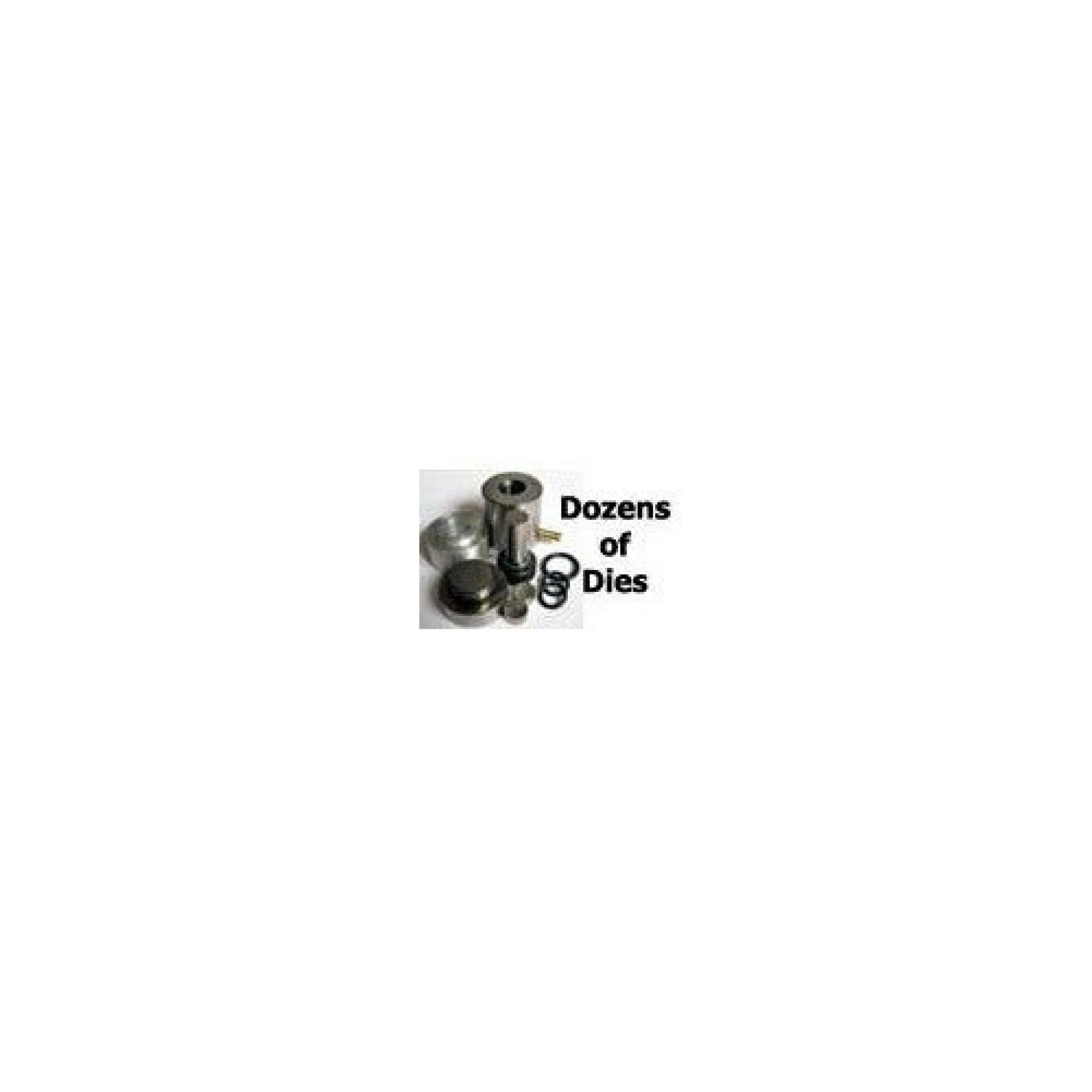

| Pressing dies | Various diameter dies available at extra cost |
Standard Package
| MP24A pellet press | 1 pc |
| Oil bottle | 1 pc |
| Hex L-key | 2 pcs |
| Double open-end wrench | 3 pcs |
| Sealing o-ring | 1 pc |
| Operation manual | 1 pc |
