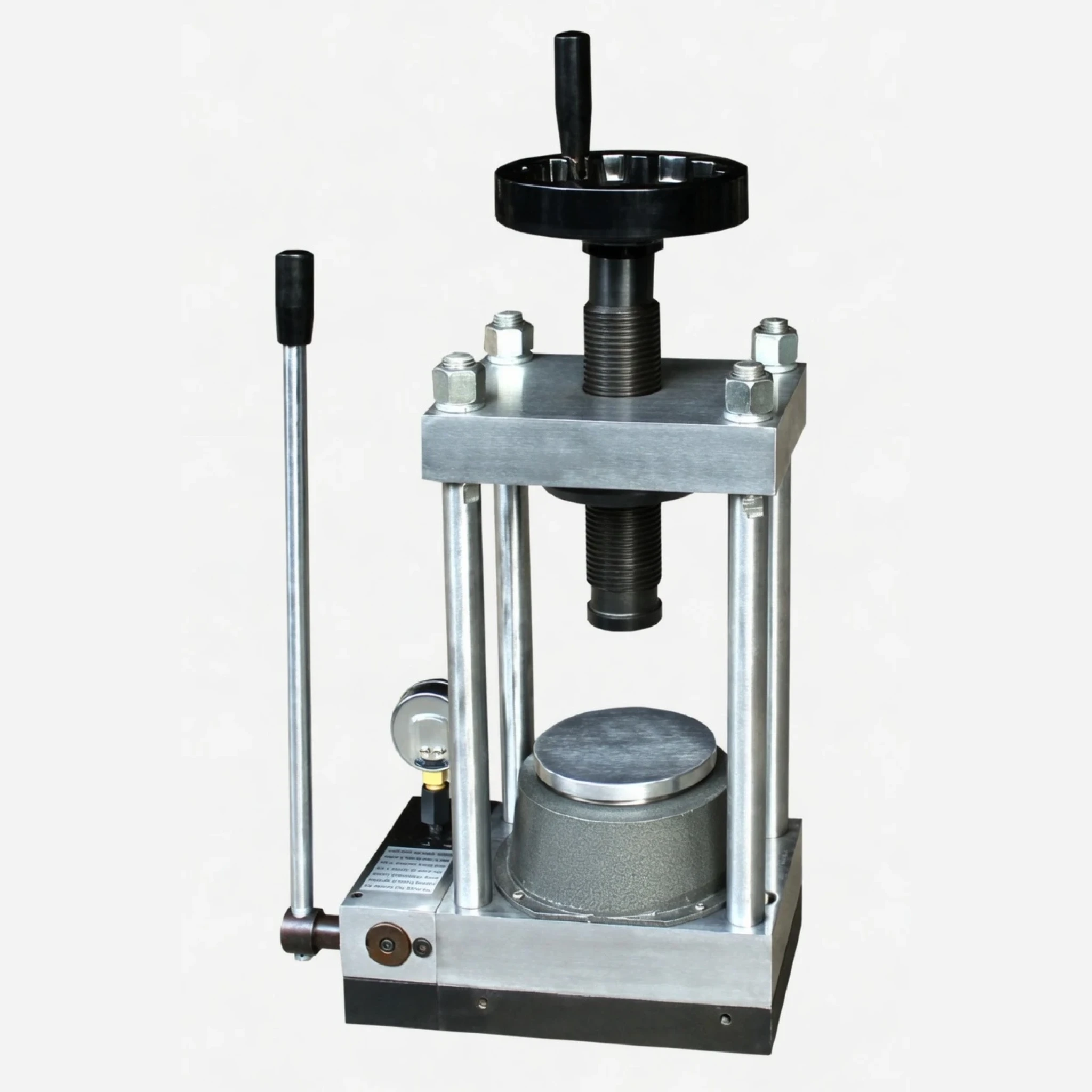

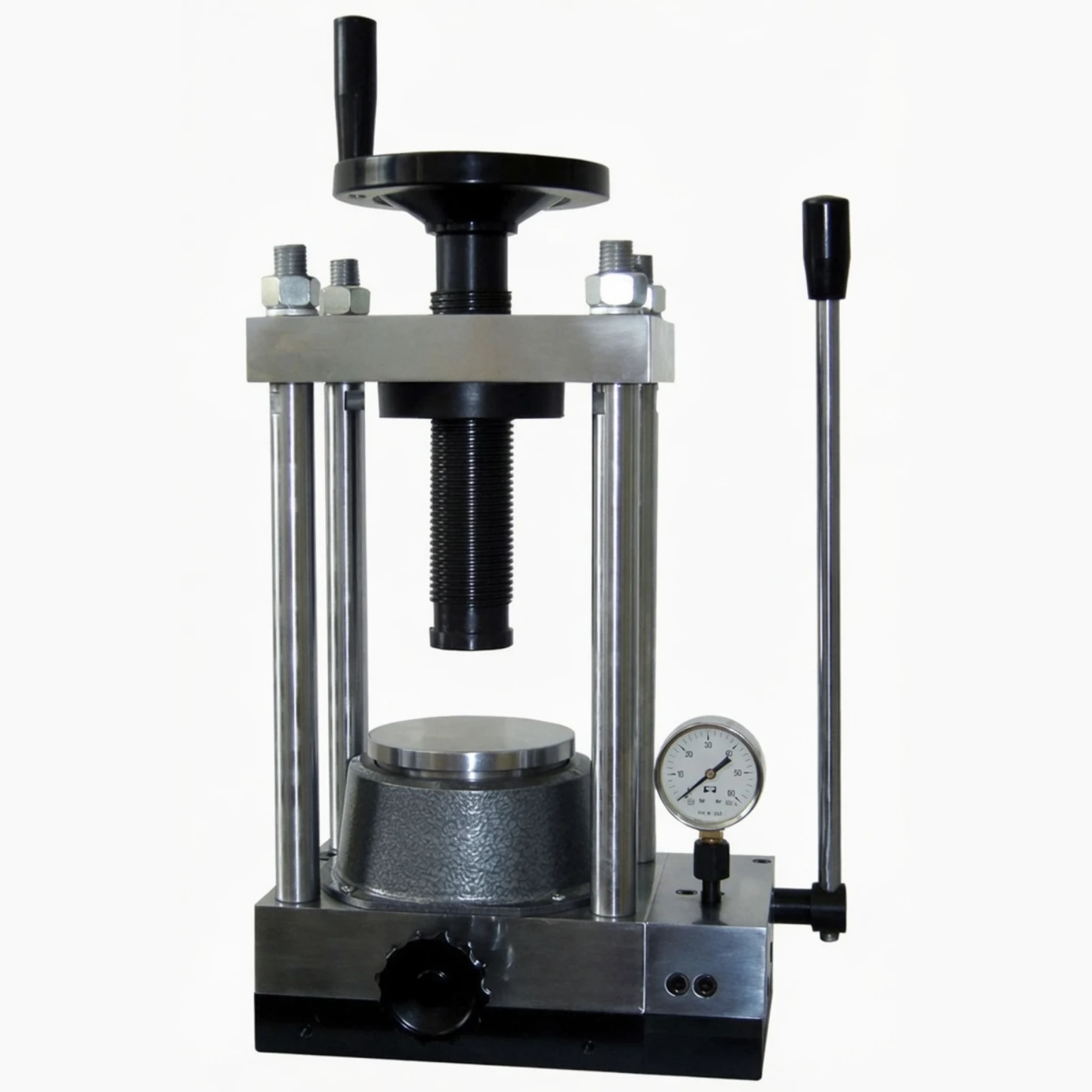

40-Ton Laboratory Pellet Press with Built-in Hydraulic Pump
Reference: MP40A
Manufacturer: Across International
40-Ton Laboratory Pellet Press with Built-in Hydraulic Pump
In stock
Optional Must Have Accessories
|
Sealing Gasket Set for Across International's Pellet Presses | +CAD $30.80 |
Payment Providers
MP40A desktop manual pellet presses can press up to 40 metric tons. It is frequently used in materials and chemistry research laboratories to prepare compound samples. It has built in hydraulic pump with auto return function. Great for operation in a glove-box under oxidizing and inert gas atmosphere as well.
Caution: always wear protective goggles during operation!
The MP40A is sized for larger pellets and powders that need more force to compact. Its 6.1 x 4 x 6.7 inch working space takes Across International round die sets up to 4 inch ID, and pressing dies in other diameters are sold separately.
For the same load, a smaller die puts more pressure on the sample, so one press can cover a wide range of materials by changing the die. The hand pump builds force smoothly, letting the operator bring the load up gradually and watch the sample.
The frame measures 13 x 8 x 22 inches and weighs 120 Lb, so plan for a solid bench. Oil, hex keys, wrenches, spare o-rings and the manual are included.
| Maximum pressure | 40 metric tons (88,185 Lb) |
| Maximum working space | 6.1x4x6.7" (LxWxH) |
| Largest compatible die set | Across International 4" ID round die sets |
| Hydraulic cylinder travel distance | 1 inch |
| Machine dimension | 13x8x22" (LxWxH) |
| Machine weight | 120 Lb |
| Shipping weight | 150 Lb |
| Shipping dimension | 21x15x24" |
| Pressing dies | Various diameter dies available at extra cost |
Standard Package
| MP40A pellet press | 1 pc |
| Oil tin | 1 pc |
| Hex L-key | 2 pcs |
| Double open-end wrench | 3 pcs |
| Sealing o-ring | 4 pc |
| Operation manual | 1 pc |
